Pioneer DMH-WT8600NEX 10.1" Multimedia Receiver with Bluetooth, Apple CarPlay (Wired, Wireless), Android Auto (Wired, Wireless), Amazon Alexa Built-in
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

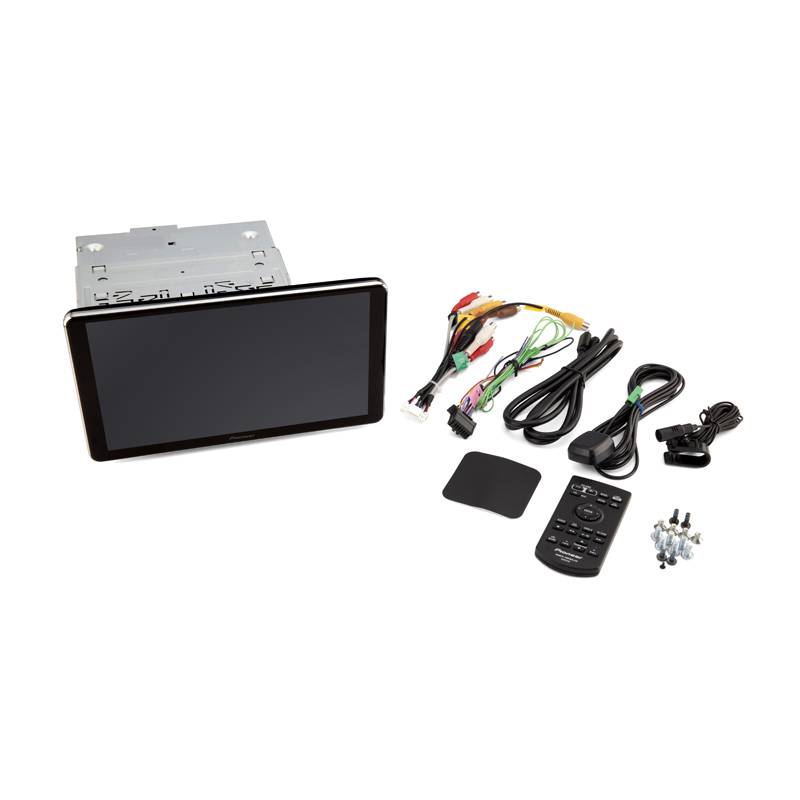

What's Inside?
- • Touchscreen monitor (rear cover pre-installed)
- • Source unit (10A fuse)
- • Wiring harness
- • Preout/AV harness
- • 58" USB-C extension cable
- • USB-C to USB-A adapter
- • Remote control (CXE5116)
- • CR2025 (3)V battery (pre-installed in remote)
- • Microphone w/ bracket (attached 10' cable terminated by a right-angle 2.5mm connector)
- • GPS antenna (attached 11.5' cable)
- • Self-adhesive square
- • (3) Self-adhesive clips
- • Two-sided tape
- • Monitor bracket
- • (24) Various Installation Screws
- • Quick Start Guide
- • Installation Manua
- • "About Alexa Built-In" note
- • Warranty Information
- • "Caution" note
- • "Attaching" The Monitor Cover" note
- • Owner's Manual
Why Choose Pioneer DMH-WT8600NEX Apple CarPlay Receiver?
Big Screen, Big Upgrade

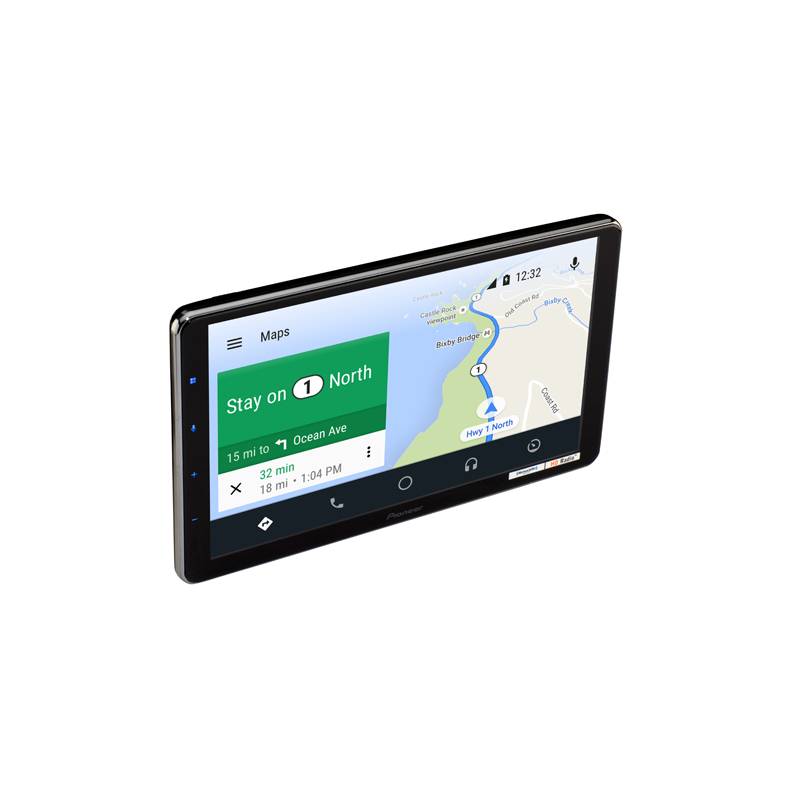

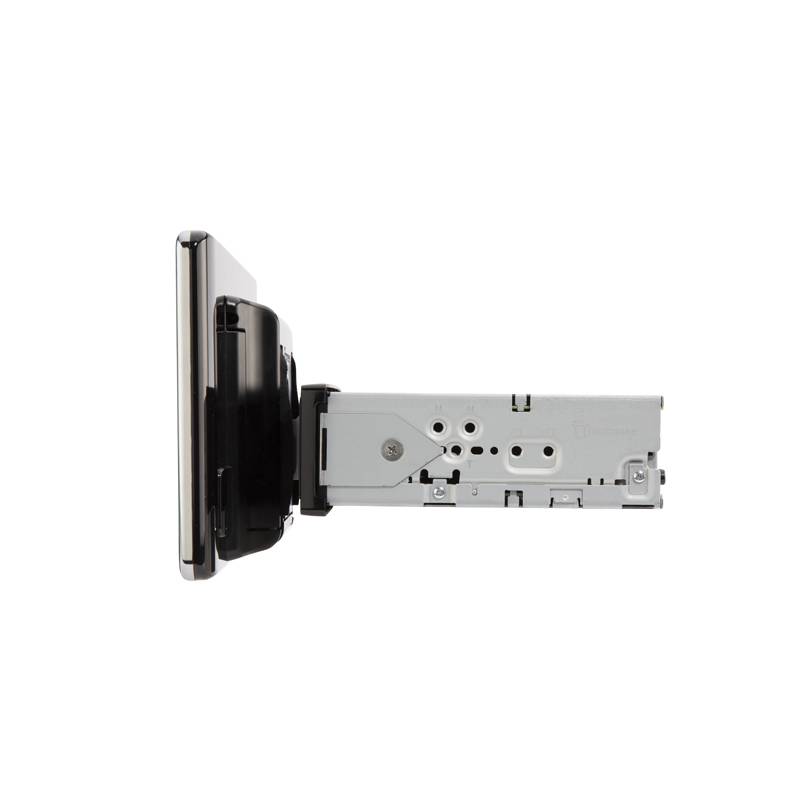

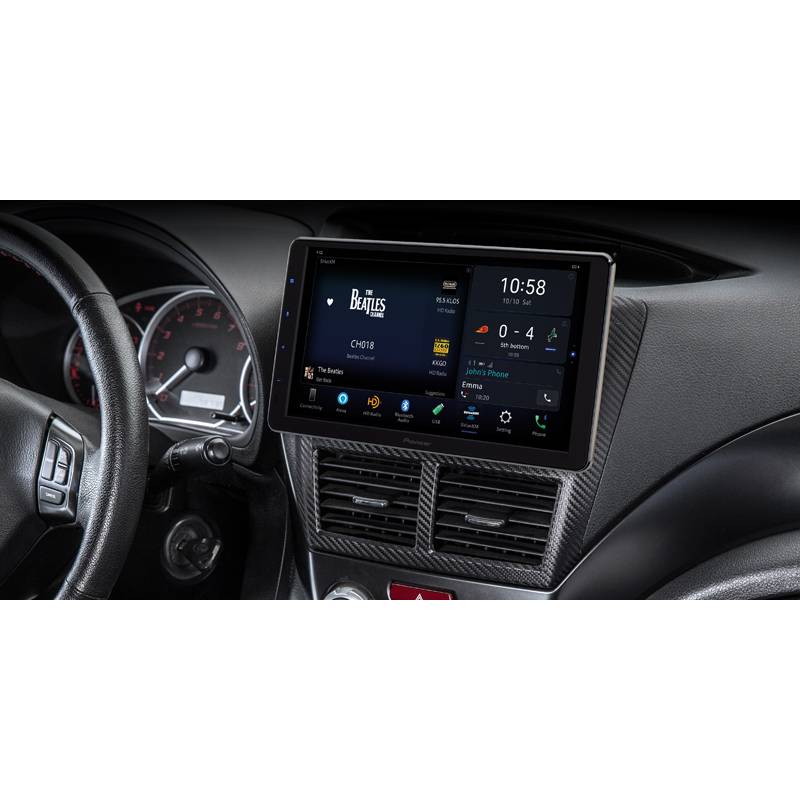

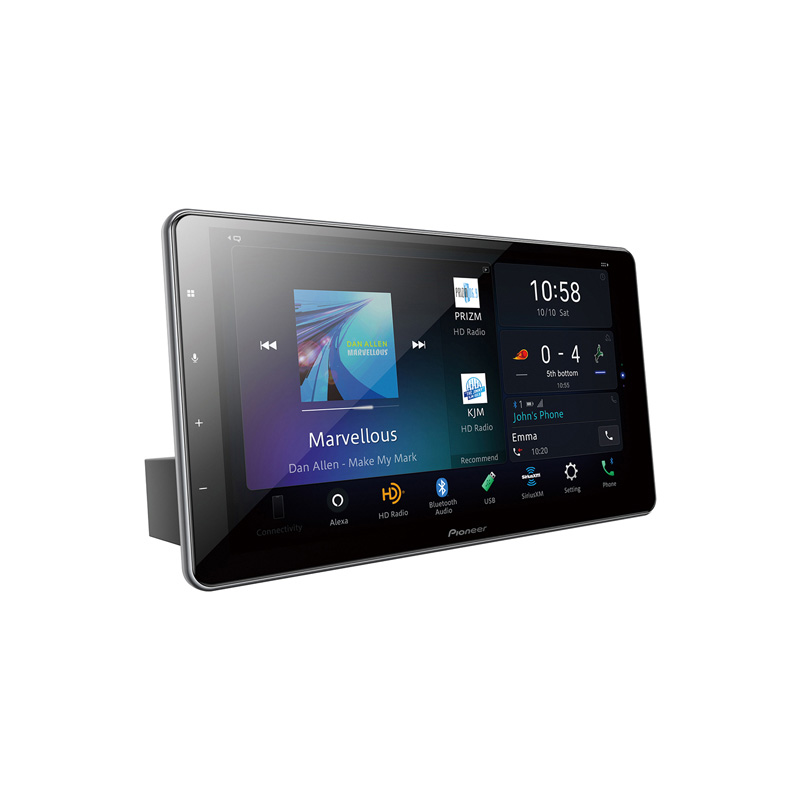

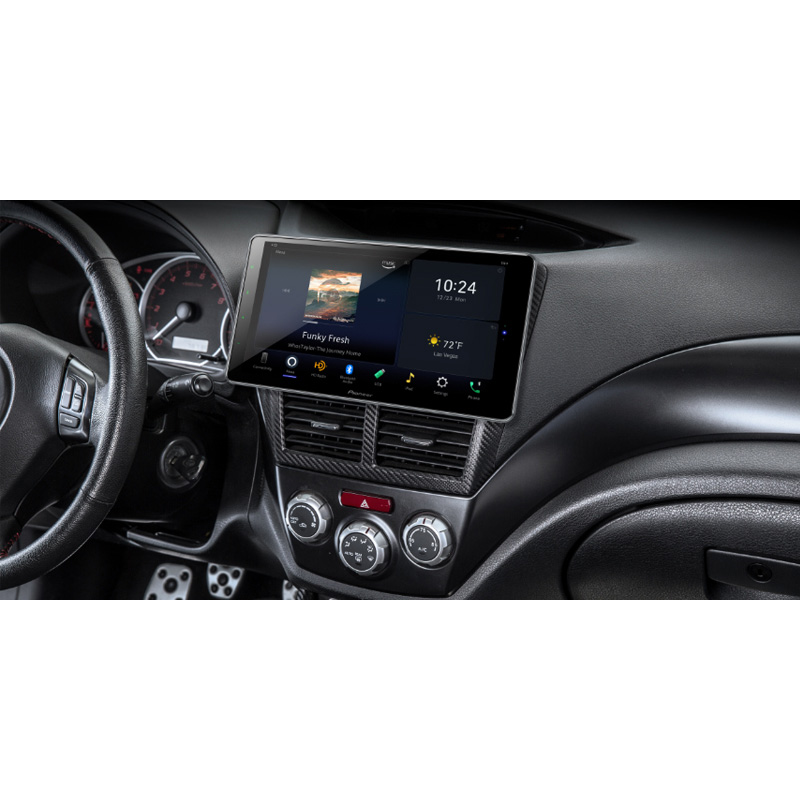

Modernize your dash with the Pioneer DMH-WT8600NEX, featuring a massive 10.1-inch capacitive HD touchscreen (1280x720) paired with a compact single-DIN chassis. Its fully adjustable floating design lets you slide, tilt, and angle the responsive display to achieve the ideal viewing position without blocking factory controls or vents.
Smartphone-Level Connectivity

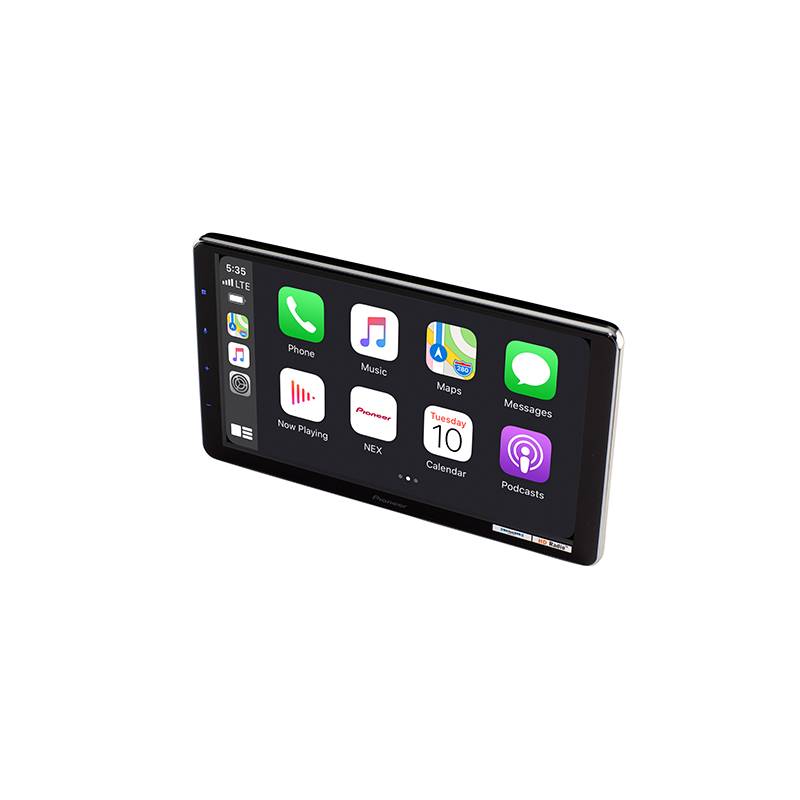

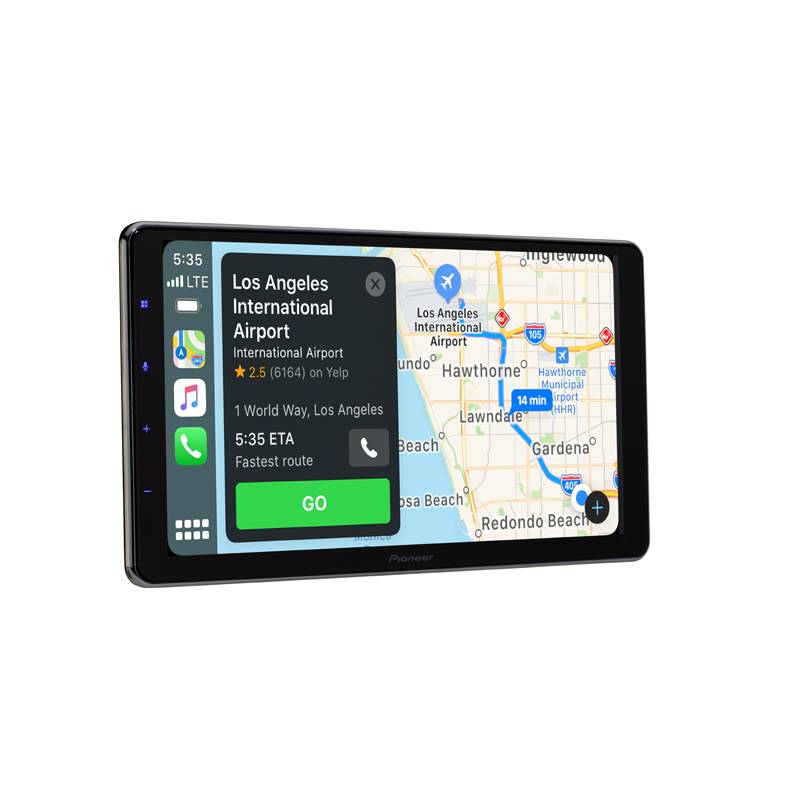

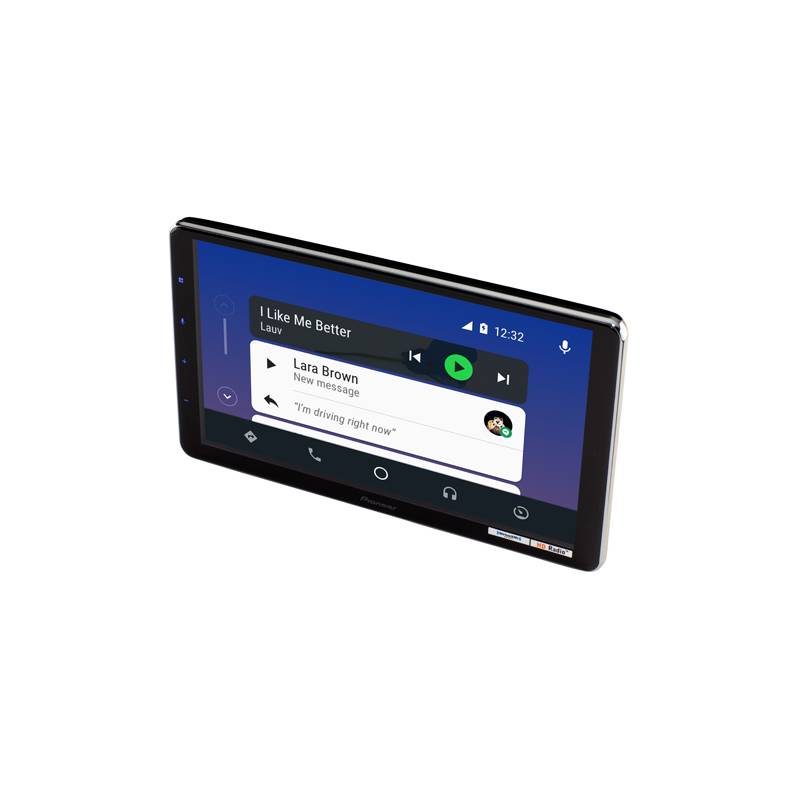

Designed for heavy smartphone users, this unit features wireless Apple CarPlay and Android Auto alongside built-in Wi-Fi for seamless navigation, music, and app access. Amazon Alexa Built-In enables hands-free voice control for smart home devices, weather, and media, while Bluetooth 4.2 with AAC streaming supports effortless dual-phone switching and high-quality audio streaming.
Built for Real Car Audio Enthusiasts
Under the surface, this receiver combines high-resolution audio support (FLAC, WAV, DSD up to 192kHz) with a 24-bit DAC and MOSFET amplification for clean, detailed sound. It offers robust tuning via a 13-band EQ, time alignment, and crossovers, while expanding system capabilities with dual camera inputs, HD Radio, SiriusXM readiness, USB-C fast charging, HDMI/AV inputs, and iDatalink Maestro integration.
Frequently Asked Questions (FAQ)
- • Why won't wireless Apple CarPlay connect automatically?
This usually happens because of old Bluetooth pairing records or disabled Wi-Fi on your iPhone. Remove the existing pairing, enable both Bluetooth and Wi-Fi, and pair the devices again.
- • Why does wireless Android Auto disconnect while I'm driving?
Wireless interference, outdated phone software, or battery optimization settings can interrupt the connection. Updating your phone and disabling battery restrictions for Android Auto often improves stability.
- • Can I adjust the position of the floating touchscreen?
Yes. The floating display can be adjusted for height, depth, and angle to improve visibility and fit different dashboard layouts.
- • Why isn't my backup camera displaying when I shift into reverse?
This is usually caused by an incorrectly connected reverse trigger wire or camera wiring. Verify the reverse signal connection and confirm the camera is receiving power.
- • Why is there no sound even though the screen powers on?
Muted audio settings, incorrect amplifier configuration, or loose speaker wiring can prevent audio output. Check the receiver's audio settings and inspect all amplifier and speaker connections.
- • Why does the receiver forget my settings every time I turn off the car?
This commonly happens when the constant battery wire and ignition wire are connected incorrectly. Correct wiring allows the receiver to retain presets and customized settings.
- • Can I connect front and rear cameras at the same time?
Yes. The receiver supports multiple compatible camera inputs, allowing you to switch between different camera views depending on your installation.
- • Why does Bluetooth music randomly skip or stop playing?
Bluetooth interruptions are often caused by wireless interference or outdated firmware. Updating both the receiver and your smartphone can improve streaming performance.
- • Why isn't the touchscreen responding accurately to my touches?
A temporary software issue or an incomplete installation can affect touchscreen responsiveness. Restart the receiver and verify that the display is mounted securely without obstruction.
- • Why won't the receiver turn on after installation?
A blown fuse, poor ground connection, or incorrect power wiring is the most common cause. Check the fuse, inspect the wiring harness, and verify both the constant and accessory power connections.
- DIN : 1
- Display Size : 10.1 Inch
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : Yes
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
- USB Mirroring : Yes
Features:
- Two-piece floating display design: Features a 10.1" capacitive touchscreen separated from a single-DIN chassis, allowing flexible installation in compatible vehicles.
- Highly adjustable floating screen: Offers vertical, horizontal, depth, and tilt adjustments for optimized visibility and clearance with factory dash components.
- Large HD capacitive display: 10.1" 1280×720 touchscreen with multi-touch gesture support for smooth, smartphone-like control.

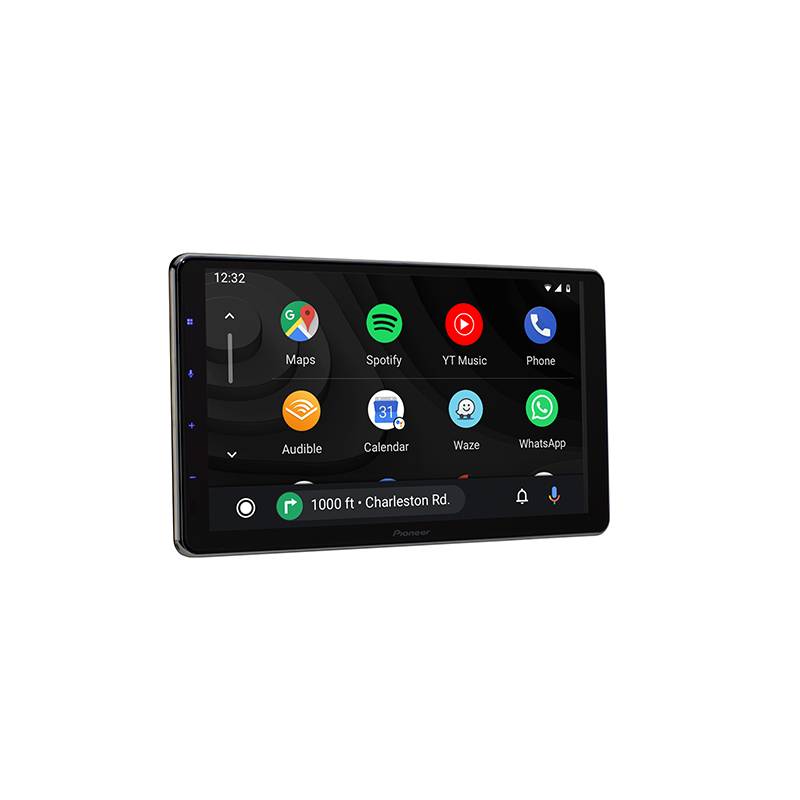

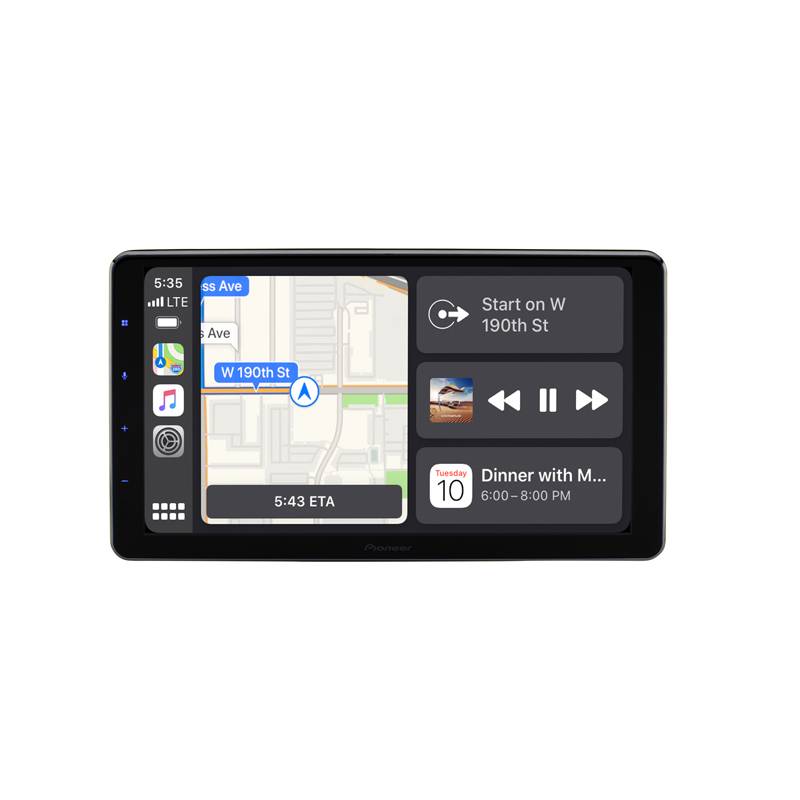

- Wireless Apple CarPlay and Android Auto: Seamless smartphone integration for navigation, calls, messaging, and music with minimal cable dependency.
- Built-in WiFi connectivity: Enables wireless smartphone mirroring, app connectivity, and over-the-air updates.
- Amazon Alexa Built-In: Hands-free voice control for music, navigation, smart home devices, weather, and more.
- Advanced Bluetooth 4.2 connectivity: Supports dual phone connection, hands-free calling, and high-quality audio streaming with AAC support.
- High-resolution audio support: Plays FLAC, WAV, and DSD files up to 192kHz for premium sound reproduction.
- 24-bit/192kHz DAC and MOSFET amplification: Delivers clean, powerful, and detailed audio output with low distortion.
- Extensive tuning control: Includes 13-band EQ, time alignment, crossovers, bass boost, and advanced sound retriever for system customization.
- Dual camera inputs: Supports backup and auxiliary camera systems with on-screen display and parking assistance features.
- HD Radio and SiriusXM Ready: Access to high-quality broadcast radio and satellite radio compatibility (tuner required).
- Micro-HDMI and AV inputs: Allows external device mirroring and multimedia expansion options.
- USB-C high-current charging: Provides fast charging and full media playback support for smartphones and USB devices.
- iDatalink Maestro compatibility: Enables retention and integration of factory vehicle functions and displays when supported.

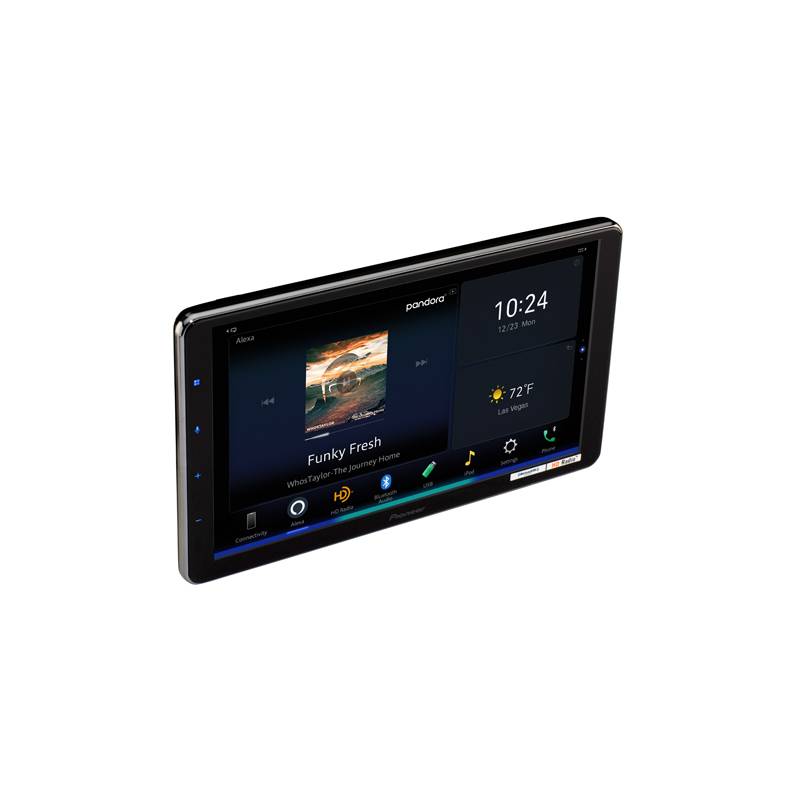

- Customizable interface: Adjustable backgrounds, widget shortcuts, and illumination colors for a personalized user experience.
Specifications:
- Screen Size/Aspect Ratio: 10.1"/16:9
- Resolution: 720P
- Touchscreen: Capacitive
- LED Backlight: Yes
- Display Off Mode: Yes
- Color Customization: 5 Display Colors, 112-Key Colors
- Display Customization: 5-Backgrounds (w/2 animated wallpapers
- Illumination Timer: Yes
- Dimmer Setting (ON/OFF): Yes
- Brightness Control: Yes
- Home Screen Shortcuts Customization: Yes
- Built-in Bluetooth®: Yes
- Dual Phone Connection: Yes
- SiriusXM-Ready™ (tuner sold separately): Yes
- Built-in HD Radio™: Yes
- Presets: 18 FM, 6 AM
- Best Station Memory (BSM): Yes
- Local Seek Tuning: Yes
- RDS: Yes
- Voice Control: Yes
- Apple CarPlay™: Wireless, USB
- Android Auto™: Wireless, USB
- Siri® Eyes Free: Yes
- Android™ Music Support: Yes
- MP3 Audio Playback: USB
- WMA Audio Playback: USB
- AAC Audio Playback: USB
- WAV Audio Playback: USB
- FLAC Audio Playback: USB
- MPEG-1 Video Playback: USB
- MPEG-2 Video Playback: USB
- MPEG-4 Video Playback: USB
- AVI/DivX Video Playback: USB
- JPEG Photo Slideshow Viewer: USB
- RCA Preouts: 3 (4V)
- Built-in Amplifier: MOSFET 50 W x 4
- Customizable Graphic Equalizer: 13-Band
- D/A Converter: 24-Bit
- Time Alignment (CD-MC20 required): Manual
- Subwoofer Control: Yes
- Advanced Sound Retriever: Yes
- HDMI® Input: Yes
- USB: Single Type-C, Rear (3 Amp)
- AUX Input: Rear
- Back-Up Camera Input: Yes
- Dual Camera Input: Yes
- iDatalink® Maestro™: Yes
- Wired Remote Input: Yes
- Composite Video Output: Yes
- Mini-jack AV Cable: 1 (Audio/Video)
- USB Direct Control for iPhone®: Yes
- Detachable Face Security: Fixed
- Remote Control: Included
- Multi-Language Display: English, Chinese (Simplified), French, Spanish, Portuguese
- Warranty (must be purchased from an Authorized Pioneer Dealer): 1 Year
- 2006 CEA Compliant: Yes
- UPC: 884938445702
- Weight: 9
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
