Pioneer  DMH-W4660NEX

2-DIN 6.8" Multimedia Digital Media Receiver with Amazon Alexa, Android Auto™, Apple CarPlay®, Bluetooth®

Item #55782

Condition:   Brand New

Product Highlights

  • 2-DIN 6.8" Multimedia Receiver
  • Amazon Alexa
  • Android Auto™
  • Apple CarPlay®
  • Bluetooth®

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$599.99

Reg. Price $850.00  Save $250.01
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

Out of Stock Check out other products listed below
Pioneer Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:



Pioneer DMH-W4660NEX 2-DIN 6.8" Multimedia Digital Media Receiver with Amazon Alexa, Android Auto™, Apple CarPlay®, Bluetooth®

We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Digital multimedia receiver (10A fuse)
  • • Wiring harness
  • • Preout/AV harness
  • • 58" USB-C extension cable
  • • USB-C to USB-A adapter
  • • Remote control (CXE5116)
  • • CR2025 (3)V battery (pre-installed in remote)
  • • Microphone w/ bracket (attached 10' cable terminated by a right-angle 2.5mm connector)
  • • GPS antenna (attached 11.5' cable)
  • • Self-adhesive square
  • • (3) Self-adhesive clips
  • • Two-sided tape
  • • (4) Pan-head ISO screws (M5 x 9mm)
  • • (4) Flat-head ISO screws (M5 x 9mm)
  • • Quick Start Guide
  • • Installation Manual
  • • "About Alexa Built-In" note
  • • Warranty Information
  • • "Caution" note
  • Owner's Manual




Why Choose Pioneer DMH-W4660NEX Apple CarPlay Receiver?

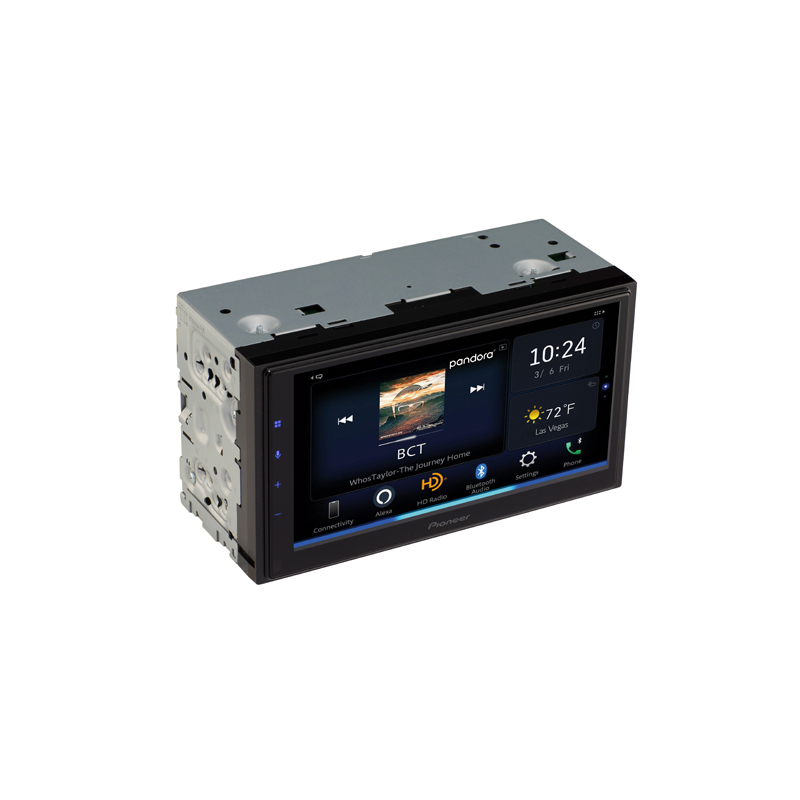

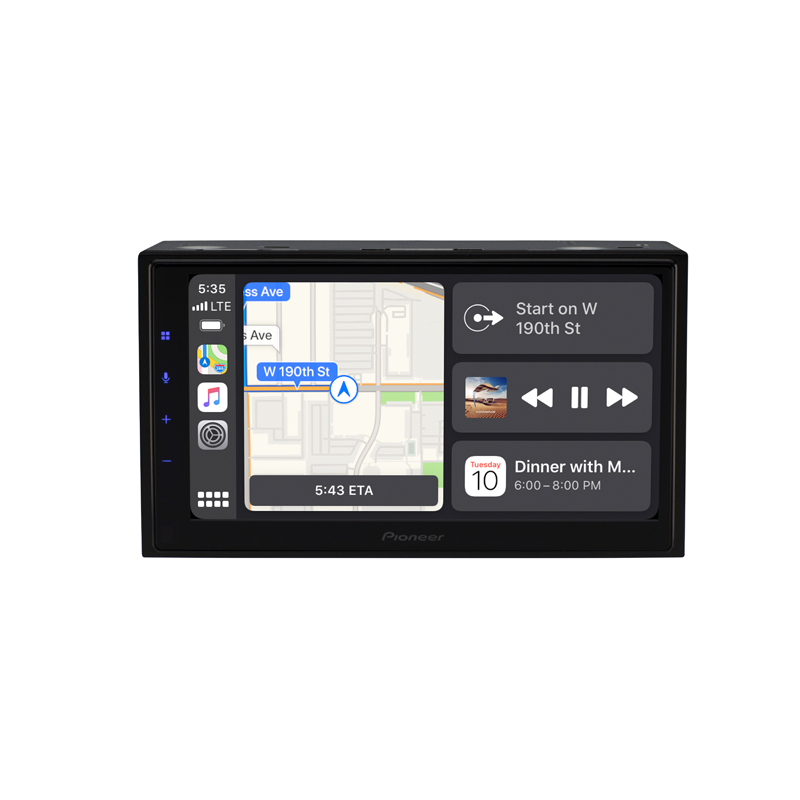

Pioneer DMH-W4660NEX Apple CarPlay Receiver Monitor
Responsive and Highly Customizable

Pioneer's NEX or Networked Entertainment eXperience line of receivers features an innovative and powerful new user interface that is responsive and highly customizable. The NEX models are designed especially for today's smartphone driven lifestyle. Features include Short chassis, HD Screen, Amazon Alexa SDK, Apple CarPlay (Wired, Wireless), Android Auto (Wired Wireless).

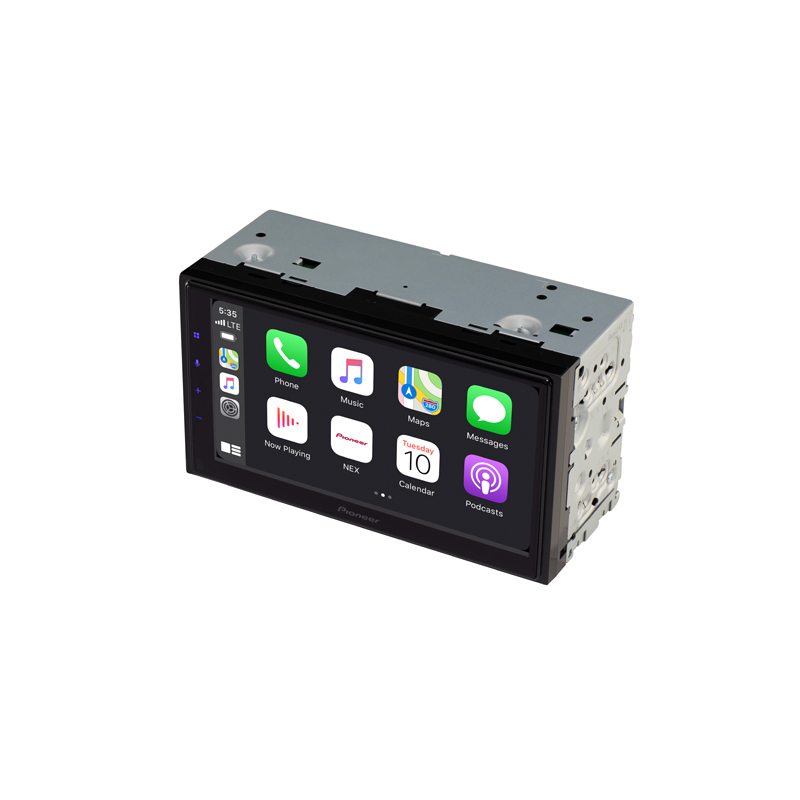

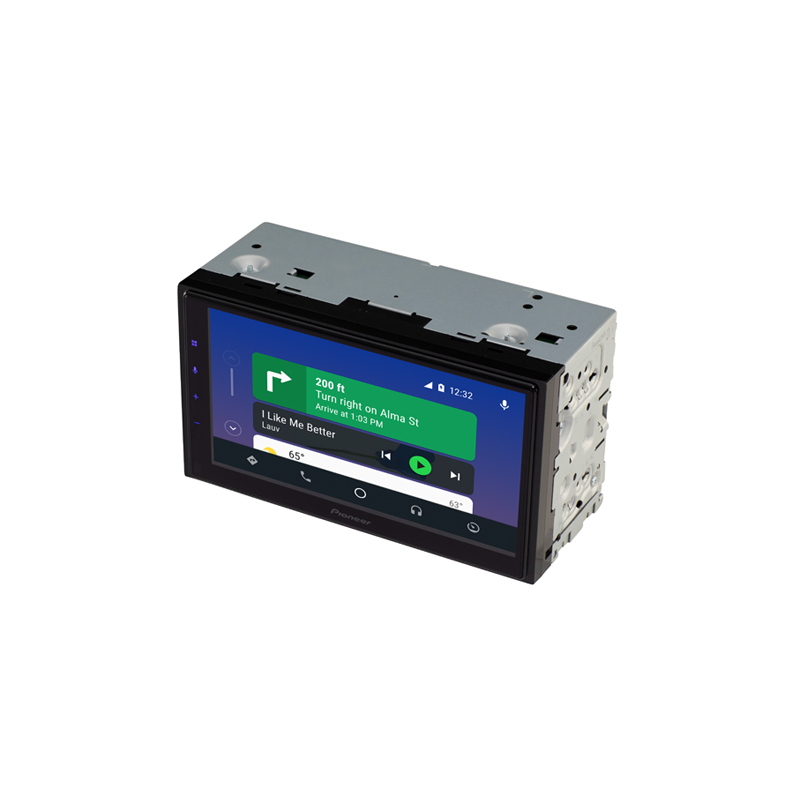

Apple CarPlay and Android Auto-ready

As the Pioneer DMH-W4660NEX is Apple CarPlay and Android Auto-ready, you can now conveniently read and send text messages, take and make calls, listen to voicemails, ask for directions, and play music by using voice commands. You can also use its built-in Amazon Alexa for additional voice control options. You can mirror your phone's display to the receiver's 6.8-inch touchscreen display.

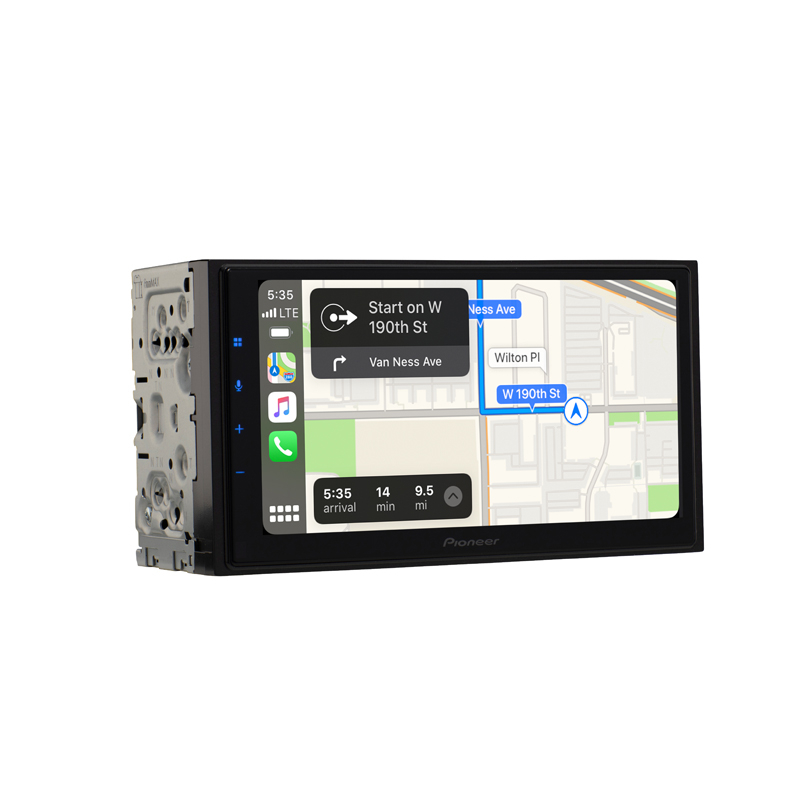

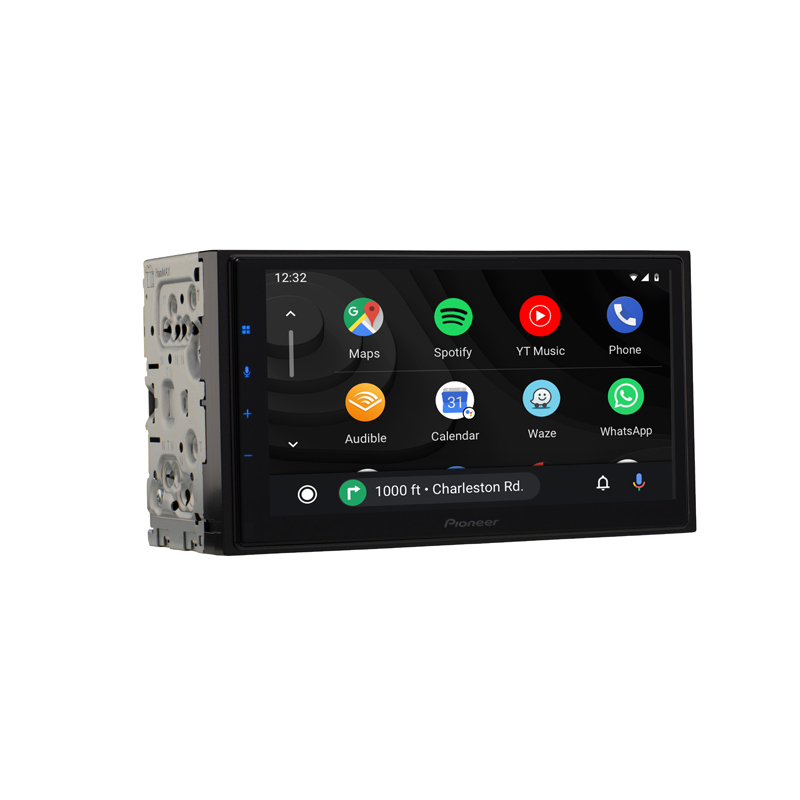

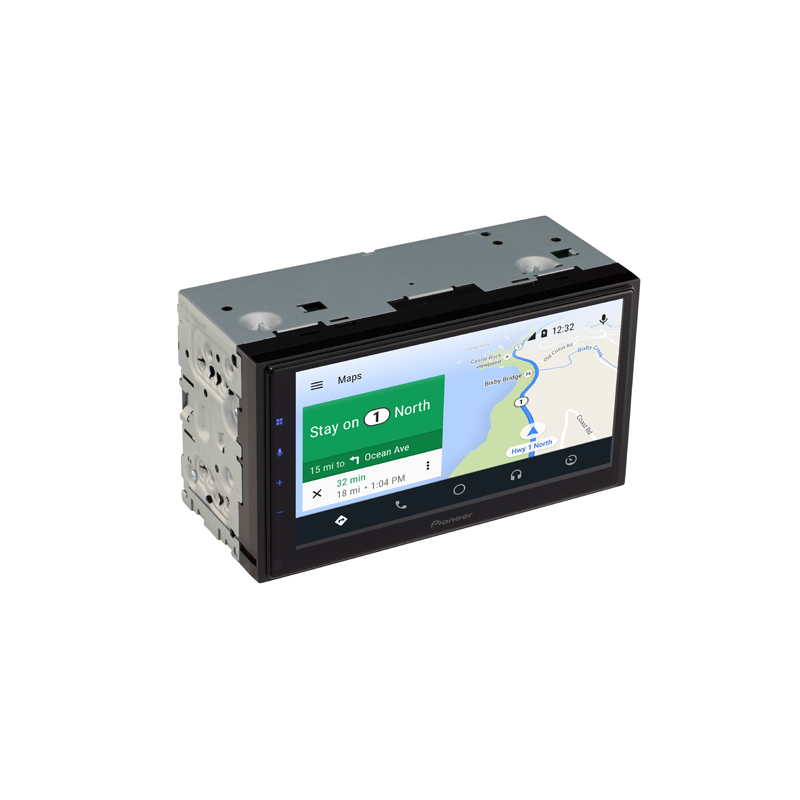

Pioneer DMH-W4660NEX Apple CarPlay Receiver Right Angle View

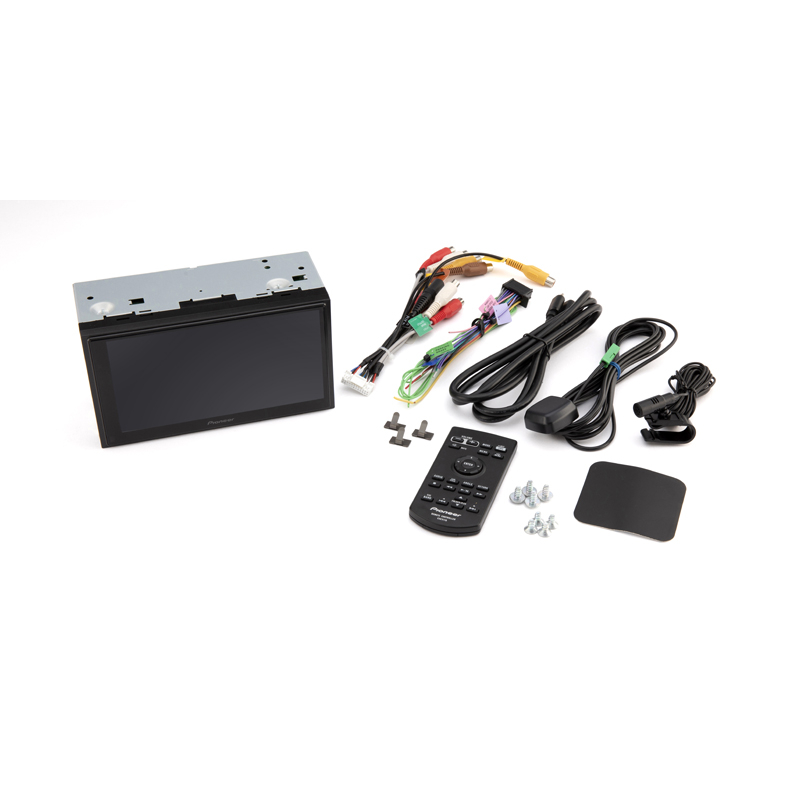

Pioneer DMH-W4660NEX Apple CarPlay Receiver Inclusions
Bluetooth Connectivity Option

The Pioneer DMH-W4660NEX receiver has a Bluetooth connectivity option, allowing you to answer calls hands-free and stream music in wireless mode. Aside from its HD Radio tuner and its ability to access third-party apps like Spotify and Pandora, it is also SiriusXM-ready, so you do not have to miss your favorite stations and shows while you are on the road.


Has a Built-in Amplifier

The Pioneer DMH-W4660NEX has a built-in amplifier with a six-channel preamp output and can handle a power output of 14 Watts RMS per channel and can go up to 50 Watts of maximum power per channel. It also has a 13-band graphic EQ to tweak the amplifier's frequency response and time alignment technology so that you can simultaneously hear all the speakers in your car.

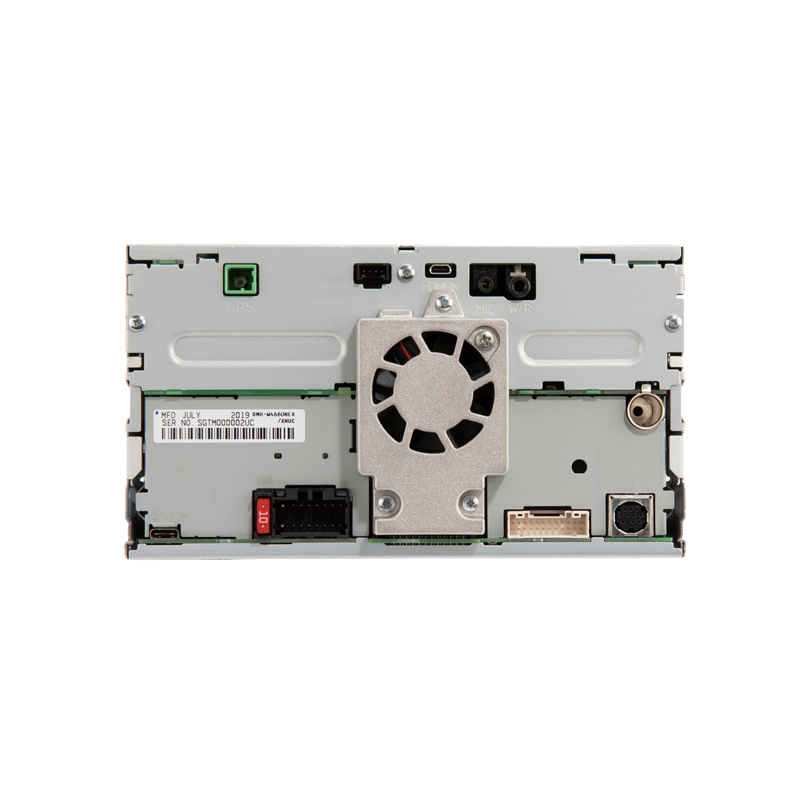

Pioneer DMH-W4660NEX Apple CarPlay Receiver Rear View

Frequently Asked Questions (FAQ)


  • • Why won't wireless Apple CarPlay connect automatically?
    Wireless connection issues are often caused by outdated phone software, Bluetooth pairing conflicts, or incorrect Wi-Fi settings. Remove the saved pairing from both devices and reconnect following the setup instructions.
  • • Can I use both Apple CarPlay and Android Auto?
    Yes. The receiver supports both Apple CarPlay and Android Auto for compatible smartphones, including wireless connectivity when supported.
  • • Why isn't my backup camera displaying when I shift into reverse?
    Incorrect reverse trigger wiring or disabled camera settings are the most common causes. Verify the camera wiring and ensure the rear camera input is enabled in the receiver's settings.
  • • Why does the receiver restart while I'm driving?
    Unexpected restarts are usually caused by loose power connections or unstable vehicle voltage. Inspect the wiring harness and verify that the battery, ground, and accessory connections are secure.
  • • Why is there no sound even though music is playing on the screen?
    Incorrect audio output settings, amplifier issues, or loose speaker wiring can prevent sound from reaching the speakers. Check all audio connections and verify the receiver's sound settings.
  • • Can I keep my factory steering wheel controls after installation?
    Yes. Most vehicles require a compatible steering wheel control interface to retain the original audio control buttons.
  • • Why does Bluetooth audio skip or disconnect?
    Wireless interference, outdated smartphone software, or signal interruptions can affect Bluetooth performance. Updating your phone and repairing the Bluetooth connection often resolves the issue.
  • • Why won't the receiver save my audio settings?
    This typically happens when the constant memory wire is connected incorrectly. Verify the wiring harness so the receiver receives uninterrupted battery power.
  • • Can I connect an external amplifier to improve sound quality?
    Yes. The receiver includes preamp outputs that support aftermarket amplifiers for increased power and improved overall audio performance.
  • • Why is the touchscreen slow or not responding correctly?
    Outdated firmware, temporary software glitches, or excessive background activity can reduce touchscreen responsiveness. Restart the receiver and install the latest firmware update if one is available.

SPECIFICATIONS


  • Satellite Radio Ready : Yes
  • Remote Control : Yes
  • DIN : 2
  • Preamp Voltage : 4 volts
  • Display Size : 6.8 Inch
  • Audio/Video Inputs : 2
  • Bluetooth : Yes
  • Aux Input : Yes
  • MP3 Playback : Yes
  • WMA Playback : Yes
  • HD Radio : Yes
  • Preamp Outputs : Front, Rear & Sub
  • Audio/Video Outputs : 2
  • Rear View Camera Input : Yes
  • Apple CarPlay : Yes
  • Android Auto : Yes

FEATURES


Features:

  • Short Chassis with 6.8" WVGA Capacitive Touch Screen Display
  • Amazon Alexa Built-in
  • Apple CarPlay® (Wired, Wireless)
  • Android Auto™ (Wired, Wireless)



Specifications:

Display:

  • Screen Size/Aspect Ratio: 6.8"/16:9
  • Resolution: WVGA (800 x 480)
  • Touchscreen: Capacitive
  • LED Backlight: Yes
  • Display Off Mode: Yes
  • Color Customization: 5 Display Colors, 112-Key Colors
  • Display Customization: 5-Backgrounds (w/2 animated wallpapers
  • Illumination Timer: Yes
  • Dimmer Setting (ON/OFF): Yes
  • Brightness Control: Yes
  • Home Screen Shortcuts Customization: Yes



Bluetooth:

  • Built-in Bluetooth®: Yes
  • Dual Phone Connection: Yes



Tuner:

  • SiriusXM-Ready™ (tuner sold separately): Yes
  • Built-in HD Radio™: Yes
  • Presets: 18 FM, 6 AM
  • Best Station Memory (BSM): Yes
  • Local Seek Tuning: Yes
  • RDS: Yes



Smartphone Integration:

  • Voice Control: Yes
  • Apple CarPlay™: Wireless, USB
  • Android Auto™: Wireless, USB
  • Siri® Eyes Free: Yes
  • Android™ Music Support: Yes



Digital Media Playback

  • MP3 Audio Playback: USB
  • WMA Audio Playback: USB
  • AAC Audio Playback: USB
  • WAV Audio Playback: USB
  • FLAC Audio Playback: USB
  • MPEG-1 Video Playback: USB
  • MPEG-2 Video Playback: USB
  • MPEG-4 Video Playback: USB
  • AVI/DivX Video Playback: USB
  • JPEG Photo Slideshow Viewer: USB



Audio:

  • RCA Preouts: 3 (4V)
  • Built-in Amplifier: MOSFET 50 W x 4
  • Customizable Graphic Equalizer: 13-Band
  • D/A Converter: 24-Bit
  • Time Alignment (CD-MC20 required): Manual
  • Subwoofer Control: Yes
  • Advanced Sound Retriever: Yes



Expandability:

  • HDMI® Input: Yes
  • USB: Single Type-C, Rear (3 Amp)
  • AUX Input: Rear
  • Back-Up Camera Input: Yes
  • Dual Camera Input: Yes
  • iDatalink® Maestro™: Yes
  • Wired Remote Input: Yes
  • Composite Video Output: Yes
  • Mini-jack AV Cable: 1 (Audio/Video)
  • USB Direct Control for iPhone®: Yes



General:

  • Detachable Face Security: Fixed
  • Remote Control: Included
  • Multi-Language Display: English, Chinese (Simplified), French, Spanish, Portuguese
  • Warranty (must be purchased from an Authorized Pioneer Dealer): 1 Year
  • 2006 CEA Compliant: Yes
  • UPC: 884938444446
  • Weight: 6
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
