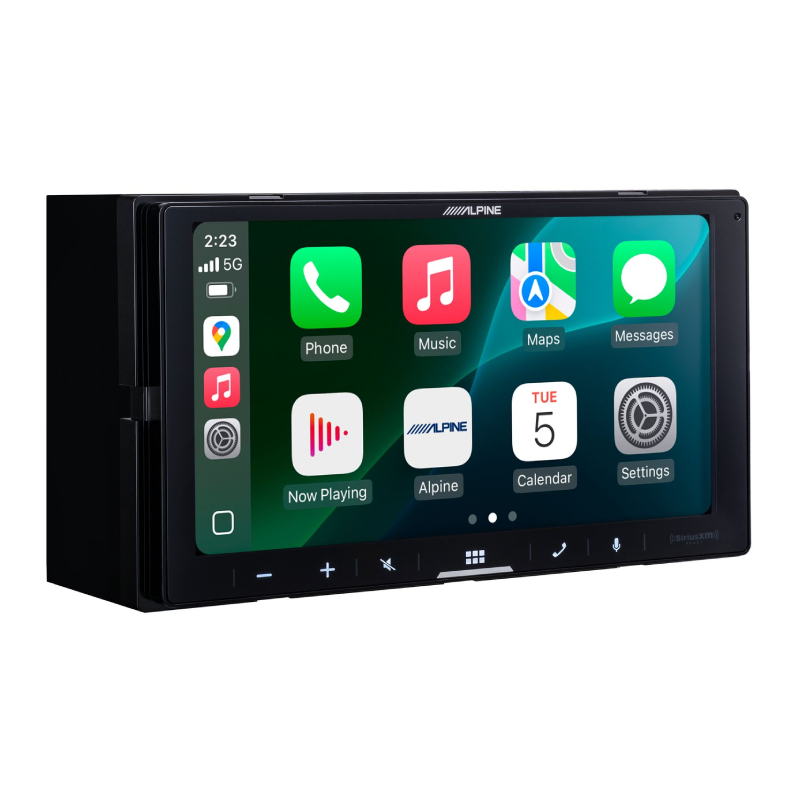

Alpine ILX-W770-M 2-DIN Shallow-Chassis 6.75" Touchscreen Display Digital Multimedia Receiver with Wireless Apple CarPlay & Wireless Android Auto, Built-In Bluetooth, and SiriusXM Ready (Added iDatalink Maestro compatibility)
We are a Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 2-DIN Shallow-Chassis 6.75" Touchscreen Display Digital Multimedia Receiver
- • Wiring harness (15A fuse)

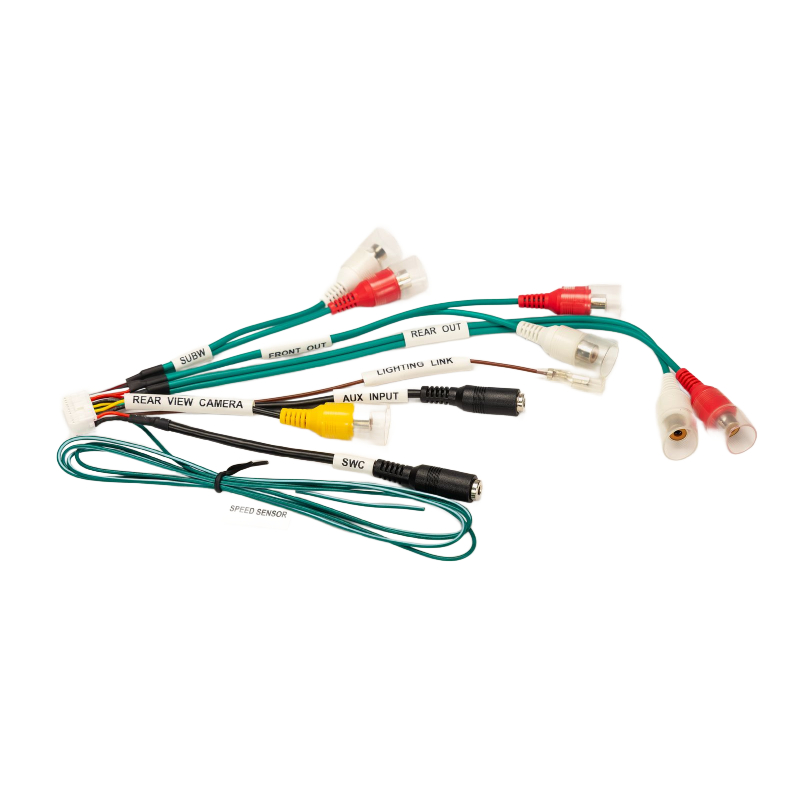

- • Preout/Camera harness
- • 42" USB extension cable
- • GPS antenna (attached 12' cable terminated by a Fakra connector)
- • Self-adhesive mount for GPS antenna
- • Microphone with bracket (attached 13' cable terminated by a male 2.5mm mono connector)
- • Adhesive pad for Bluetooth mic
- • (4) Pan-head ISO screws
- • (4) Counter-sunk ISO screws
- • Online Registration Information
- • Owner's Manual
Why Choose Alpine ILX-W770-M Digital Multimedia Video Receiver?
Modern Control Meets Seamless Style
Enjoy effortless access and crystal-clear sound with a 6.75” Capacitive Touchscreen Display with AM/FM Tuner, featuring a bright, responsive interface and excellent radio reception. The Mech-Less Design focuses on digital media playback for a sleek, modern experience, while the Standard Double-DIN Fitment ensures easy installation in most 4” dash openings. Customize your look with 5-Color Key Illumination and a Customizable Home Screen, letting you match your vehicle’s interior and personalize your display to fit your style.
Seamless Smartphone Connectivity for Every Drive
Stay connected and in control with Apple CarPlay® (Wireless & Wired) and Android Auto™ (Wireless & Wired), giving you easy access to navigation, calls, messages, and music straight from your phone. Enjoy Bluetooth® Hands-Free calling and audio streaming for a safer, more convenient ride, and unlock endless entertainment with SiriusXM-Ready® compatibility (SXV300 tuner sold separately).
Compact Power and Smart Integration
Maximize performance with PowerStack Capability, allowing you to mount Alpine KTA-200M or KTA-450 amplifiers directly to the back of the unit for a clean, space-saving installation. Enhance your visuals with Lighting Link Control, syncing lighting effects with Alpine PrismaLink Subwoofer Enclosures (S2-SB8, S2-SB10, & S2-SB12). Customize your sound through the Sound Boost Menu, featuring Bass Boost, Mid-Bass Boost, and Subwoofer Controls for ultimate tuning flexibility. Plus, the NEW! iDatalink® Maestro® Compatibility ensures seamless retention of factory vehicle features and integration (module sold separately).
Popular Alpine Digital Multimedia Receiver Comparisons
| Ultimate Alpine Multimedia Receiver Showdown |
Alpine iLX-407
7" Mech-Less Digital Multimedia Receiver with Wireless Apple CarPlay & Android Auto
BEST VALUE
- • 7" WVGA Touchscreen
- • Wired Apple CarPlay
- • Wired Android Auto
- • Bluetooth Hands-Free & Audio
- • HD Radio Ready
- • SiriusXM Ready
- • Hi-Res Audio Playback
|
Alpine iLX-507
7" Hi-Res Audio Multimedia Receiver with Enhanced Audio Processing
PREMIUM PICK
- • 7" HD Touchscreen
- • Wireless Apple CarPlay
- • Wireless Android Auto
- • Hi-Res Audio Certified
- • HDMI Input
- • HD Radio Built-In
- • Advanced DSP & Time Correction
|
Alpine iLX-W670-M
7" Shallow-Chassis Multimedia Receiver with Wired Smartphone Integration
BUDGET FRIENDLY
- • 7" Touchscreen Display
- • Wired Apple CarPlay
- • Wired Android Auto
- • Ultra-Shallow Chassis
- • Bluetooth Audio Streaming
- • Rear Camera Input
- • Easy Upgrade Solution
|
Alpine iLX-W770-M
7" Multimedia Receiver with Modern Smartphone Connectivity
TOP SELLER
- • 7" Touchscreen Display
- • Wireless Apple CarPlay
- • Wireless Android Auto
- • Bluetooth Hands-Free Calling
- • Shallow-Mount Chassis
- • Rear Camera Ready
- • Improved Audio Tuning Features
|
Alpine iLX-W770-M Highlights
WIRELESS CONNECTIVITY
Wireless Apple CarPlay & Android Auto
Enjoy wireless or wired Apple CarPlay and Android Auto for convenient access to navigation, music, calls, messages and compatible apps.
6.75-INCH DISPLAY
Responsive 6.75-Inch Touchscreen
The responsive 6.75-inch touchscreen provides an easy-to-use interface with customizable home-screen options and a clean double-DIN design.
ULTRA-SHALLOW DESIGN
2.4-Inch Ultra-Shallow Chassis
The ultra-shallow 2.4-inch chassis provides expanded installation flexibility and supports clean installations in vehicles with limited dash depth.
AUDIO TUNING

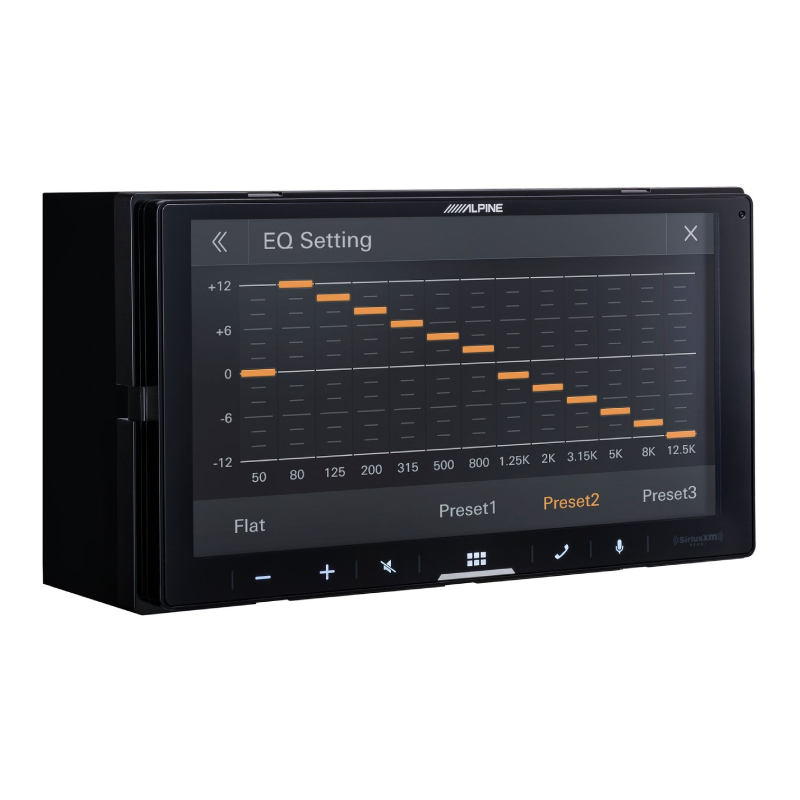

13-Band EQ & 6-Channel Time Correction
Fine-tune your system with a 13-band graphic EQ, 6-channel time correction and adjustable front, rear and subwoofer crossovers.
POWERSTACK™
Direct-Mount Power Pack Amplifier Ready

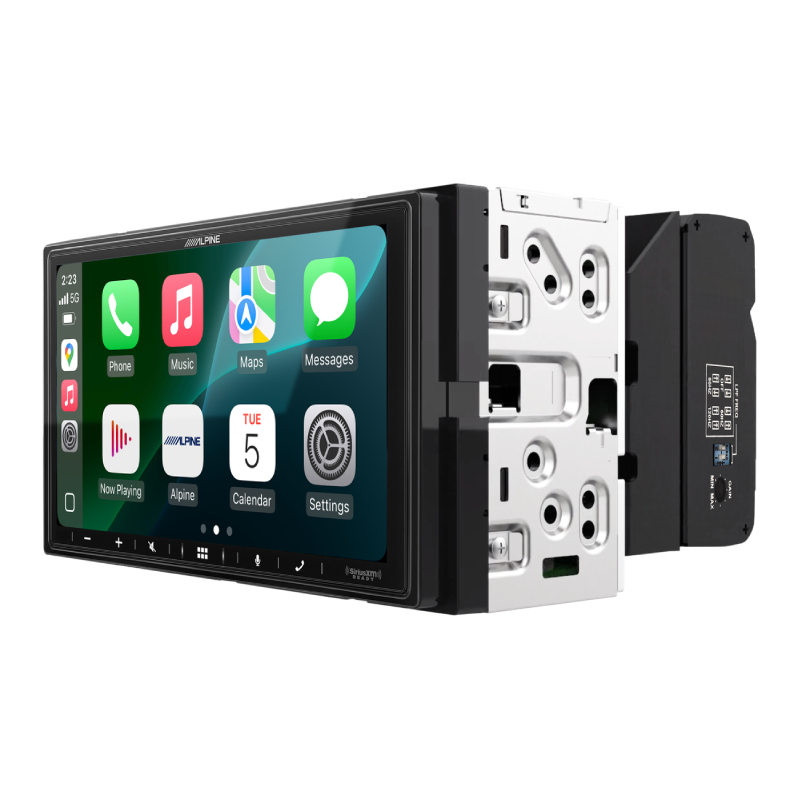

PowerStack™ compatibility lets you mount an Alpine KTA-450 or KTA-200M amplifier directly to the back of the receiver for a compact system upgrade.
OEM INTEGRATION
iDatalink Maestro Compatible
Built-in iDatalink Maestro compatibility helps integrate factory features and vehicle information when used with a compatible Maestro module.
SYSTEM EXPANSION
Dual Cameras & 4V Preamp Outputs
Two camera inputs and three sets of 4V preamp outputs provide flexible system expansion for front, rear and subwoofer applications.
Alpine iLX-W770-M Recommended Amplifiers | Best KTA-450 & KTA-200M Power Upgrades
Build Your Alpine iLX-W770-M System
Recommended compact Alpine amplifiers for more power, better dynamics and stronger bass
Amplifier Matching Overview
Best Full-Range Amplifier: Alpine KTA-450
Best Subwoofer Amplifier: Alpine KTA-200M
Best Full-System Setup: KTA-450 + KTA-200M
Primary Goal: Add clean power, improved speaker control and stronger bass while maintaining a compact installation
Best Overall Power Upgrade
The KTA-450 delivers up to 45W x 4 RMS or 100W x 2 bridged, giving the iLX-W770-M more volume, cleaner output and improved speaker control in a compact design.
Best Compact Subwoofer Upgrade
The KTA-200M provides dedicated power for a subwoofer, adding stronger bass, improved punch and better low-frequency control without requiring a large amplifier installation.
Best Full-System Combination
Front & Rear Speakers: Powered by the KTA-450 for improved clarity and volume
Subwoofer: Powered by the KTA-200M for dedicated bass performance
Installation: Compact Alpine amplifier design keeps the system clean and space-efficient
Result: More powerful full-range sound with stronger, tighter bass
Why Add a Power Pack Amplifier?
More Volume: Provides additional power for louder, cleaner playback
Better Speaker Control: Improves dynamics and midbass response
Stronger Bass: The KTA-200M adds dedicated subwoofer power
Compact Installation: Designed for space-saving Alpine system upgrades
Easy Expansion: Add amplified speakers and a subwoofer without a large amplifier rack
Pro Tip: For the best complete upgrade, pair the Alpine KTA-450 with the KTA-200M. The KTA-450 handles your full-range speakers while the KTA-200M delivers dedicated subwoofer power for a compact, powerful Alpine system.
Frequently Asked Questions (FAQ)
- • Why does Apple CarPlay keep disconnecting on my Alpine iLX-W770-M?
One of the most commonly reported issues is random CarPlay dropouts. Real users often trace this to low-quality USB cables, long USB extensions, or unstable wireless pairing. Using a short, high-quality cable and updating firmware typically improves stability.
- • Why does wireless CarPlay connect but then switch back to the Alpine home screen?
Some users report the unit briefly enters CarPlay then returns to the native Alpine interface. This is usually caused by software handshake issues between iOS and the head unit. Re-pairing the device and resetting CarPlay settings often reduces the issue.
- • Why does my iLX-W770-M only charge my phone but not activate CarPlay?
This is usually caused by a damaged or charge-only USB cable, or a faulty data connection in the phone cable or port. The unit may still charge the phone, but CarPlay requires a proper data signal to function.
- • Why does CarPlay stop working after an iPhone or firmware update?
Real-world users often experience temporary compatibility issues after iOS updates. Updating the Alpine firmware and re-adding the phone usually resolves syncing problems and restores full CarPlay functionality.
- • Why does my steering wheel control stop working after installing the iLX-W770-M?
Many users report this when the steering wheel control interface is not properly programmed or wired. The iLX-W770-M requires a compatible SWC adapter, and incorrect setup can cause intermittent or no response.
- • Why does my screen randomly switch from CarPlay back to the Alpine menu?
This is a known complaint among users and is typically linked to firmware glitches or unstable USB/Wi-Fi communication. A reset of the unit and updated firmware often improves behavior, though some cases require reinstallation checks.
- • Why does my iLX-W770-M freeze or require frequent resets?
Freezing issues are usually tied to software bugs or corrupted settings after updates. Performing a factory reset and ensuring the latest MCU/SOC firmware is installed is the most common fix reported by installers.
- • Why does my microphone sound low or unclear during calls?
Users often report weak call audio due to poor mic placement (near vents or reflective surfaces). Relocating the microphone closer to the driver-side pillar significantly improves clarity.
- • Why do I get “USB error” or “overcurrent” warnings?
Some users experience USB errors caused by faulty cables, damaged ports, or incompatible USB hubs/extensions. Using a direct, short USB connection usually resolves the warning.
- • Why does Bluetooth work but CarPlay doesn’t on my iLX-W770-M?
This happens when Bluetooth pairing succeeds but Wi-Fi/USB CarPlay communication fails. It is usually resolved by forgetting the device, resetting network settings on the phone, and re-pairing from scratch.
- • Why does audio stop or glitch when switching apps in CarPlay?
Some users report brief audio interruptions when switching between navigation and music apps. This is generally normal system behavior but can be reduced with firmware updates and stable wireless conditions.
- • How do I get the most stable performance from the Alpine iLX-W770-M?
Real-world installer advice suggests using short high-quality USB cables, avoiding extensions, keeping firmware updated, properly grounding the unit, and re-pairing CarPlay after major iOS updates.
- Satellite Radio Ready : Yes
- Built-in EQ : Yes
- DIN : 2
- Preamp Voltage : 4 volts
- Display Size : 6.75 Inch
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : No
- Preamp Outputs : Front, Rear & Sub
- Color : Black
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
Features:
- 6.75” Capacitive Touchscreen Display with AM/FM Tuner: Offers a bright, responsive interface for easy control and clear radio reception.
- Mech-Less Design: Modern, disc-free system focused on digital media playback.
- Standard Double-DIN Fitment: Fits most 4” tall dash openings for seamless installation.

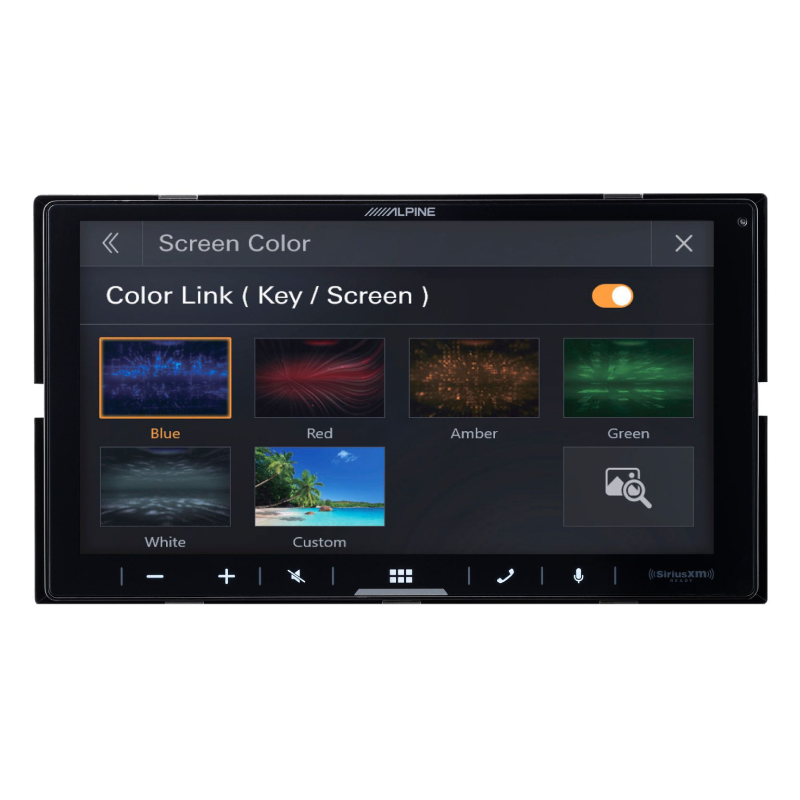

- 5-Color Key Illumination: Choose from red, green, blue, amber, or white to match your vehicle’s interior lighting.

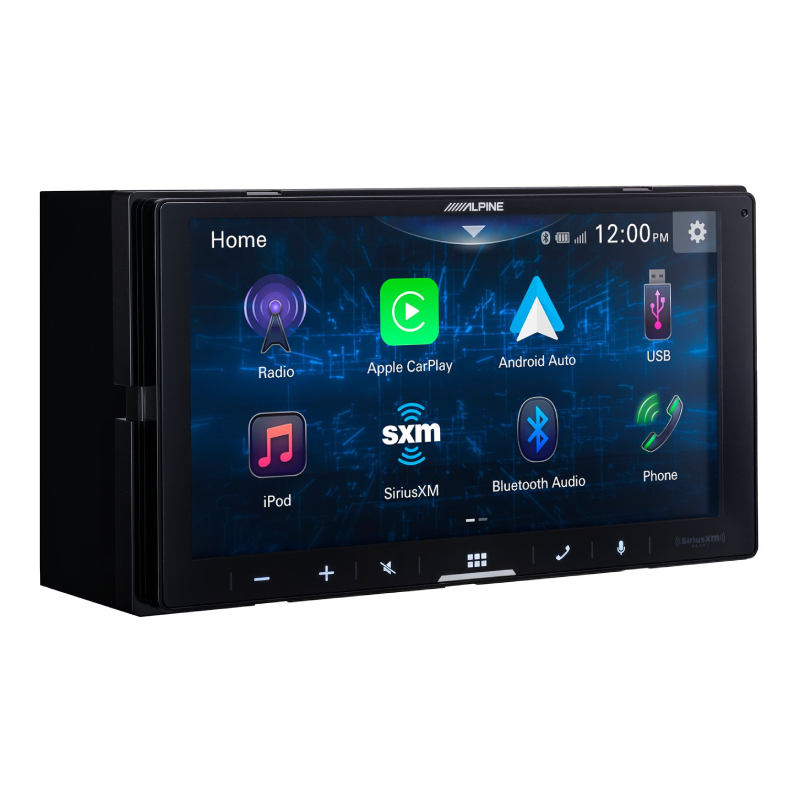

- Customizable Home Screen: Personalize your display with a custom background image.
- Apple CarPlay® (Wireless & Wired): Enjoy hands-free access to navigation, messages, calls, and music from your iPhone.
- Android Auto™ (Wireless & Wired): Connect your Android device for effortless access to apps, maps, and media.

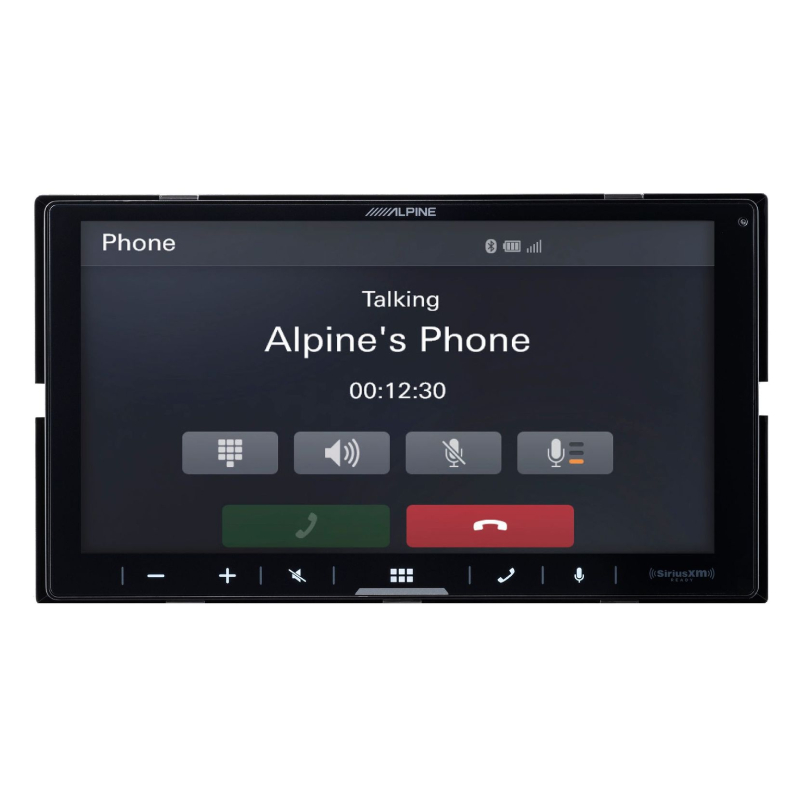

- Bluetooth® Hands-Free: Enables wireless calling and audio streaming for convenience and safety.
- SiriusXM-Ready®: Compatible with the SXV300 tuner (sold separately) for expanded entertainment options.
- PowerStack Capable: Mount Alpine KTA-200M or KTA-450 amplifiers directly to the back of the unit for a clean, compact setup.

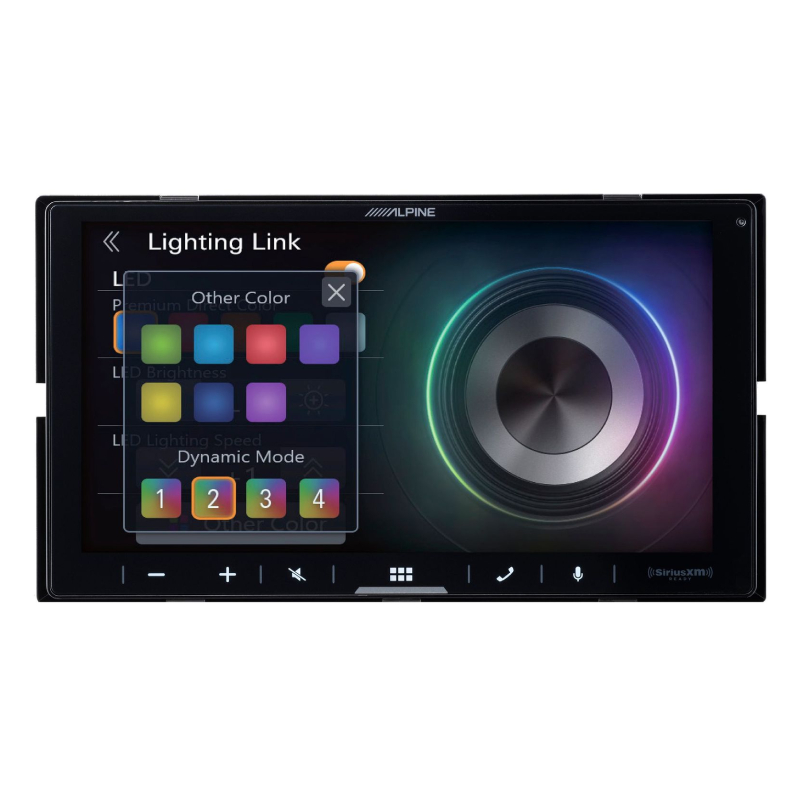

- Lighting Link Control: Integrates with Alpine PrismaLink Subwoofer Enclosures (S2-SB8, S2-SB10, & S2-SB12) for synchronized lighting effects.
- Sound Boost Menu: Fine-tune your audio with Bass Boost, Mid-Bass Boost, and Subwoofer Controls.
- NEW! iDatalink® Maestro® Compatibility: Retains vehicle factory features and integration (module sold separately).
Specifications:
- AUX Input: Mini (rear)
- Audio/Video Input: Mini (rear)
- USB Input: Rear
- USB Port Power: 1.5A

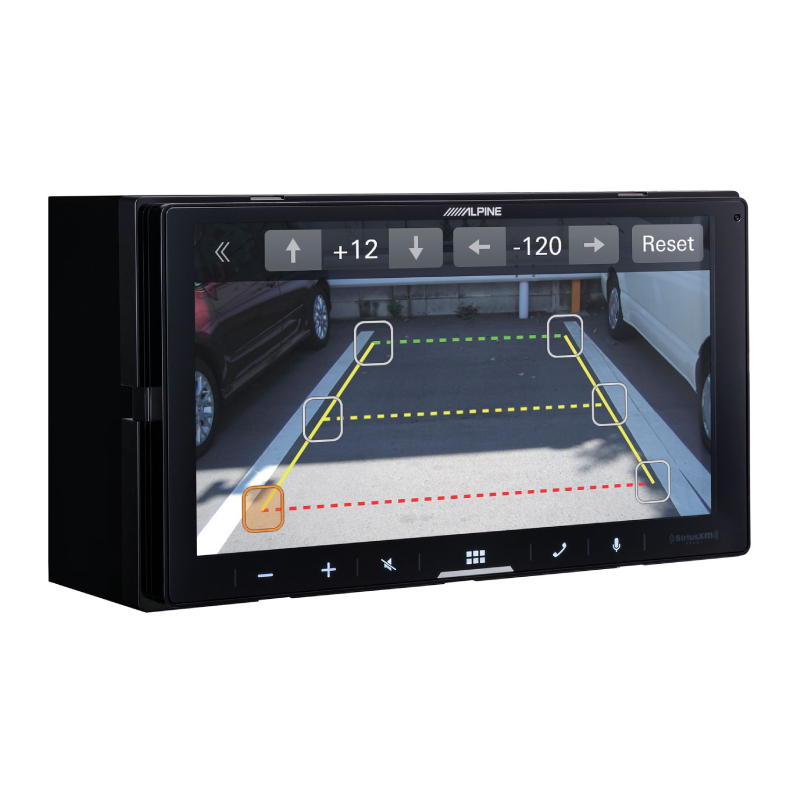

- Backup Camera Input: Yes
- Second Camera Input: Yes
- Camera Input (Marine): N/A
- Preamp Outputs: 6-channel
- Sub Preamp Outputs: Yes
- Switchable Rear Preamp Outputs: No
- Memory Card Slot: USB memory
- iPhone Compatibility: iPhone 6 and newer
- CarPlay: Wired or wireless
- Siri Control: CarPlay only
- Android Control: Yes
- Android Auto: Wired or wireless
- Alexa Voice Control: No
- FM Sensitivity: 9 dBf
- European Tuning: No
- Seek/Scan: Seek
- Radio Data System: No
- Music File Playback: MP3, WMA, AAC, FLAC, WAV
- High-Res Playback: No
- Navigation: CarPlay, Android Auto
- Navigation App Compatible (iOS): Apple, Google, Waze
- Navigation App Compatible (Android): Google, Waze
- Bluetooth Compatible: Built-in
- Bluetooth Version: 5.0
- Satellite Radio Ready: SiriusXM
- HD Radio: No
- Video Screen: Yes
- Preamp Voltage: 4V
- Screen Size: 6.75"
- Screen Type: Swipeable (Capacitive)
- Display Color: ---
- Key Button Color: Variable
- EQ Bands: 13
- Wireless Remote: No
- Steering Wheel Control Compatible: Adapter required
- UPC: 793276002570
- Weight: 3.45
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
it's great that I can still attach my mono amp on the back of the stereo. it's a good thing since I want have to worry where to place it anymore after upgrading from an older Alpine stereo. features like carplay is just what I needed and it works smoothly. sounds better too. easy to use and is responsive
