XS Power PSC15 Power Supply, 15A, 12V, 14V, 16V with AGM Charge Mode
We are a XS Power authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • AGM Charge
- • Owner's Manual

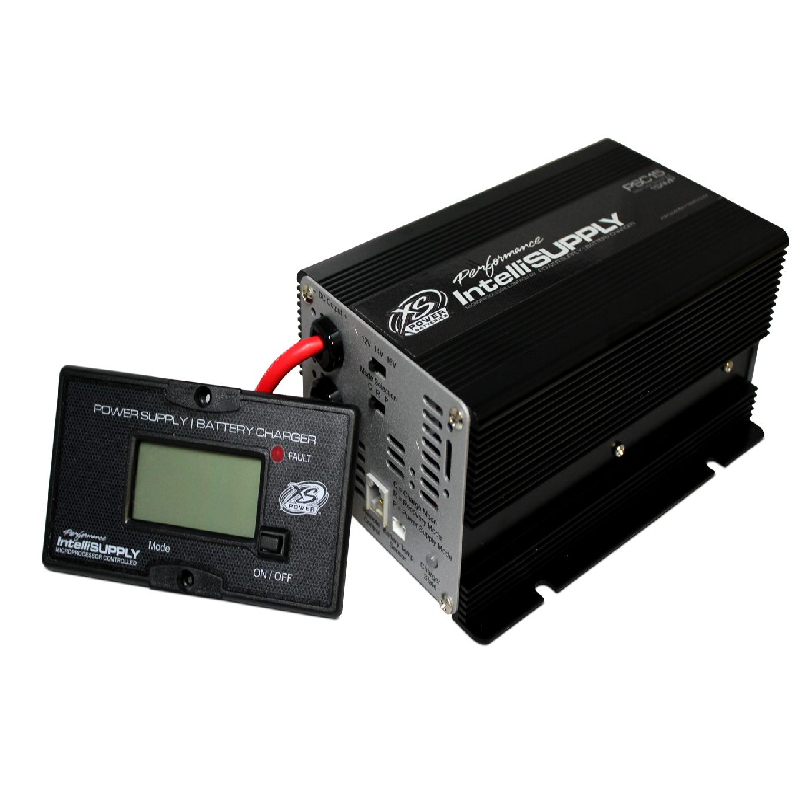

Smart AGM Power Supply With LCD Control
Upgrade your battery setup with a sleek on-board power supply featuring AGM charge mode, three operating modes, and a convenient remote LCD display. Designed for 120VAC input across a 90–130VAC range, it delivers efficient performance with 50–60Hz operation. Its compact 7.68" × 4.96" × 3.25" housing fits neatly into space-conscious installations.
Frequently Asked Questions (FAQ)
- • Why does the PSC15 show an orange-looking light when the manual says red or green?
One owner was confused because both the red and green indicators appeared illuminated at the same time, making the light look orange. After contacting XS Power, the user confirmed that the charger itself was operating normally.
- • Can the PSC15 bring a severely discharged XS Power battery back to life?
Owners have reported using the PSC15's recovery mode on batteries that had been sitting dead for extended periods. One user said a D3400 that had been completely discharged during long-term vehicle storage recovered and returned to normal operation.
- • Why isn't my PSC15 charging an entire battery bank correctly?
Recovery mode may not work as expected when batteries with different voltage levels remain connected together. Experienced users recommend testing and recovering batteries individually because the charger may only see the combined bank voltage instead of the weakest battery.
- • Can I use the PSC15 while testing car-audio equipment?
Yes. A verified customer specifically praised the power-supply mode for pre-testing car-audio equipment before installation. The PSC15 can provide 15A at selectable 12V, 14V, or 16V output.
- • Why do I need to make my own output leads?
One PSC15 owner discovered that the unit uses large quick-disconnect plugs and does not simply arrive with every possible termination. The customer noted that users may need to build leads using clamps, rings, or bare-wire connections for their particular setup.
- • Can I run accessories while the PSC15 is charging my battery?
You can, but the accessory load reduces the current available for charging. XS Power warns that equipment such as cooling fans or water pumps can increase charging time and interfere with the charger correctly completing its charging cycle.
- • Could the PSC15's charging voltage damage electronics connected to the vehicle?
Potentially. XS Power's guide warns that some charging stages can reach roughly 19–20V, which may damage sensitive equipment such as computers, data loggers, or other electronics. Disconnecting sensitive devices during charging is recommended.
- • Why won't the voltage indicator light up on my PSC15?
The manual lists several possible causes, including an improperly connected battery or a battery below approximately 2V. Checking the battery connection and measuring its voltage can help determine whether the problem is with the battery or charger.
- • What should I check if the PSC15 won't power on?
XS Power recommends checking the fuse, power cord, and AC input when the power light does not illuminate. These simple checks can rule out an input-power problem before assuming the charger has failed.
- • Is the PSC15 useful for maintaining a vehicle that sits for long periods?
Yes. The PSC15 is designed to maintain 12V, 14V, and 16V sealed lead-acid batteries, and owners have reported using it as a long-term battery tender. However, recent community reports also show that some users have experienced charger or battery failures, so periodically checking the battery's condition is still wise.
Features:
TYPE: Power Supply with AGM Charge Mode
Frequency Range: 50~60Hz
Volatge Range: 120VAC (90~130VAC)
DIMENSIONS (LxWxH): 7.68 x 4.96 x 3.25"
Specifications:
- Sleek On-Board Design
- Remote LCD Display
- Three Mode Operation
- 120VAC (100~130VAC) AC Input
- Voltage Range: 120VAC (90~130VAC)
- Frequency Range: 50~60Hz
- Efficiency: >=85%
- Power Factor: 0.5 at full load (±5%)
- Input Socket: IEC plug
- Dimension (LxWxH):
- SAE: 7.68 x 4.96 x 3.25 in
- METRIC 195 x 126 x 82.5 mm
- UPC: 692209051190
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
