Clarion CMS4 - Marine Digital Media Receiver with Watertight Commander
We are a Clarion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Marine display controller
- • Hide-away connection module
- • Wiring harness
- • 10' System cable
- • (2) Trim-rings (Chrome/Black)
- • Protective rubber cover
- • Metal bracket
- • (2) Rear-support studs
- • (4) Hex-nuts
- • (10) Screws
- • Quick Start Guide
- • Warranty Sheet
- • Mounting Template
A hidden hub for your tunes

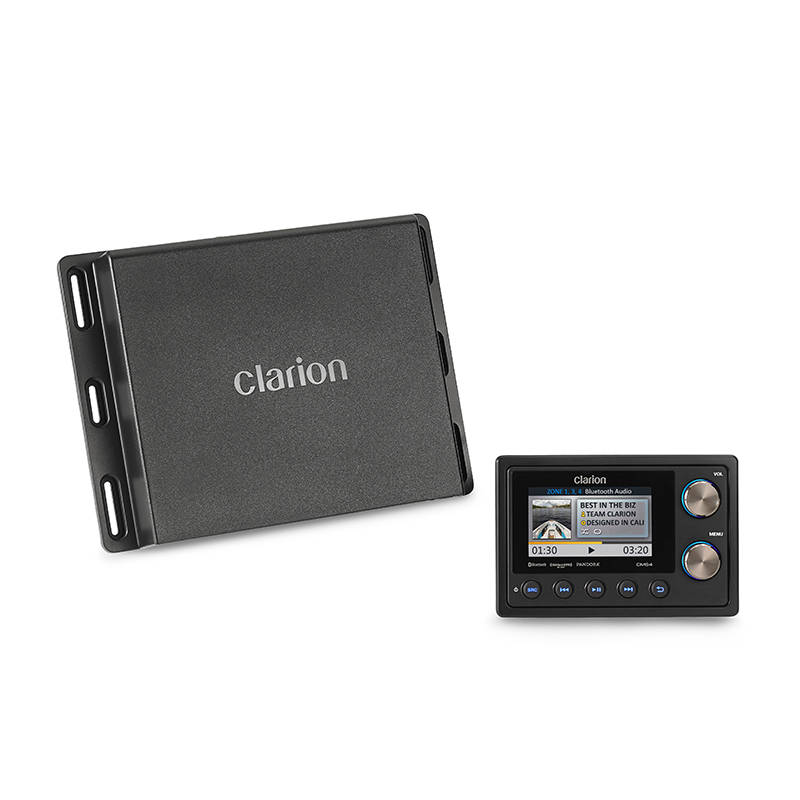

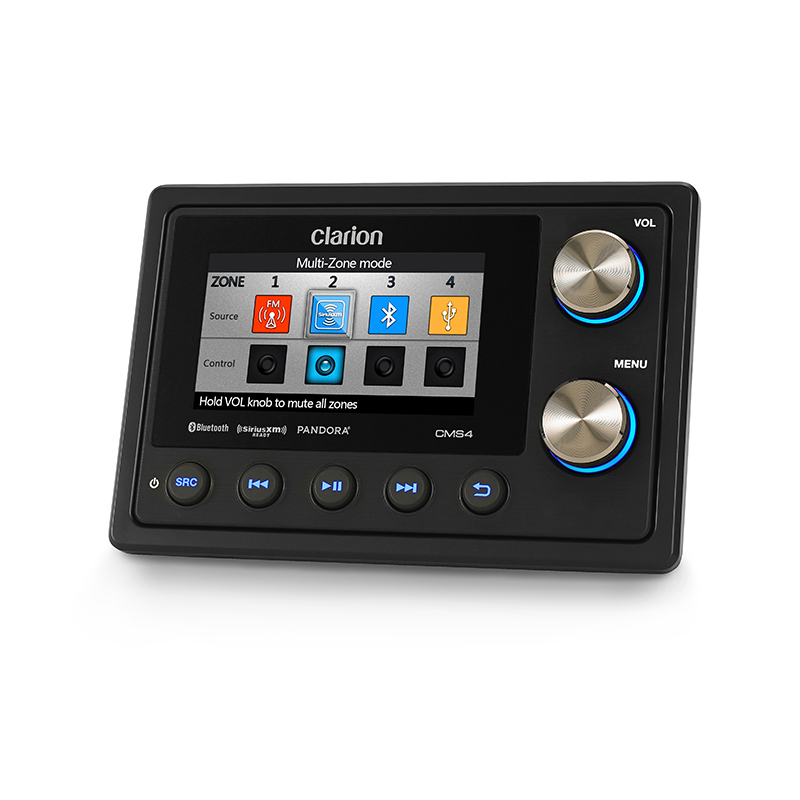

If you stow your music in your phone or other portable device, Clarion's CMS4 marine digital media receiver is like a source unit and a multimedia hub all in one. This compact package consists of a 3.5" color LCD controller that goes in your dash, along with a hideaway "black box" that can be installed out of sight, so it's ideal for smaller boats.
Black box receiver
The CMS4's hideaway box contains a built-in global AM/FM/Weather Band tuner, plus a USB port for your iPhone, an auxiliary input, and a camera input. Built-in Bluetooth gives you hands-free calling and music streaming with just about any phone.
Pandora
If you love Pandora® Internet radio, just connect your iPhone® or pair your Android phone and enjoy all your favorite stations while you're enjoying a day on the water. You can even give your "thumbs up" or "thumbs down" with the Clarion's controls. You can also plug in a USB thumb drive or portable player and enjoy MP3, WMA, and MP4 files you've ripped from your CD collection.
- Maximum Power : 70 Watts
- Satellite Radio Ready : Yes
- Frequency Response : 20-20000 Hz
- RMS Power Output : 18 Watts
- Preamp Voltage : 3.5 volts
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Rear USB Input : 1
- Preamp Outputs : 12
Tuner
Frequency bands: FM/AM/Weather Band
FM Tuner with RDS
Frequency Range:
- North America 87.9 ~ 107.9MHz (0.2MHz STEP)
- Europe 87.5 ~ 108.0MHz (0.05MHz STEP)
- Australia 87.5 ~ 108.0MHz (0.1MHz STEP)
- Other Countries 87.50 ~ 108.00MHz (0.05MHz STEP)
AM Tuner
Frequency Range:
- North America 530 ~ 1710kHz (10kHz STEP)
- Europe 531 ~ 1602kHz (9kHz STEP)
- Australia 531 ~ 1629kHz (9kHz STEP)
Weather Band
NOAA Frequency Range
- 162.400MHz ~162.550MHz
- Channel 1 : 162.400MHz
- Channel 2 : 162.425MHz
- Channel 3 : 162.450MHz
- Channel 4 : 162.475MHz
- Channel 5 : 162.500MHz
- Channel 6 : 162.525MHz
- Channel 7 : 162.550MHz
Audio
- Maximum Power Output: 70W × 4 @ 2Ohm Built-In Amplifier
General
-
- Black Box Dimensions (W × H × D) (mm): 249.6 x 192 x 61.5
- Commander Dimensions (W × H) (mm): 152.5 x 102
- Low Consumption Mode as Power Off:
- YLess than 50mA when POWER=OFF
- (Want less than 5.5mA when ACC=OFF)
- Ingress Protection (IP) Rating
- Display Controller : IP66
- Black Box: IPX5
- Display Controller: 3.5" TFT Display
- Display Glass: Corning® Gorilla® Glass
- UPC: 729218022009
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
