AudioControl 2-Channel Line Output Converter and Line Driver
We are a AudioControl authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • LC1i
- • Speaker and Power connectors
- • Manual
- • Warranty
High-performance OEM Interface

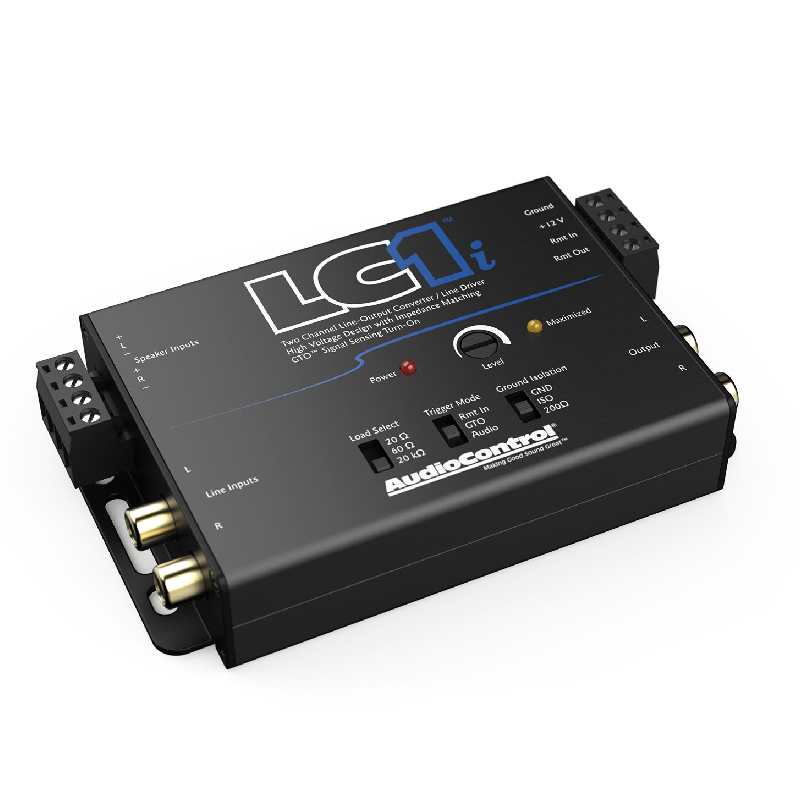

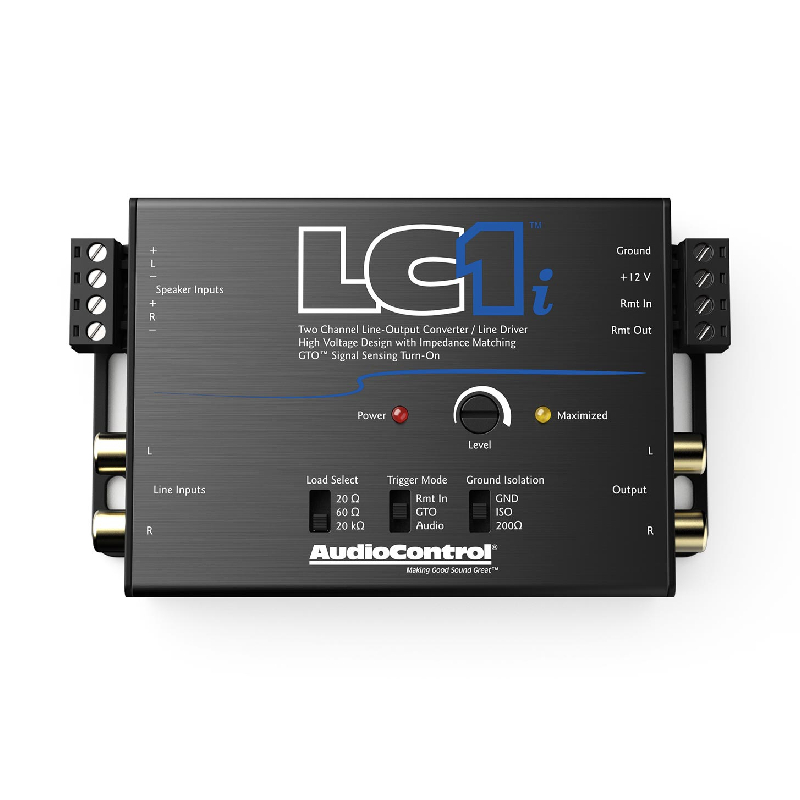

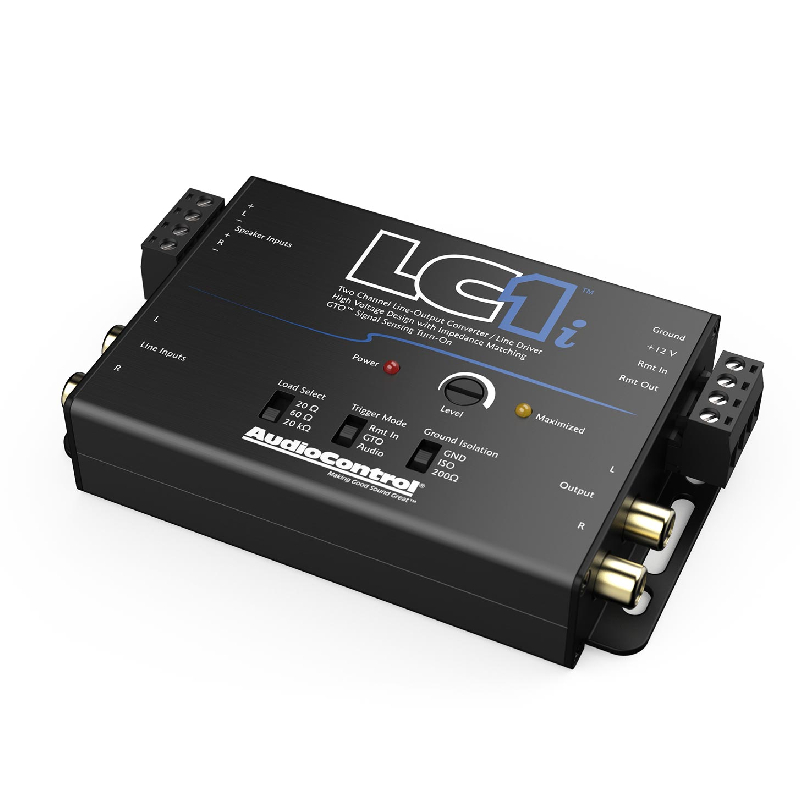

The AudioControl LC1i is a high-performance OEM interface and premium line driver module offering the most essential features while providing technicians with AudioControl’s superior circuitry and performance. Featuring easy access load-select switches on the outside of the device, the compact size of the LC1i is essential for effortless fitment, and it includes RCA inputs as well as speaker level inputs for use as either a line driver or OEM interface solution. The multi-purpose LC1i offers the features and performance that installers demand at a competitive price.
Installer Friendly
The LC1i joins ranks with AudioControl’s most popular active line output converter, the LC2i. Adding a sub? Planning a full system? Either way, get the best possible signal from your factory sound system to your amplifiers. Load selection switches mean OEM integration has never been easier and the LC1 will work with the most finicky factory sound systems. Installer friendly turn on trigger modes allow for flexibility via GTO™ Signal Sense (DC offset), audio sense, or remote 12 volt inputs. For future head unit upgrades, the LC1i is also a line driver and can remain in the system to provide optimal preamp signal.
Features:
- Two channels of active speaker level inputs (up to 40V input handling)
- Two channels of line level inputs
- Load Selection Switch
- GTOTMSignal Sensing
- Ground Isolation Switch
- Compact design
Specifications:
- Speaker Level Input: 1 (2 channels)
- Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
- Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
- Line Level Input: 1 (2 channels)
- Line Level Input Impedance: 7kΩ
- Preamp Outputs: 1 (2 channels)
- Maximum Output Level: 9.5Vrms/13V peak
- Output Gain: +/- 12 dB
- Output Impedance: 150Ω
- Total Harmonic Distortion: 0.01%
- Signal to Noise: >110 dB
- Frequency Response: 20 Hz – 50 kHz ±1 dB
- Remote In / GTO™ Signal Sense / Audio Sense
- 12VDC Remote Out (always active when unit is on)
- Current Draw: 120 mA
- Recommended Fuse Rating: 1 A
- Dimensions: 4.8″L x 3″D x 1″H (including speaker connectors)
- UPC: 851523007799
- Weight: 4
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
