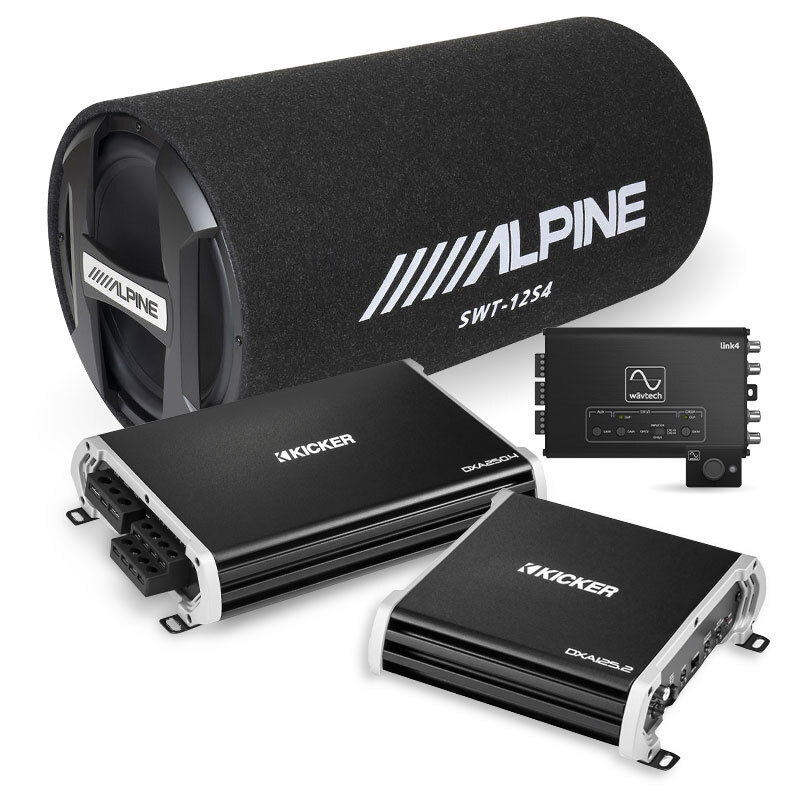

What's Included?
- 1 Wavtech link4
- 1 Kicker 43DXA125.2
- 1 Kicker 43DXA250.4
- 1 Alpine SWT-12S4
link4 4-Channel Line Output Converter and Summing Processor
Features:
- Multi-Function Remote Level/Source Control
- Master Volume Control
- AUX Volume Control
- Independent CH3/4 Level
- Source/Function Select
- AUX 3.5mm Input
- 2ch or 4ch Input Select (Direct, Copy or Sum)
- 2-Way Summing w/Retained Sub Level Control
- Differential Balanced Inputs
- Low Impedance Outputs
- Variable Gain Adjustments w/Clip LEDs
- Auto Turn-On via DC-Offset or Audio Signal Detect
- Generated +12V Remote Output
- OEM Load Detect Compatible
- Selectable Ground Isolation
- Locking Detachable Power/Speaker Input Terminals
- Professional Grade Panel Mount RCA’s
- Compact Aluminum Chassis w/Detachable Mounting tabs
Specifications:
- Output Voltage (Max): >10Vrms
- Output Impedance: <50Ω
- Input Sensitivity:
- SPK: 2-20Vrms, 4-40Vrms
- AUX: 0.5-5Vrms
- Max Input Voltage (SPK): 40Vrms
- Frequency Response: <5Hz to >100kHz
- THD+N (SPK/AUX): <0.05% /<0.05%
- S/N (SPK/AUX): >114dBA />115dBA
- Turn-On Trigger: +12V, DC-offset & Audio Detect
- Generated +12V Output: >500mA
- Chassis Dimensions: 1.1”x3.5”x5.2” (29x90x133mm)

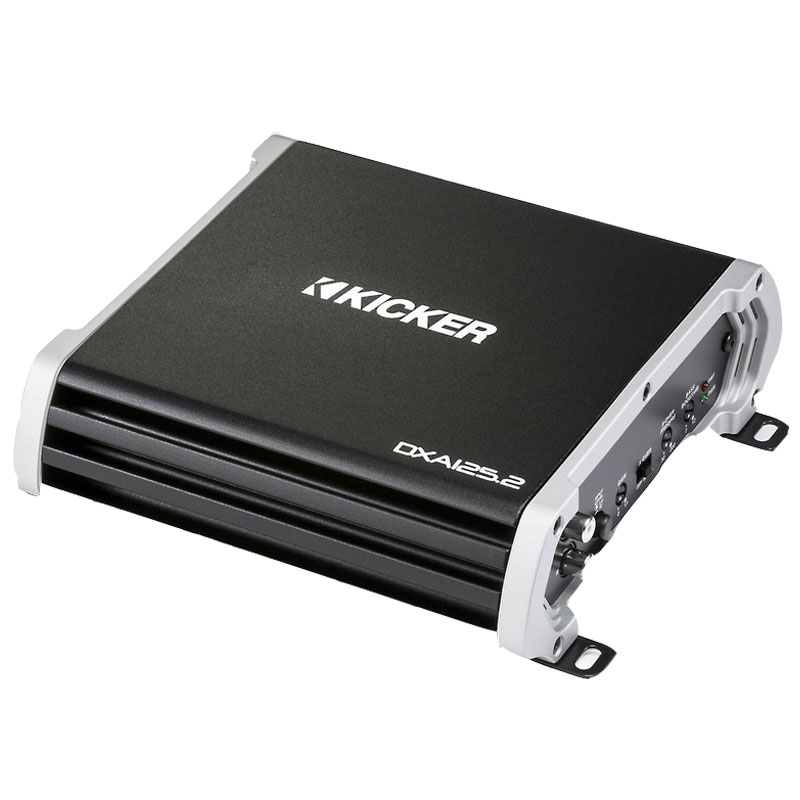

43DXA125.2 DX-Series Class A/B 2 Channel Amplifier 250W Peak Power
- Series: DX Series 2-Channel Amp
- RMS Power @ 4 ohms stereo: 14.4V: 30 x 2
- RMS Power @ 2 ohms stereo: 14.4V: 60 x 2
- RMS Power @ 4 ohms mono: 14.4V: 125 x 1
- Max Power Output: 250W x 1 ch.
- Input Sensitivity (Low): 125mV -5V
- Input Sensitivity (High): 250mV-10V
- Frequency Response: 10-20000Hz
- Signal-to-Noise Ratio (dB): >95, A-weighted, re: rated power
- Subsonic Filter: 24dB @ 25Hz
- KickEQ™ Bass Boost: 0-12 dB @ 40Hz
- Electronic Crossover: HI, LO or OFF, 50-200Hz, 12 dB/octave
43DXA250.4 DX-Series 500 Watts Peak Power Full Range 4 Channel Amplifier
- Bridged Power (Watts x Channels): 125 x 2
- Speaker Level Inputs: RCA
- Best Frequency Response: 10-20k Hz
- Power at 2 Ohms (Watts x Channels): 60 x 4
- Low-Pass Crossover Frequency: 50-200 Hz
- Width (inches): 12-3/8
- High-Pass Crossover Frequency: 50-200 Hz
- Signal to Noise Ratio: 75 dB
- Minimum Impedance Bridged: 4
- Bass Boost: 0-12 dB
- Amplifier Class: AB
- Low-Pass Slope (dB/octave): 12 dB/octave
- Preamp Outputs: No
- Fuse Rating: 60
- Fan Cooled: No
- THD at Rated RMS Power: 1%
- Input Voltage: 14.4v
- RMS Power Output (Watts x Channels): 30 x 4
- Peak Power Output (Watts x Channels): N/A
- Minimum Impedance Unbridged: 2
- High-Pass Slope (dB/octave): 12 dB/octave
- Bass Boost Frequency: 40 Hz
- Height (inches): 2-3/8
- Depth (inches): 7-1/8
SWT-12S4 12" 1000 Watts Peak Power 4-ohm Bass Reflex Subwoofer Tube
- Speaker System: Bass Reflex Type
- 12” (30cm) High-Performance Subwoofer
- Peak Power: 1000W
- RMS Power: 300W
- Overall Dimensions Ø 324 x 660 mm
- Frequency Response 28-200Hz
- Speaker Impedance: 4 Ω
- Sensitivity: 92dB/W (1m)
- Stitched Alpine Logo
- Included Installation Brackets and Belts
- Heavy Duty Subwoofer Grill
- UPC:
- Weight: 18
