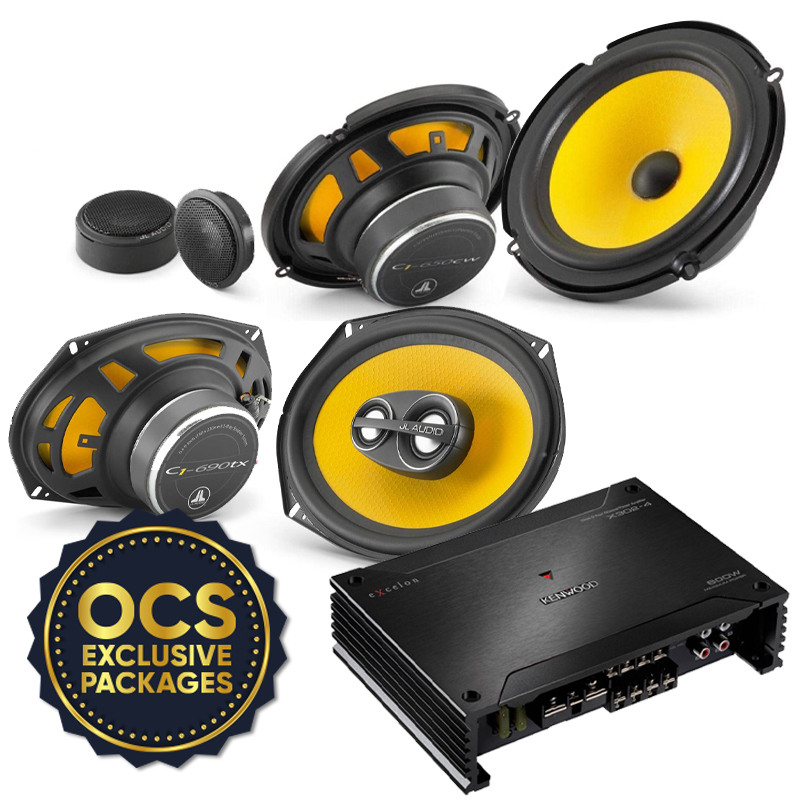

Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.
Pioneer TS-WX1010LA
Rich and Immersive High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
Sliding Terminal Cover
Detachable sliding terminal cover offers a sleek design and easier installation.
Variable Gain Circuit
Improved Signal to Noise Ratio
One-side Connection
All terminals and connections are on one side for easier installation and a cleaner look.
Speaker Level Input Harness
Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.
JL Audio
C1-690tx Coaxial Speaker
C1-650 Component Speaker
C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-690tx is a proprietary, stamped, steel 6 x 9-inch (150 x 230 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.
Equipped with dual true, edge-driven, aluminum dome tweeters, the C1-690tx stands apart from others in its category with superior high-frequency clarity and separation. The design of each tweeter delivers inherently excellent off-axis response and high-frequency extension. Both high-frequency drivers also benefit from the damping of silk surround suspensions and Ferrofluid in the voice coil gaps, along with the superior strength of neodymium magnetics. A true, mixed order filter network is employed to further enhance smoothness and improve power handling.
When it comes to value, C1 is the real deal!
Sold as a pair. Grilles not included.

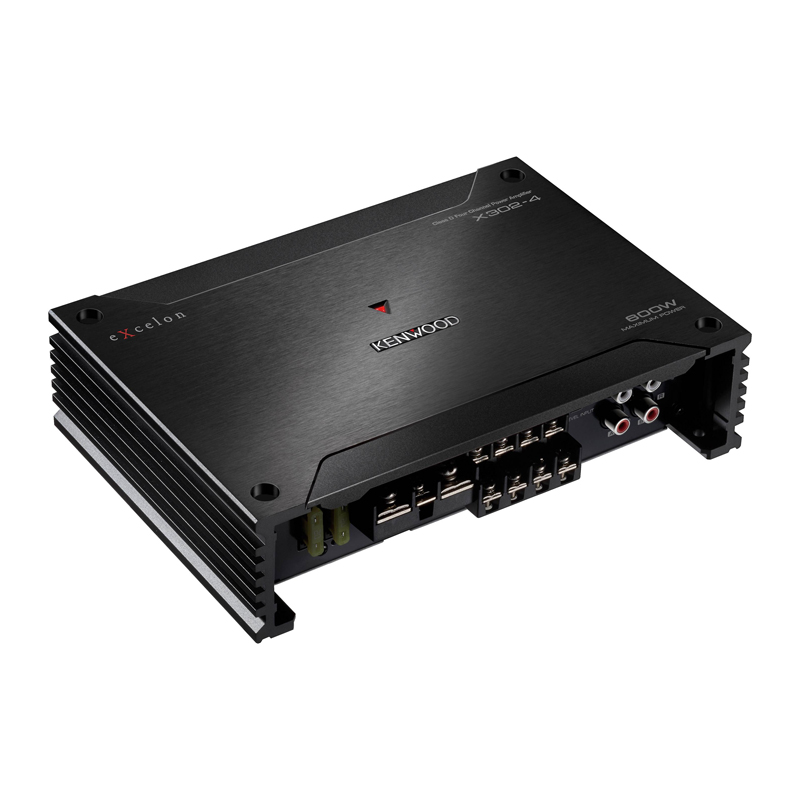

X302-4 - X Series 600 Watts Max Power Class D 4 Channel Amplifier
CTA-2006 Primary Ratings
- Power Output: 50 Watts RMS x 4 at 4 Ohms and ≤1%THD+N
- Signal-to-Noise Ratio: 85dBA (Reference: 1Watt into 4Ohms)
Maximum Power Output
Rated Power Output at 14.4V
- A/B (4 Ohms): 50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD)
- A/B (2 Ohms): 75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD)
- SUB (4 Ohms): -
- SUB (2 Ohms): -
- A/B (Bridged 4Ohms): 150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD)
Specifications
- Signal to Noise Ratio: 100dB (Reference: Rated Power into 4Ohms at 14.4V)
- Frequency Response: 20Hz-50kHz (+0dB, -3dB)
- Frequency Response: -
- Input Impedance: 10k ohm
- Speaker Impedance: 4Ω (2Ω to 8Ω allowable)
- Bridged Connection: 4Ω to 8Ω allowable

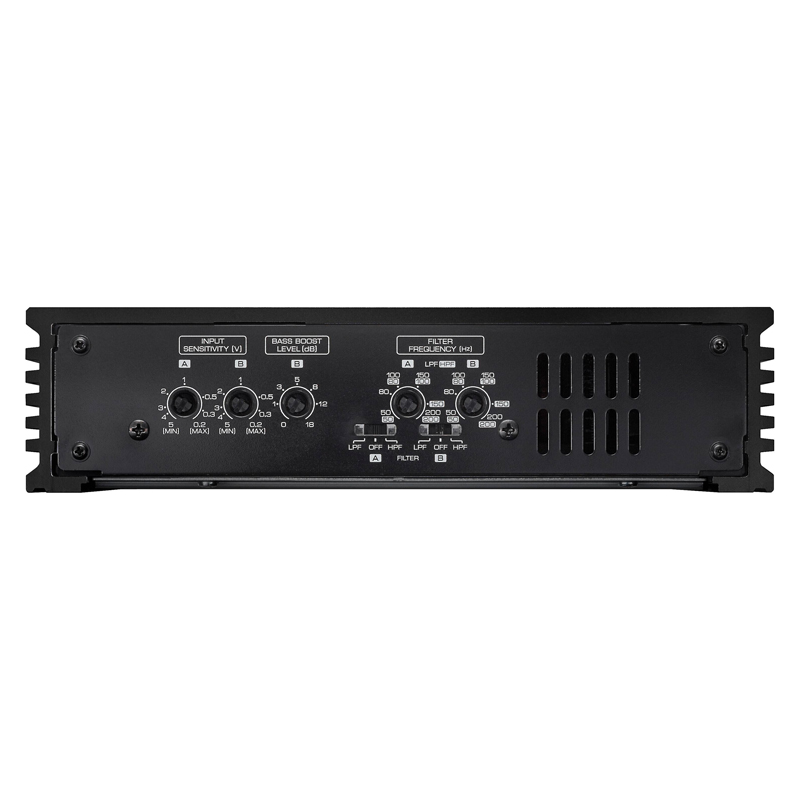

Audio Section
- Low-Pass Filter: 50Hz-200Hz, -12dB/oct (A/B)
- High-Pass Filter: 50Hz-200Hz, -12dB/oct (A/B)
- Bass Boost: 40Hz, 0dB - +18dB (Bch)
- Infrasonic Filter: -
- RCA Input Sensitivity: 0.2[V] - 5.0 [V]
- Speaker Level Input Sensitivity: 4.0[V] - 12.0 [V]

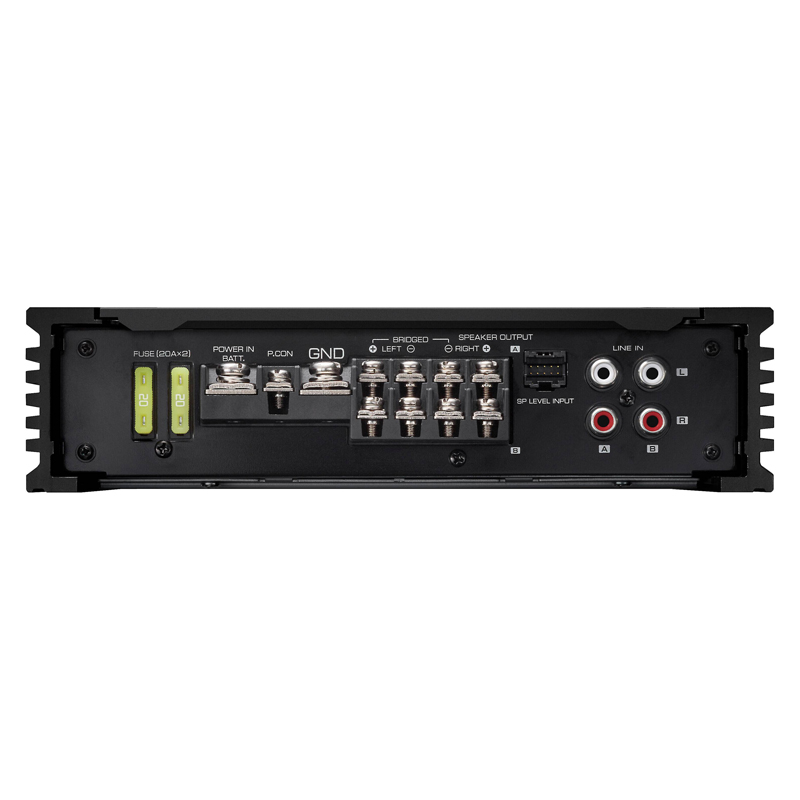

Terminals
- Battery & Ground: M6 Screw Type Terminal Block
- Speaker Output: M4 Screw Type Terminal Block
General
- Dimensions(WxHxD): (W)8-3/8” x (H)2-1/16” x (D)5-7/8”
- Dimensions(WxHxD): (W) 213cm x (H) 53cm x (D) 149cm
- Weight: 3.1 lbs ( 1.4 kg)
- Operating Voltage: 14.4V(11-16V allowable)
- Current Consumption: 20[A]
Key Features
- High-Res Audio Compliant
- CTA-2006 Compliant
- 2 Ohms Load Capability
- One Sided Connection
- Speaker Level Input with Signal Sensing Turn-on
Accessorries
- Signal Sensing Turn-On
- Terminal Cover
- Power MOS-FET Switching Power Supply
- Extruded Aluminum Heat Sink Design

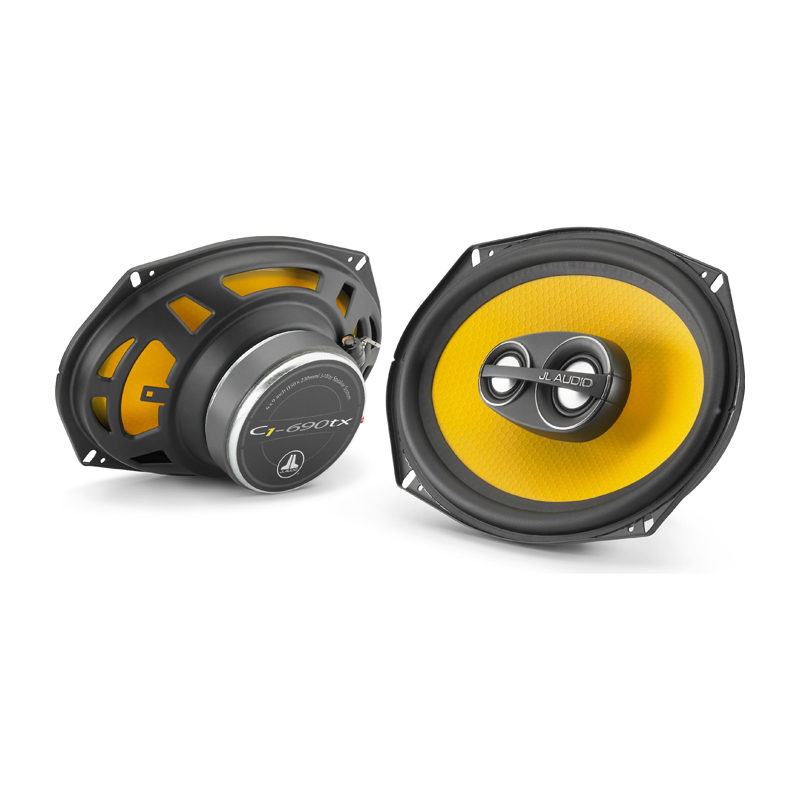

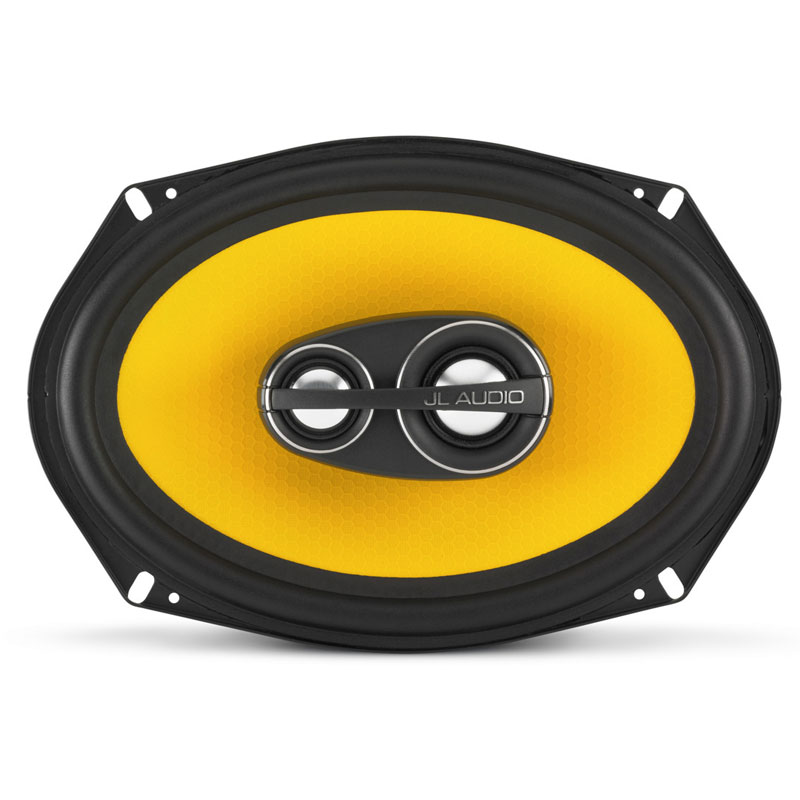

C1-690tx - 6 x 9", 225 Watts Peak Power, 3-Way Coaxial Car Speaker System
Specifications:
- Continuous Power Handling (RMS) 60 W
- Peak Music Power 225 W
- Recommended Amplifier Power (RMS) 10 - 100 W / Ch.
- System Efficiency 90.5 dB @ 1 W / 1 m
- System Nominal Impedance 4 Ω
- System Frequency Response 36 Hz - 24 KHz ± 3 dB

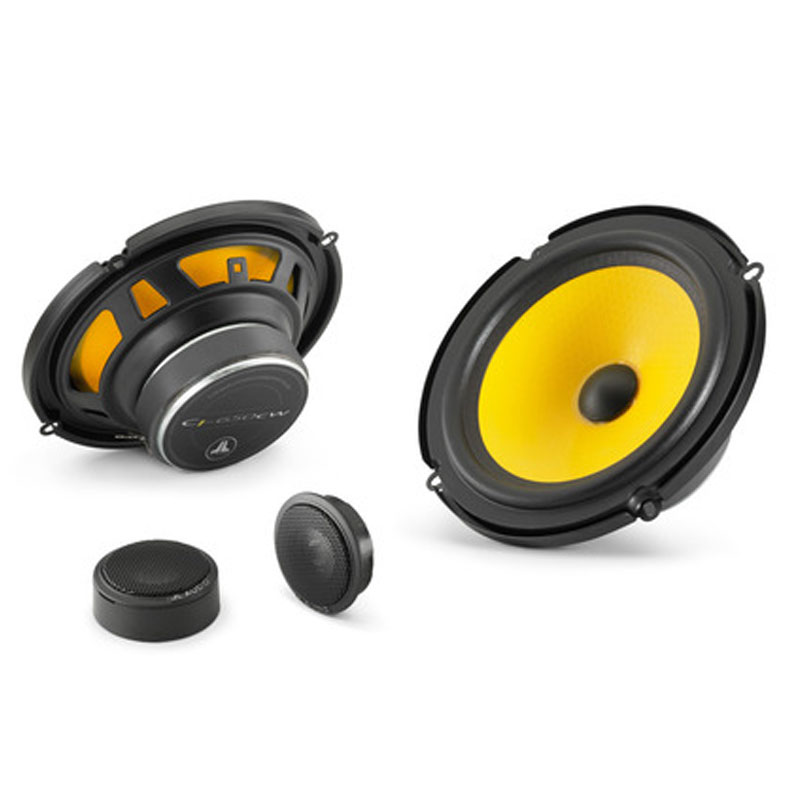

C1-650 - 6-1/2", 225 Watts Peak Power, 2-Way Car Component Speaker System
Specifications:
- Continuous Power Handling (RMS) 50 W
- Peak Music Power 225 W
- Recommended Amplifier Power (RMS) 10 - 75 W / Ch.
- System Efficiency 91.0 dB @ 1 W / 1 m
- System Nominal Impedance 4 Ω
- System Frequency Response 59 Hz - 22 KHz ± 3 dB
- UPC: 798418843615
- Weight: 21.5
