Alpine  S-W10D2-Bundle2

Alpine KTA-200M + Alpine S-W10D2 Alpine Bundle

Item #78172

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS



FEATURES

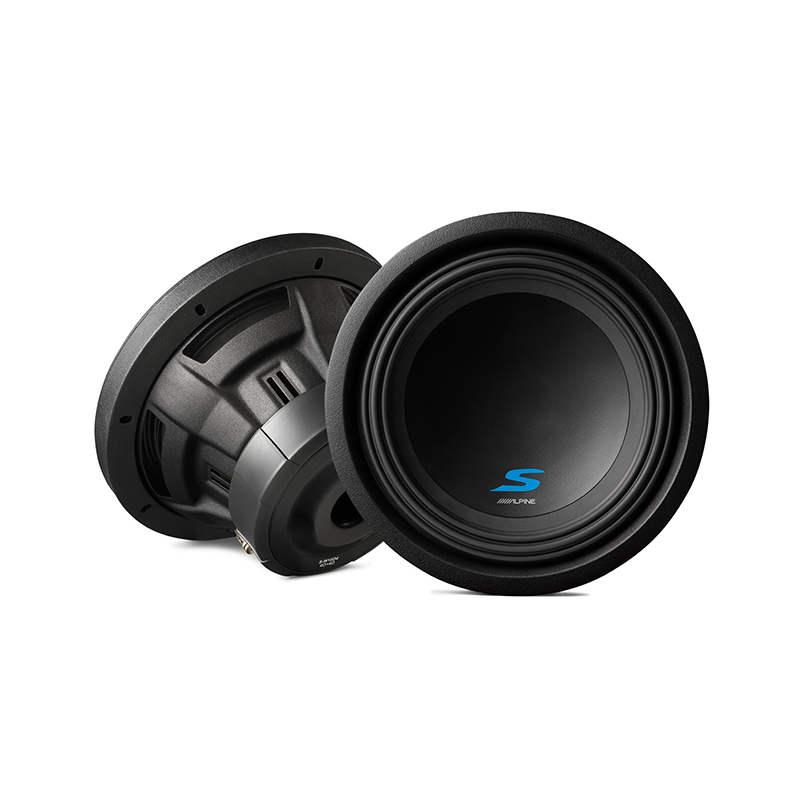

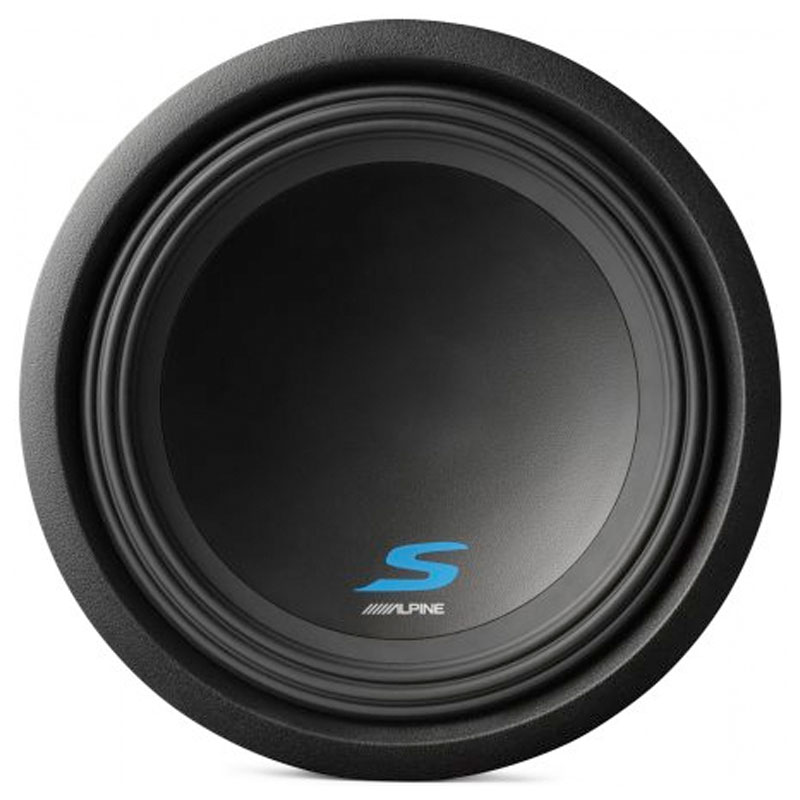

S-Series 10" 1800 Watts Peak Power Dual 2-Ohm Car Subwoofer

Features:

  • High Amplitude Multi-Roll Surround
  • High Strength Steel Frame
  • Perimeter venting with airflow management system
  • High-excursion underhung voice coil configuration
  • Compound radius curve extended pole geometry
  • Airflow optimized dual flare pole vent
  • 65mm voice coil with high-temp 5-layer dvc winding on aluminum former
  • high-grade strontium ferrite magnets
  • 8-AWG push terminals with voice coil configuration jumpers
  • Progressiver spider with reinforced tinsel leads
  • Concealed mount gasket
  • Reinforced parabolic cone structure with pulp/Kevlar con & PP/Mica/Talc Dustcap
  • 15MM Xmax
  • 64mm Xmech
  • 600W RMS
  • 4.7" mounting depth
  • 10-9/16" Cutout Diameter
  • Power handling: 250-600W RMS
  • Sealed Enclosure range: .55-1.0 ft^3
  • Vented Enclosure Range: 1.0-1.5 ft^3
  • Vented tuning range: 32-37Hz

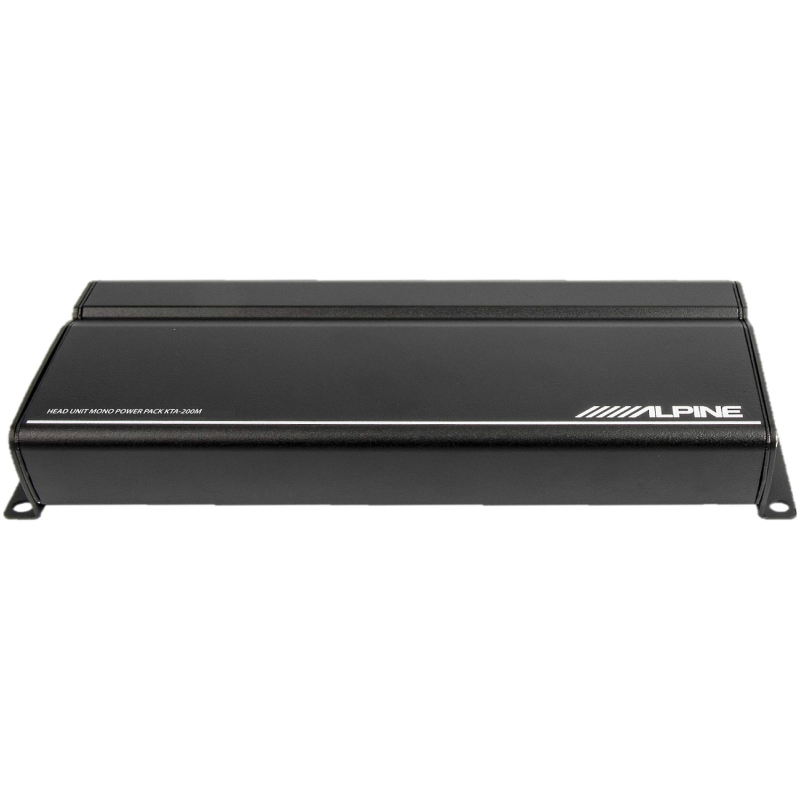

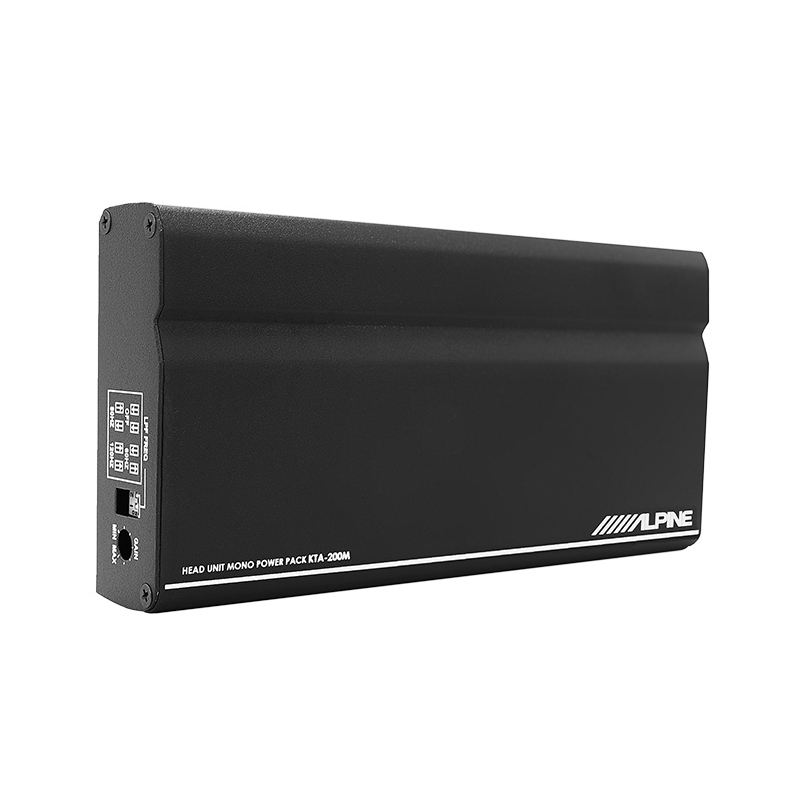

KTA-200M Mono Power Pack Amplifier with Power Stack Capability Circuit w/ Dynamic Peak Power (DPP)

Features:

  • Alpine’s Exclusive Dynamic Peak Power (DPP) Technology
  • Remote Bass-Knob ready with the RUX-KNOB.2 (sold separately)
  • PowerStack capable with the Alpine iLX-W650(sold separately)

Specifications:

  • Product Dimensions: 7” x 1.5 “ x 3.5 “
  • Alpine’s Class D Amplifier Circuit w/ Dynamic Peak Power (DPP)
  • 200W x 1 RMS (4Ohms, 14.4V, ≤1% THD+N)
  • 200W x 1 RMS (2Ohms, 14.4V, ≤1% THD+N)
  • 400W x 1 DPP (4Ohms, 14.4V, ≤1% THD+N)
  • S/N>80dB (ref. 1W into 4Ohms)
  • THD+N≤0.1%(ref. 10W into 4Ohms)
  • Single-side 22-pin connector
  • RCA inputs (Low range=0.2-4V)

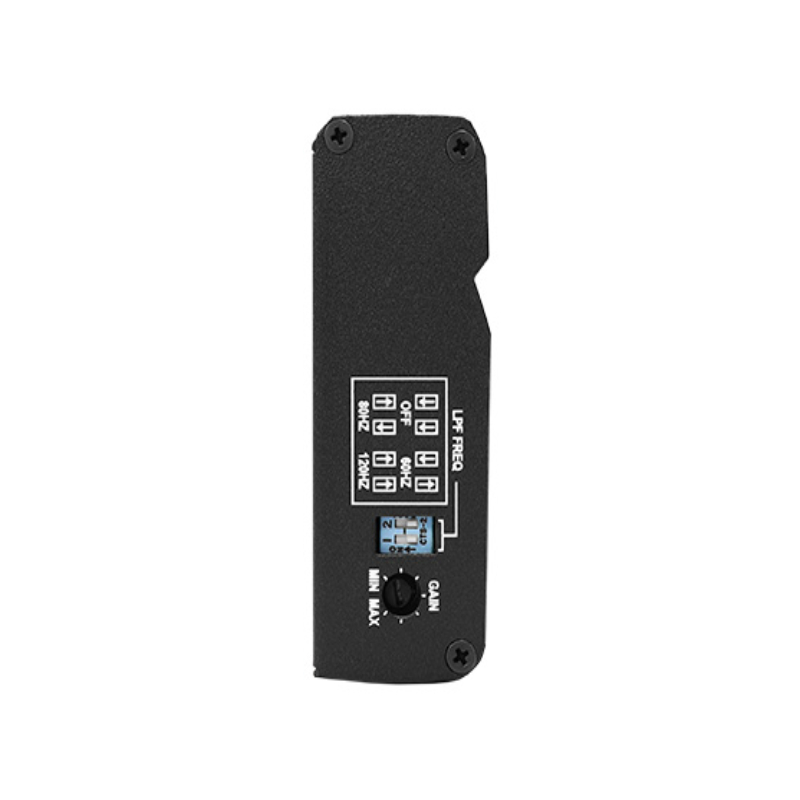

  • Sound controls; Crossovers-Off/60Hz/80Hz/120Hz Linkwitz, Riley LP Filter @ -24dB/Oct. (selectable); Input gain setting (variable)
  • UPC: 798418842472
  • Weight: 20
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
