Jensen CAR910W 1-DIN 9" Digital Multimedia Receiver
We are a Jensen authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

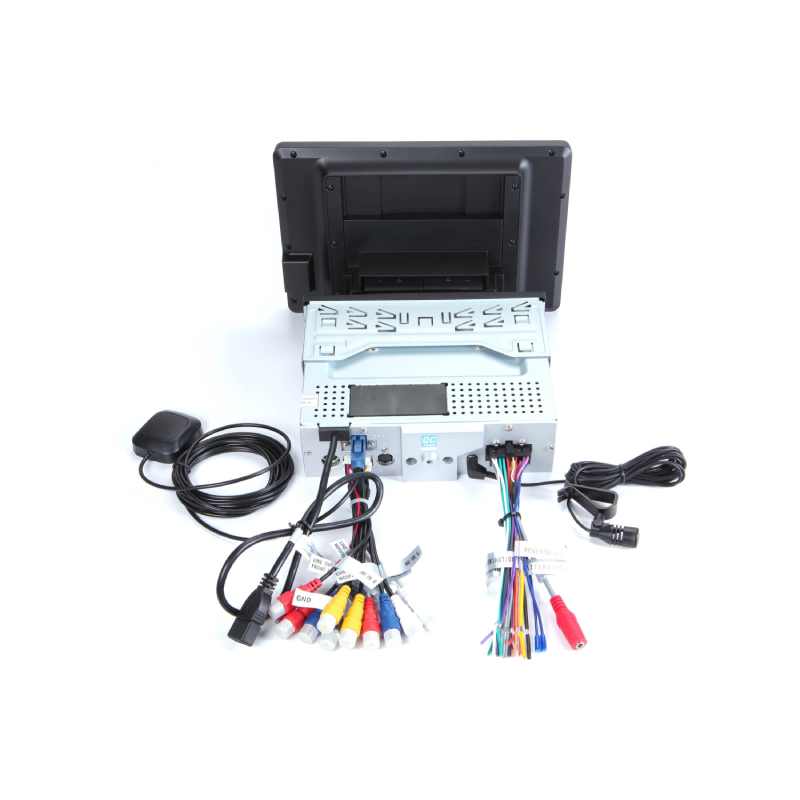

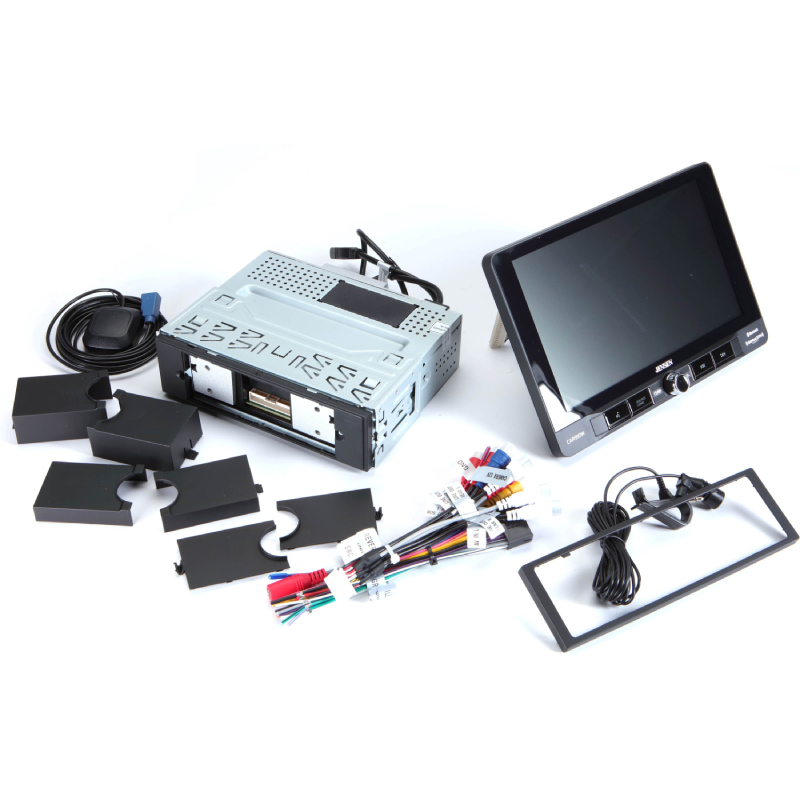

What's Inside?
- •Source unit (15A fuse)
- •9" Touchscreen monitor
- •Wiring harness
- •Preout/AV harness
- •GPS antenna (attached 9.75' cable terminated by Fakra connector)
- •Microphone w/ bracket (attached 9.75' cable terminated by a mono-3.5mm connector
- •Self-adhesive bracket
- •Mounting sleeve (pre-installed)
- •Trim-ring
- • (6) Side-panel covers
- • (4) ISO-screws
- •(4) LCD mounting screws
- •(2) Radio removal tools
- •Quick Start Guide
- • Screen Installation Instructions
- •Owner's Manual
Apple Car Play, Bluetooth Hands free Calling and Sirius XM ready
Control key phone features directly from the receiver's touchscreen or via voice-control, significantly reducing driver distraction. Apple CarPlay launches upon connecting a compatible iphone to the receiver via USB. Bluetooth - Safely answer and make calls from your receiver using touchscreen icons and the included microphone
Push to talk button and Back up Camera
Sirius XM Ready - Listen to your favorite commercial-free radio stations from SiriusXM (SiriusXM connect Vehicle Tuner and Subscription sold seperately Communicates via your phone's Bluetooth connection to the radio.
You Are Always Aware of Your Surroundings
Interact with your smartphone's assistant while you drive with only a push of a button You have the option to install a back up camera to your car receiver so you are always aware of your surroundings as you reverse.
- Satellite Radio Ready : Yes
- Subwoofer Preamp Outputs : Yes
- DIN : 2
- Preamp Voltage : 4 volts
- Display Size : 9 Inch
- Bluetooth : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : No
- Rear USB Input : 1
- Preamp Outputs : 3
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
Features:

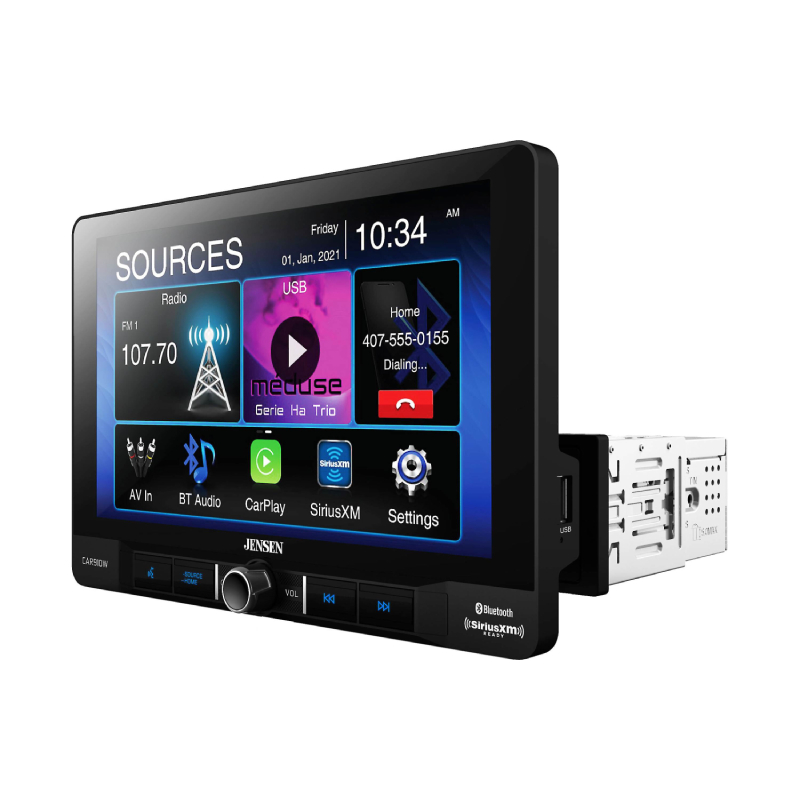

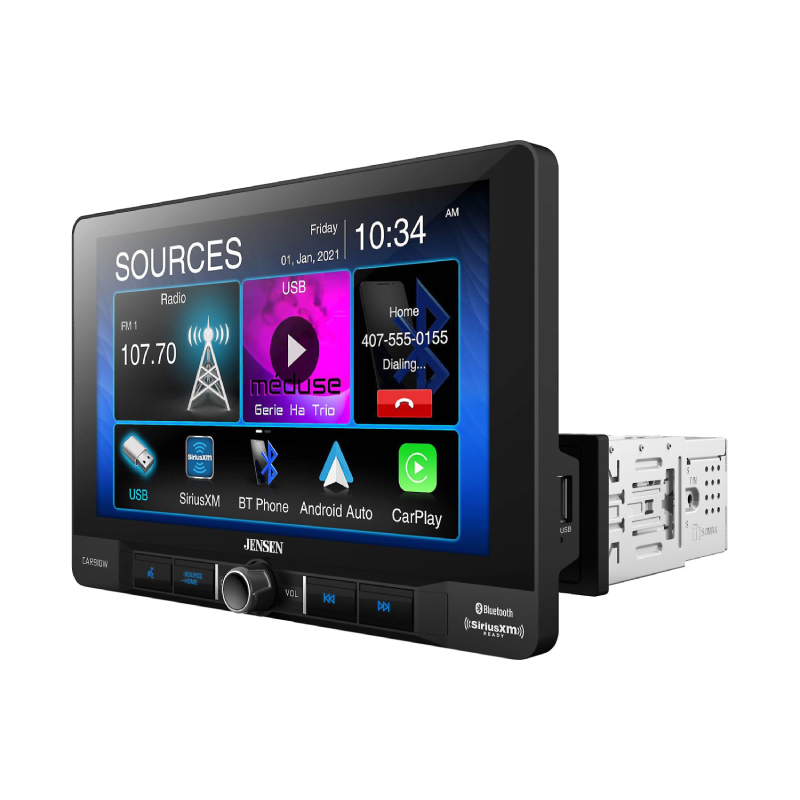

- 9" Capacitive Touchscreen Monitor: The Jensen CAR910W includes a large 9" capacitive touchscreen LCD monitor with LED backlit and a resolution of 1,152,000. The large display is easy to see and navigate. The large touchscreen display maximizes your driving experience by making it easy to navigate and manage your music and apps effortlessly with the utmost convenience. The 9" touchscreen monitor attaches and plugs into the front of the CAR910W's separate source unit which mounts in a standard 2" single-DIN opening in a variety of vehicles.

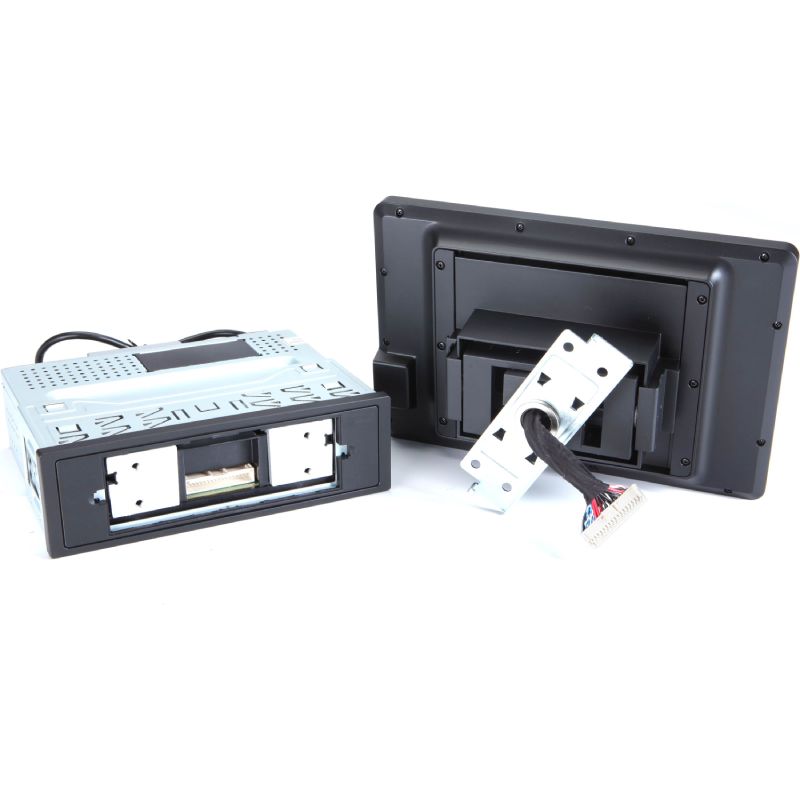

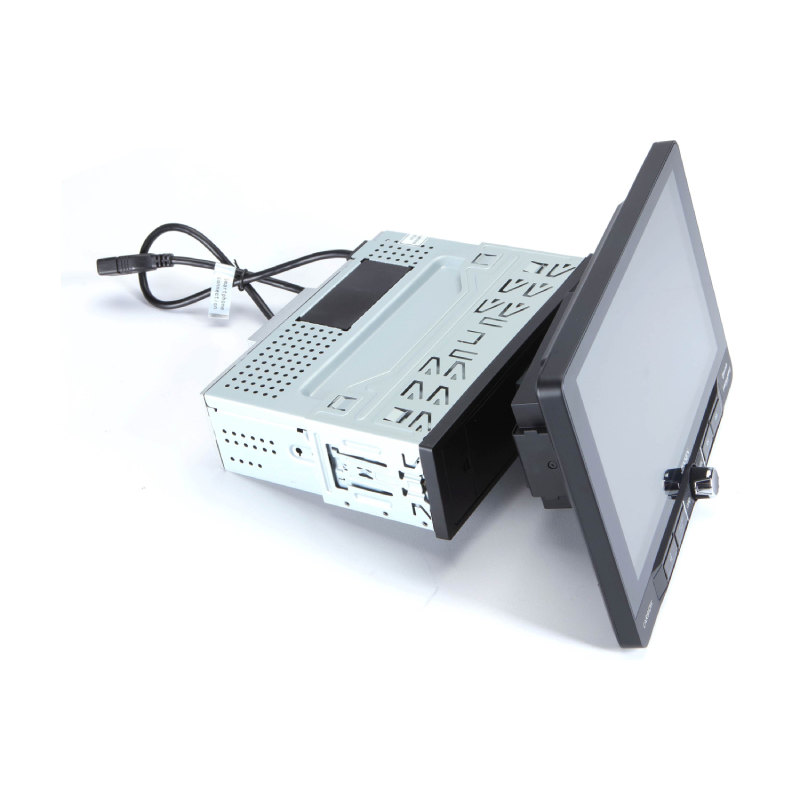

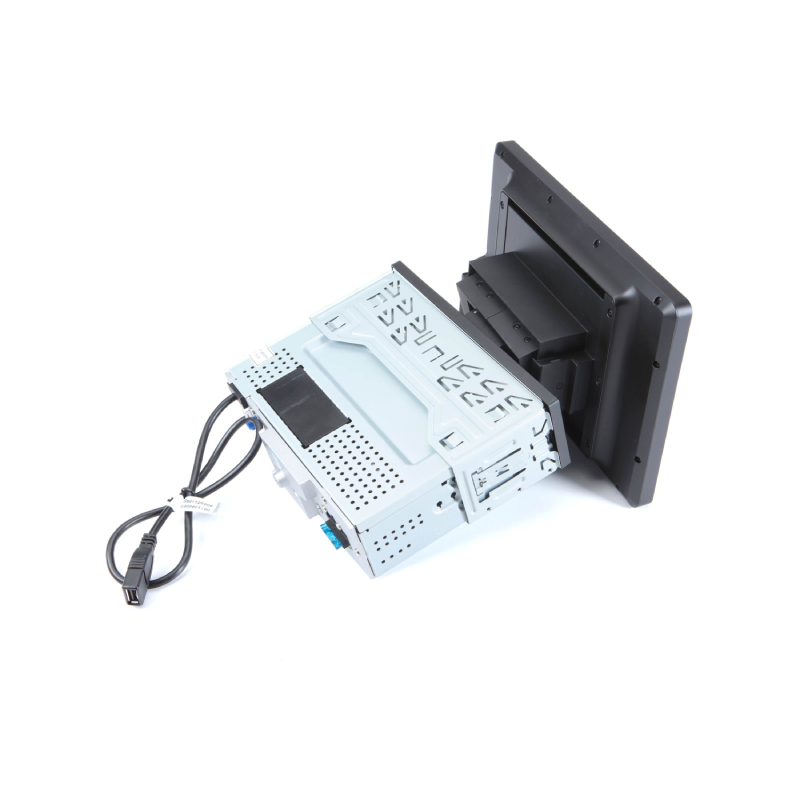

- Single-DIN Source Unit: The included source unit fits in a standard 2" single-DIN opening (applicable kit, harness, etc. will be required and sold separately for your vehicle). Once the source unit is mounted in the dash, the 9" touchscreen monitor attaches and plugs into the front of the source unit using the integrated wiring harness and included hardware. All of the CAR910W's inputs and outputs are found on the rear-panel of the source unit, except for a USB-A 2.0 port that is located on the side of the 9" touchscreen monitor.

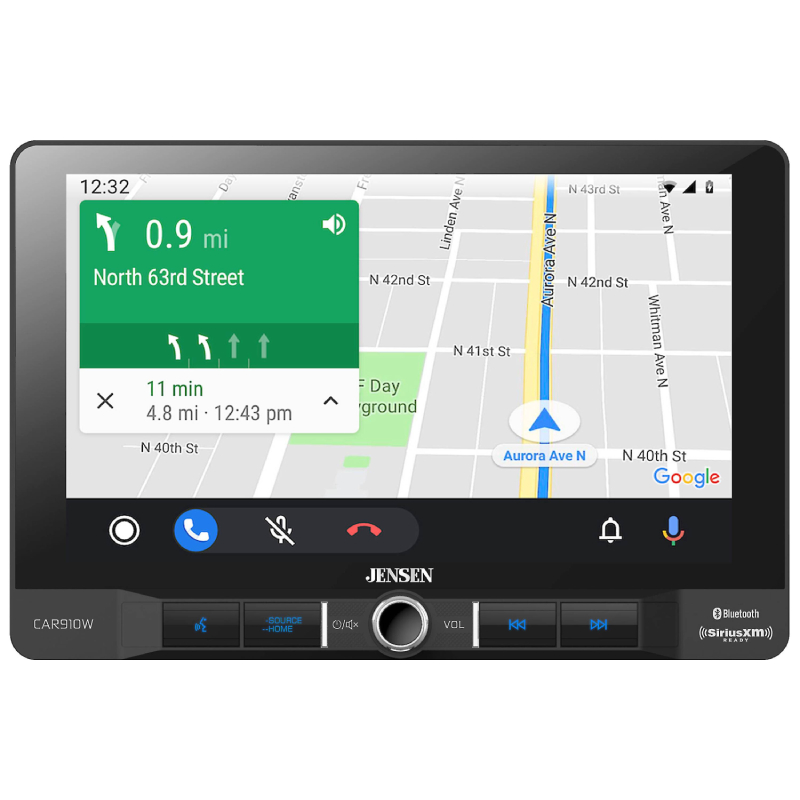

- Wired or Wireless Android Auto: The Jensen CAR910W digital multimedia receiver supports Android Auto with select Android smartphones using a wireless or wired connection. A Google or Samsung smartphone with Android OS 10.0+ or any smartphone with Android OS 11.0+ and 5GHz WiFi can utilize Android Auto Wireless with the Jensen receiver using the latest version of the Android Auto app, plus a WiFi and Bluetooth connection. Android smartphones running Lollipop 6.0 or higher can also be hardwired to the Jensen receiver via the rear-panel USB port (not front-panel USB port) and Bluetooth. Android Auto brings the most useful apps of your Android smartphone to the Jensen in-dash receiver, making it easier for you to keep your main focus on driving. You can control things like navigation maps, phone calls, text messages, music, and more using the head unit's touchscreen or your voice and Google Assistant. With large touchscreen icons, a simplified user interface, and the Google Assistant, it's designed to minimize distraction so you can stay focused on the road.
- Wired or Wireless Apple CarPlay: Apple CarPlay is a smarter, safer way to use your Apple iPhone in your vehicle. Your iPhone can be connected to the Jensen CAR910W wirelessly via WiFi + Bluetooth, or hardwired via the rear-panel USB port (not front-panel USB port). An iPhone 6S or newer (running iOS 9.0+) is required for a wireless connection, while an iPhone 6S or newer (running iOS 7.1+) is required for a hardwired connection. CarPlay takes the things you want to do with your iPhone while driving and puts them right on the display of the in-dash receiver. You can use the head unit's touchscreen or your voice and Siri to get directions, make calls, send and receive messages, and listen to music - all in a way that allows you to stay focused on the road.
- GPS Antenna: The included GPS antenna must be installed for wireless Android Auto and Apple CarPlay to function. The GPS antenna can be mounted inside the front of vehicle on the dash or pillar.
- Cellular & Data Plan Requirements: Access to CarPlay and Android Auto apps will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone or Android smartphone to connect to the Internet. Your compatible Apple or Android device will need an active Data Plan account with connection to the Internet via 3G, EDGE, LTE (4G), or WiFi.
- Smartphone Charging: The Jensen CAR910W will also charge your Android Auto compatible Android smartphone or Apple CarPlay compatible iPhone while connected via the rear-panel USB (5V/1.5A) with the vehicle's ignition switch set to the 'ACC' or 'On' position.
- Bluetooth Technology: The Jensen CAR910W is equipped with built-in Bluetooth 4.1 + EDR, allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit.
- Hands-Free Communication (w/ external mic): The CAR910W supports Bluetooth hands-free communication from your Bluetooth enabled mobile phone. You can answer and make a call from the head unit's touchscreen, so you can carry on a phone conversation hands-free. The included external microphone carries on your side of the conversation while your car's speakers are used to hear the other person.
- Wireless Audio Streaming: The Jensen CAR910W allows you to play back stored music and music apps from your Bluetooth enabled smartphone, tablet, or audio player. You can control basic music playback functions (Play/Pause, Previous/Next Track) from the CAR910W. Advanced music navigation will still need to be done through your Bluetooth mobile device. This unit will also display song/artist/album text information (no album art) from a connected Bluetooth audio device. When an incoming call or outgoing call is in progress from your Bluetooth enabled mobile phone, audio streaming will be paused so you can take your call. Once the call is finished, your streaming music will resume.
- Rearview Camera Input: The Camera Input consists of a Composite video RCA jack for connecting an optional rear view camera (sold separately - see Accessories tab) in order to display the area behind your vehicle on the head unit's touchscreen. When an optional rearview camera is connected to this unit, the rear view image is displayed on the screen when your vehicle is placed in reverse gear (purple/white wire of harness must be connected to the reverse light wire of vehicle). Automatic video switching takes approximately 0.9 seconds. The unit offers a 12V/0.5A accessory power and ground lead to supply power to your optional backup camera once the vehicle's reverse gear is detected.
Specifications:
- 9" Capacitive touchscreen LCD (1024x600)
- Wireless and Wired Apple CarPlay and Android Auto

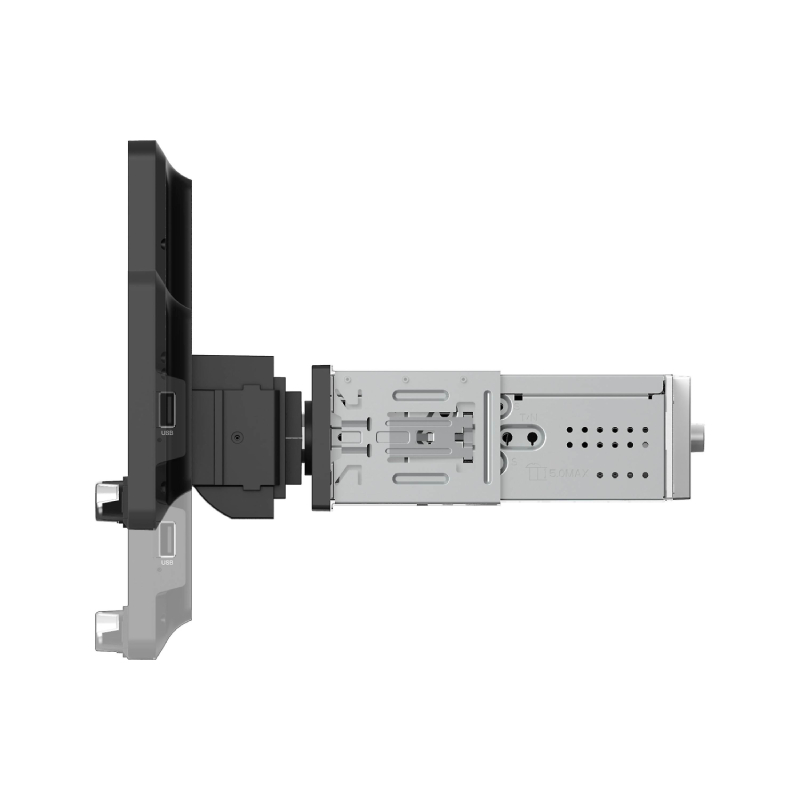

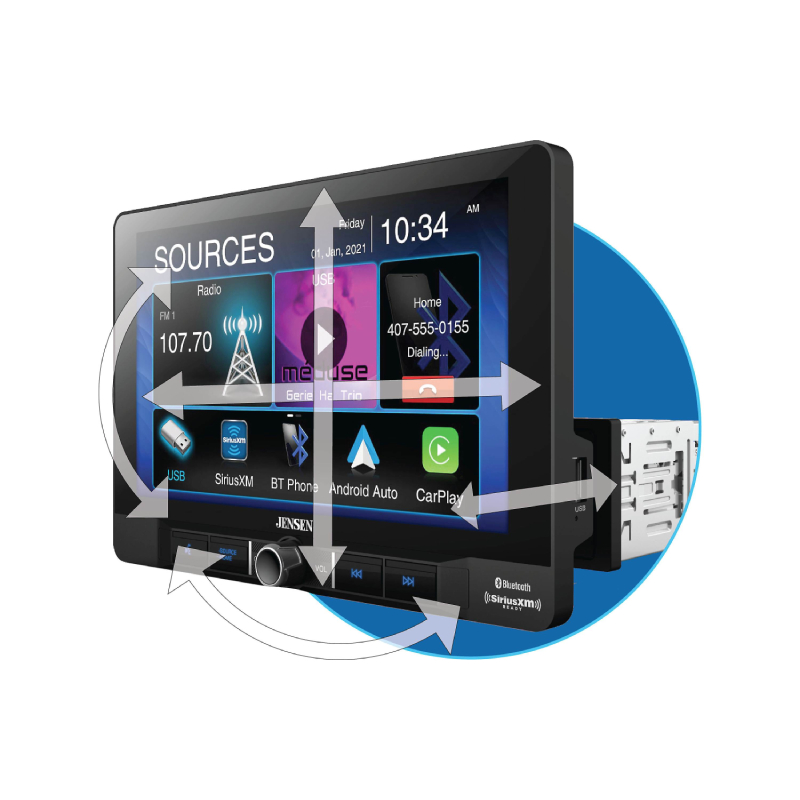

- Swivel

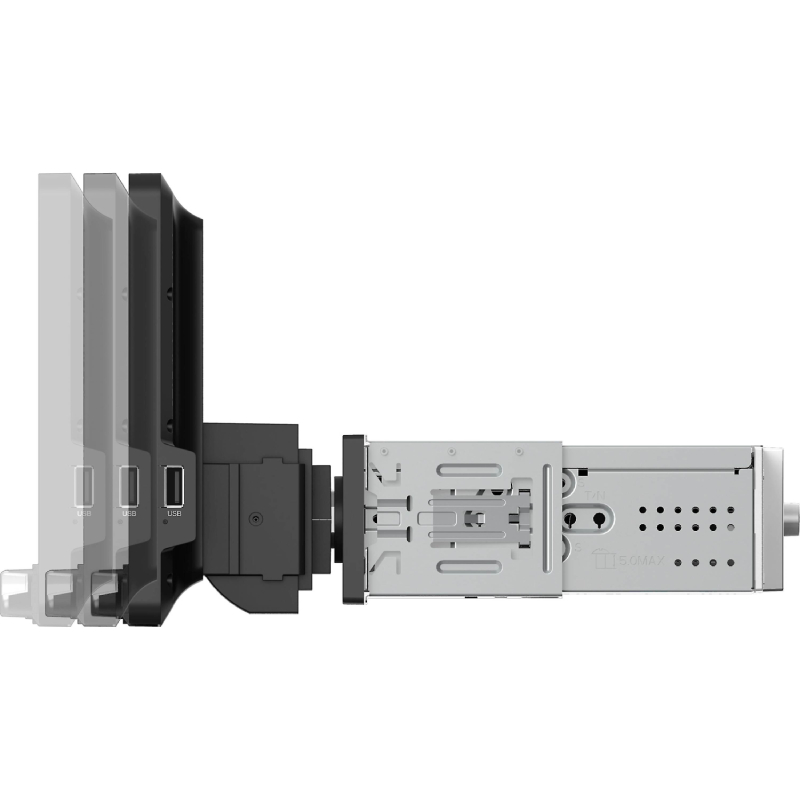

- Pivot and Tilt screen adjustment
- Built-in Bluetooth technology with hands-free calling
- music streaming
- ID3 tags - external microphone
- AM/FM Tuner with 30 station presets (18FM/12AM)
- SiriusXM-Ready® (SiriusXM Connect Vehicle Tuner and Subscription sold separately).
- Supports album art
- Push-to-talk button to access smartphone voice assistant
- Front USB input with 2.1A fast charging and playback
- Rear USB input with 1.5A charging (CP/AA playback)
- Back-up camera input, Rear A/V input (RCA)
- 3 Pairs of 4V RCA preamp outputs (F/R/S)
- Digital media unit – will not play CDs/DVDs
- File playback: MP4, Xvid, MP3 & FLAC
- 8 Preset EQ curves (Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft),
- Time Alignment
- 240 Watts max power (60W x 4) MOSFET
- Steering Wheel Control (SWC) Input)
- UPC: 827204117811
- Weight: 9
