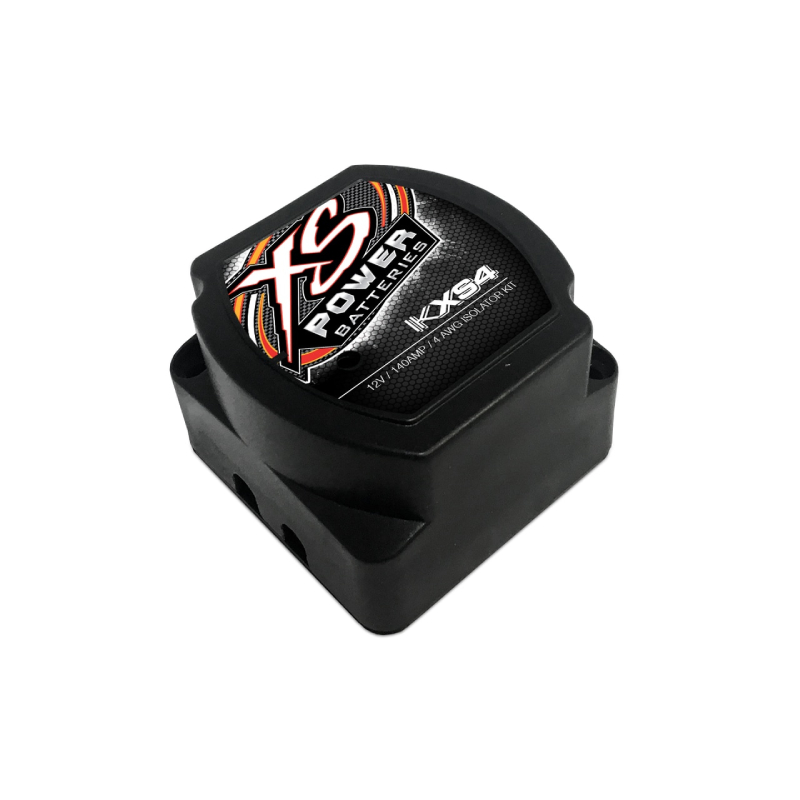

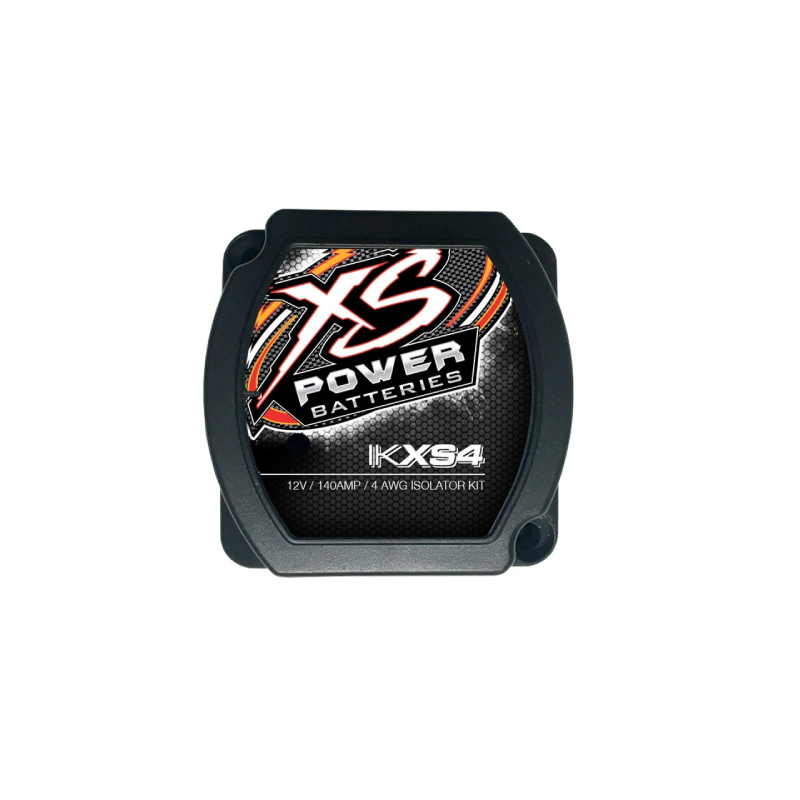

XS Power IKXS4 140A Battery Isolator Kit with XS Flex 4AWG, Red Power Wire, Black Ground Wire, and Terminals
We are a XS Power authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

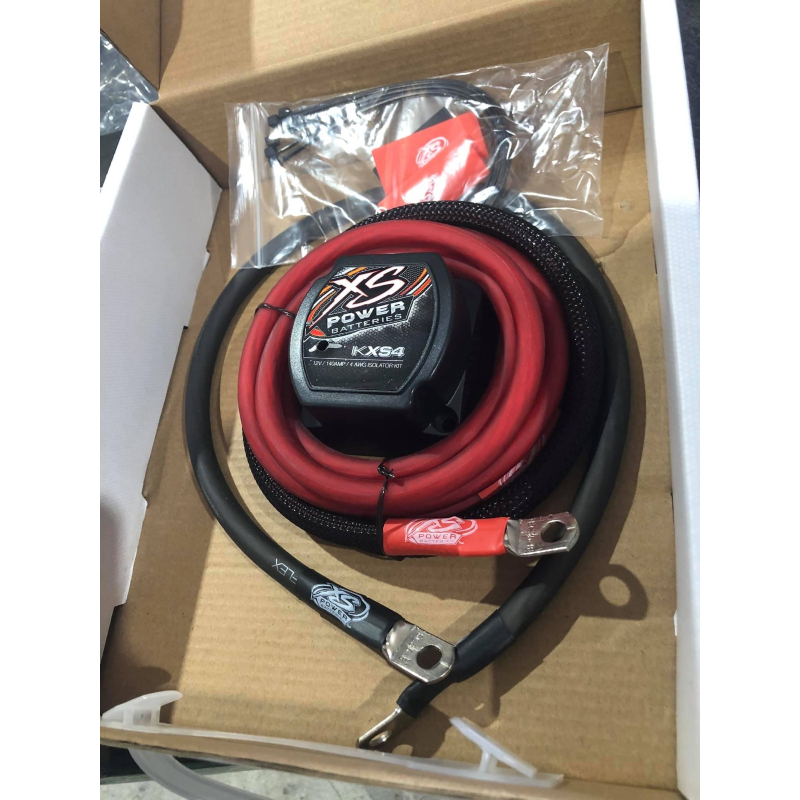

What's Inside?
- • IKXS4 Battery Isolator
- • XS Flex 4 AWG, Red Power Wire
- • Black Ground Wire
- • Terminals
- • Owner's Manual
Wiring for Efficient Dual Battery
The XS Power IKXS4 Battery Isolator Kit is a comprehensive solution for effective power management in dual battery systems. With a sturdy 140A battery isolator, this kit ensures efficient distribution of power. The included XS Flex 4AWG red power wire and black ground wire are designed for optimal conductivity and durability, providing a reliable electrical connection. The kit also comes with terminals, making the installation process straightforward and secure. Upgrade your dual battery system with the IKXS4 for a reliable and efficient power solution.
Frequently Asked Questions (FAQ)
- • Why isn't my second battery charging after installing the IKXS4?
The IKXS4 uses automatic voltage detection, with a 13.3V cut-in and 12.8V cut-out. If the system never reaches the required charging voltage, the isolator may not connect the auxiliary battery as expected.
- • Why does my auxiliary battery keep going dead overnight?
An isolator is designed to separate the starting and auxiliary batteries when the vehicle is off, but it cannot correct a separate parasitic draw. If the second battery repeatedly dies, check connected accessories and measure the system for an unwanted drain.
- • Why does the IKXS4 keep connecting and disconnecting?
Rapid voltage changes around the isolator's switching thresholds can cause unexpected behavior. Check alternator output, battery condition, cable connections, and grounding before assuming the module itself has failed.
- • Why isn't the included 4 AWG cable long enough for my vehicle?
The kit includes specific lengths of 4 AWG red and black XS Flex cable, so larger vehicles or unusual battery locations may require additional correctly sized wiring.
- • Can the IKXS4 handle a large aftermarket audio system?
The isolator is rated for 140A continuous and 170A intermittent current. If the auxiliary system can exceed those limits, the IKXS4 may not be the appropriate isolator for that particular load.
- • Why does my car still lose power even after adding the IKXS4?
Real-world users have reported vehicles shutting down while running demanding audio systems, with commenters pointing to possible battery, alternator, wiring, or amplifier setup issues. An isolator separates batteries; it does not increase alternator output or fix an undersized electrical system.
- • Why won't the IKXS4 activate even though the engine is running?
The module needs the charging system to reach its activation threshold. The listed cut-in voltage is 13.3V, so test voltage directly at the isolator terminals while the engine is running rather than relying only on the dashboard gauge.
- • Why are my connections getting hot with the IKXS4 installed?
Excessive heat can indicate resistance from a loose terminal, poor crimp, inadequate grounding, damaged cable, or excessive current. Inspect the supplied 4 AWG connections and all battery terminals if unusual heating occurs.
- • Is installation really automatic, or do I have to manually switch the batteries?
The IKXS4 is described as a fully automatic module with automatic voltage-level detection and a five-second delay timer. It is intended to manage battery isolation without requiring a manual switch.
- • Why does my IKXS4 installation work but seem expensive compared with other isolators?
This concern is reflected in the available product review: one buyer said the IKXS4 was “efficient as advertised” and improved the setup, but also considered it somewhat pricey. The included 4 AWG wiring, terminals, and automatic 140A isolator are part of the complete kit.
Features:
- 140A Battery Isolator Kit: The XS Power IKXS4 includes a robust 140A battery isolator for efficient power management in dual battery systems.
- XS Flex 4AWG Wiring: The kit features XS Flex 4AWG red power wire and black ground wire, providing optimal conductivity and durability.
- Terminals Included: Comes with terminals for easy and secure connection, ensuring a reliable electrical setup.
- UPC: 798418836372
- Weight: 1.5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
efficient as advertised! a little bit pricey but it improves my setup so still worth it
