Pioneer  TS-WX1220AH-Bundle

12" 1000W RMS Double Powered Subwoofer System + 800W Peak Power drvn Series Mono Amplifier

Item #79524

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

Pioneer TS-WX1220AH-Bundle 12" 1000W RMS Double Powered Subwoofer System + 800W Peak Power drvn Series Mono Amplifier


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •1 Pioneer TS-WX1220AH
  • •1 JVC KS-DR3001D
  • •Owner's Manual

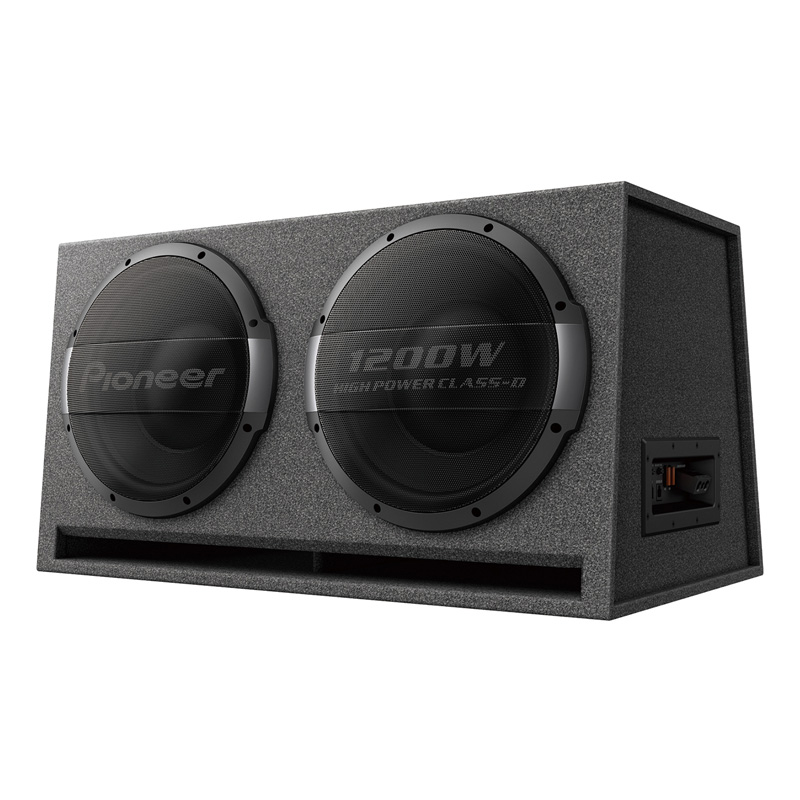

Pioneer TS-WX1220AH 12" 1000W RMS (3000W Peak Power Handling) 1200W Peak Power Built-In Amplifier Double Powered Bass Reflex Subwoofer System

Powerful bass and easy to install

The cabinet mechanism and the bass reflex port of the TS-WX1220AH are optimized to take advantage of the low-frequency response of a dual driver with two 30 cm woofer units. Which enable the original bass reproduction of the device and make it possible to enjoy a high-quality and powerful heavy bass reproduction. Equipped with a bass boost circuit, it is possible to adjust the sound pressure level and the frequency characteristics. You can adjust your favorite music to your liking.

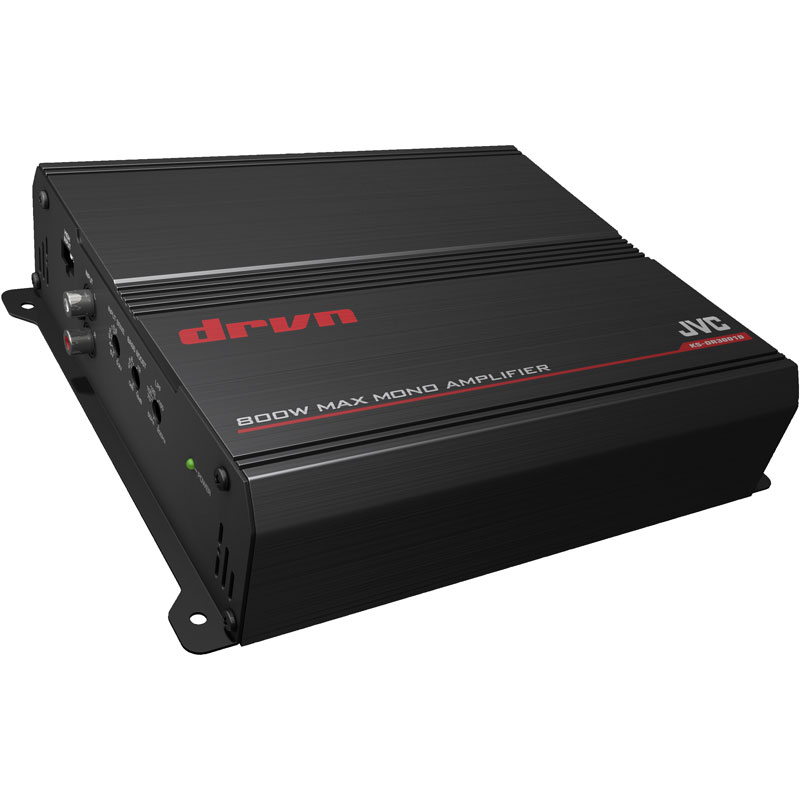

JVC KS-DR3001D Mono Class D drvn Series Car Audio Power Amplifier - Power Output 800W Peak Power (RMS): 400 Watt / 2 ohms, 250 watts / 4 ohms

Surface And Flush Mounts

C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles. To facilitate fit, multi-application adaptor rings are included for the C1-650 woofers, allowing easy, drop-in installation in vehicles equipped with oversized 6.5-inch and 6.75-inch speaker openings. Without the ring, the woofers will also fit into many "6-inch" speaker locations as well. Surface and flush mounts are included with C1 tweeters for maximum installation versatility.

Pioneer TS-WX1220AH - 12" 1000W RMS (3000W Peak) Double Powered Bass Reflex Subwoofer System

Specifications:

  • CarSoundFit App: Yes
  • Size: 30 cm (12") x 2
  • Type: Double powered bass reflex subwoofer system
  • Maximum power: 3000 W
  • Nom Power: 1000 Watt
  • Frequency response: 20 Hz - 2.9 kHz
  • Sensitivity: 118 dB (in car, 2V) dB
  • Impedance: 0.3 ohms
  • Woofer material: Pulp
  • Surround: Urethane
  • Voice Coil type: Copper round wire 4-layers single voice coil
  • Voice Coil bobbin type: Kapton
  • Terminals: Faston
  • Magnets: FERRITE
  • 30cm / 12" Enclosed Active : Yes
  • LPF: 50 Hz - 200 Hz (-12dB / oct)
  • Weight: 22.8 kg
  • Dimensions: 745x459(375)x400 mm

JVC KS-DR3001D - Mono Class D drvn Series Car Audio Power Amplifier - Power Output 800W Peak Power (RMS): 400 Watt / 2 ohms, 250 watts / 4 ohms

Features:

  • Mono amplifier with Class-D digital technology
  • Output power (max.): 800 watts
  • Output power (RMS): 400 Watt / 2 ohms, 250 watts / 4 ohms
  • Frequency range: 20 - 200 Hz
  • THD: less than 0.08%
  • Signal / noise ratio: 60 dBA at 4O, 1W
  • 2 RCA inputs
  • High-level terminal
  • UPC: 656089074199
  • Weight: 20
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • If you're looking for a good investment in a car audio system, this is the one right here. Yeah you're dropping almost $800 for this bundle but you get what you pay for. Buying individually will cost you more! You get a pioneer dual sub enclosure that has 1000W power handling. Sounds very clear and gives good bass + a jvc amp class D amp. I’m very satisfied with this.

    Kent Navarro
    5/5/2021
