• R-A75M Amplifier
• (4) R-A75M Mounting screws
• (2) R-A75M Allen wrenches
• R-A75M User manual
• R-A75M Warranty/Registration card
• R-SB10V Ported enclosure loaded with one R-W10D4 subwoofer driver
• R-SB10V Rubber flange protector (installed on subwoofer)
When you’re looking to make a noticeable impact in your sound system, you add a subwoofer that will bring out the low ends of your music. But what if you already have a single subwoofer and still crave more bass? You could throw out your single enclosure and purchase a new dual enclosure or you can build your bass with Alpine's new ProLink™ technology. ProLink™ is unique to Alpine and allows you to link two S-SB12V enclosures together using an optional KTX-H12 Linking Kit (sold separately) to create a dual subwoofer-enclosure. Now you have the flexibility in power and price to use a single subwoofer or add another subwoofer when more bass is desired.
The R-Series speakers use Alpine’s exclusive cone technology, Carbon Fiber Reinforced Polymer (CFRP), which is a high-strength, lightweight material. CFRP can be custom-formed so that its fibers align in the same direction as the curve and shape of the cone, thereby reducing resonant peaks and increasing the speakers’ mid-bass performance and dynamic range. CFRP is also used as a tweeter diaphragm, enabling the speakers to perform into the 45kHz range and making them compliant with High-Resolution Audio playback.

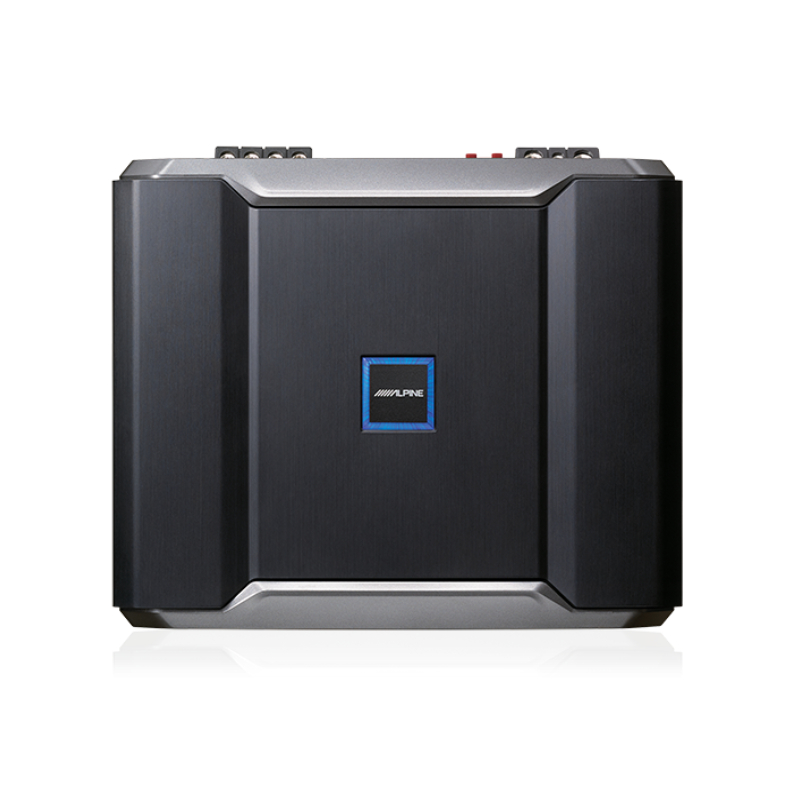

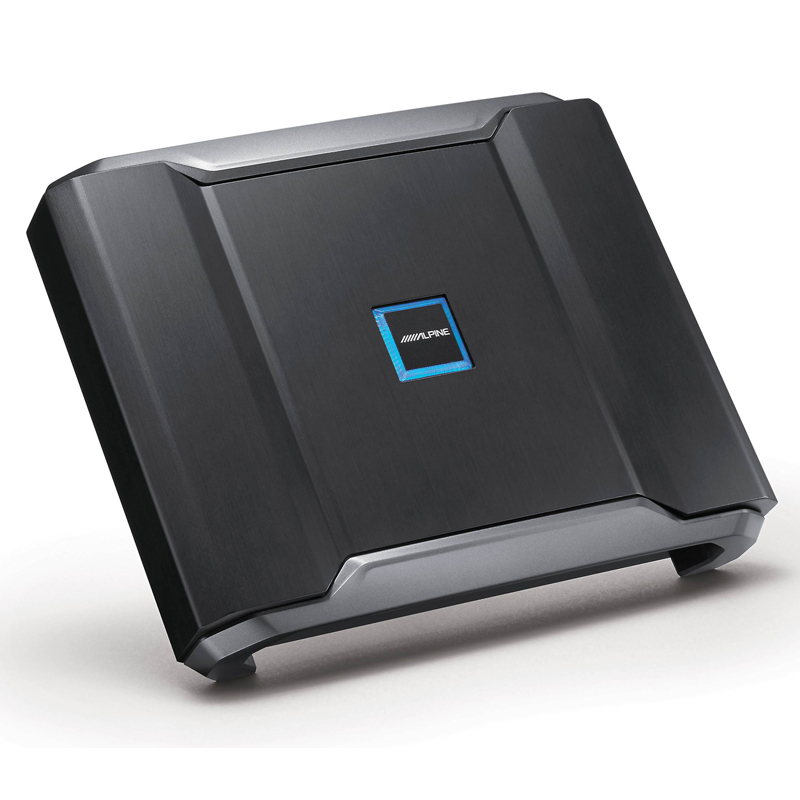

Alpine R-A75M R-Series 750x1 Watts RMS @ 2-ohms Class D Mono Subwoofer Amplifier
Amplifier Class D
RMS Power Output: 500 x 1
Peak Power Output: N/A
Power at 2 Ohms: 750 x 1
Minimum Impedance Unbridged: 2
Low-Pass Crossover Frequency: 50-400 Hz
Low-Pass Slope (dB/octave): 24 dB/octave
Bass Boost: 0-12 dB
Bass Boost Frequency: 50 Hz
Fuse Rating: 80
Speaker Level Inputs: RCA
Preamp Outputs: 1 pair

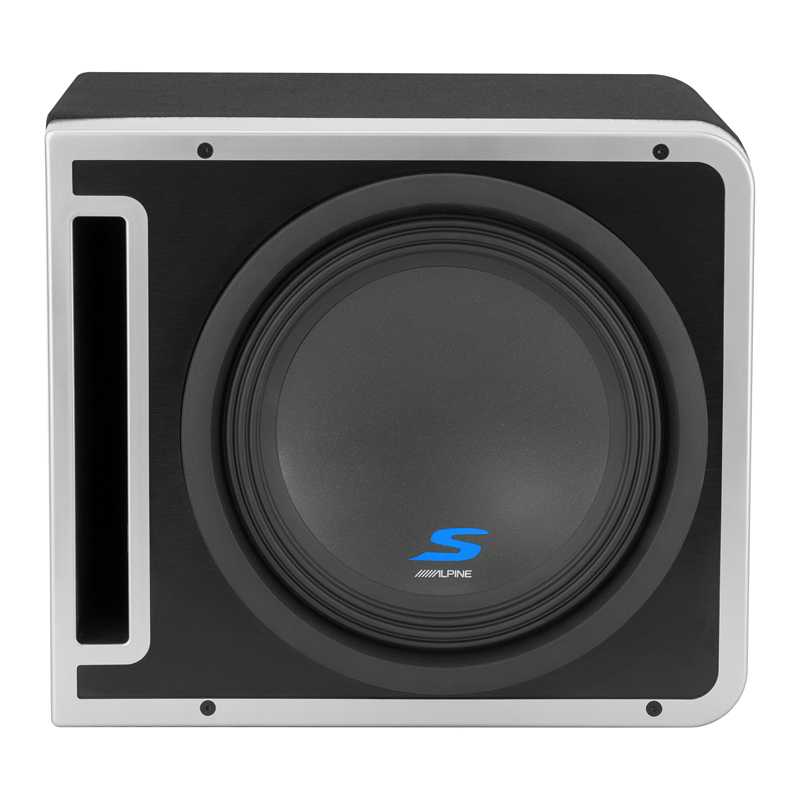

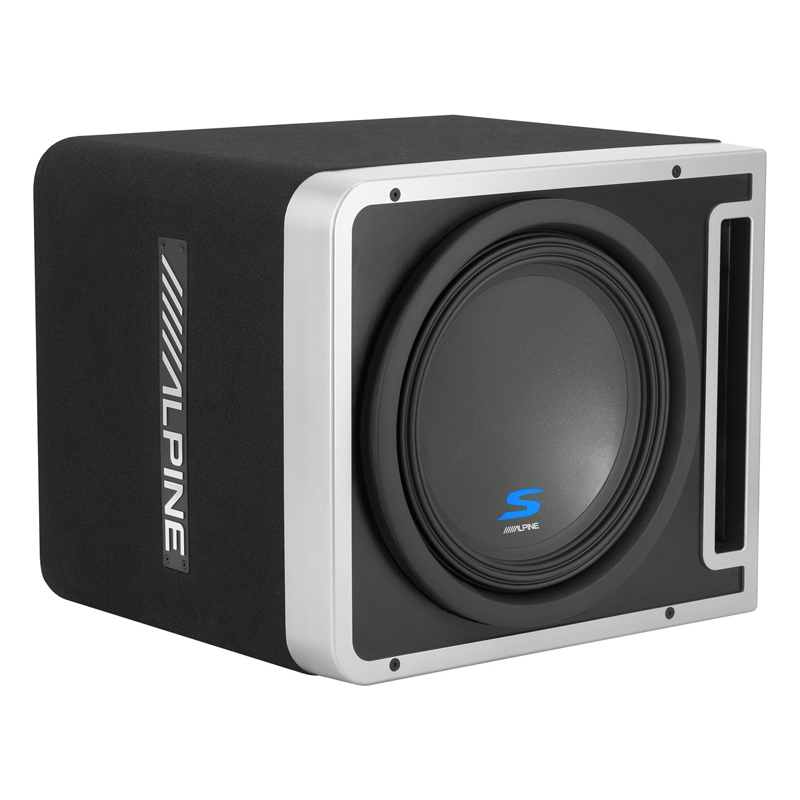

Alpine R-SB10V Halo S Series 12" 600W RMS Dual 4 Ohm Voice Coils Pre-Loaded Subwoofer Enclosure
Includes S-W12D4 wired in parallel
600W RMS power handling
Ported enclosure design
Frequency response: 26-200 Hz
Vented enclosure tuning frequency: 35 Hz
Dimensions 17-inch W x 14.625-inch H X 15-inch D
Groundbreaking Alpine Halo Design
ProLink™ ported enclosure design
Optimal Sound Performance
Includes preloaded S-W12D4 12” S-Series subwoofer
Premium black carpet
Silver Alpine embossed side logo badge
Brushed aluminum finished metallic front baffle
