JL Audio  JD500/1-Bundle

JL Audio JD500/1 Class D Monoblock Subwoofer Amplifier + (2 Pack) Alpine W12S4 12" Single 4 Ohms Voice Coil Subwoofer

Item #80545

Product Highlights

  • Subwoofer Amplifier.
  • 500W peak power
  • (2 Pack) Alpine W12S4 12"
  • high-performance sound.
  • Perfect for upgrading

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

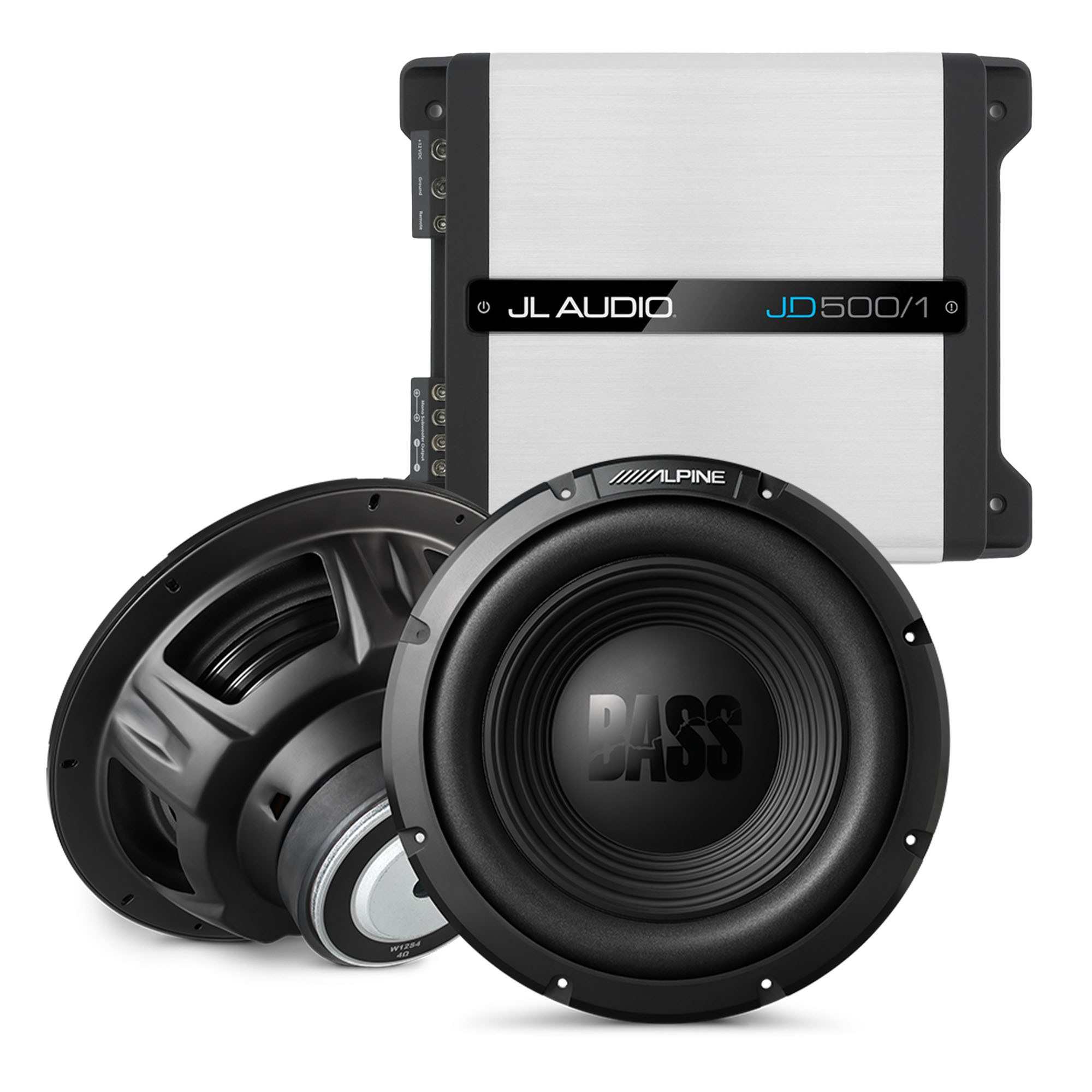

JL Audio JD500/1-Bundle includes JL Audio JD500/1 Class D Monoblock Subwoofer Amplifier + (2 Pack) Alpine W12S4 12" Single 4 Ohms Voice Coil Subwoofer


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • JL Audio JD500/1
  • • (2) Alpine W12S4

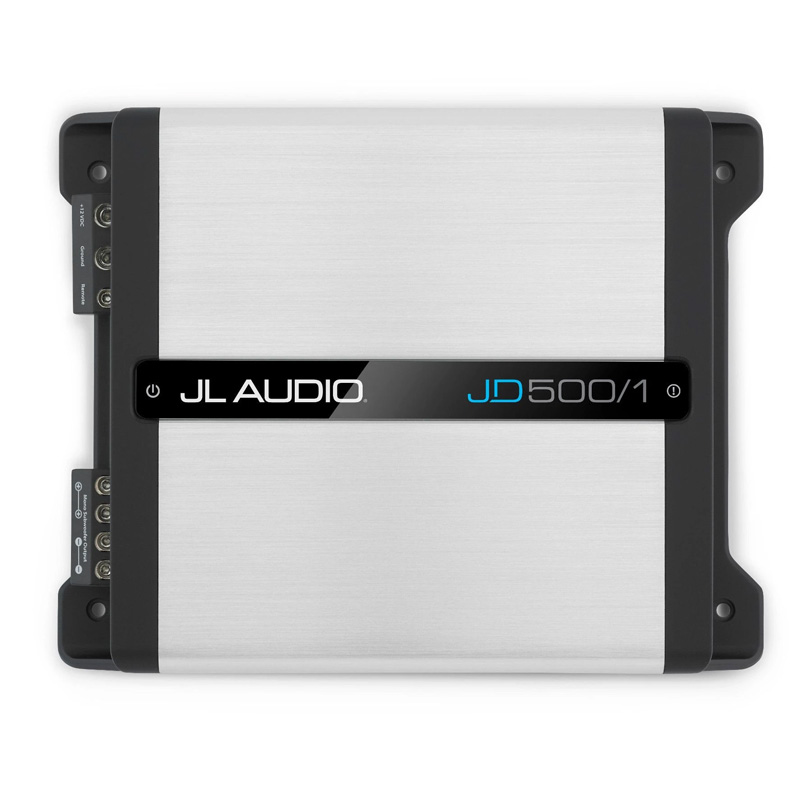

JL Audio JD500/1 JD Series 500W x 1 RMS @2Ohms Class D Monoblock Subwoofer Amplifier





Perfect Subwoofer for your Car Audio System

Do you have a subwoofer in your car's audio system that is not living up to its potential? It may be time for you to replace your subwoofer's amplifier. The JL Audio JD500/1 is a perfect upgrade option to power up your subwoofer and maximize its capacity to give you the heart-pounding bass that you are looking for.

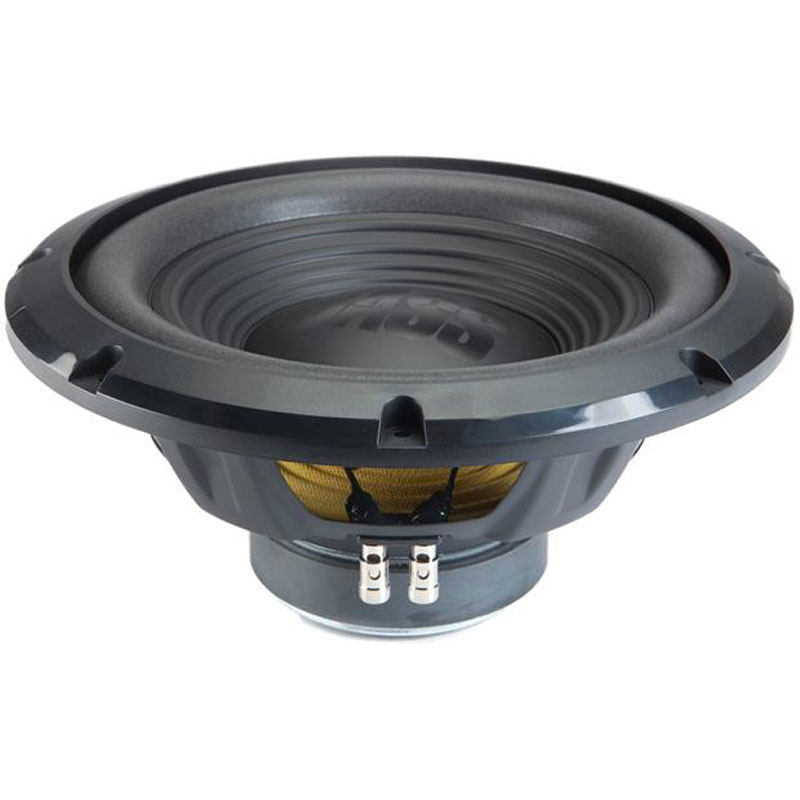

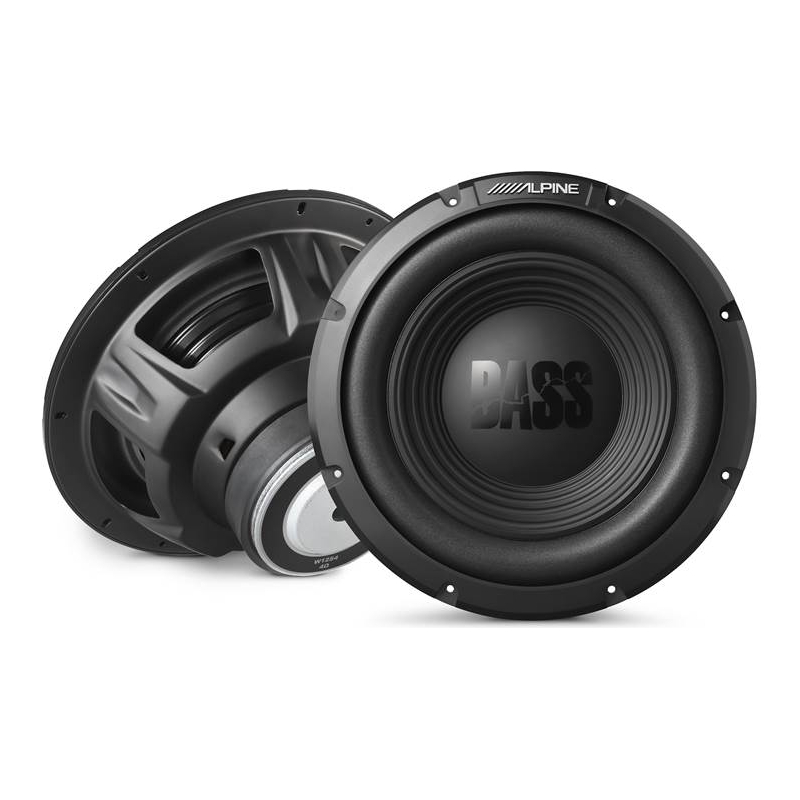

W12S4 BassLine Series 12" 250W RMS (750W Peak Power Handling) Single 4 Ohms Voice Coil Car Subwoofer

Elevate Your Drive Where Precision Meets Powerful Bass

The Alpine W12S4 is a part of the BassLine Series, which is a range of car audio subwoofers. It's designed to enhance the low-frequency sound reproduction in car audio systems, particularly focusing on delivering deep and impactful bass. This is component designed for car audio enthusiasts seeking to enhance their sound systems with improved bass performance.

Unveiling the 12-Inch Subwoofer Experience

The 12-inch size indicates the diameter of the subwoofer cone, which is relatively large and capable of moving a lot of air to produce deeper bass frequencies. The power handling specifications (250W RMS and 750W peak) signify the continuous power it can handle under normal operating conditions and the maximum power it can briefly handle without damage, respectively.


SPECIFICATIONS



FEATURES


JD500/1  500W @2Ohms, Class D Monoblock Subwoofer Amplifier

Specifications:

  • Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
  • S/N Ratio, referred to highest rated power: >80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W: >60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Damping Factor @ 4 ohms: >1000 / 50 Hz
  • Damping Factor @ 2 ohms: >500 / 50 Hz
  • THD+N @ Rated Power: <1% @ 2 ohms per Ch.
  • Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
  • Min.Copper Power / Ground Wire Gauge: 4 AWG wire
  • Fuse Rating: 50 A (AFS, AGU or MaxiFuse™)
  • Rated Continuous (RMS) Power @ 14.4 V

    • @ 4 ohms: 250 W RMS x 1
    • @ 3 ohms: 350 W RMS x 1
    • @ 2 ohms: 500 W RMS x 1
    • @ 1.5 ohms: N/A
  • Rated Continuous (RMS) Power @ 12.5 V
    • @ 4 ohms: 225 W RMS x 1
    • @ 3 ohms: 300 W RMS x 1
    • @ 2 ohms: 400 W RMS x 1
    • @ 1.5 ohms: N/A

Signal Processing

  • Filter Mode(s): Low-Pass only
  • Filter Slope(s): 12 dB/octave
  • Filter Frequency Range: 50 Hz - 500 Hz
  • Detented, Calibrated Filter Freq. Potentiometer: No
  • Filter Defeat Function: No
  • Infrasonic Filter: No
  • Bass Boost EQ: Yes
  • Output Polarity Switch: No
  • Remote Subwoofer Level Control: Optional (RBC-1)
  • Remote Bass EQ Boost Control: No
  • Pass-Through Preamp Output: Buffered

Physical Specifications

  • Height (H): 2.10 in / 53 mm
  • Width (W): 9.50 in / 242 mm
  • Depth (D): 7.50 in / 190 mm





W12S4 BassLine Series 12" 250W RMS (750W Peak Power Handling) Single 4 Ohm Voice Coil Car Subwoofer - 1 PC

  • 12" 4-ohm subwoofer
  • Sold Individually
  • polypropylene and mica cone with poly-foam surround
  • stamped steel frame
  • power handling: 50-250 watts RMS
  • peak power: 750 watts
  • sensitivity: 87.9 dB
  • frequency response: 22-200 Hz
  • top-mount depth: 5-5/16"
  • sealed box volume: 1.09 cu. ft.
  • ported box volume: 1.91 cu. ft.
  • Sold as Each
  • UPC: 713783632510
  • Weight: 19
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
