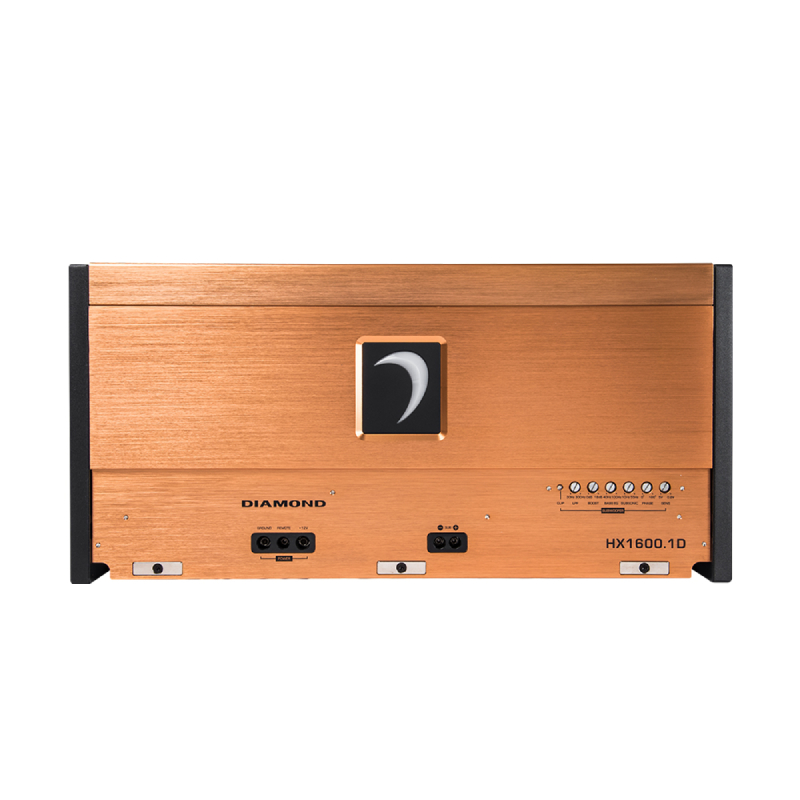

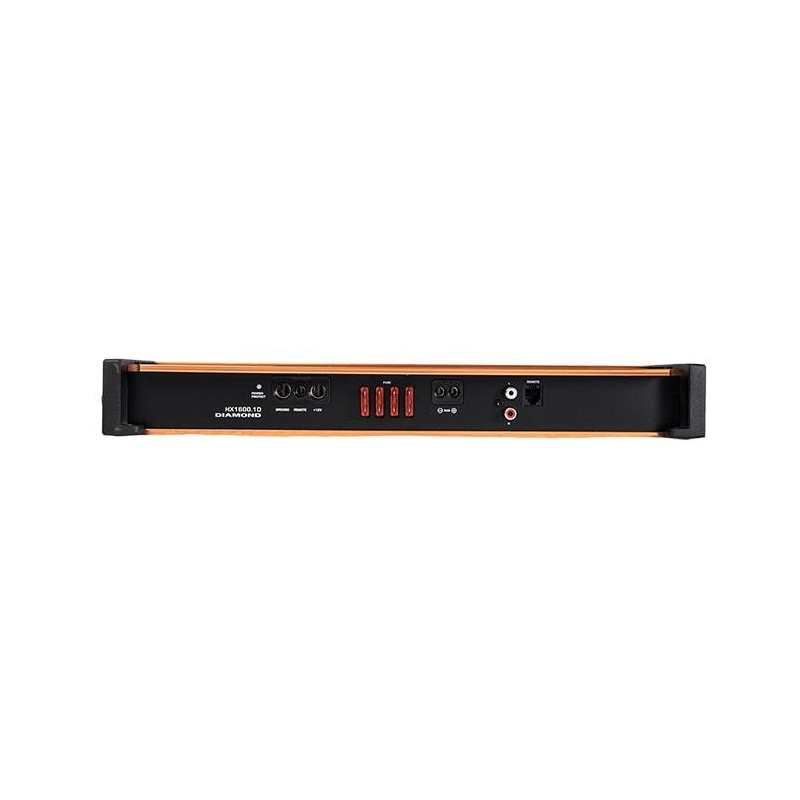

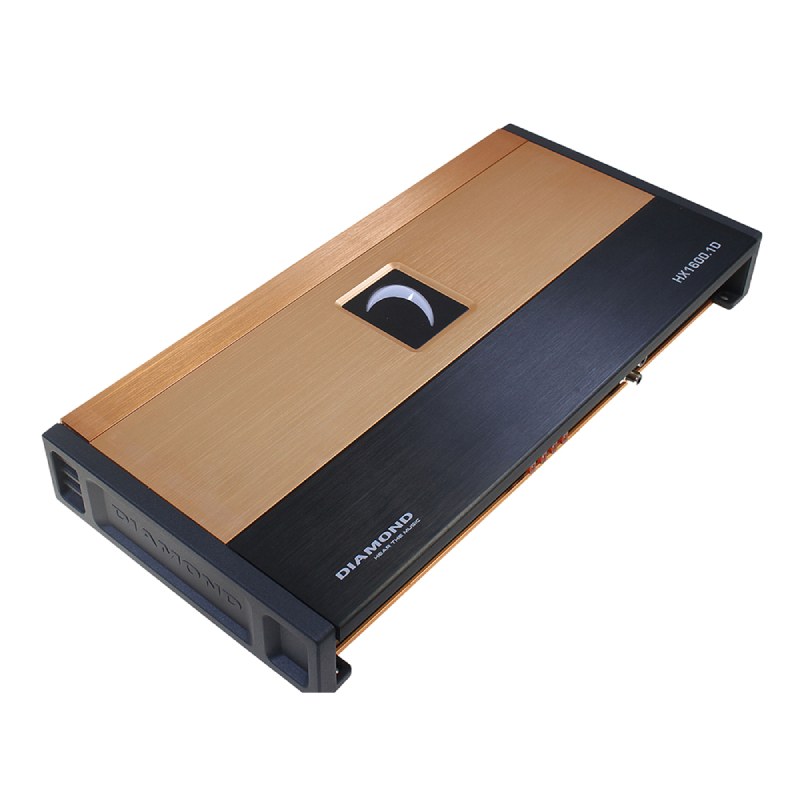

Diamond Audio  HX1600.1D

HEX Series 1150WX1 @2Ohms, 1600WX1 @1Ohm Class D Mono Subwoofer Amplifier

Item #80552

Condition:   Brand New

Product Highlights

  • HEX Series Class D Mono Subwoofer Amplifier
  • 1150W x 1 @ 2 Ohms
  • 1600W x 1 @ 1 Ohm

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$959.99

Reg. Price $1,059.99  Save $100.00

Out of Stock Check out other products listed below
Diamond Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS


  • Maximum Power : 1600 Watts
  • Number of Channels : 1
  • Frequency Response : 10-300 Hz
  • Amplifier Class : D
  • Fuse Rating : 40x4 A

FEATURES


Features:

  • Anodized Extruded Aluminum Heat Sink Provides Superior Thermal Performance
  • 4-Layer PCB Board with Balanced Differential Inputs
  • Full Range Class D IR Chipset
  • “SNAP” Capacitors used Throughout the Circuit
  • Audiophile Grade High Tolerance Components
  • Spring Steel FET Clips Provide a Cleaner Board Design
  • Illuminated Logo / Fully Concealed Mounting
  • Output Clip Indicators for Precise Set-Up
  • Fine Tuned Fully Variable Crossovers and Phase Control
  • Top Mounted Controls for Convenient Amplifier Adjustment



Specifications

  • RMS Power (4 Ω): 700 W RMS
  • RMS Power (2 Ω): 1150 W RMS
  • RMS Power (1 Ω): 1600 W RMS
  • Topology: Class D
  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0DVC – 17.0DVC
  • Idle Current: (0.7A)
  • THD (1KHz @4Ω): 0.01%
  • S-N Ratio (A-weighted @ 1W): -80dBA
  • S-N Ratio (A-weighted @ 1W): -95dBA
  • Input Sensitivity – Low Input Level: 200mV – 5.0V
  • Input Sensitivity – High Input Level: N/A
  • Input Impedance – Low Input Level: 20 KΩ
  • Impedance – High Input Level: N/A
  • Output Impedance: 0.018Ω
  • Damping Factor (50Hz @ 4Ω): >250
  • Bandwidth (-3dB): 10Hz-300Hz
  • Crossover (-12 dB/ Oct) – Variable High Pass: N/A
  • Crossover (-12 dB/ Oct) – Variable Low Pass: 30Hz-300Hz
  • Crossover (-12 dB/ Oct) – Variable Sub-Sonic: 10Hz-55Hz@12dB
  • Fuse Rating (ATC): 40A X 4
  • Dimentions- Length x Width x Height (inches): 15.8″ x 7.67″ x 2″
  • Dimentions- Length x Width x Height (mm): 402 x 195 x 51.5 mm
  • UPC: 7427278936559
  • Weight: 8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
