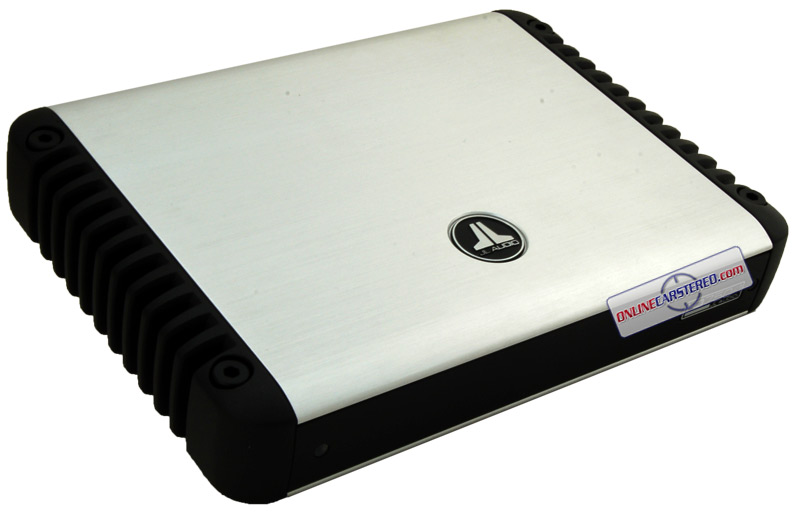

This ultra-compact monoblock amplifier employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 750 W of clean power into any impedance between 1.5 and 4 Ω, giving you the highest degree of flexibility in designing your subwoofer system.
Tight power supply regulation keeps distortion down and maximizes your bass quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price. While targeted primarily to subwoofer applications, the HD750/1 is a wide-range amplifier and can also be used to drive high-performance mid-range speaker systems.

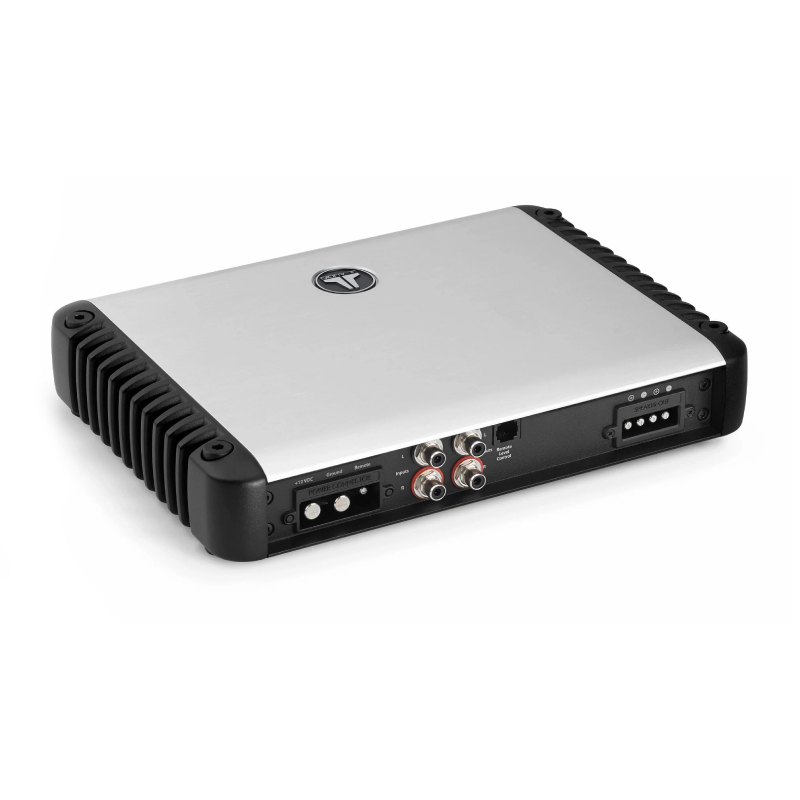

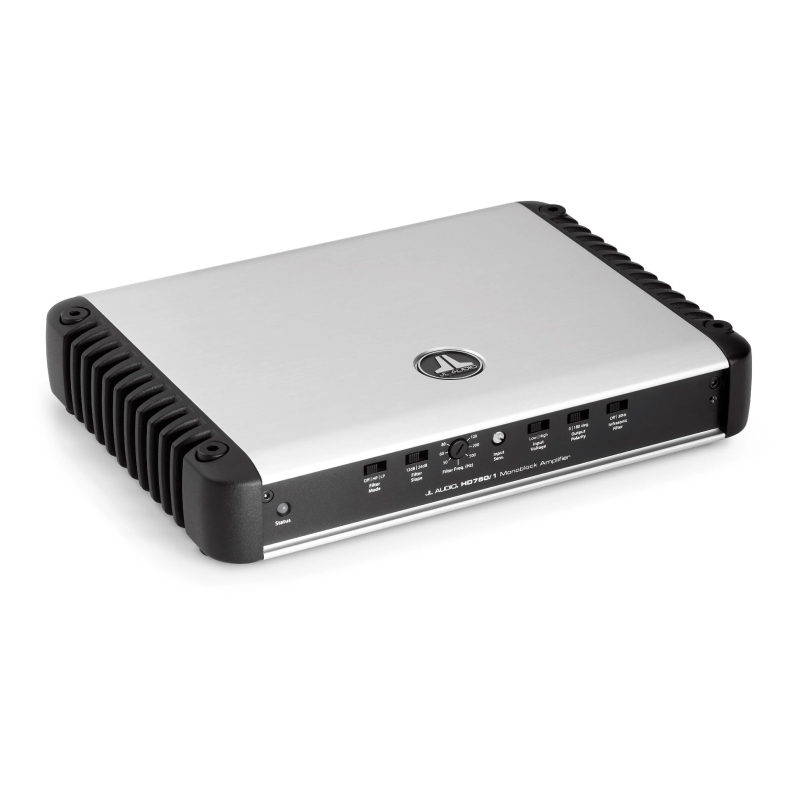

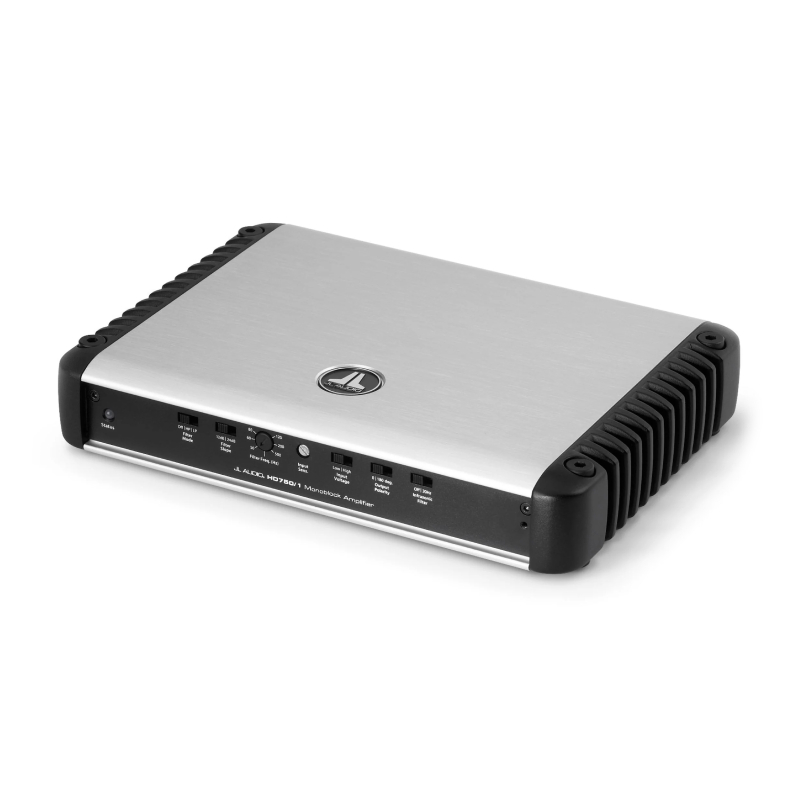

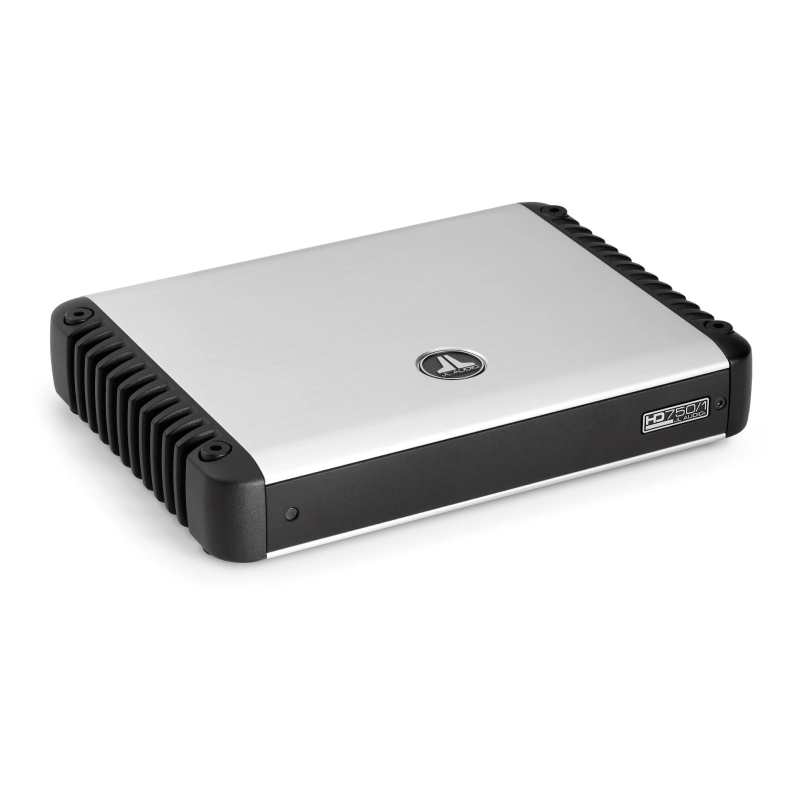

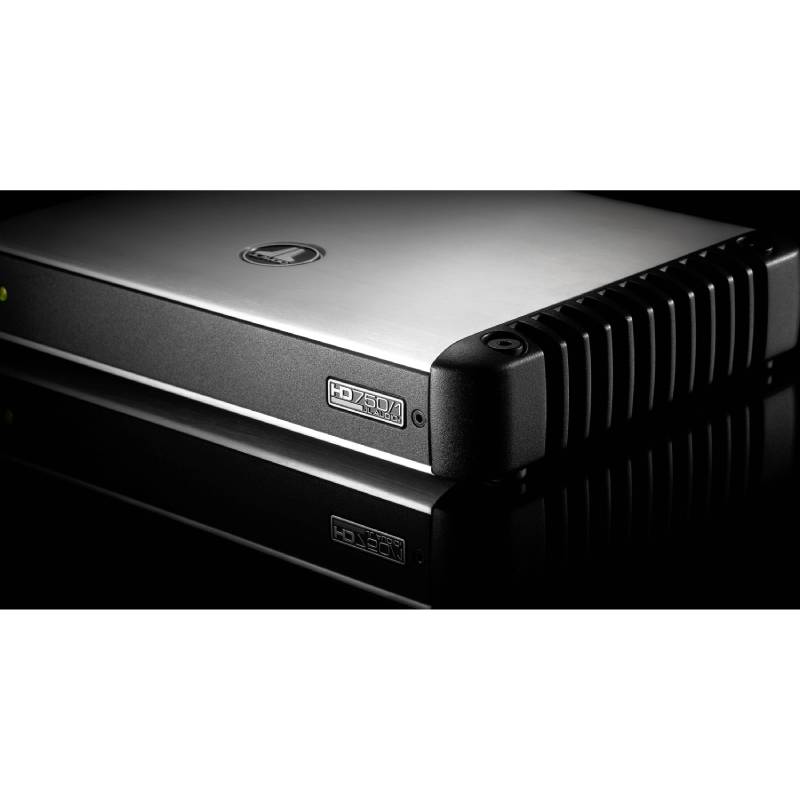

This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.
General Features:
- JL Audio HD Series Monoblock Class D Amplifier
- *RMS Power Rating (11V-14.5V):
- 4 ohms: 750 watts x 1 chan.
- 3 ohms: 750 watts x 1 chan.
- 2 ohms: 750 watts x 1 chan.
- 1.5 ohms: 750 watts x 1 chan.
- Class D, switching type with patented Single-Cycle Control™ technology
- Class A/B design.
- Noise-killing, highly flexible differential-balanced inputs
- 1 Pair of Buffered preamp RCA outputs for daisy chaining the audio signal
- Speaker level inputs via RCA (JL Audio XD-CLRAIC2-SW required and sold separately
- Remote bass level input (JL Audio HD-RLC required and sold separately)
- Optional stacking equipment for HD amplifiers: JL Audio HD Stack Kit
- Pulse width modulation-regulated switching power supply

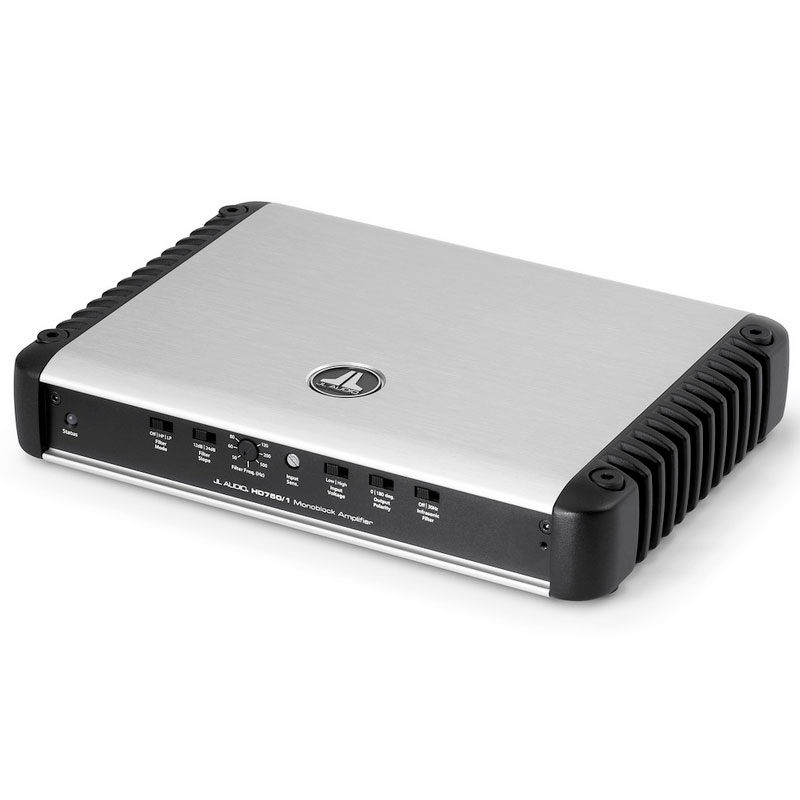

- LED power (green), protect (red) and low impedance (amber) indicators

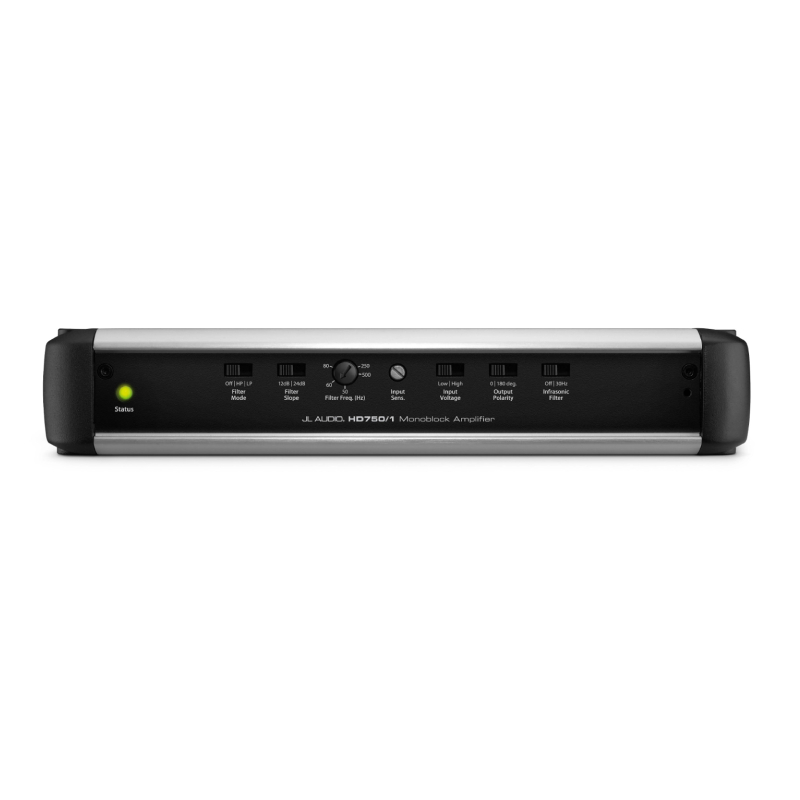

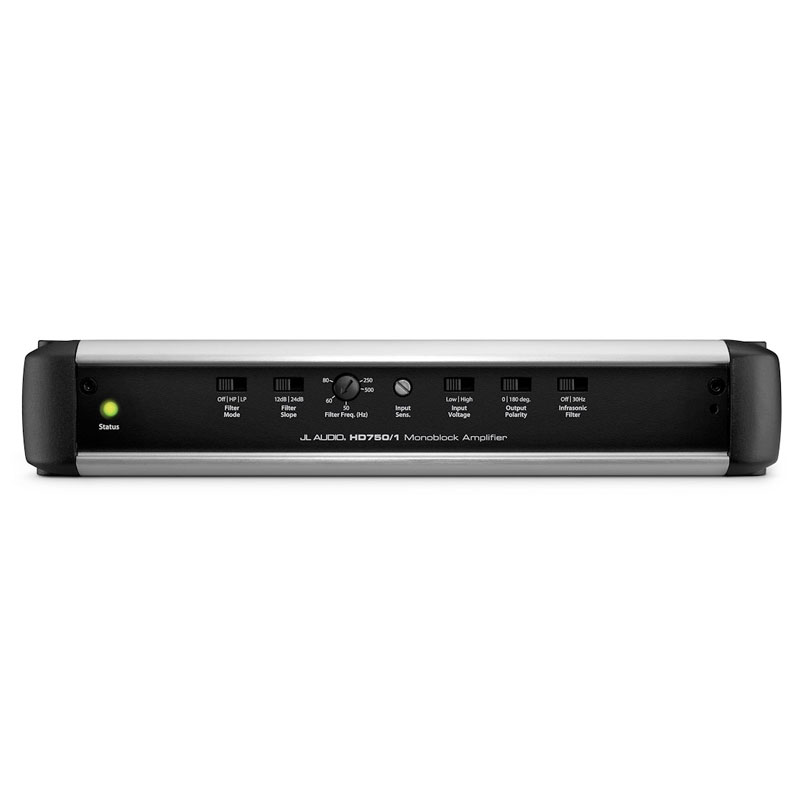

- Selectable input voltage/sensitivity:
- Low level: 200mV - 2V
- High level: 800mV - 8V
- Selectable output polarity, "Phase": 0/180°
- Selectable State-variable slope: 12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley
- Selectable infrasonic filter, "Subsonic": Defeatable or 30 Hz
- Selectable filter modes: Low-Pass or High-Pass, Defeatable
- Cutoff Freq. Range: Continuously variable: 50 - 500 Hz
- Total Harmonic Distortion: <0.03% @ 4Ω (Average at 1kHz)
- Signal to Noise Ration:
- Referred to Rated Power: 111 dBA
- Referred to 1 Watt: 82.2 dBA
- Frequency response: 6 - 8,000 Hz (+0, -1 dB)
- Damping Factor: >500 @ 4Ω/50 Hz, >250 @ 2Ω/50 Hz
- Recommended fuse rating: 60A x 1 (inline, not included)
- Dimensions: 10.74"L x 7.85"W x 1.93"H
- **4 gauge OFC power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.

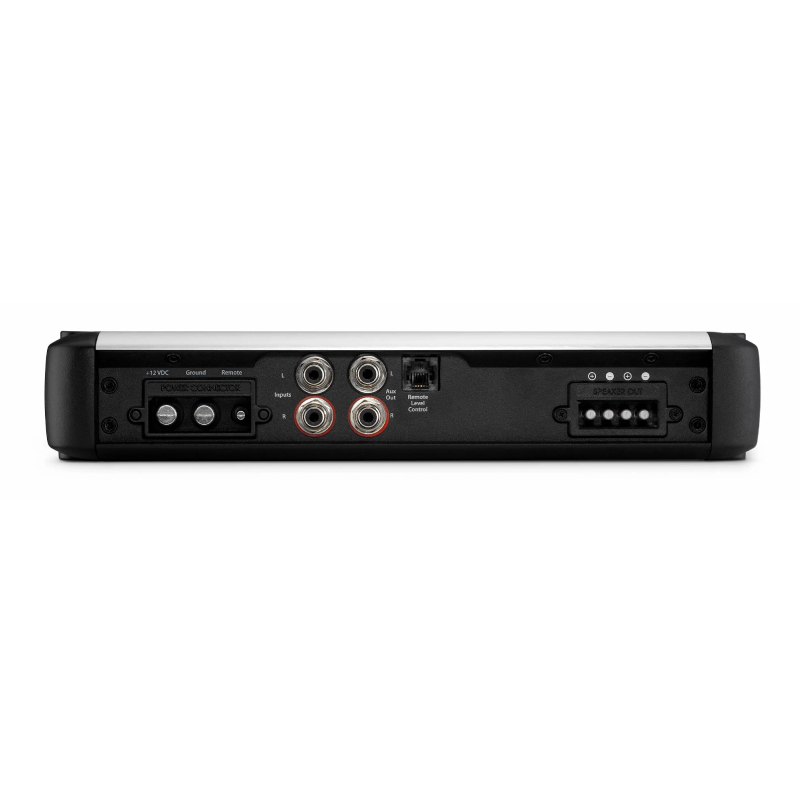

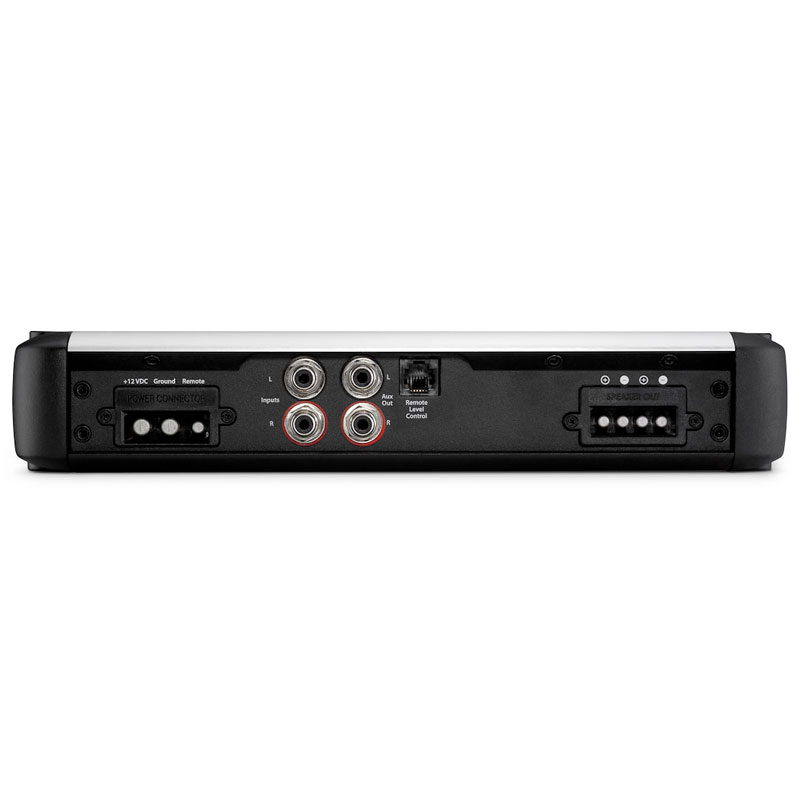

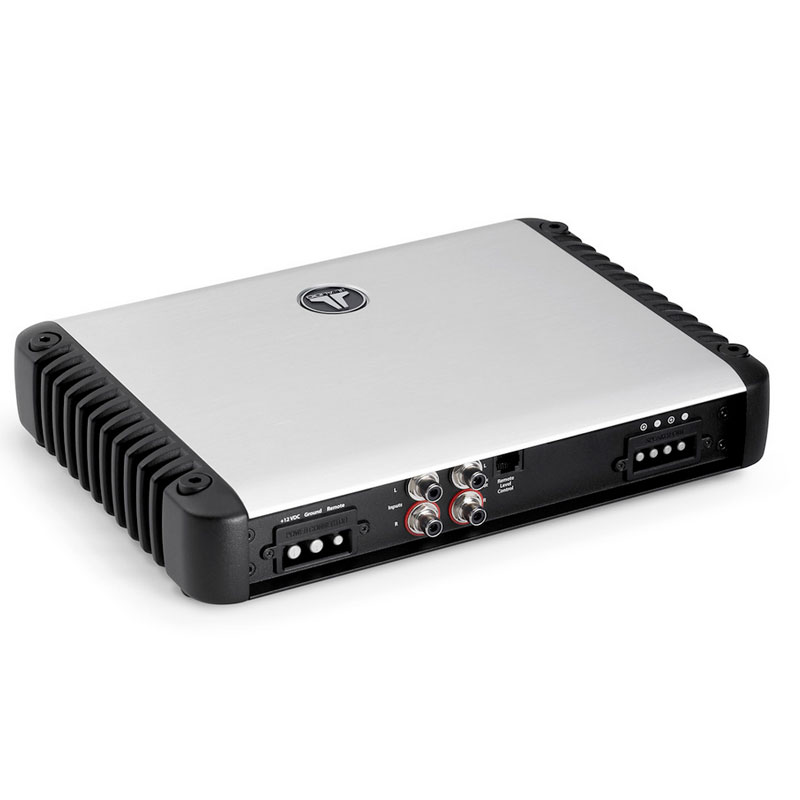

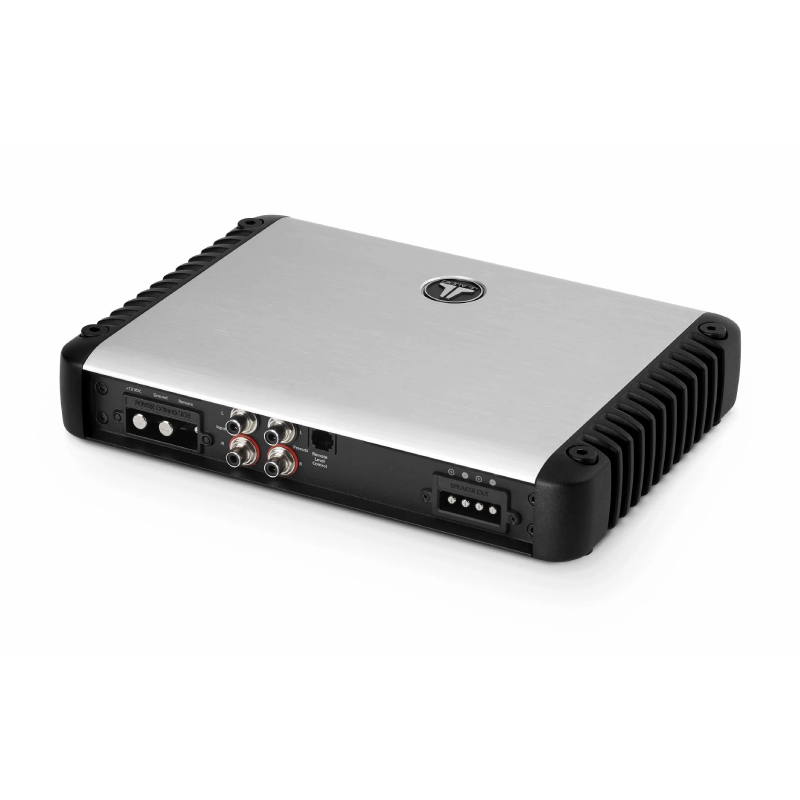

- Removable Power/Ground and Speaker connectors
- Brushed aluminum finish chassis
- Compact, stackable chassis design

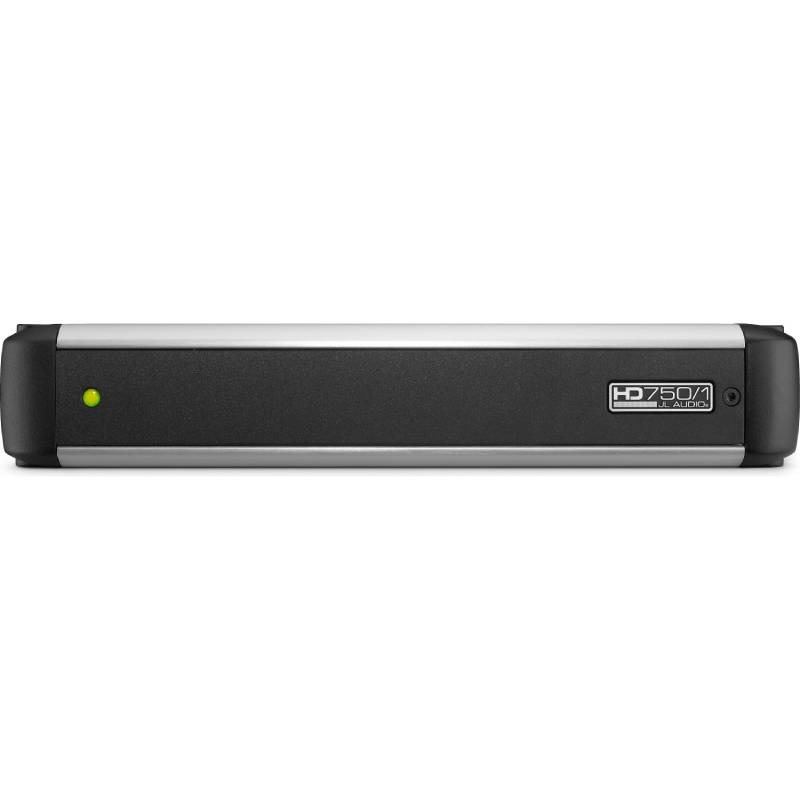

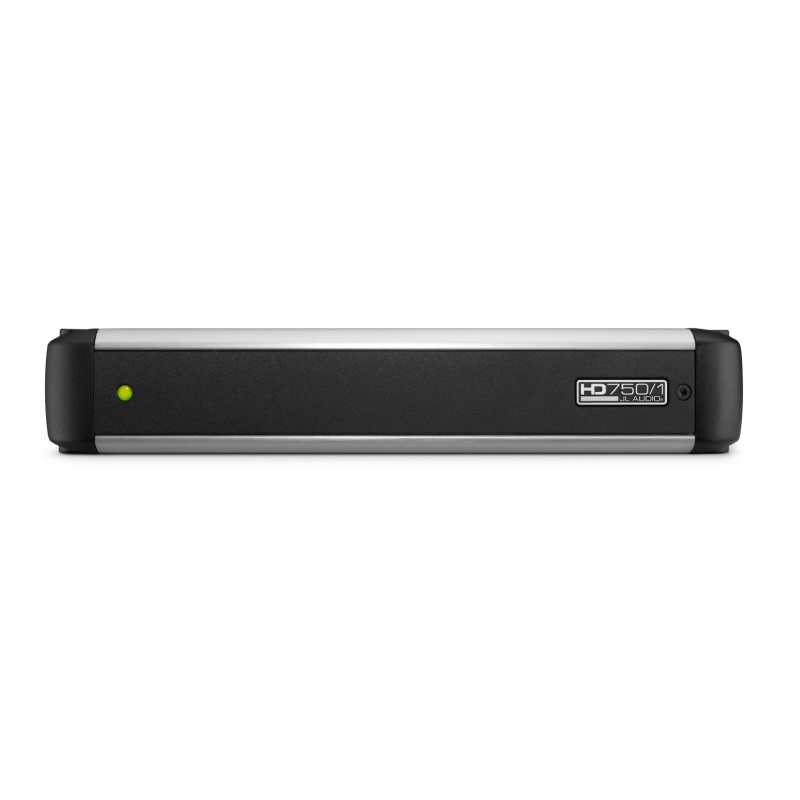

- Black powder-coated, gasketed cover

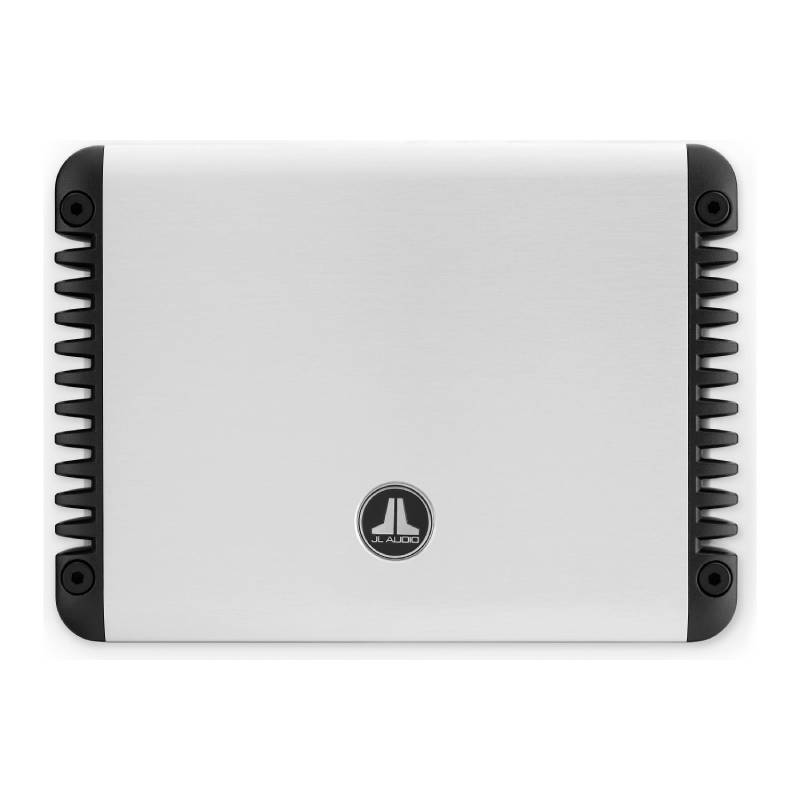

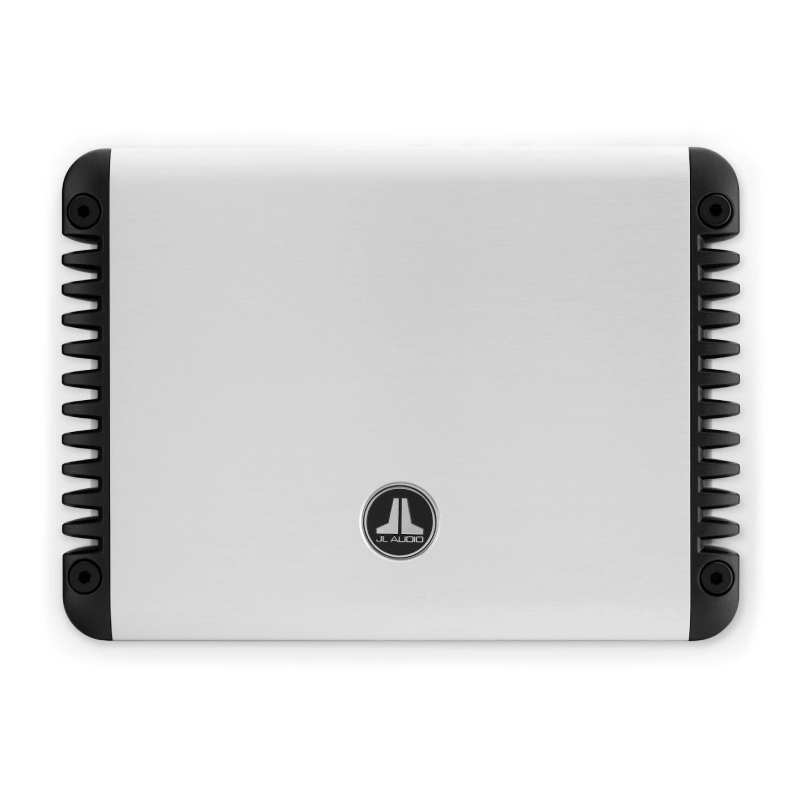

- RealSink™: Vertical, cast alloy fins effectively dissipate heat
- Advanced Thermal Rollback protection system
- R.I.P.S. - Regulated, Intelligent Power Supply
- Single Cycle Control - high-fidelity, full-range class D
- Compares the real PWM waveform and then corrects it in each and every cycle
- (over 400,000 times per second)
- 80% efficiency at 1/2 rated power for the whole amplifier, including its power supply
- 60% less current draw than a typical Class A/B car amplifier of equal power
- Less generated heat, smaller chassis than a similarly powerful
Product Highlights:
- mono subwoofer amplifer
- 750 watts RMS x 1 (rated power from 1.5 to 4 ohms)
- variable high- and low-pass filter (50-500 Hz 12 or 24dB/octave)
- subsonic filter and output polarity control
- removable power and speaker plugs
- optional wired remote for level control
- Class D amplifier design
- MOSFET power and output stages
- differential-balanced inputs eliminate noise from your vehicle's electrical system
- speaker- and preamp-level inputs (speaker-level input requires an optional adapter)
- preamp outputs
- 4-gauge power and ground leads and a 80-amp fuse recommended — wiring and hardware not included with amplifier
- no onboard fuses — when installing multiple amps in a system, an additional 60-amp in-line fuse between the distribution block and the amplifier is recommended
- 10-13/16"W x 1-15/16"H x 8-13/16"D
- UPC: 699440982207
- Weight: 10
- Sku: 98220
- Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
Do you own this product? Write a review
|
Chad From Washington
|

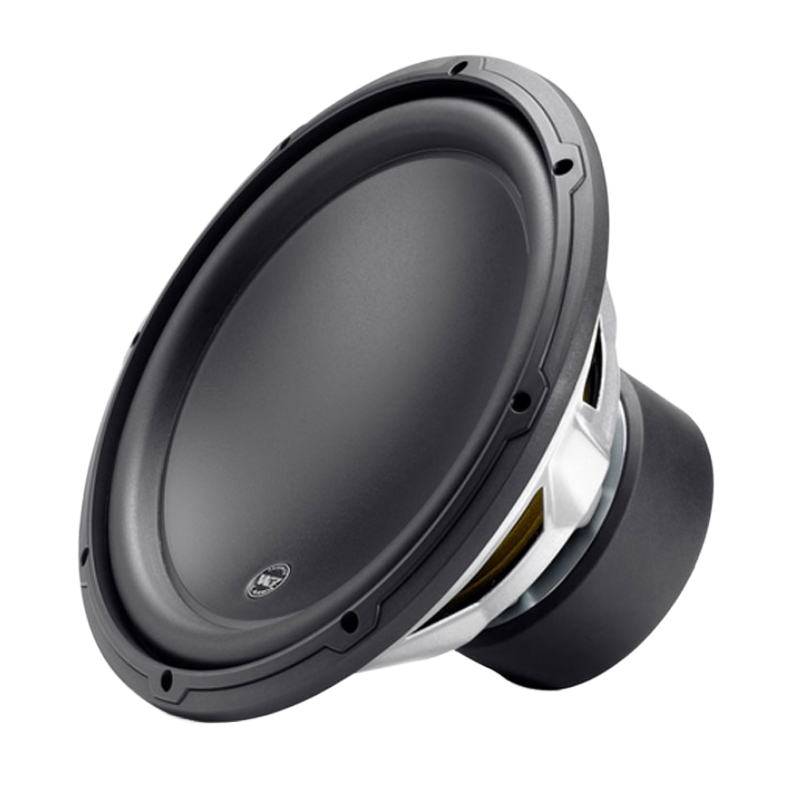

| Have 2 of them powering 4 12w3's and it's the loudest/cleanest hard hitting system I've ever had and over the past 23 years I've had plenty of systems |
|
|
Jay From Florida
|
| I have the JL hd750/1 Powering my 12w7. I must say, wow!!!! I was a little skeptical about the power difference compared to the initial 500/1 setup that i had. There was a total difference from the time i powered the amp, and it has not let me down yet. Amazing amp |
|
