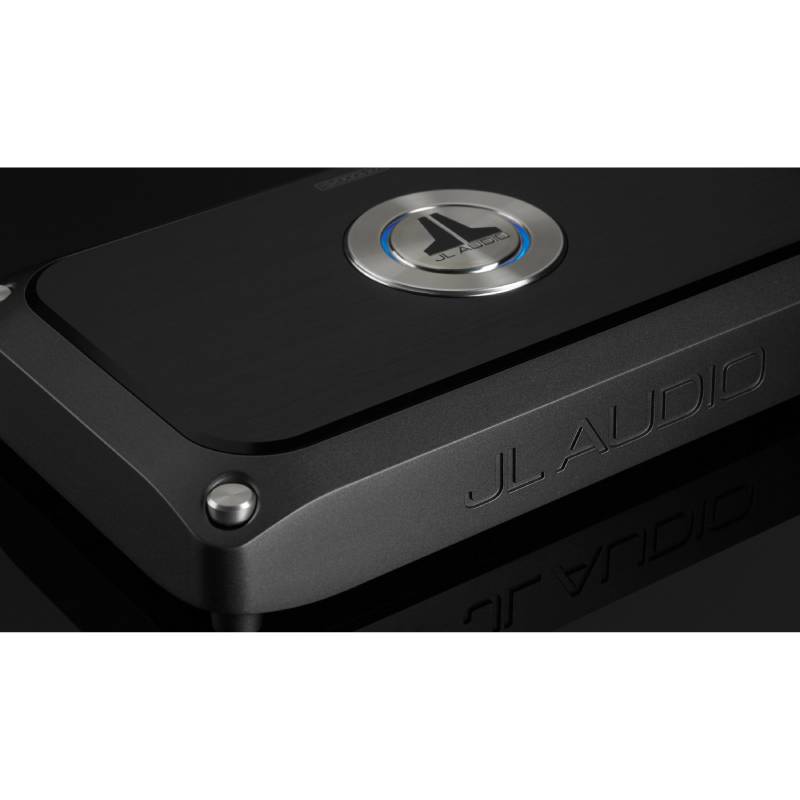

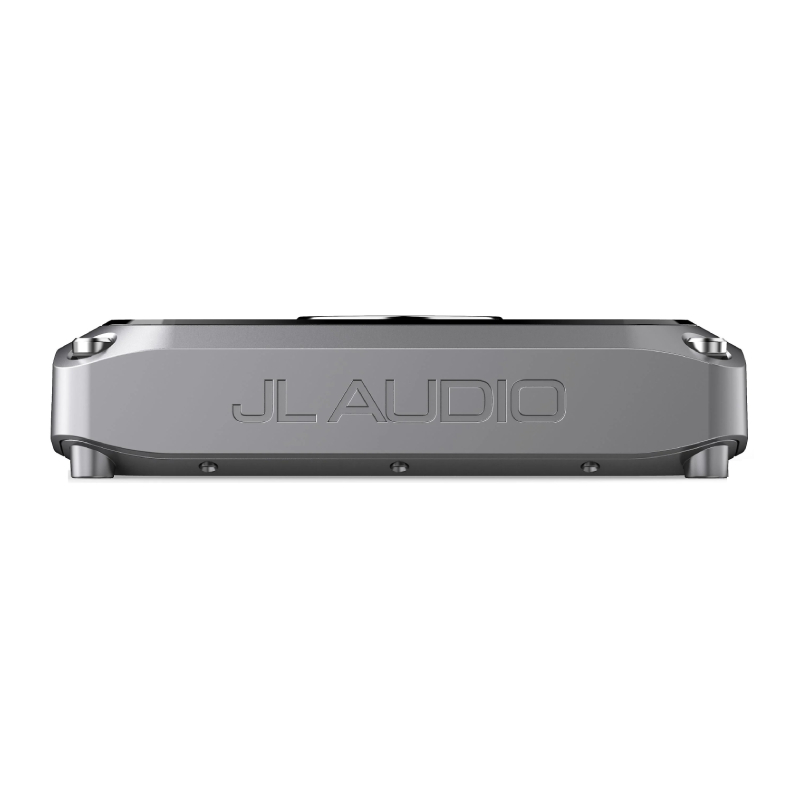

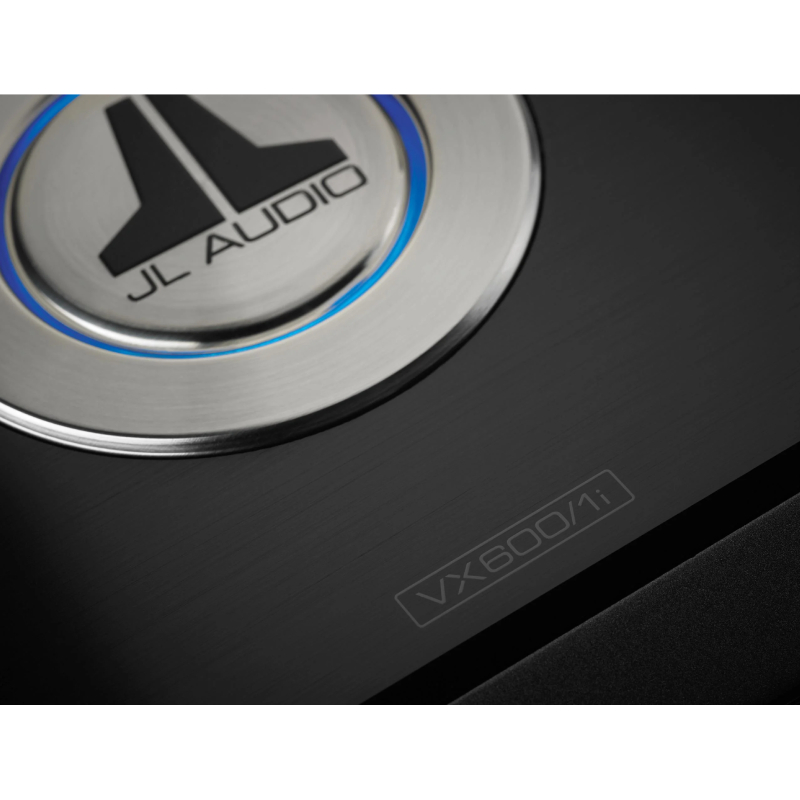

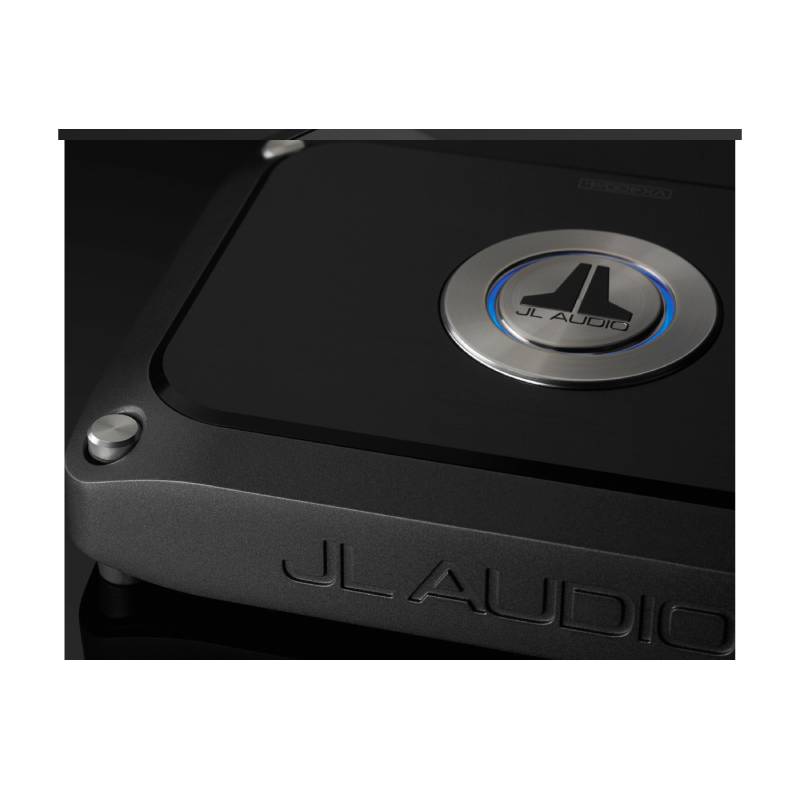

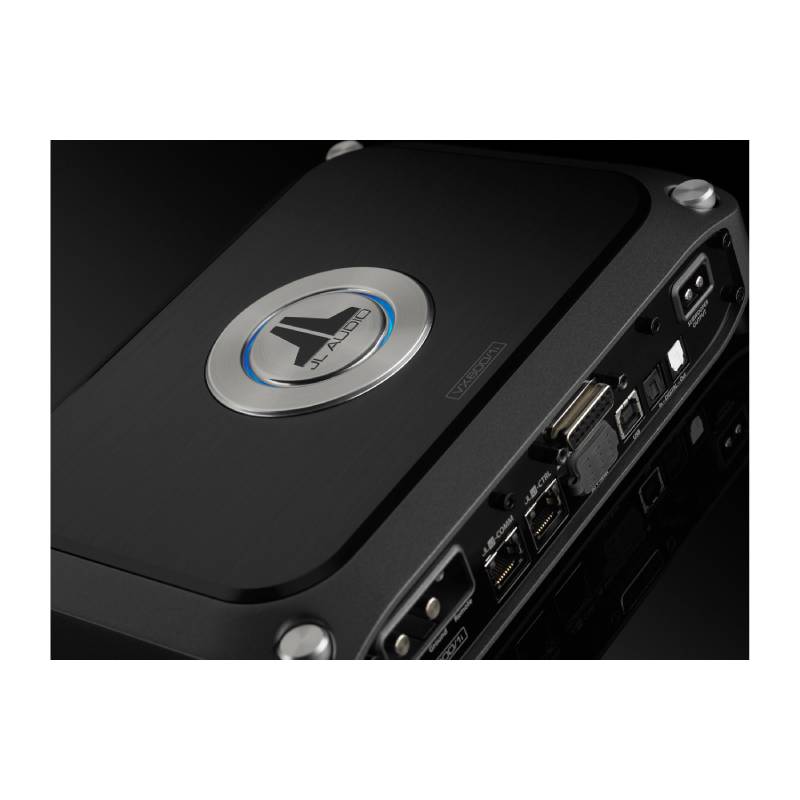

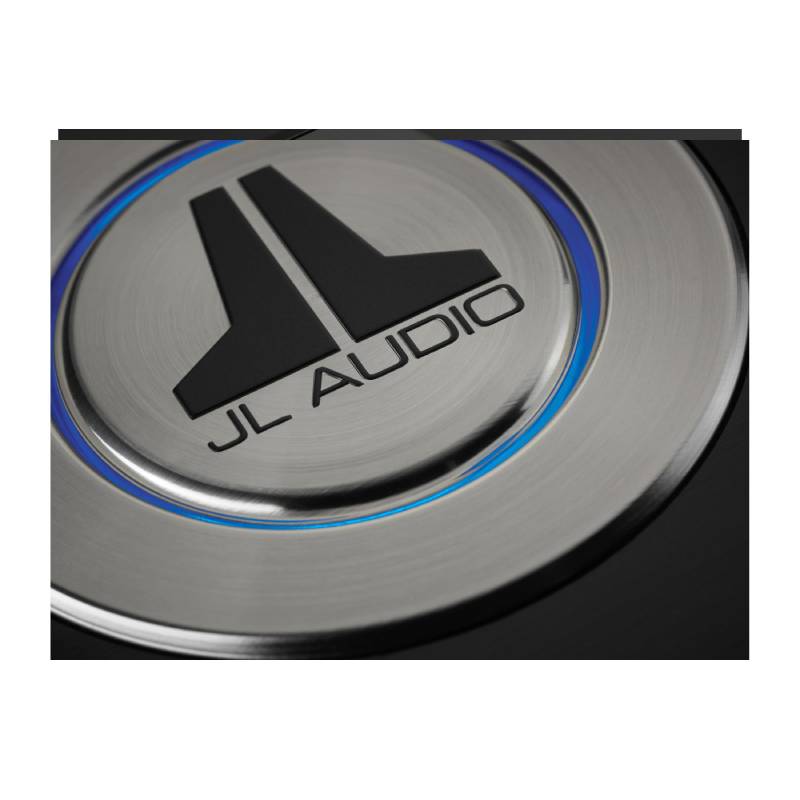

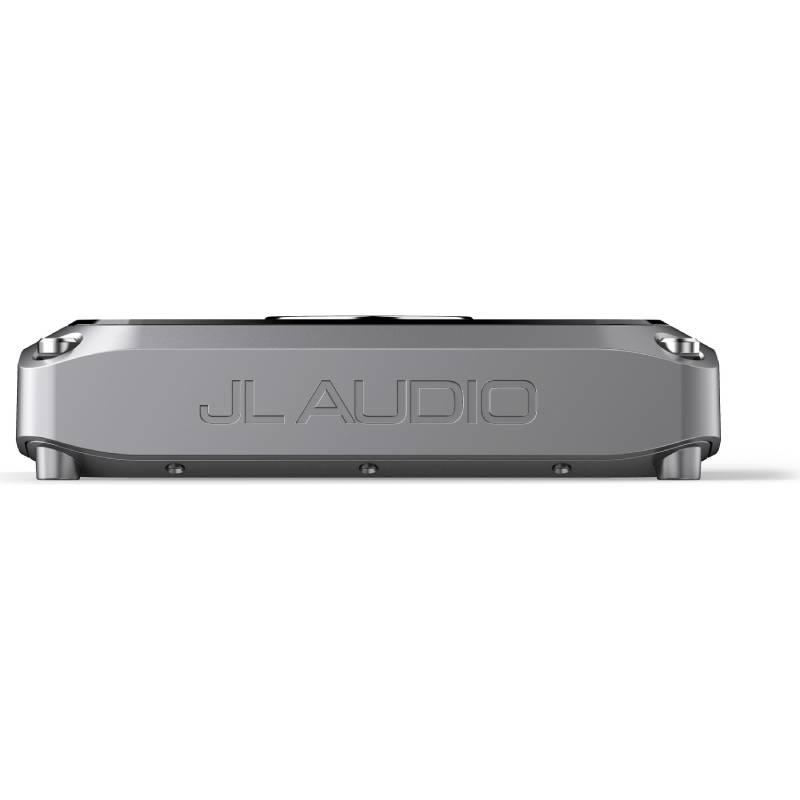

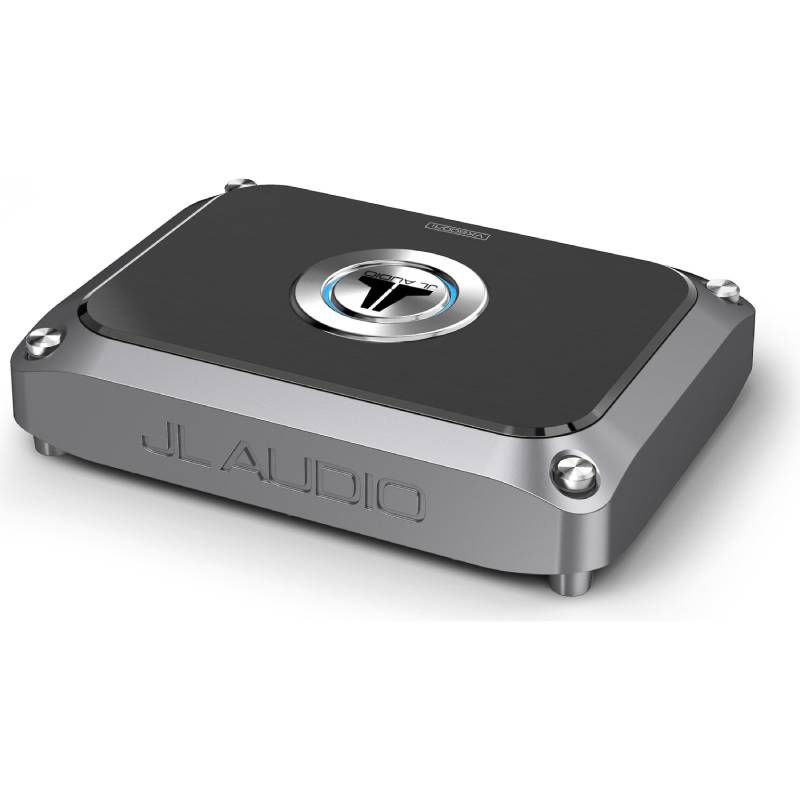

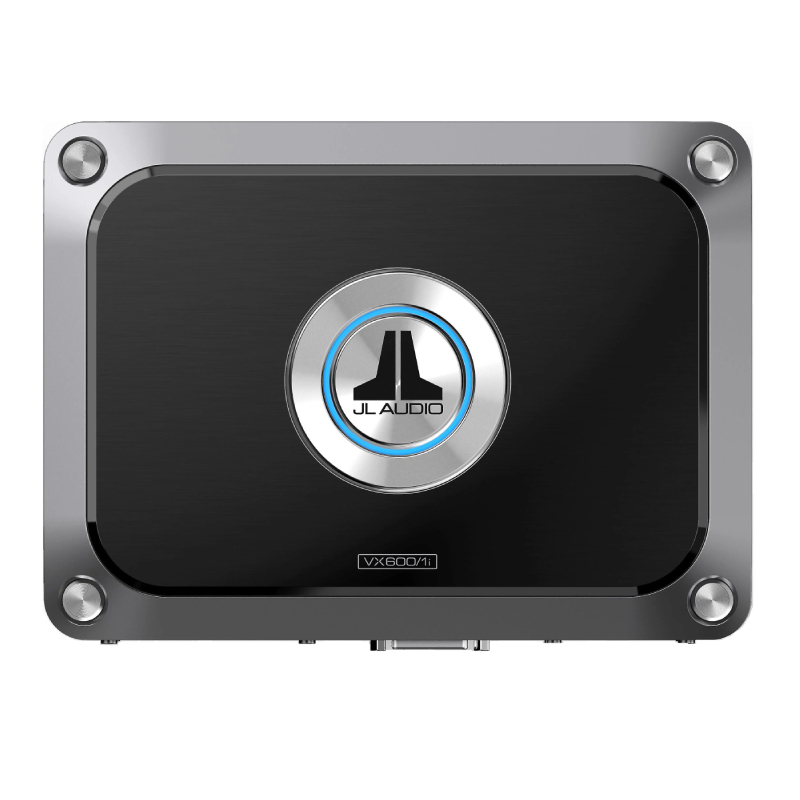

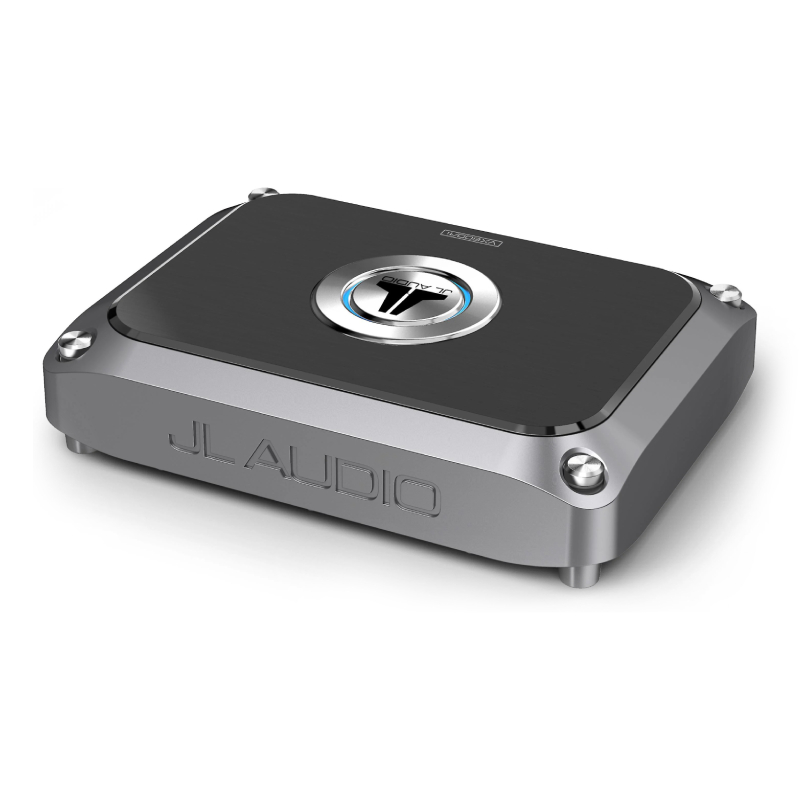

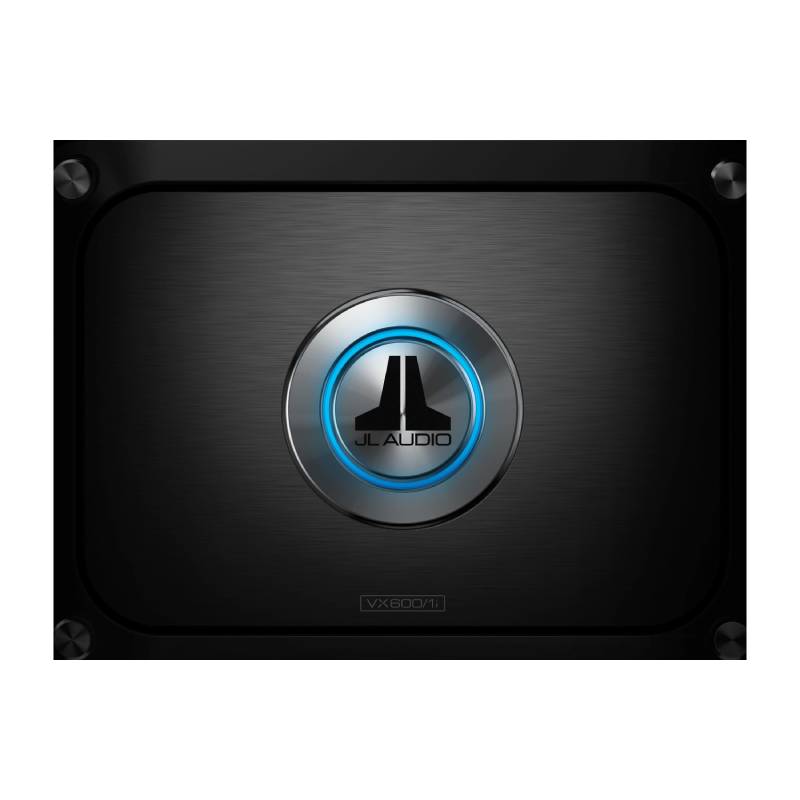

JL Audio VX600/1i VXi Series 600W RMS x 1 at 2 Ohm, Class-D Mono Subwoofer Car Amplifier with NexD2 Switching Technology and Built-In Digital Signal Processing Output
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • VXi Series Class-D Mono Subwoofer Car Amplifier
- • Power connector
- • Analog input harness
- • Subwoofer output connector
- • 6-foot USB A/B cable

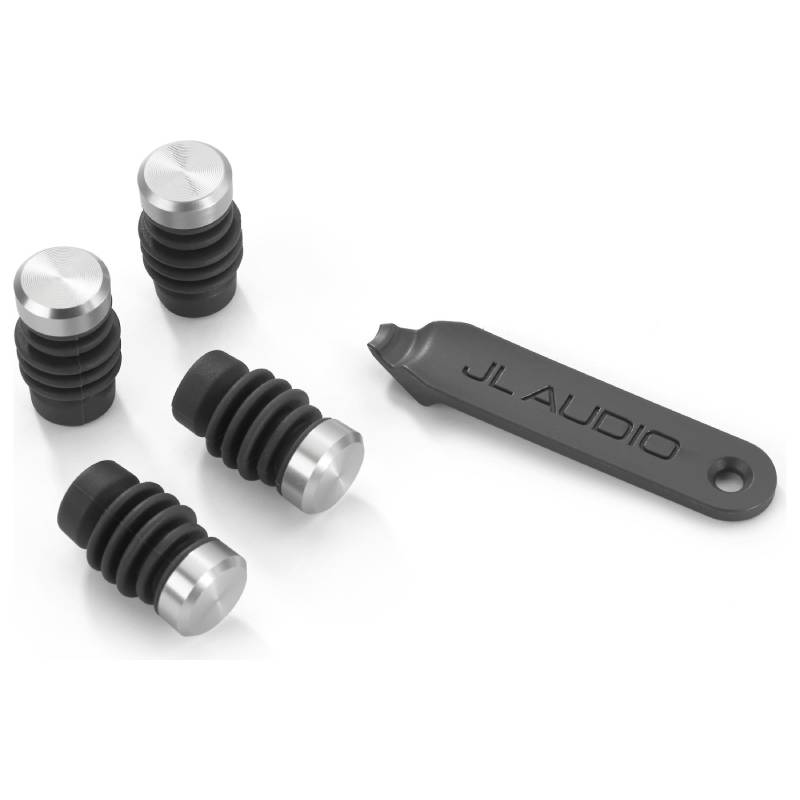

- • Four corner caps

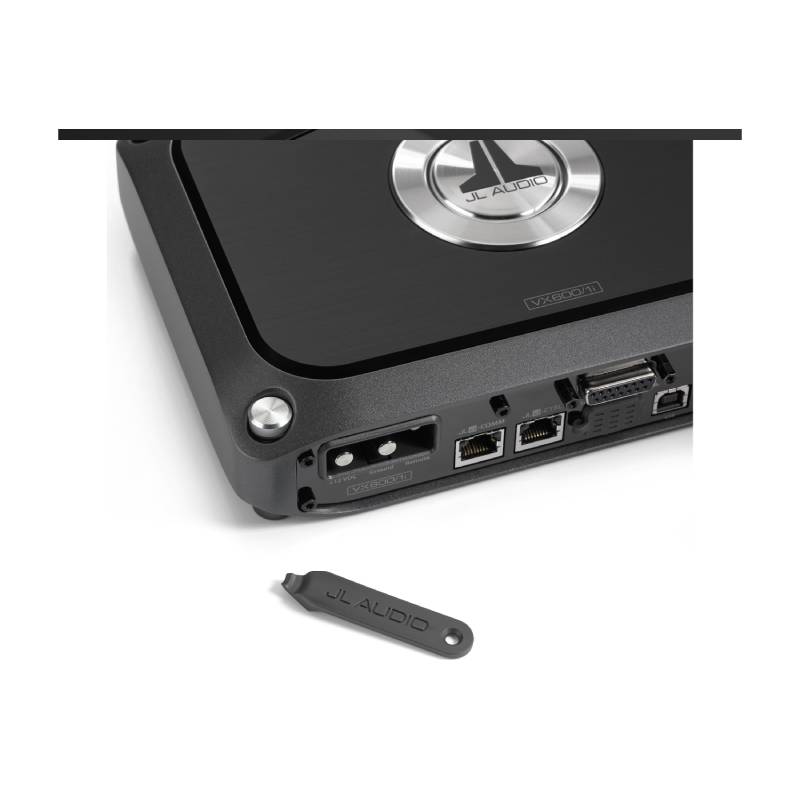

- • Corner cap tool
- • 2.5 mm Allen wrench
- • 3 mm Allen wrench
- • Owner's Manual
Unleash Audiophile-Grade Sound
Unlock audiophile-grade performance with the VXi! Thanks to Onboard Tuning Power, every amplifier is equipped with a full suite of DSP tools—including equalization, delay, crossover routing, and mixing—giving you total control to craft perfect sound. This is backed by our Advanced Class-D Amplifier Design, which uses high-speed switching to deliver exceptional fidelity with ultra-low noise and distortion, guaranteeing a pure, powerful, and pristine listening experience.
NexD2 Power: The New Standard in Sound
Experience the revolution of NexD2 SWITCHING TECHNOLOGY we've significantly enhanced both fidelity and efficiency by employing cutting-edge components and more advanced circuit layouts, delivering an unprecedented level of pure, powerful, and crystal-clear audio performance!
Uninterrupted Power and Total Customization
Keep the music playing non-stop with our Advanced Rollback Protection a proprietary thermal-monitoring system intelligently adjusts amplifier operation to prevent irritating shutdowns even under extreme conditions. Combine this with the Fully Configurable Output Channel controlled by the intuitive TüN® Software on a compatible computer, tablet or smartphone, giving you full command over signal routing, EQ, output level, and DRC functionality—it’s total power and precision in your hands!
- Number of Channels : 1
- Frequency Response : 12-500 Hz
- Built In Crossovers : Yes
- RMS Power Output : 1x600 Watts
- Amplifier Class : D
- Fuse Rating : 50 A
- Promo : Yes
- Built In DSP : Yes
Features:
- Noise-Free Signal: Differential-balanced inputs eliminate noise from your vehicle's electrical system, including alternator whine and other unwanted sounds.
- Versatile Inputs: Preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input) allow flexible connectivity.
- High-Level Input Capacity: Handles up to 16 volts RMS (about 60 watts) for robust signal handling.
- Smart Auto Turn-On: DC offset or signal sensing eliminates the need for a remote lead.
- Digital Connectivity: 2-channel digital input and output (S/PDIF: up to 24-bit 192 kHz in, 24-bit 96 kHz out).
- Analog Output: 2-channel analog preamp output (4V RMS).
- JLid™ Expansion: Connections available for optional Network Hub, Bluetooth Communicator, and Digital Remote Control.
- USB Control: USB connection for devices running the TüN® app (6-foot cable included).
- Onboard Tuning Power: Full suite of DSP tools including equalization, delay, crossover routing, mixing, and more for precise audio customization.
- Advanced Class-D Amplifier Design: High-speed switching synchronizes power supply and output stages for exceptional fidelity with ultra-low noise and distortion.
- No Knobs or Switches: Entire setup and tuning is performed via TüN® software on computers or most handheld devices.
- Eliminate Audible Noises: Accepts speaker-level signals without a LOC and provides superior noise rejection.
- Advanced Rollback Protection: Proprietary thermal-monitoring system adjusts operation to prevent shutdowns and ensure continuous playback.
- Fully Configurable Output Channels: TüN® software allows complete control over signal routing, EQ, output levels, and DRC functionality.
- Hardware Note: Wiring, fuse, and other hardware are not included.
- Recommended Power Setup: 4-gauge power and ground leads with a 50-amp fuse recommended.
Digital Signal Processing:
- High-Resolution Audio Processing: 24-bit / 96 kHz digital audio processing
- Smart App-Based Tuning: DSP adjustments and settings via JL Audio’s TüN™ app (PC & Mac) using USB or Bluetooth with optional BTC module
- Multi-Level Tuning Control: Three project tuning levels: Basic, Advanced, and Expert
- Flexible Signal Management: Input routing and signal mixing
- Clean, Clipping-Free Setup: Adjustable gain controls with clip indication
- Fully Custom Crossovers: Adjustable high-pass, low-pass, and band-pass filters
- Precision Filter Slopes: Selectable slopes: 6, 12, 18, 24, 30, 36, 42, or 48 dB/octave
- Advanced Equalization: 10-band EQ with graphic control in Basic mode and parametric control in Advanced and Expert modes
- Total Phase Control: Phase and polarity adjustment
- Pinpoint Time Alignment: Time alignment adjustable in 0.01 ms (1/8") increments
TUN Desktop App:
Specifications:
- RMS Power Output (Watts x Channels): 400 x 1
- Peak Power Output (Watts x Channels): N/A
- Power at 2 Ohms (Watts x Channels): 600 x 1
- Power at 1 Ohm (Watts x Channels): ---
- Bridged Power (Watts x Channels): N/A
- Minimum Impedance Bridged: N/A
- Minimum Impedance Unbridged: 2
- Best Frequency Response: 12–500 Hz
- THD at Rated RMS Power: 1%
- Signal-to-Noise Ratio: 64 dB
- Input Voltage: 14.4V
- Amplifier Class: D
- Built-in DSP: Yes
- Remote Control: Via Tun software
- Low-Pass Crossover Frequency: Via Tun software
- Low-Pass Slope: Via Tun software
- High-Pass Crossover Frequency: N/A
- High-Pass Slope: N/A
- Bass Boost: No
- Bass Boost Frequency: N/A
- Fan Cooled: No
- Fuse Rating: 50
- Speaker Level Inputs: Yes
- Preamp Outputs: 2
- UPC: 699440986380
- Weight: 6
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
