- Maximum Power : 1000 Watts
- Low Frequency Response : 30-300 Hz
- Number of Channels : 1
- Built In Crossovers : Yes
- RMS Power Output : 1000x1 Watts
- Amplifier Class : D
- Fuse Rating : 35x3 A
Features:
- Latest High-Efficiency Full Range Digital Topology
- Surface Mount Component Technology with 4-Layer PCB

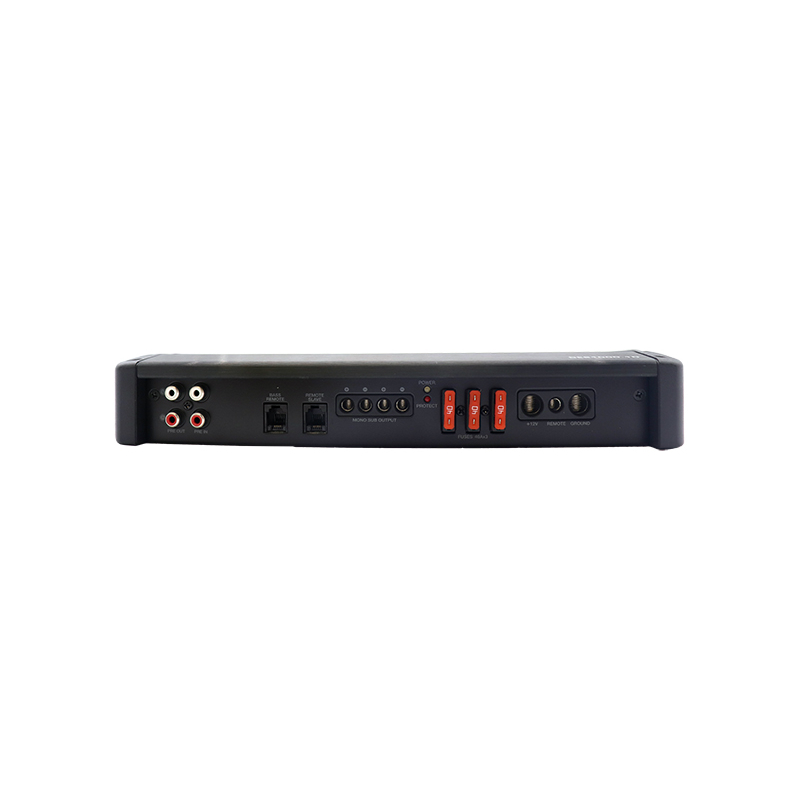

- Common Compact Size with Single-Sided Connections and Top Mount Controls
- Handles HI and LO level input up to 12V
- Switched Speaker Level Turn On Options (VOX/DC Offset/REM)
- Remote Bass Level Control Included
- Fully Variable 35Hz – 350Hz 12dB per Octave Crossovers
- 0 -180 Degrees of Phase adjustment
- Bass Boost EQ Up To 12dB
Specifications:
- RMS Power (1 Ω): 1000W X 1 RMS
- RMS Power (2 Ω): 1000 W X 1 RMS
- RMS Power (4 Ω): 750 W X 1 RMS
- Topology: Monoblock Class D
- Power Supply: Full PWM
- Power Supply Threshold: 10.0DVC – 17.0DVC
- Idle Current: (0.7A)
- THD 4 (1KHz @4Ω): 0.07%
- S-N Ratio (A-weighted @ 1W): -77.4dBA
- S-N Ratio (A-weighted @ 1W): -97.4dBA
- Input Sensitivity – Low Input Level: 0.2mV – 10.0V
- Input Sensitivity – High Input Level: YES- UP to 25 W RMS
- Input Impedance – Low Input Level: 22 KΩ
- Impedance – High Input Level: 22 KΩ
- Output Impedance: 0.047Ω
- Damping Factor (50Hz @ 4Ω): >250
- Bandwidth (-3dB): 10Hz-350Hz
- Crossover (-12 dB/ Oct) – Variable High Pass: N/A
- Crossover (-12 dB/ Oct) – Variable Low Pass: 30Hz-300Hz
- Crossover (-12 dB/ Oct) – Variable Sub-Sonic: 10Hz-55Hz
- Fuse Rating (ATC): N/A
- Dimentions- Length x Width x Height (inches): 11.72″ x 5.27″ x 1.75″
- Dimentions- Length x Width x Height (mm): 297.6 x 133.9 x 44.5 mm
For more Information:
DES1000.1D Owner's Manual
- UPC: 847169040511
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
