Diamond Audio  DES1000.5D

Diamond Elite Series 1000W Peak Power Handling, 5-Channel Full Range Amplifier, Class-D

Item #80605

Product Highlights

  • Diamond Elite Series 5-Channel Amplifier
  • 1000W Peak Power Handling
  • Full Range Class-D
  • High-Performance Audio

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:

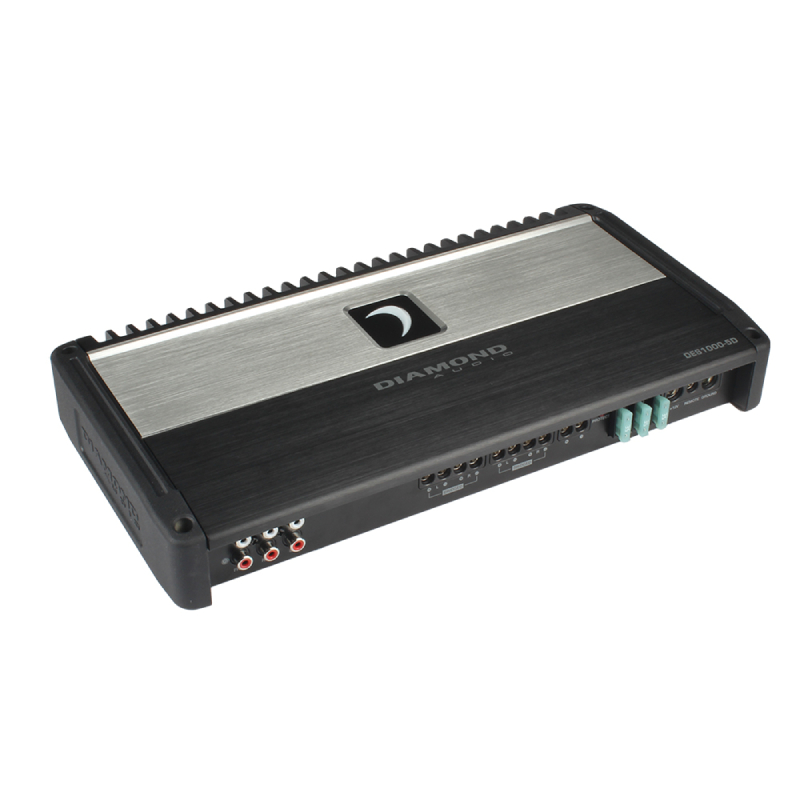

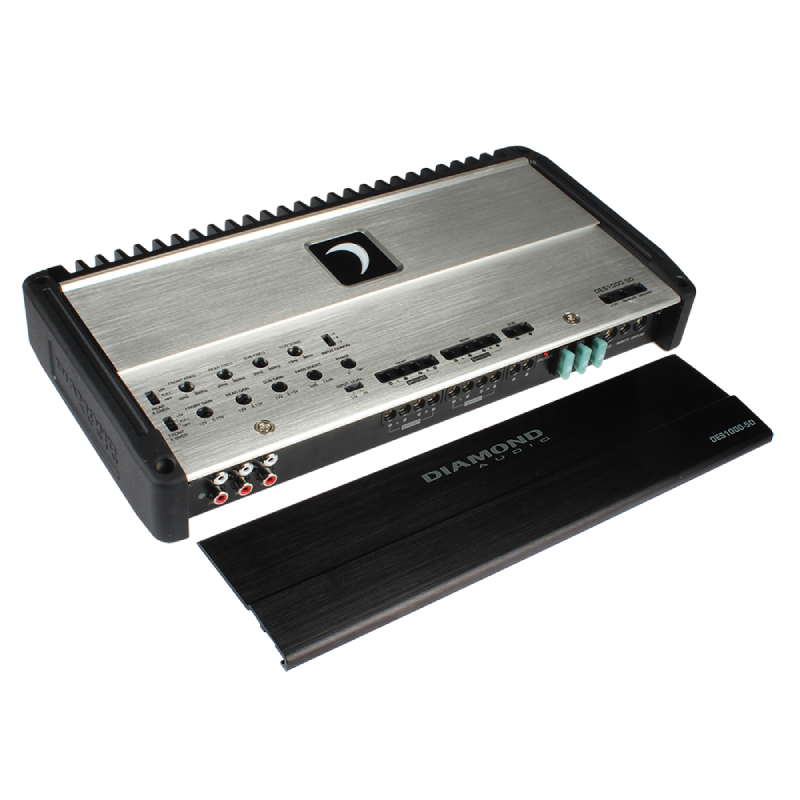

Diamond Audio DES1000.5D - Diamond Elite Series 1000W Peak Power Handling, 5-Channel Full Range Amplifier, Class-D


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 5-Channel Full Range Amplifier, Class-D
  • • Owner's Manual
Powerful and Compact 5-Channel Amplifier

The Diamond Audio DES1000.5D 5 Channel 1000-watt amplifier is ideal for those seeking a powerful amplifier to drive their subwoofers. Featuring the latest high-efficiency full-range digital topology, it combines a compact design with single-sided connections and top-mounted controls, making it easy to install and operate in any vehicle. Its sleek design ensures optimal performance wherever you use it.


SPECIFICATIONS


  • Maximum Power : 1000 Watts
  • Number of Channels : 5
  • Amplifier Class : D
  • Fuse Rating : 35x3 A

FEATURES


Features:

  • Latest High-Efficiency Full Range Digital Topology
  • Surface Mount Component Technology with 4-Layer PCB
  • Common Compact Size with Single-Sided Connections and Top Mount Controls
  • Handles HI and LO level input up to 12V
  • Switched Speaker Level Turn On Options (VOX/DC Offset/REM)
  • Remote Bass Level Control Included
  • Fully Variable 35Hz – 350Hz 12dB per Octave Crossovers
  • 0 -180 Degrees of Phase adjustment
  • Bass Boost EQ Up To 12dB



Specifications:

  • RMS Power (2 Ω): 150W X 4 / 250 X 2
  • RMS Power (4 Ω): 90 W X 4 / 150 X 2
  • Bridged (mono 4 Ω): 300 W X 2 / 500 W X 1 (Ch 5/6 bridged)
  • Topology: Full Range Class D
  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0DVC – 17.0DVC
  • Idle Current: (0.7A)
  • THD 4 (1KHz @4Ω): 0.03%
  • S-N Ratio (A-weighted @ 1W): -76.7dBA
  • S-N Ratio (A-weighted @ 1W): -96.7dBA
  • Input Sensitivity – Low Input Level: 0.2mV – 10.0V
  • Input Sensitivity – High Input Level: YES- UP to 35 W RMS
  • Input Impedance – Low Input Level: 22 KΩ
  • Impedance – High Input Level: N/A
  • Output Impedance: 0.051Ω
  • Damping Factor (50Hz @ 4Ω): >70
  • Bandwidth (-3dB): 10Hz-350Hz
  • Crossover (-12 dB/ Oct) – Variable High Pass: 35Hz-350Hz
  • Crossover (-12 dB/ Oct) – Variable Low Pass: 35Hz-350Hz
  • Crossover (-12 dB/ Oct) – Variable Sub-Sonic: N/A
  • Fuse Rating (ATC): N/A
  • Dimentions- Length x Width x Height (inches): 12.5″ x 5.27″ x 1.75″
  • Dimentions- Length x Width x Height (mm): 317.6 x 133.9 x 44.5 mm
  • UPC: 847169040542
  • Weight: 8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
