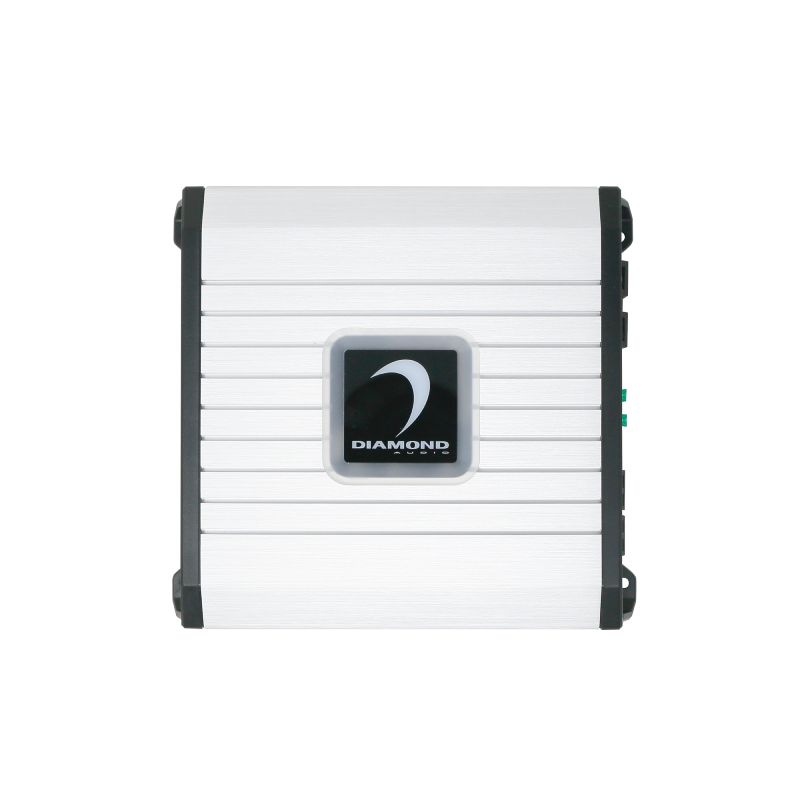

Diamond Audio  DMD600.4D

Diamond Series 600W Max Power, 4-Channel Amplifier, Class-D

Item #80614

Condition:   Brand New

Product Highlights

  • Diamond Series 4-Channel Amplifier
  • 600W Max Power
  • Class-D Design
  • High-Performance Audio

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$399.99

Reg. Price $499.99  Save $100.00

Out of Stock Check out other products listed below
Diamond Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Diamond Audio DMD600.4D - Diamond Series 600W Max Power, 4-Channel Amplifier, Class-D


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 4-Channel Amplifier, Class-D
  • • Owner's Manual
High-Value, Compact Power Solutions for Mobile Audio Systems

The DMD Series amplifiers from Diamond Audio offer top-tier performance for their value. Delivering substantial power within a compact heat sink, these amplifiers are perfect for budget-friendly mobile audio systems. The series includes five models to choose from: one 4-channel, three mono-channel, and one 6-channel amplifier.


SPECIFICATIONS


  • Maximum Power : 600 Watts
  • Number of Channels : 4
  • Frequency Response : 20-20000 Hz
  • Amplifier Class : D
  • Fuse Rating : 40x3 A

FEATURES


Features:

  • 160Watts x 4CH @ 2 ohms RMS Output
  • 100Watts x 4CH @ 4 ohms RMS Output
  • 320Watts x 2CH @ 4 ohms RMS Bridged Output
  • Frequency Response: 20-20KHz
  • Signal To Noise Ratio: >90dB
  • Dampening Factor: > 250
  • Channel Separation: >55dB
  • Overall Operation Efficiency: >88%
  • Selectable X-over:LPF/FLAT/HPF
  • LPF/HPF Filter:50-500Hz
  • Level Input Range:0.2-10V
  • Multi-Turn On Modes:REM/DC/VOX
  • Switchable 2CH & 4CH Input Configuration
  • Hidden Led Lights under Logo Badge indicate working status:Power/Protection
  • Gain Input Sensitivity Clipping Indicators
  • Full Range IR Chipset Digital Circuit Design
  • DirectFET power Mosfet Output Stage
  • Compact Size to easy Installation
  • SMD Technology on 4 Layers FR4 PC Board
  • Balanced Differential Inputs for Noise-Free Operation Regardless of the Source
  • Audio Precision Quality Control Verification



Specifications:

  • RMS Power (2 Ω): 150W X 4
  • RMS Power (4 Ω): 100W X 4
  • Topology: Full-Range Class D
  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0VDC – 17.0VDC
  • Idle Current: (0.7A)
  • THD (1KHz @4Ω): 0.05%
  • S/N Ratio (A-weighted @1W): -77.2dBA
  • S/N Ratio (A-weighted @ FP): -98.9dBA
  • Input Sensitivity – Low Input Level: 0.2mV – 10.0V
  • Input Sensitivity – High Input Level: YES – UP to 25 W RMS
  • Input Impedance – Low Input Level: 22 KΩ
  • Impedance – High Input Level: 22 KΩ
  • Output Impedance: 0.047Ω
  • Damping Factor (50Hz @ 4?): >250
  • Bandwidth (-3dB): 10Hz-350Hz
  • Crossover (-12 dB/ Oct) – Variable High Pass: N/A
  • Crossover (-12 dB/ Oct) – Variable Low Pass: 35Hz – 350Hz
  • Crossover (-12 dB/ Oct) – Variable Sub-Sonic: N/A
  • Fuse Rating (ATC): 3 X 40A
  • Dimensions- Length x Width x Height (inches): 7.6” x 6.85” x1.9”
  • Dimensions- Length x Width x Height (mm): 193.1 x 174 x 48.4
  • UPC: 847169057427
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
