- Diameter : 10 Inch
- Sensitivity : 82.5 dB
- Impedance : 4 Ohm
- Peak Power Handling : 1000 Watts
- Number of Voice Coils : Dual
- Mounting Depth : 7 Inches
- RMS Power Handling : 500 Watts
Features:
- 4Ω Impedance
- 500W RMS, 1000W MAX
- Dual Voice Coil
- Mounting Diameter: 9 “ / 228mm
- Mounting Depth: 7 “ / 178mm
- Ridged, two-part treated paper/fiberglass laminated woofer cone
- Copper anodized aluminum elevated radiating heat sink
- Impedance selection via high-power terminal
- 3" high-temp copper voice coil on treated black high-strength aluminum former
Specifications:
- SPL (dB): 82.5
- Re (Ω) [series]: 7.6
- Qms: 43.6
- Qes: 0.56
- Qts: 0.49
- Fs (Hz): 36.0
- Vas(L): 16
- Cms (mm/N): 0.110
- Mms (g): 183
- Sd (m2): 0.032
- BL (T*M): 23.8
- Xmax: 18.3
- Pwr (W) nom/max: 500/1000

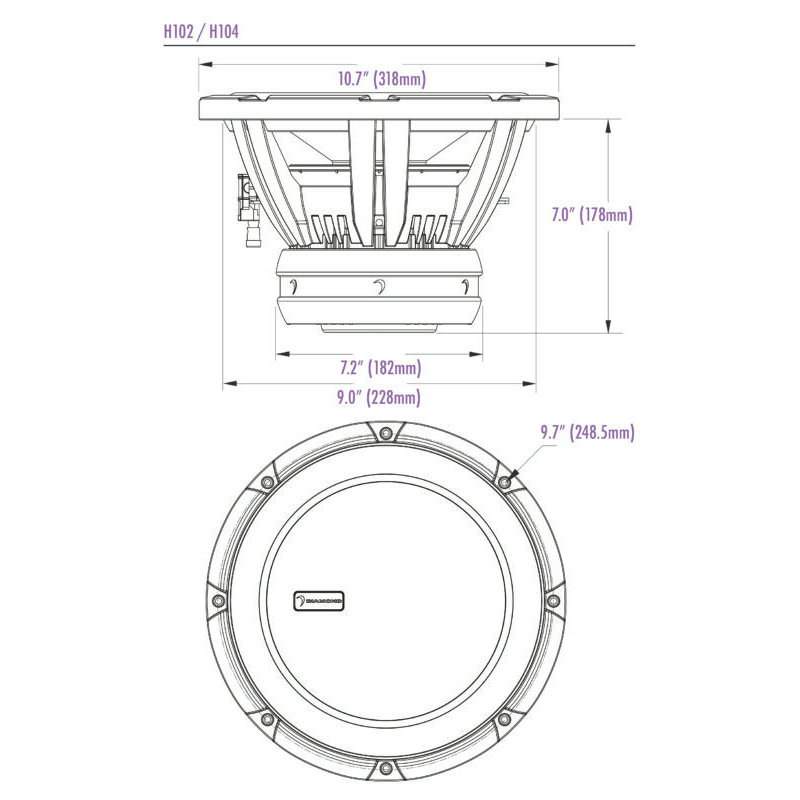

- Total Diameter: 10.7” (273) in. (mm)
- Mounting Diameter: 9.0” (228) in. (mm)
- Screw Hole Dia.: 9.7” (248.5) in. (mm)
- Mounting Depth: 7.0” (178) in. (mm)
- Magnet Dia.: 7.2” (182) in. (mm)
- UPC:
- Weight: 20
