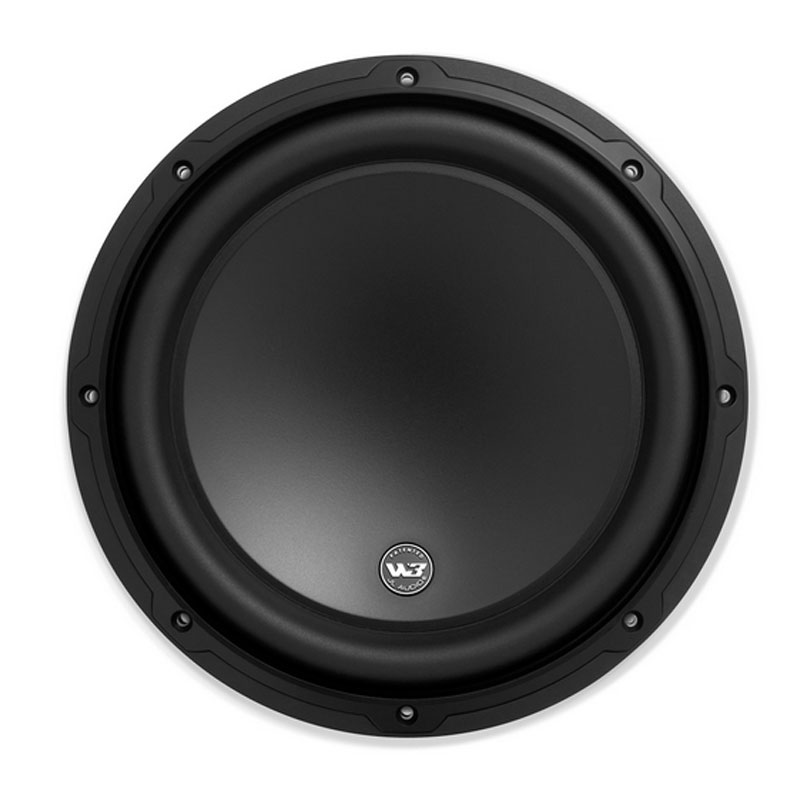

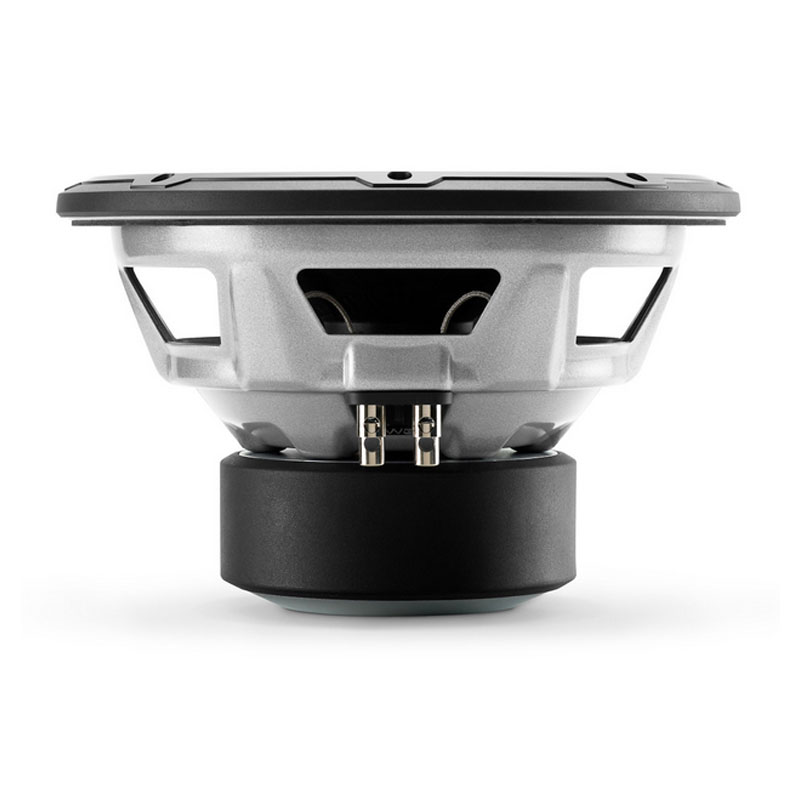

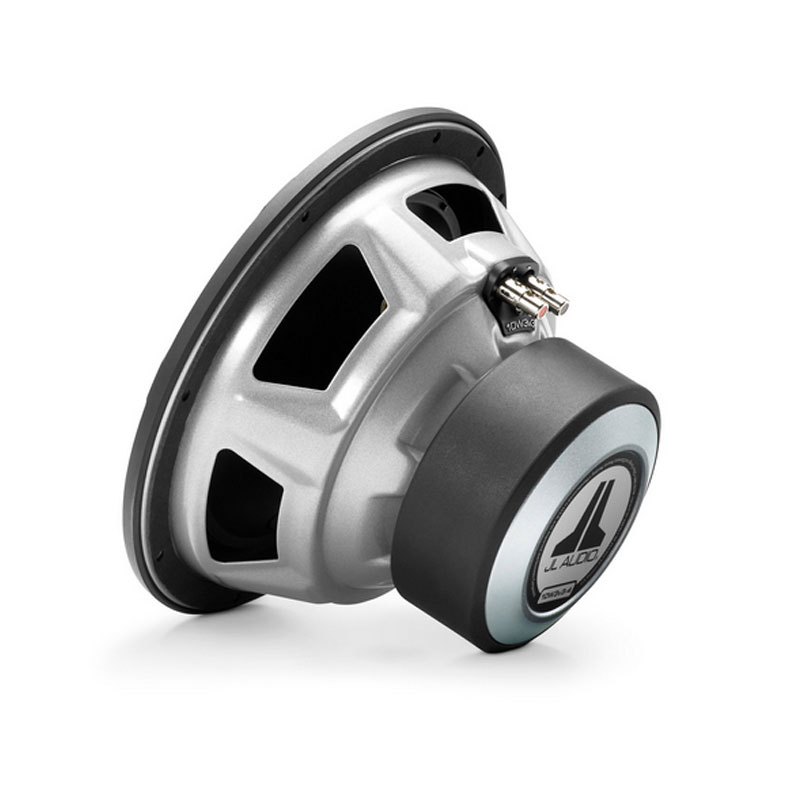

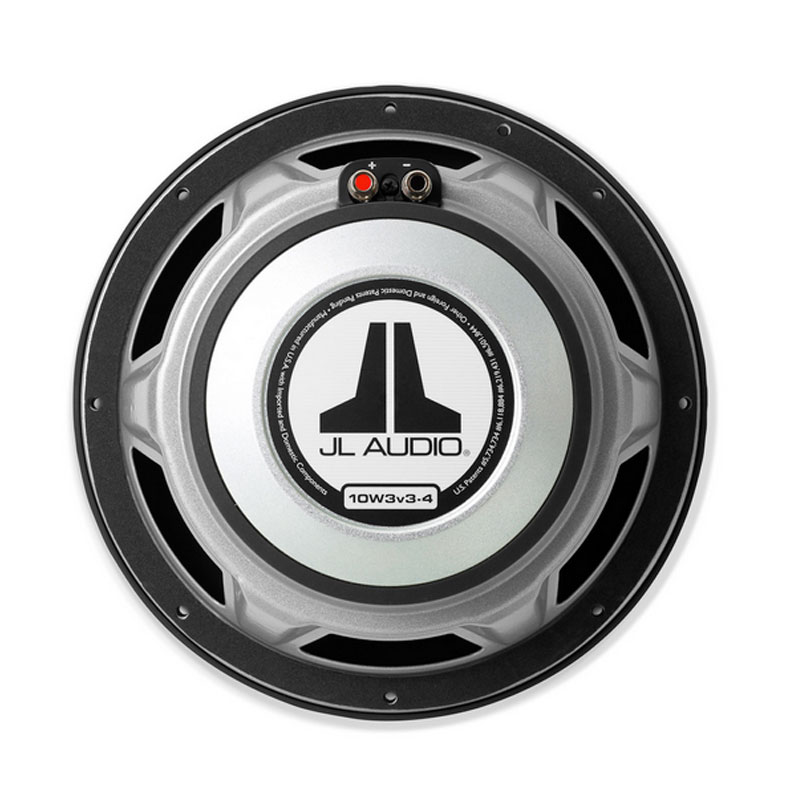

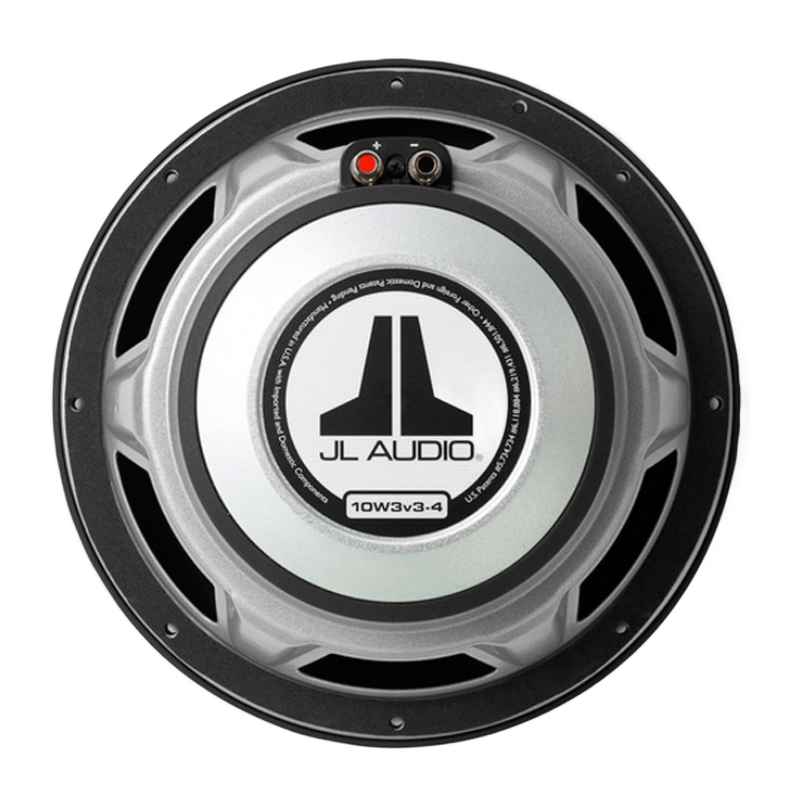

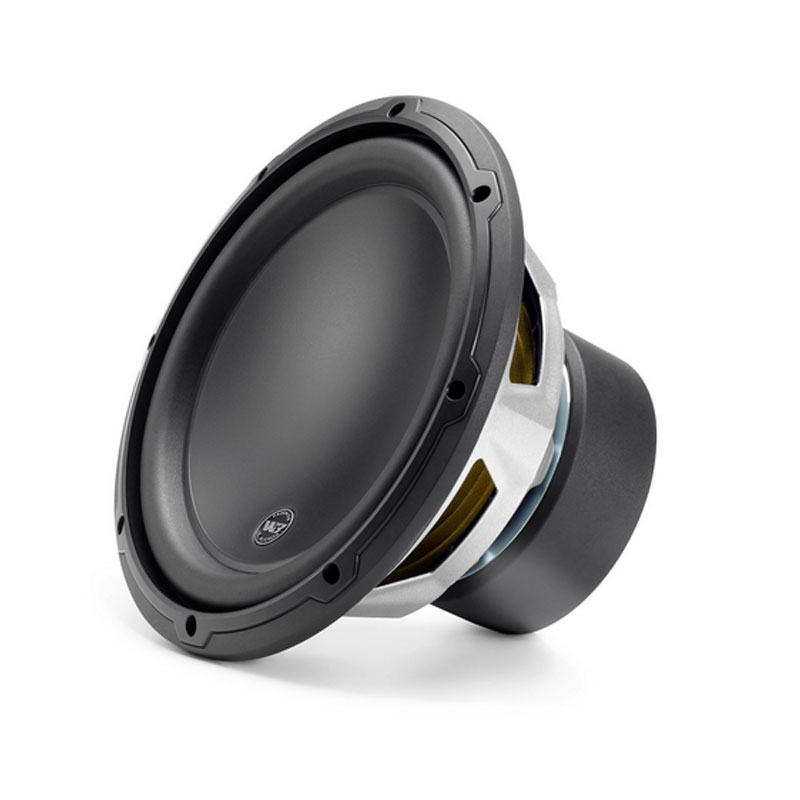

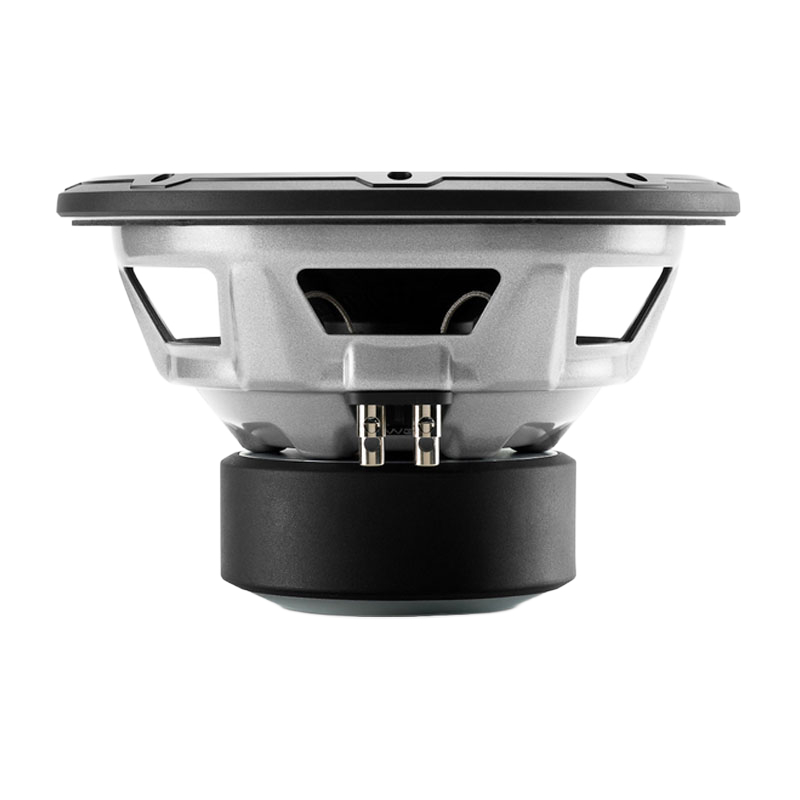

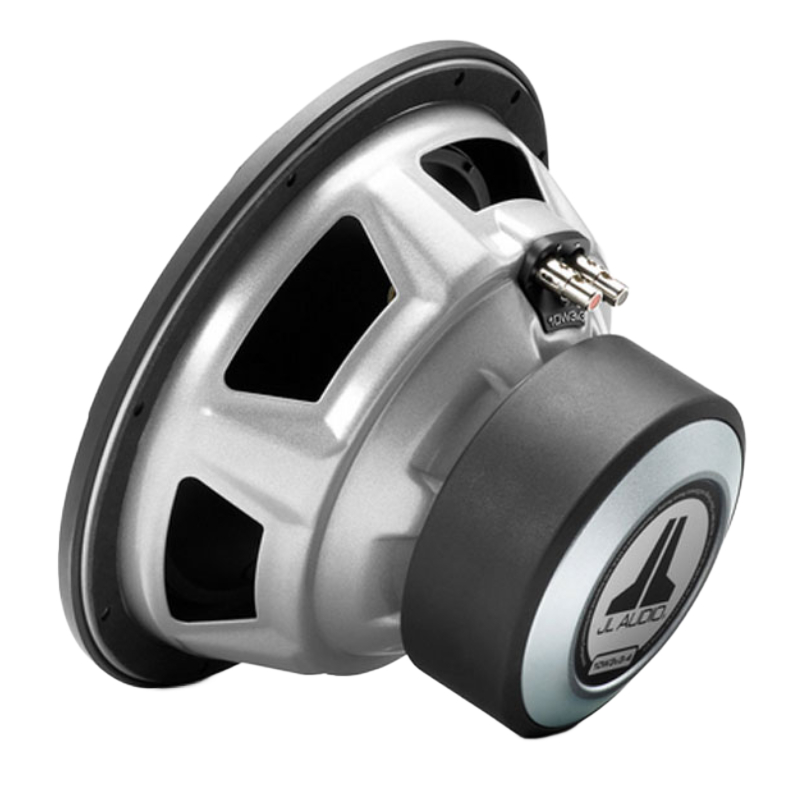

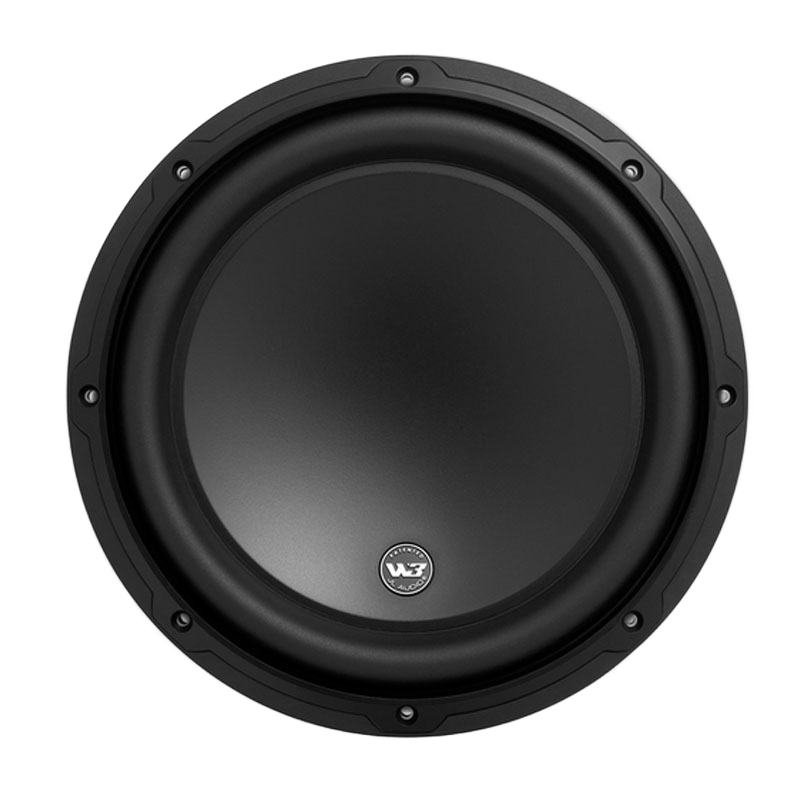

JL Audio  10W3v3-4

W3v3 Series 10" 1000W Peak Power Handling at 4 Ohms, Single Voice Coil Component Car Subwoofer

Item #17145

Condition:   Brand New

Product Highlights

  • W3v3 Series
  • 10" Subwoofer
  • 1000W Peak Power
  • 4 Ohms Impedance
  • Single Voice Coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$419.99

Reg. Price $479.99  Save $60.00
Add Extended Warranty
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

JL Audio Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


JL Audio Banner for Onlinecarstereo

JL Audio 10W3v3-4 W3v3 Series 10" 1000W Peak Power Handling at 4 Ohms, Single Voice Coil Component Car Subwoofer


We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 10" Single Voice Coil Component Car Subwoofer
  • • Black plastic trim ring
  • Owner's Manual




Why Choose JL Audio 10W3v3-4 Component Speakers


RMS Power & Peak Power Performance for Medium-Powered Amplifiers

The JL Audio 10W3v3-4 is a premium 10-inch subwoofer engineered for strong sound quality bass and controlled SPL performance in daily driver and SQL builds. Rated at 500 Watts RMS power with up to 1000 Watts peak power, it delivers clean output when paired with proper amplifier matching. This makes it an ideal upgrade for users looking to improve their car audio upgrade setup without sacrificing clarity or control. Designed using technology derived from JL Audio’s flagship W7 series, it offers long-term durability and high-performance output at an accessible price point.

Subwoofer Box Compatibility | Sealed vs Ported Enclosure Performance

Offers excellent subwoofer box compatibility, giving users flexibility between sealed vs ported enclosure designs depending on their goals. A sealed enclosure provides tighter, more accurate sound quality bass, ideal for music-focused listening and clean response. A ported enclosure increases output and enhances SPL performance, delivering deeper bass extension and louder impact. This versatility makes it a strong choice for different car audio upgrade setups, from daily drivers to more aggressive bass systems.

Sound Quality Bass, Motor Control & Thermal Reliability

Built with JL Audio’s DMA-optimized motor structure, the 10W3v3-4 delivers precise cone control for clean and controlled sound quality bass even at high output levels. Its engineering improves both efficiency and distortion control, helping maintain consistent performance under demanding conditions. Combined with Elevated Frame Cooling, the subwoofer manages heat effectively, ensuring reliable handling of its full RMS power during long sessions. This makes it a dependable option for users building complete systems or subwoofer package deals with proper tuning and enclosure design.




JL Audio 10W3v3-4 vs 10W1v3-2 vs 10W1v3-4 vs 10W0v3-4 | Which 10" JL Audio Subwoofer Is Best?


JL Audio 10" Subwoofer Performance Battle


JL Audio 10W3v3-4
10" W3v3 Series Single 4-Ohm High-Performance Subwoofer

BEST OVERALL
  • • 10" Subwoofer
  • • 500 Watts RMS
  • • 1000 Watts Peak
  • • Single 4-Ohm Voice Coil
  • • DMA Optimized Motor
  • • Excellent Sound Quality
  • • Highest Output Capability
  • • Best for SQL Systems
Alpine_S2-S65C

JL Audio 10W1v3-2
10" W1v3 Series Single 2-Ohm Sound Quality Subwoofer

BEST VALUE SQL
  • • 10" Subwoofer
  • • 300 Watts RMS
  • • Single 2-Ohm Voice Coil
  • • Compact Enclosure Friendly
  • • Excellent Sound Quality
  • • Easy to Power
  • • Strong Low-End Extension
  • • Ideal for Mono Amps


JL Audio 10W1v3-4
10" W1v3 Series Single 4-Ohm Sound Quality Subwoofer

MOST FLEXIBLE
  • • 10" Subwoofer
  • • 300 Watts RMS
  • • Single 4-Ohm Voice Coil
  • • Excellent Sound Quality
  • • Compact Box Compatible
  • • Flexible System Matching
  • • Tight & Accurate Bass
  • • Great Daily Driver


JL Audio 10W0v3-4
10" W0v3 Series Single 4-Ohm Entry-Level Subwoofer

BUDGET PICK
  • • 10" Subwoofer
  • • 300 Watts RMS
  • • Single 4-Ohm Voice Coil
  • • Affordable JL Audio Option
  • • Smooth Musical Bass
  • • Easy Installation
  • • Small Sealed Box Friendly
  • • Great for Factory Upgrades




JL Audio 10W3v3-4 Recommended Amplifiers | Best Monoblock Amp Pairing for Maximum Output & Clean Bass Performance


JL Audio 10W3v3-4 Amplifier Matching Guide
Best Monoblock Amplifiers for Clean Power Delivery, Deep Bass Extension & High-Output Performance
Amplifier Matching Overview
10W3v3-4 Power Rating: 500W RMS
Voice Coil Configuration: Single 4-Ohm
Ideal Amp Range: 400W – 600W RMS @ 4Ω
Goal: Maximum bass output, clean dynamics, and distortion-free low-frequency performance
Best Setup: Dedicated monoblock amplifier with clean headroom
Top Recommended Amplifiers for JL Audio 10W3v3-4
JL Audio RD500/1: Best overall match – delivers the subwoofer's full rated RMS power with outstanding control and sound quality.
JL Audio JD500/1: Best value option – clean 500W RMS output with excellent reliability and affordability.
Rockford Fosgate R2-500X1: Best budget-performance choice – strong output and excellent power delivery for daily listening.
Alpine S2-A60M: Best upgrade option – powerful amplifier with extra headroom for future system expansion.
Gain & Tuning Recommendations
Gain Setting: Match amplifier output to the subwoofer's 500W RMS rating using an oscilloscope, distortion detector, or multimeter method.
Low-Pass Filter (LPF): 70Hz – 90Hz for smooth integration with front speakers.
Subsonic Filter: 25Hz – 30Hz for ported enclosures; OFF for sealed enclosures.
Bass Boost: OFF or minimal use to preserve sound quality and prevent clipping.
Phase Adjustment: Set for strongest bass response at the listening position.
EQ: Start flat and make small corrections based on vehicle acoustics.
Enclosure Matching Tips
Sealed Box: Best for tight, accurate bass and superior sound quality.
Ported Box: Best for maximum output, deeper extension, and increased SPL performance.
Power Recommendation: The 10W3v3-4 performs best when supplied with a clean 450W–500W RMS signal.
Pro Tip: The JL Audio 10W3v3-4 is widely regarded as one of the best SQL (Sound Quality + Loudness) subwoofers in its class. Pairing it with a clean 500W RMS monoblock amplifier provides the ideal balance of output, control, and long-term reliability.




Frequently Asked Questions (FAQ)


  • • Why isn't my JL Audio 10W3v3-4 hitting as hard as I expected?
    The most common cause is insufficient amplifier power or an improperly designed enclosure. The 10W3v3-4 performs best with 400–500W RMS of clean power and a box built to JL Audio's recommended specifications.
  • • Can I run the JL Audio 10W3v3-4 on a 300W RMS amplifier?
    Yes, but many users report noticeably better output and deeper bass when the subwoofer receives power closer to its 500W RMS rating. Lower power is safe but may leave performance on the table.
  • • Why does my JL Audio 10W3v3-4 sound weak in a sealed box?
    A sealed enclosure produces tighter and more accurate bass but typically less output than a ported enclosure. Users seeking maximum loudness often switch to a properly tuned ported box.
  • • Why does my JL Audio 10W3v3-4 distort at high volume?
    Distortion is usually caused by amplifier clipping, excessive bass boost, or incorrect gain settings. Proper amplifier tuning and clean power delivery are critical for maintaining sound quality.
  • • Should I choose a sealed or ported enclosure for the JL Audio 10W3v3-4?
    Choose sealed if you prioritize sound quality, accuracy, and tight bass response. Choose ported if you want more output, deeper bass extension, and stronger low-frequency impact.
  • • Why doesn't my JL Audio 10W3v3-4 play very low frequencies?
    This is often caused by enclosure design, incorrect low-pass filter settings, or an overly aggressive subsonic filter. Proper tuning and box design are essential for deep bass performance.
  • • Is a single JL Audio 10W3v3-4 enough bass for daily driving?
    For most listeners, yes. A properly powered 10W3v3-4 delivers strong, clean bass that satisfies the majority of daily drivers. Users seeking extreme SPL often move to dual subwoofers.
  • • Why is my JL Audio 10W3v3-4 making a mechanical noise?
    Mechanical noises can result from over-excursion, amplifier clipping, damaged voice coils, or enclosure air leaks. The system should be inspected immediately to prevent permanent damage.
  • • Does the JL Audio 10W3v3-4 need a break-in period?
    Yes. Many owners notice improved low-frequency extension and smoother performance after several hours of normal listening. The suspension loosens slightly as the subwoofer breaks in.
  • • Is the JL Audio 10W3v3-4 worth the extra cost over the W0 or W1 series?
    Most enthusiasts say yes. The W3 offers greater output capability, deeper bass, better power handling, and improved sound quality, making it one of the most popular SQL (Sound Quality + Loudness) subwoofers available.



Learn How To Wire Subwoofers


SPECIFICATIONS


  • Diameter : 10 Inch
  • Sensitivity : 84.87 dB
  • Impedance : 4 Ohm
  • Frequency Response : 25-250 Hz
  • Peak Power Handling : 1000 Watts
  • Shallow Mount : No Inch
  • Number of Voice Coils : Single
  • Suggested Sealed Box Volume : 0.625 Cubic ft.
  • Suggested Ported Box Volume : 1.125 Cubic ft.
  • Mounting Depth : 5.93 Inches
  • RMS Power Handling : 500 Watts
  • Free Air : No

FEATURES


Features:

  • Powerful, Accurate Bass: Designed to deliver powerful, accurate bass with a medium-power amplifier
  • Smooth Cone Movement: Extensive motor assembly research ensures smooth, precise cone movement at any power level
  • Exclusive Cooling Features: Cooling features shunt heat away from the sub's internal motor structure for long-term durability and reduced distortion
  • Versatile Enclosure Compatibility: Works well in both sealed and ported enclosures
  • Mineral-Filled Polypropylene Cone: Features a 10" mineral-filled polypropylene cone with a distinctive metallic JL Audio medallion
  • Patented Surround Design: Patented design eases stress on the rubber surround during cone movement, enhancing reliability and consistent bass output
  • Customizable Trim Ring: Removable trim ring accepts optional JL Audio grilles and can be painted to match your installation aesthetics



Specifications:

  • Size: 10-inch
  • Impedance (Ohms): 4
  • Cone Material: Mineral-filled poly
  • Surround Material: Rubber
  • Free-Air: No
  • Dual Voice Coil: No
  • Sensitivity: 84.87 dB at 1 watt
  • Frequency Response: 25 - 250 Hz
  • Max RMS Power Handling: 500 watts
  • Peak Power Handling (Watts): 1000
  • Top Mount Depth (inches): 5 7/8
  • Bottom Mount Depth (inches): N/A
  • Cutout Diameter or Length (inches): 8 15/16
  • Frame Width: 10.535
  • Frame Length: 10.535
  • Vas (liters): 32.23
  • Fs (Hz): 31.49
  • Qts: 0.485
  • Xmax (millimeters): 14
  • Ideal Sealed Box Volume (cubic feet): 0.625
  • Ideal Ported Box Volume (cubic feet): 1.125
  • UPC: 699440921510
  • Weight: 10
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • These subs are a huge improvment over the w3v2's which were good to begin with. I have an 00 bmw 328i and i have 2 of these in a custom enclosure with a 500/1 special edition black jl amp. They pound like hell. These subs hit all the highs and lows and everything in between. Great choice if your lookin for a small box. Worth teh money by far.

    Nick
    7/11/2006

  • Just got 2 of these installed with a 500/1 JL amp in my 05 gmc sierra extended cab. Quality is amazing and it can push out insane amounts of bass. I've compared so many different brands and JL defeats them all. If you got the money, buy these! They are definately worth it.

    Ben
    12/24/2006

  • JL makes the best woofers on the market. Someone convinced me at one time Diamond Audio was better than JL, so I went with Diamond's D3 10" Subs and was dissapointed. One the outside they look identical, but all they do is move air while lacking sound quality. My old 100 watt JL W0's sounded better than these "400 watt RMS" D3's. Getting rid of the D3's and coming back to JL. Got a better brand woofer? let's hear it. JL for life

    D.J.
    6/8/2007

  • To all those who try to bad mouth JL and say you are paying for the name... they may be a little pricey but its worth it, they got the name somehow. Anyway I just got ONE of these today in my 02 Lincoln LS and it sounds so clean, gets pretty loud too. I was suprised w/the JL A1200 amp pushing it, about 2/3 the recommended power. The place I got it was out of the 250/1 so they let me use that for now. This sub is very smooth, great sounding bass, amazing for the money! I already had someone think it was 2 12s! I said "2 12s"? He said "what, is it a 15"? Haha... then I showed him and he couldnt believe it. I cant wait to see what it will do w/the 250/1 pushing it. Thanks JL!

    J.L.
    6/12/2007

  • ive got a '07 colorado extreme with one 10inch w3, with a Alpine PDX-1.600 600rms amp. the 10inch barely does work. not lying. i had 2 12inch w1's in a chevy s10 ext cab with a kenwood 920. and the 920 was about 10 times louder. the sound qualitys alright, coming from jl but i cant believe the quality from the w1's are better than this w3... kinda disappointed...

    arlie
    8/25/2007

  • these are THE BEST woofers that you can buy for around this price. sound quality is amazing and it can really thump when you want it. best part is it only needs 300 watts rms so you won't have to buy a big amp to power it. i got 2 of these in my chevy truck in a ported box powered by a 600 watt amp and it bangs. if you want a quality sub that's going to hit all the highs and lows and everything in between jl is the way to go

    Frank
    1/24/2008

  • I had a pair of 10w3v2 and banged em everyday,they lasted bout 7yrs till one gave out,now i got these and they hit with the clarity of how good bass should sound ,where you can feel it but don't know where its coming from..setting off alarms with ease and having everybody in denial that these are just a pair of 10's doing all that damage,,JL Audio!

    Sammy
    3/18/2008

  • I've got two of these babies w/ a T500.1 Total Mobile Audio Mono amp, in a ported box,in my 2000 maxima. It has a really clear sound and every time it hits it is pure. VERY nice sub at a great price, you will not find it any cheaper take advantage of this offer! TMA amps are a really nice product too. If u want a product that isnt very different than the 500/1 and dont have the money to pay for it then you should get a TMA amp. It a JL product neways. JL is the BEST bottom line!

    Adam
    3/20/2008

  • i do a lot of coustom installs and decided to use one of these for my bronco ina med. powered sq system and it delivered. i have it in a small sealed box with a ppi a600.2 art amp.

    victor
    3/31/2008

  • I Love these subs... and i stand corrected on the shipment... they helped me through it and got me the subs quickly... thank you OCS

    Antonietti
    8/25/2008

  • I have two of these in a slot ported box in my 08 chevy tahoe on a 500/1 amp. I'm not that impressed by these subs, they have a decent punch, but they can't produce that much quake. The amp however, pushes like a bat out of hell. My ideal JL setup would be 2 13" W6v2 on a 1000/1 amp, but i'm not stupid enough to spend that kind of money when i can spend half as much and get a better system with MTX.

    Mathis
    11/7/2008

  • This sub is insane. I have one of these in a sealed box with a kenwood 1000 watt amp in a gmc sonoma. I was hesitant before i only bought one, but you only need one. Hits hard but is easily breakable.

    Patrick
    1/16/2009

  • I have a pair of these phenomenal drivers in a slot-ported enclosure being powered by a Rockford Fosgate T500-1bd amp in my 07 Scion tc. These bad boys can wake up the dead! I love the 10w3v3! The bass is so deep, clean, and clear. The gain on the amp is only 50% of its max, and the sub control on the double-din head unit is only on 4. It's enough to pump your heart right out of your chest, and not to mention, go hearing impaired. If you want some hard-hitting, deep, clear, and clean bass, JL is the way to go. Thanks JL Audio!

    John
    9/19/2009

  • I had one of these in a sealed box pushed by a rockford punch 550/2 bridged in a 99 camaro. First of all, it takes a lot more power to get volume out of a sealed box, but you get way better accuracy and quality. That being said, people still would guess that I had 2 12's in the back. This sub lasted me a couple years of abusing the crap out of it. I listen to mostly metal so a lot of very quick double bass pedal hits and this baby would keep up. This is not a comp sub, but if you want bang on a budget you need to get you one or two.

    Matthew
    2/29/2012

  • I use to have two 10w1v2-4 they were nice, but then i found a box that would house 2 10w3v3-4. The w1 was running a kicker amp with 220 watts a side. When i went to the 10w3v3-4. What a big difference they are powered by jx 1000 500 to each side. w1's i could stand sitting in the truck the w3's i have to turn them down. people think i am running 2 12's or 1 15 some say 2 15's whatever. these are the real deal i have them in a .625 sealed fox box not sure of the spl's, but it sure does sound like a car i had that hit 133 spl's

    Mark hanson
    11/4/2014

  • Bought this sub and connected it to an Alpine 500 Watt (300 Watt RMS @ 4 ohms) Mono Class D and it sounds amazing. Have it in a 2012 Dodge Ram 1500 Quad Cab under the passenger seat in a pre-fab box I bought on Ebay and it's loud! Worth the money!!

    Mike
    5/26/2015

  • This 10-inch sub from JL audio is a match made from heaven with the amp currently installed in my vehicle. I immediately felt the lows right after i installed it. been running it for a year and no issues here

    Rylan Foster
    10/13/2023

  • Its been a year since I purchased a set of C2-650x, and I really loved it which is why I immediately looked for a JL sub when I was started looking for one. Truly a great subwoofer! nice punchy lows, and can surely go loud too.

    Dan Brown
    10/18/2023

  • This 10" sub is the real deal! Gets low and packs a punch. Totally worth the extra bucks. Paired it with my 500-watt JL mono amp, and man, there's nothing bad to say about how it performs.

    Dion
    11/17/2023

  • I have 2 (12”) on a helphonics amp , and they are very nice … sound quality is great, and worth the money… so a lot of folks ask , is it SPL? … no .. this is a quality woofer… with a unique sound .. I highly recommend it , if you looking for quality,

    Boogie
    2/23/2024

  • Crazy powerful sub for a 10 inch. Hits truly hard and the lows are very clear. Looks awesome and the build quality is really impressive which is what is expected with JL audio subs.

    Demario
    3/6/2024

  • Would recommend this to everyone looking for quality sub. Fantastic to have in your setup. Great power too.

    Antoine H.
    4/16/2024

  • The 10w3 is a very competent Subwoofer in both sealed and ported setups. I’m loyal to all of the W6 line; however, the 10w3 in an excellent choice for moderate power/$$$$. Setups Running them sealed gives you controlled and very accurate bass. Clean and hits like heck if you can run a clean 350-500 watts per sub. I have 2 10 in a sealed box running them off a JL xd1- 600 @ 2ohms and I’ve noticed . Now, ported in a properly tuned box takes this subwoofer to the next dimension in terms of sheer output with punch and brute force. 300-500 watts on one of these is a great value for those of you with lower powered systems. I’ve used these subs often and they do need to break in as the sound and depth/ extension of the bass improves significantly with 20 hrs of play. Most importantly, I’ve owned many other subs; however, When following the company’s recommended RMS, these speakers can last forever. rather expensive relative to their class; however, JL subwoofers are at the tops in terms of reliability!!

    Vic
    12/17/2024
