Diamond Audio  H124

Hex Series 12" 1200W Peak Power Handling, 4-Ohms, Dual Voice Coil Subwoofer

Item #80637

Condition:   Brand New

Product Highlights

  • 12" Hex Series subwoofer for deep, accurate bass
  • Delivers 1200W peak power handling
  • 4-ohm dual voice coil configuration
  • Heavy-duty cone for durability and precision
  • Vented design for efficient heat dissipation

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$469.99

Reg. Price $569.99  Save $100.00

Out of Stock Check out other products listed below
Diamond Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:

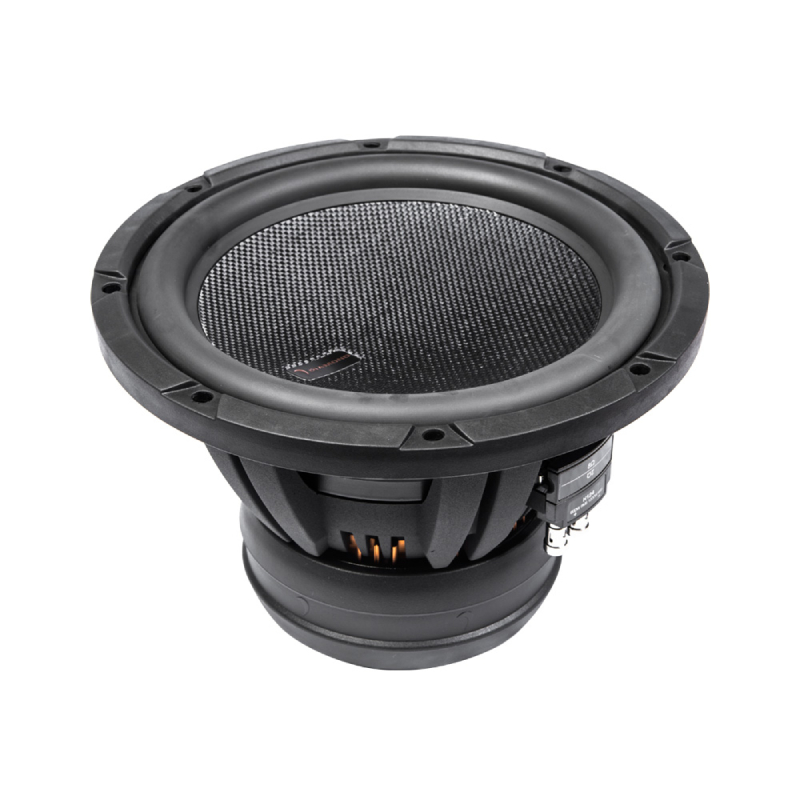

Diamond Audio H124 - Hex Series 12" 1200W Peak Power Handling, 4-Ohms, Dual Voice Coil Subwoofer


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 12" 4-Ohms, Dual Voice Coil Subwoofer
  • • Owner's Manual
Advanced Performance and Design in HEX Series Subwoofers

The new HEX series subwoofers incorporate several advanced features and technologies from the HEX PRO series to achieve superior performance. Elegantly designed with natural metallic elements, HEX subwoofers boast professional-grade cast aluminum frame baskets, a distinctive solid core aluminum radial heat sink for effective heat dissipation, and a full-face exotic fiber weave cone backed by specially treated paper. Engineered for exceptional sonic quality and speed, these high-output subwoofers deliver world-class studio sound quality that ensures years of listening pleasure.


SPECIFICATIONS


  • Diameter : 12 Inch
  • Maximum Power : 1200 Watts
  • Sensitivity : 85.5 dB
  • Impedance : 4 Ohm
  • Peak Power Handling : 1200 Watts
  • Shallow Mount : No Inch
  • Number of Voice Coils : Dual
  • Mounting Depth : 7.4 Inches
  • RMS Power Handling : 600 Watts

FEATURES


Features

  • Improved High-Density Cast Aluminum Alloy Deep Drawn Basket
  • Ridged 2-Part Treated Paper/Fiberglass Laminated Cone
  • FEA Optimized High Power Motor with Vented Pole Piece
  • Unique High-Strength 3 Point Triple Bond Neck Joint Technique
  • Copper Anodized Aluminum Elevated Radiating Heat Sink
  • Impedance Selectable High Power Terminal
  • 3” High Temp Copper VC on Treated Black High-Strength Aluminum Former
  • Klippel DA Optimized Motor and Suspension Symmetry



Specifications

  • Power Handling: RMS: 600 Watts, Peak: 1200 Watts
  • SPL @ 2.83v: 85.5dB
  • Re: 7 Ohms
  • Qms: 4.6
  • Qes: 0.57
  • Qts: 0.51
  • Fs: 34Hz
  • Vas: 33.1L
  • Xmax: 16.5mm

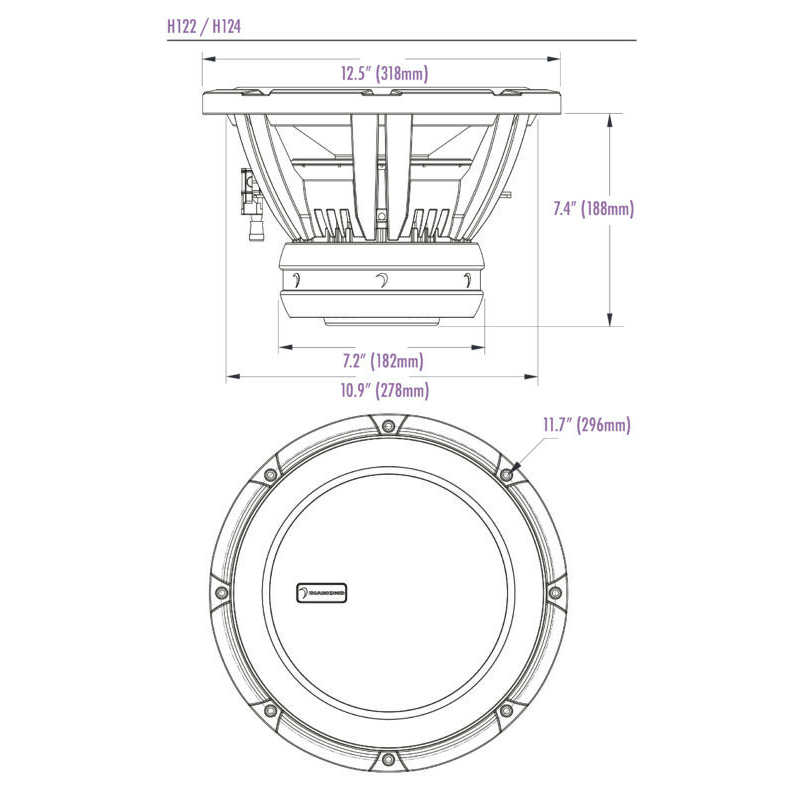

  • Total Diameter: 12.5"
  • Mounting Diameter: 10.9"
  • Hole Diameter: 11.7"
  • Mounting Depth: 7.4"
  • UPC: 847169020292
  • Weight: 22
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
