Diamond Audio  DES84

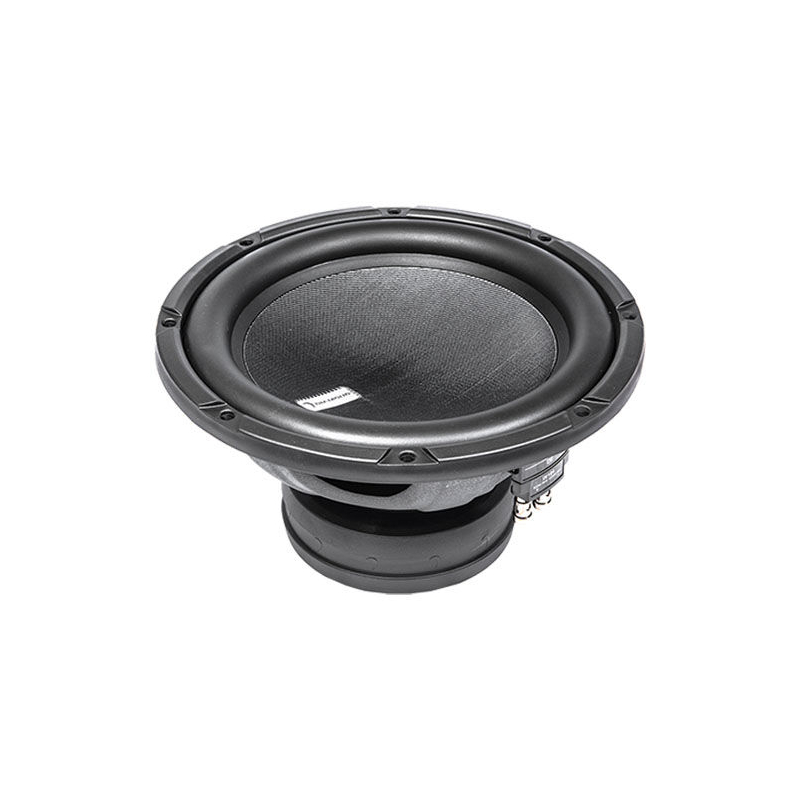

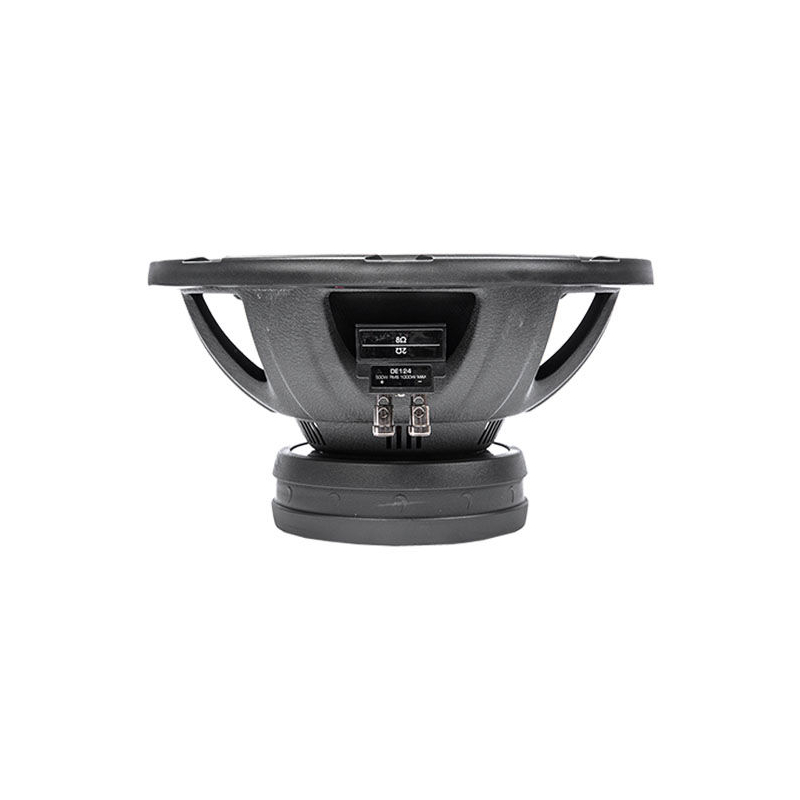

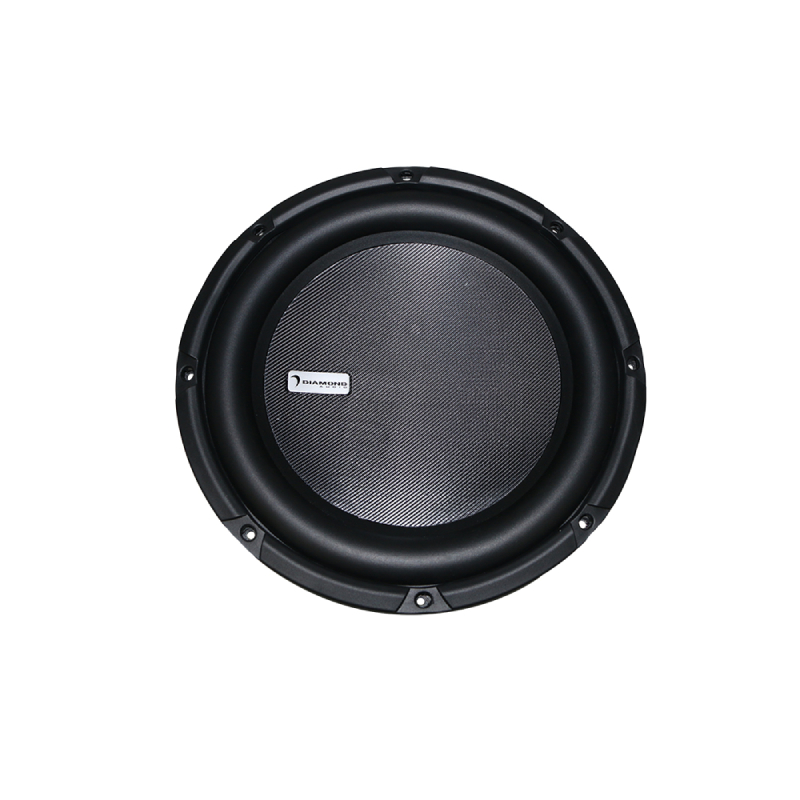

Diamond Elite Series 8" 500W Peak Power Handling, Dual 4-Ohms Subwoofer

Item #80643

Condition:   Brand New

Product Highlights

  • Diamond Elite Series 8" Subwoofer
  • 500W Peak Power Handling
  • Dual 4-Ohms

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$219.99

Reg. Price $319.99  Save $100.00

Out of Stock Check out other products listed below
Diamond Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Diamond Audio DES84 - Diamond Elite Series 8" 500W Peak Power Handling, Dual 4-Ohms Subwoofer


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 8" 4-Ohms Subwoofer
  • • Owner's Manual
Exceptional Performance and Versatility of Diamond Elite DES Series Subwoofers

The Diamond Elite DES series subwoofers exemplify top-notch craftsmanship and precision engineering, setting a new standard in performance. Designed for versatility, these subwoofers excel in various enclosure types, delivering dynamic sound and the renowned Diamond Audio bass even during extended listening sessions. Featuring a high-grade reinforced hybrid paper fiber cone for handling extreme power, along with an impedance switch for added flexibility, the DES subwoofers are built to impress. They come equipped with a true fiber weave backed parabolic cone, a durable black powder-coated stamped frame, dual mirror image spiders with woven tinsel leads, and a vented pole piece for cooler operation. The Klippel® DA optimized motor and suspension symmetry ensure exceptional performance and reliability.


SPECIFICATIONS


  • Diameter : 8 Inch
  • Sensitivity : 82.1 dB
  • Impedance : 4 Ohm
  • Peak Power Handling : 500 Watts
  • Number of Voice Coils : Dual
  • Mounting Depth : 4.5 Inches
  • RMS Power Handling : 250 Watts

FEATURES


Features:

  • 4Ω Impedance
  • 250W RMS, 500W MAX
  • Dual Voice Coil
  • Mounting Diameter: 7.25” / 184mm
  • Mounting Depth: 4.5” / 114.3mm
  • True-fiber weave paper backed parabolic cone
  • High-grade rolled edge six leg black powder coated stamped frame
  • Dual mirror image spider with woven tinsel leads
  • Black PVC wrap-around mounting gasket
  • Vented pole and voice coil gap for cooler operation
  • Klippel® DA optimized motor and suspension symmetry



Specifications

  • SPL (dB): 82.1
  • Re (Ω) [series]: 6.20
  • Qms: 11.00
  • Qes: 0.51
  • Qts: 0.48
  • Fs (Hz): 40.0
  • Vas(L): 8.20
  • Cms (mm/N): 0.150
  • Mms (g): 105.0
  • Sd (m2): 196
  • BL (T*M): 18.0
  • Xmax: 10.6
  • Pwr (W) nom/max: 250/500

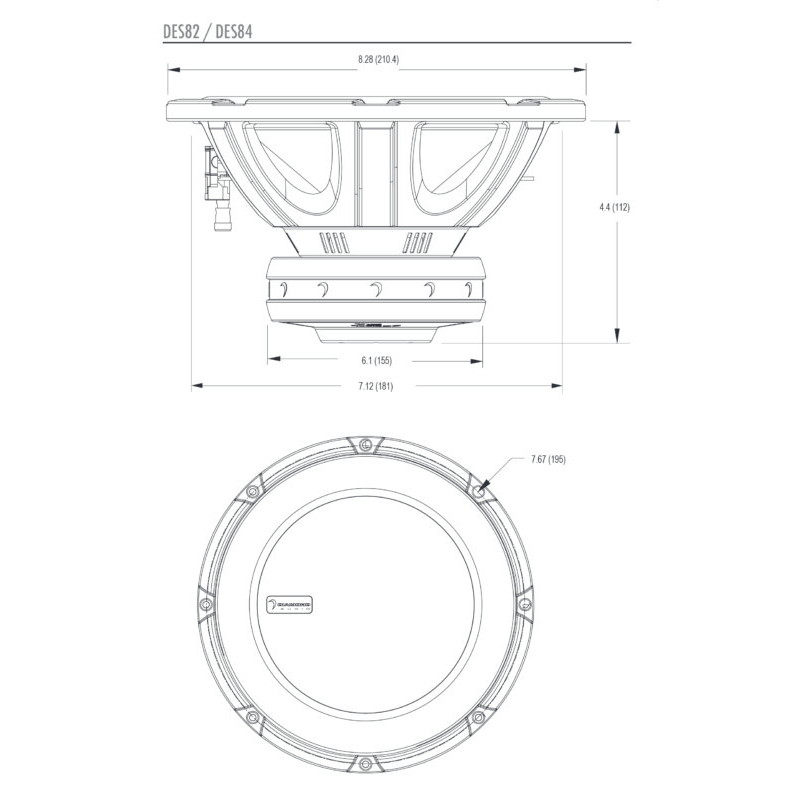

  • Total Diameter: 8.28” (210.4) in. (mm)
  • Mounting Diameter: 7.12” (181) in. (mm)
  • Screw Hole Dia.: 7.67” (195) in. (mm)
  • Mounting Depth: 4.4” (112) in. (mm)
  • Magnet Dia.: 6.1” (155) in. (mm)
  • UPC: 847169035036
  • Weight: 18
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
