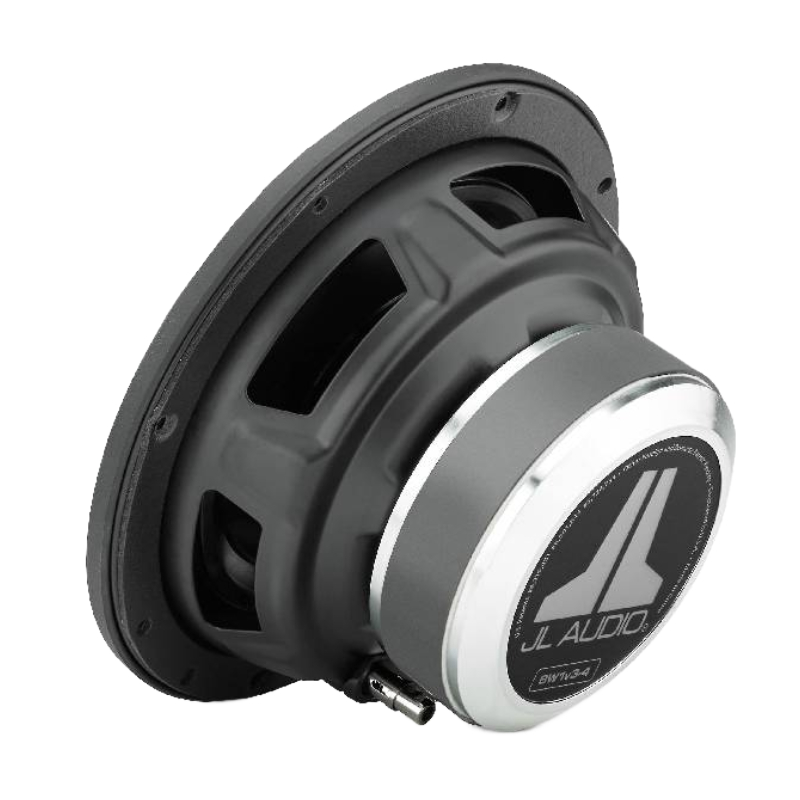

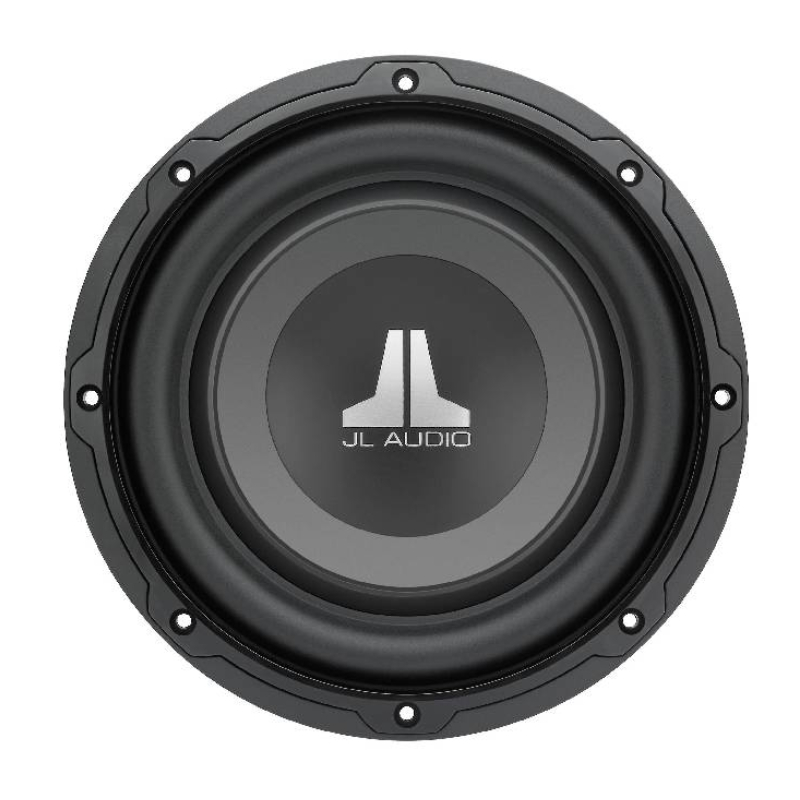

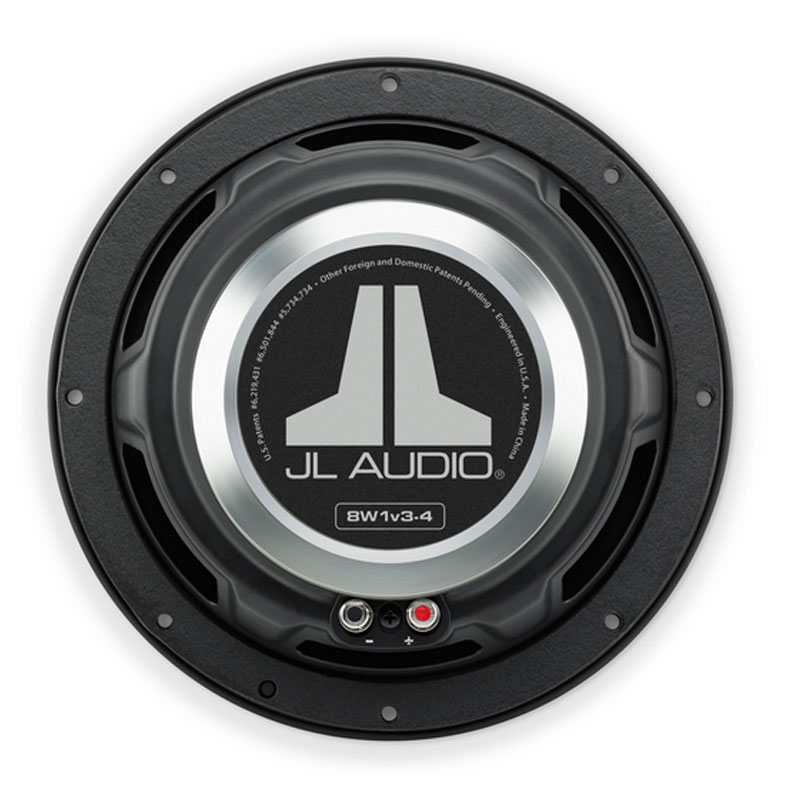

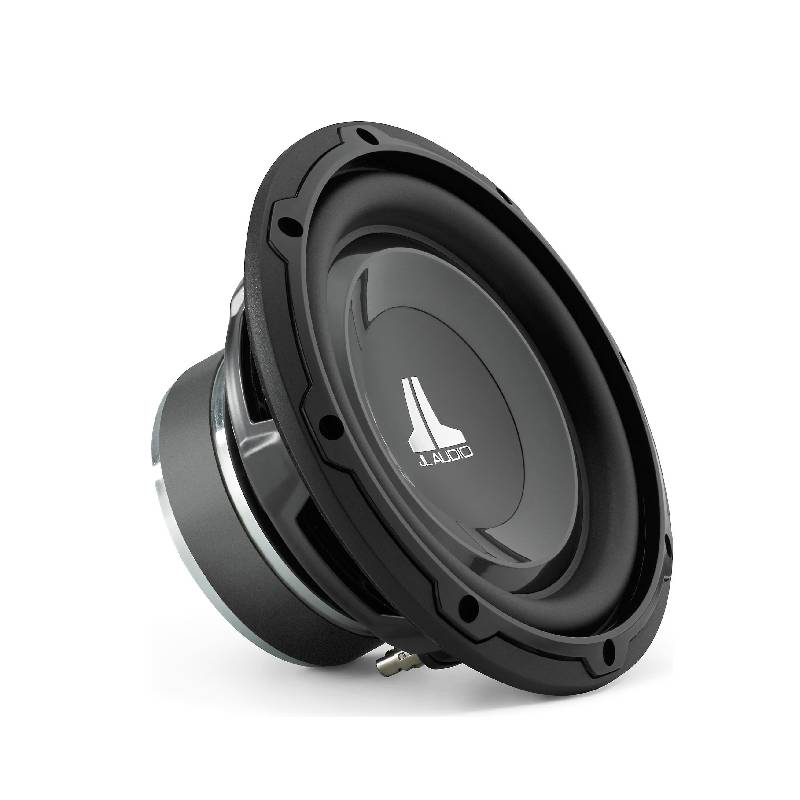

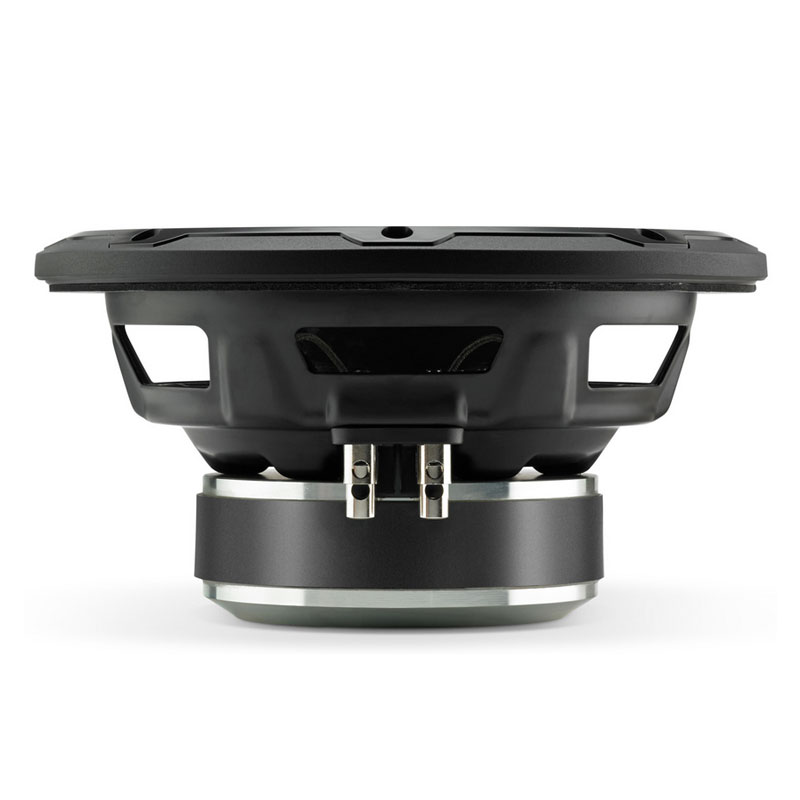

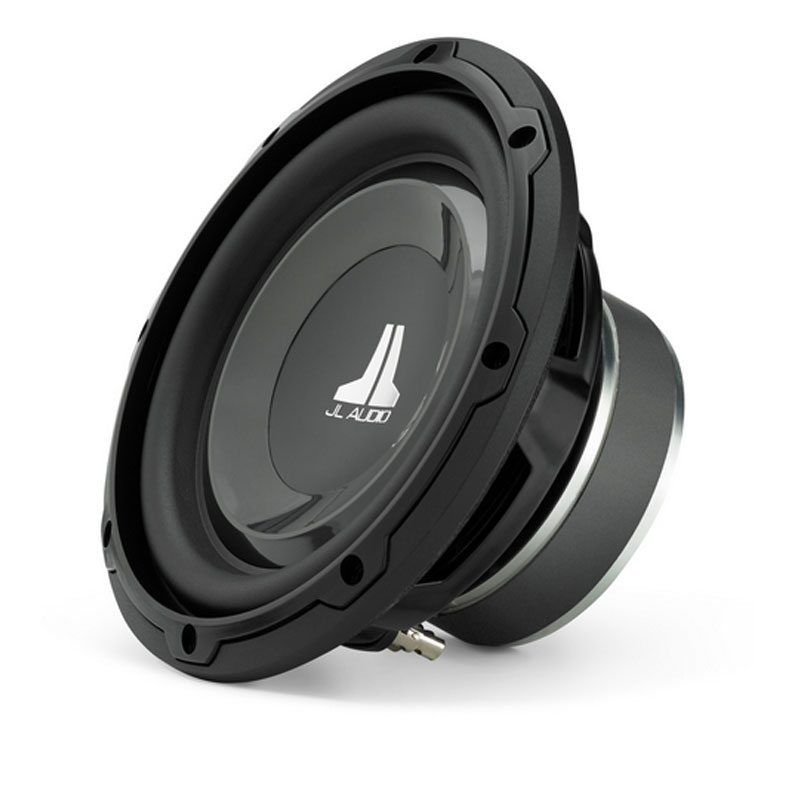

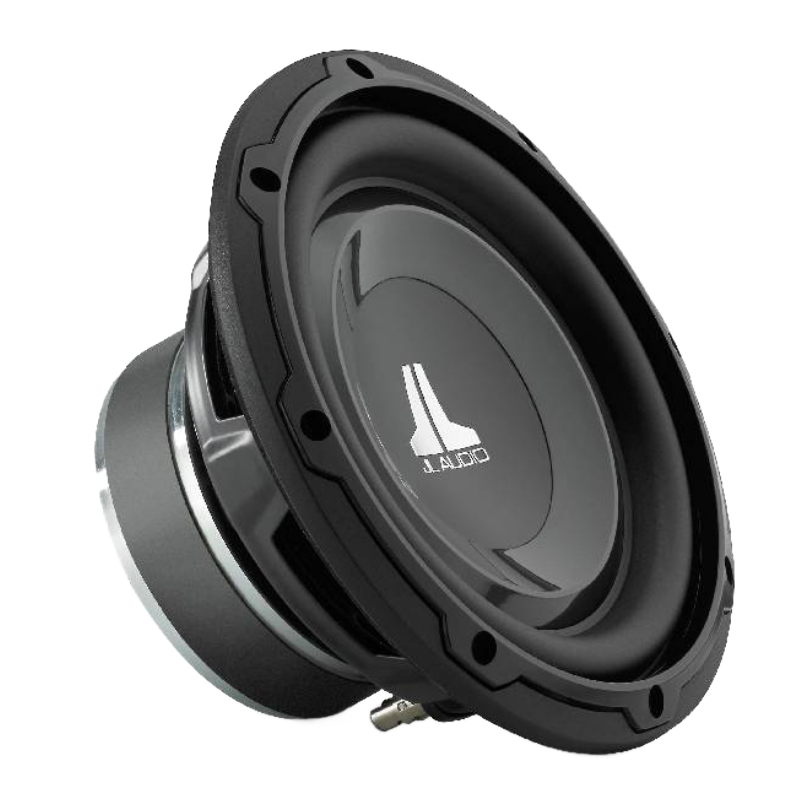

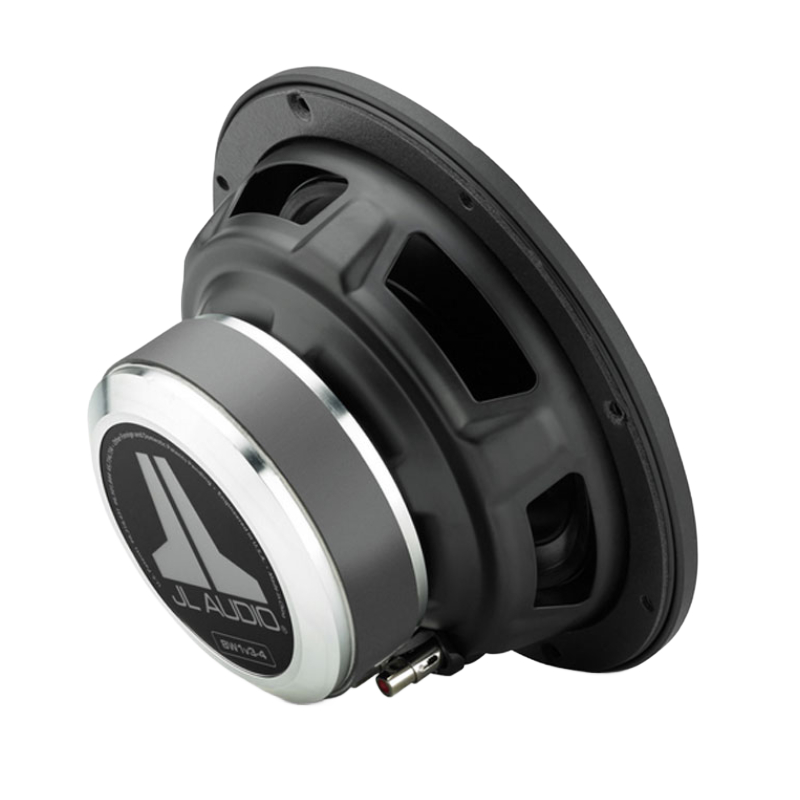

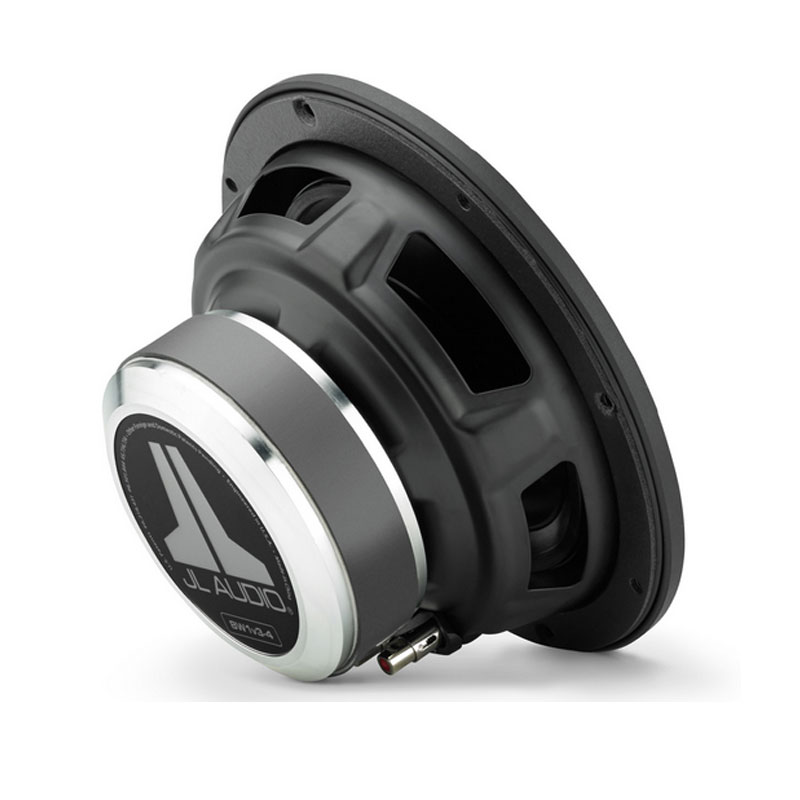

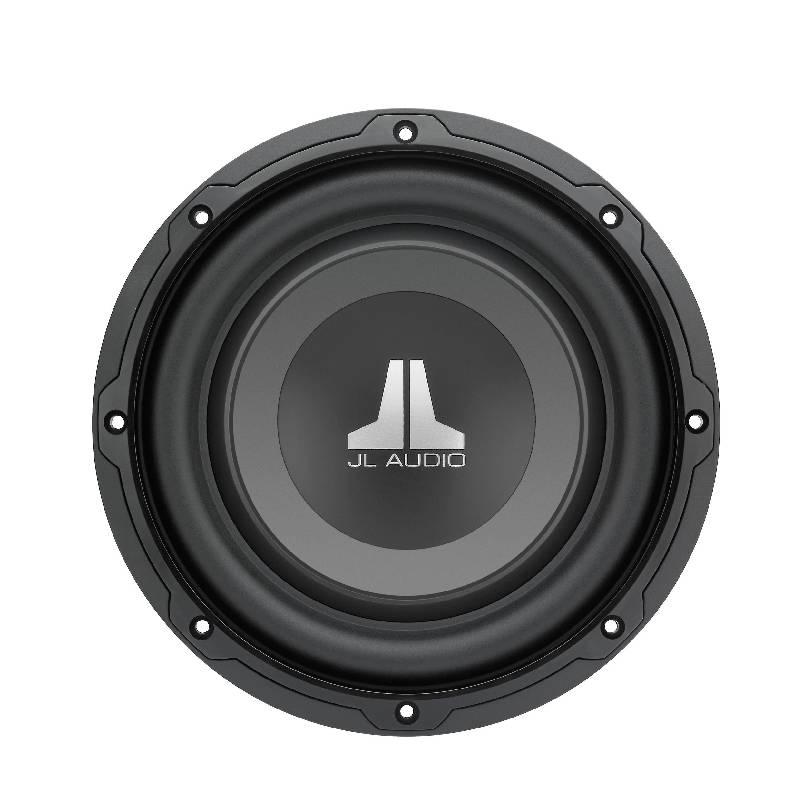

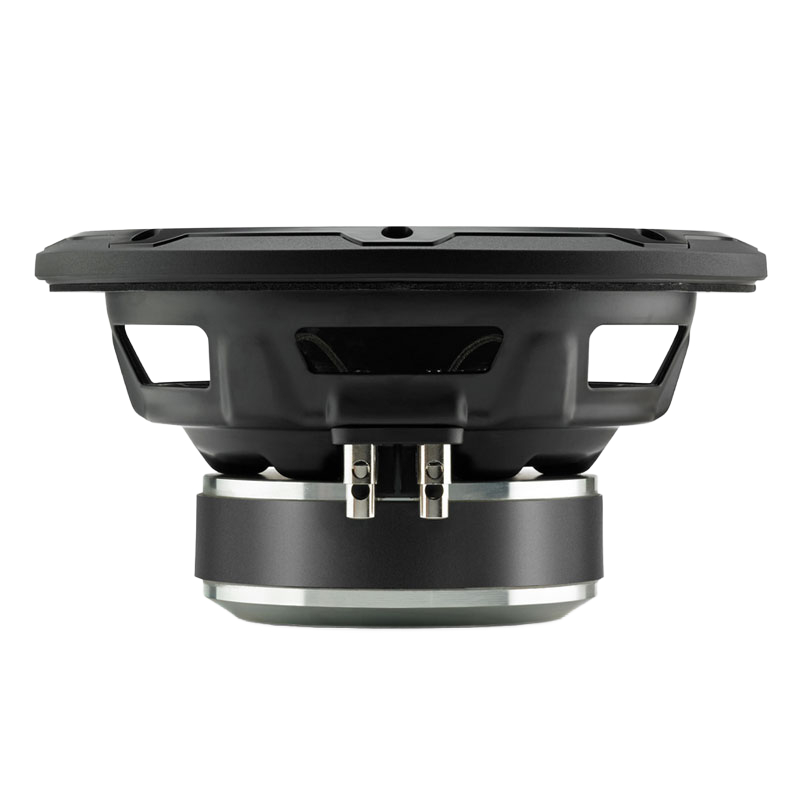

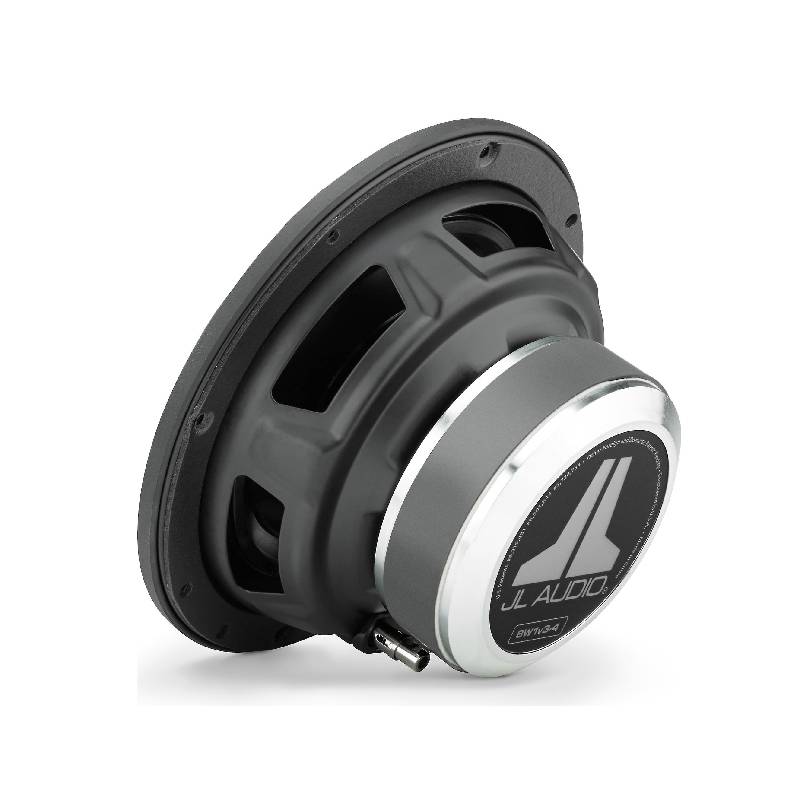

The 8W1v3 is an outstanding choice when space is very tight and amplifier power is moderate. It features shallow mounting depth (3.86 in. / 98 mm) and a compact motor structure, allowing it to comfortably fit in a lot of spaces where a typical 8-inch driver will not. Lacking a pole vent, the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.
The 8W1v3-4 is best used with amplifier power in the 50W - 150W range and is optimized to operate in a compact 0.350 cu. ft. (9.90 l) sealed enclosure.
Sold as each
Diameter : 8 Inch
Sensitivity : 84 dB
Impedance : 4 Ohm
Frequency Response : 25-250 Hz
Peak Power Handling : 300 Watts
Top Mount Depth : 3.86 Inches
Shallow Mount : Yes
Number of Voice Coils : Single
Suggested Sealed Box Volume : 0.35 Cubic ft.
Suggested Ported Box Volume : 0.5 Cubic ft.
RMS Power Handling : 150 Watts
8" W1v3 Series Subwoofer Driver
Power Handling: 150 watts RMS
Recommended Power Range: 50 - 150 watts
Impedance: Single 4-Ohm
Stamped steel basket
Floating Cone Attach Method
Interlocking Cone and Dust Cap
Nickel plated push terminals
Mounting depth: 3.86 "
Cutout dimensions: 7.09 "
Free Air Resonance (Fs): 35.40Hz
Sensitivity: 84.8 dB
Xmax: 8 mm
Reference Efficiency (no): 0.1800%
Frequency response: ~26 ~ 250 Hz
Injection-molded, black mica-filled polypropylene cone
Nitrile-butylene rubber surround
Aluminum dust-cap with JL Audio logo
Removable and customizable mounting flange trim ring
