- Diameter : 10 Inch
- Sensitivity : 85.3 dB
- Impedance : 4 Ohm
- Peak Power Handling : 500 Watts
- Shallow Mount : Yes
- Number of Voice Coils : Dual
- Mounting Depth : 3 Inches
- RMS Power Handling : 250 Watts
Features:
- 4Ω Impedance
- 250W RMS, 500W MAX
- Dual Voice Coil
- Mounting Diameter: 9.13 “ / 232mm
- Mounting Depth: 3 “ / 76mm
- Grills Included
- True-fiber weave paper backed parabolic cone, 3" mounting depth
- High-density NBR half-roll surround optimized for linear travel
- Protective ABS contemporary designed front trim piece
- Die cast frame with integral under and over spider venting
- Klippel® DA optimized motor and suspension symmetry
Specifications:
- SPL (dB): 85.3
- Re (Ω) [series]: 6.0
- Qms: 5.0
- Qes: 0.70
- Qts: 0.62
- Fs (Hz): 40.8
- Vas(L): 22.7
- Cms (mm/N): 0.12
- Mms (g): 123
- Sd (m2): 0.036
- BL (T*M): 16.4
- Xmax: 8.8
- Pwr (W) nom/max: 250/500

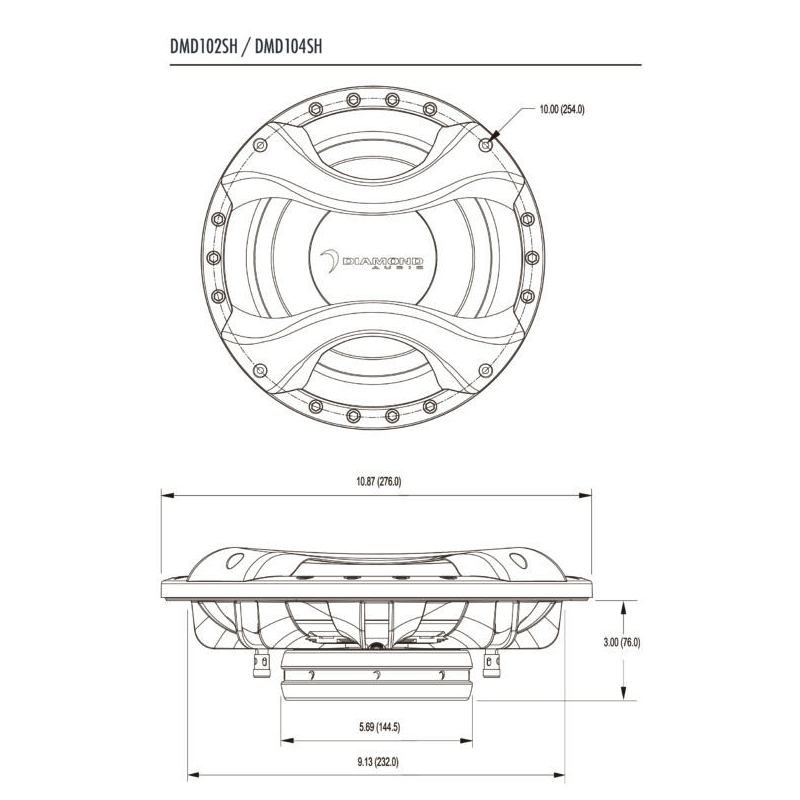

- Total Diameter: 10.87” (276.0) in. (mm)
- Mounting Diameter: 9.13” (232.0) in. (mm)
- Screw Hole Dia.: 10.00” (254.0) in. (mm)
- Mounting Depth: 3.00” (76.0) in. (mm)
- Magnet Dia.: 5.69” (144.5) in. (mm)
- UPC: 847169020377
- Weight: 22
