Diamond Audio  DMD124SH

Diamond DMD Series 12" 600W Peak Power Handling, 4-Ohms Dual Voice Coil Subwoofer

Item #80657

Condition:   Brand New

Product Highlights

  • Diamond DMD
  • 12 Inch
  • 600W Peak
  • Dual Voice
  • Coil Subwoofer

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$239.99

Reg. Price $339.99  Save $100.00

Out of Stock Check out other products listed below
Diamond Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Diamond Audio DMD124SH - Diamond DMD Series 12" 600W Peak Power Handling, 4-Ohms Dual Voice Coil Subwoofer


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 12" 4-Ohms Dual Voice Coil Subwoofer
  • • Owner's Manual
Maximize Bass in Tight Spaces with Diamond DMD Shallow Series Subwoofers

If you're facing space constraints but still want to enhance your car's audio system with impressive bass, the Diamond DMD shallow series subwoofers are an ideal solution. These subwoofers are only 3 inches deep and are designed to perform like full-size subwoofers in sealed enclosures, making them perfect for tight spaces. For optimal bass response, it's recommended to use two DMD shallow subwoofers in a compact 1 cubic foot enclosure. This setup doubles the bass output due to the increased surface area. The subwoofers feature a true-fiber weave paper-backed parabolic cone, an NBR half-roll surround for linear travel, a protective ABS front trim piece, a die-cast frame with integrated spider venting, and a Klippel DA optimized motor and suspension symmetry, all contributing to their superior performance and extremely shallow 3-inch mounting depth.


SPECIFICATIONS


  • Diameter : 12 Inch
  • Sensitivity : 86.2 dB
  • Impedance : 4 Ohm
  • Peak Power Handling : 600 Watts
  • Shallow Mount : Yes Inch
  • Number of Voice Coils : Dual
  • Mounting Depth : 3 Inches
  • RMS Power Handling : 300 Watts

FEATURES


Features:

  • 4Ω Impedance
  • 300W RMS, 600W MAX
  • Dual Voice Coil
  • Mounting Diameter: 11.06 “ / 281mm
  • Mounting Depth: 3 “ / 76mm
  • Grills Included
  • True-fiber weave paper backed parabolic cone, 3" mounting depth
  • High-density NBR half-roll surround optimized for linear travel
  • Protective ABS contemporary designed front trim piece
  • Die cast frame with integral under and over spider venting
  • Klippel® DA optimized motor and suspension symmetry



Specifications:

  • SPL (dB): 86.2
  • Re (Ω) [series]: 6.0
  • Qms: 5.0
  • Qes: 0.84
  • Qts: 0.72
  • Fs (Hz): 38.6
  • Vas(L): 45.5
  • Cms (mm/N): 0.11
  • Mms (g): 154
  • Sd (m2): 0.054
  • BL (T*M): 16.4
  • Xmax: 8.8
  • Pwr (W) nom/max: 300/600

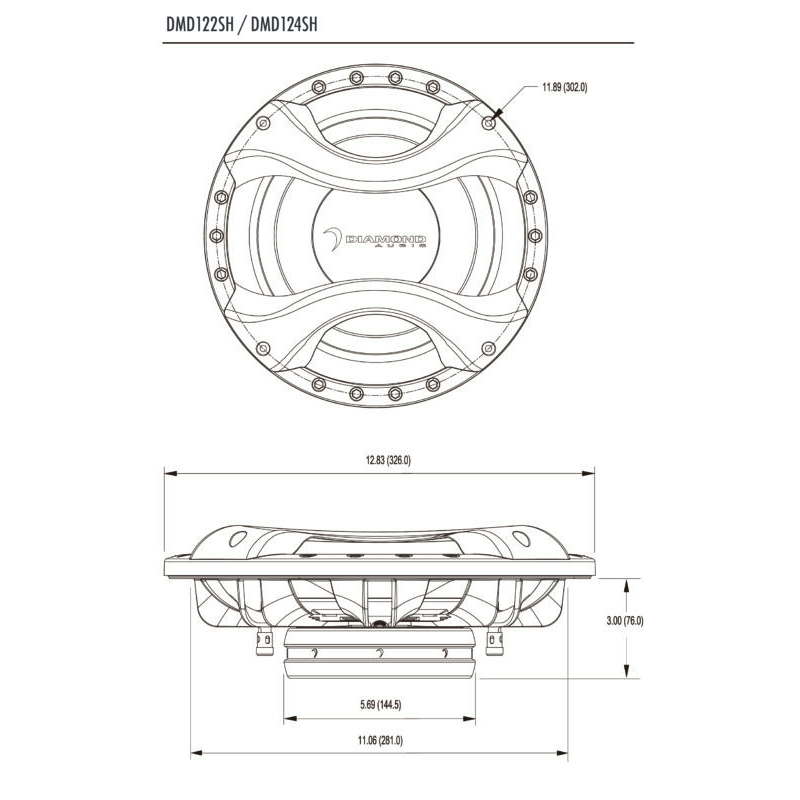

  • Total Diameter: 12.83” (326.0) in. (mm)
  • Mounting Diameter: 11.06” (281.0) in. (mm)
  • Screw Hole Dia.: 11.89” (302.0) in. (mm)
  • Mounting Depth: 3.00” (76.0) in. (mm)
  • Magnet Dia.: 5.69” (144.5) in. (mm)
  • UPC: 847169035104
  • Weight: 22
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
