Diamond Audio  DMD102

Diamond DMD Series 10" 400W Peak Power Handling, 2-Ohms Dual Voice Coil Subwoofer

Item #80660

Condition:   Brand New

Product Highlights

  • Diamond DMD 10" Subwoofer
  • 400W Peak Power Handling
  • 2-Ohms Dual Voice Coil
  • High-Performance Car Audio
  • Durable Full-Range Subwoofer

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$149.99

Reg. Price $249.99  Save $100.00

Out of Stock Check out other products listed below
Diamond Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Diamond Audio DMD102 - Diamond DMD Series 10" 400W Peak Power Handling, 2-Ohms Dual Voice Coil Subwoofer


We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 10" 2-Ohms Dual Voice Coil Subwoofer
  • • Owner's Manual
Affordable High-Performance Subwoofers

Diamond Audio's subwoofer lineup starts with the Diamond DMD series, which offers high performance at budget-friendly prices. Through continuous research and development, significant performance enhancements have been made, including chemically treated voice coils and cross-flow design basket frames for improved thermal heat dissipation. The series also features a higher-density NBR half-roll surround to ensure superior linear performance, adding value to the DMD series. Additionally, the Klippel® DA optimized motor and suspension symmetry ensure that DMD series subwoofers deliver tight and balanced bass notes in any car audio system.


SPECIFICATIONS


  • Diameter : 10 Inch
  • Sensitivity : 83.8 dB
  • Impedance : 2 Ohm
  • Peak Power Handling : 400 Watts
  • Number of Voice Coils : Dual
  • Mounting Depth : 5.18 Inches
  • RMS Power Handling : 200 Watts

FEATURES


Features:

  • 2Ω Impedance
  • 200W RMS, 400W MAX
  • Dual Voice Coil
  • Mounting Diameter: 9.12 “ / 231.5mm
  • Mounting Depth: 5.18 “ / 131.5mm
  • High-density NBR half-roll surround optimized for linear travel
  • Unique, high-strength, motor structure bonding process ensure a stable motor structure
  • High-temperature copper voice coil on high-strength aluminum former
  • Klippel® DA optimized motor and suspension symmetry



Specifications:

  • SPL (dB): 83.8
  • Re (Ω) [series]: 3.85
  • Qms: 4.5
  • Qes: 0.62
  • Qts: 0.55
  • Fs (Hz): 33.0
  • Vas(L): 26.5
  • Cms (mm/N): 0.18
  • Mms (g): 131
  • Sd (m2): 0.0325
  • BL (T*M): 13.0
  • Xmax: 8.1
  • Pwr (W) nom/max: 200/400

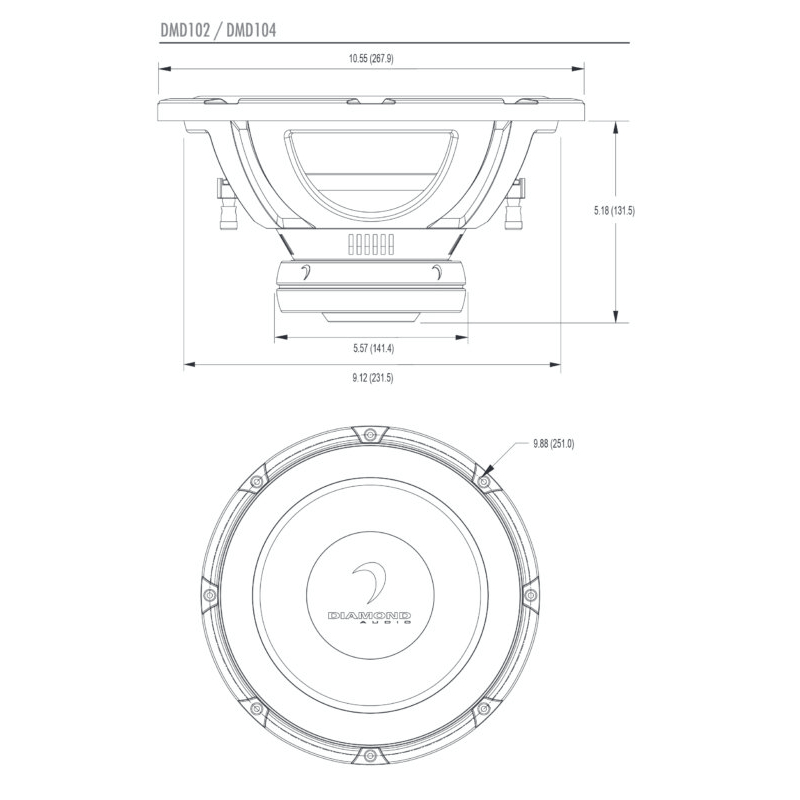

  • Total Diameter: 10.55” (267.9) in. (mm)
  • Mounting Diameter: 9.12” (231.5) in. (mm)
  • Screw Hole Dia.: 9.88” (251.0) in. (mm)
  • Mounting Depth: 5.18” (131.5) in. (mm)
  • Magnet Dia.: 5.57” (141.4) in. (mm)
  • UPC: 847169035128
  • Weight: 20
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
