JL Audio  12W0v3-4-Bundle3

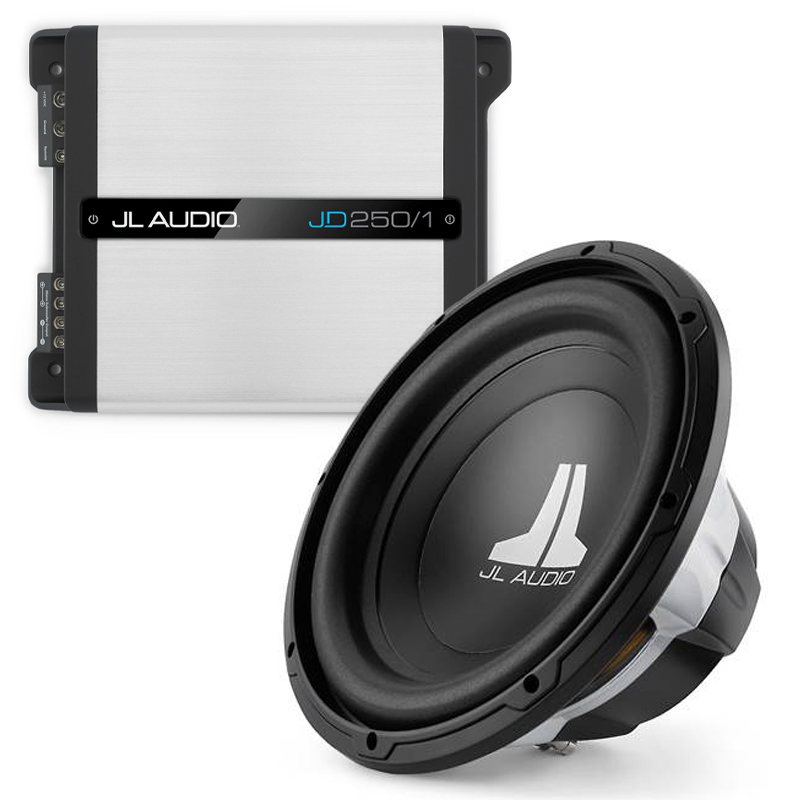

JL Audio JD250/1 250W Max Power Subwoofer Amplifier + JL Audio JL Audio 12W0v3-4 Subwoofer 600W Peak Power Handling Subwoofer

Item #83720

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

JL Audio JD250/1 JD Series 250W x 1 RMS @2 Ohms, 250W Max Power Class D Monoblock Subwoofer Amplifier


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •JL Audio JD250/1
  • •JL Audio 12W0v3-4
  • •Owner's Manual

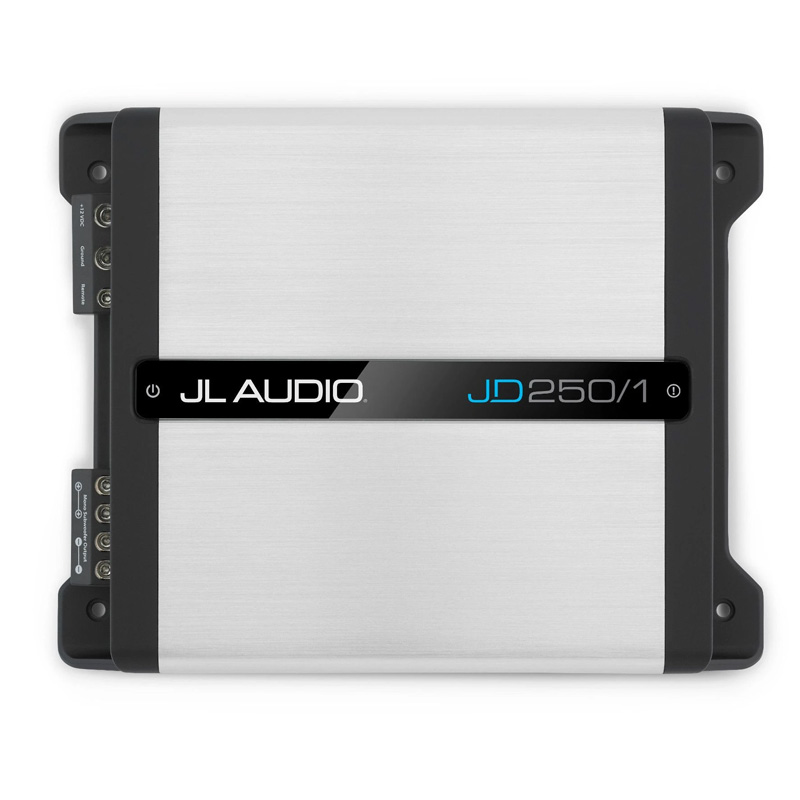

JL Audio JD250/1 JD Series 250W x 1 RMS @2 Ohms, 250W Max Power Class D Monoblock Subwoofer Amplifier

JL Audio's JD Series Amplifier

The youngest brother in JD Series amplifiers, the JL Audio JD250/1 can still maximize your subwoofer's potential thanks to its Class-D amp design technology. This mono subwoofer amplifier is equipped with JL Audio's own patented technologies and has a compact chassis, so not only do you get a high-quality bass output from it, but you won't also have a hard time installing it in your vehicle.

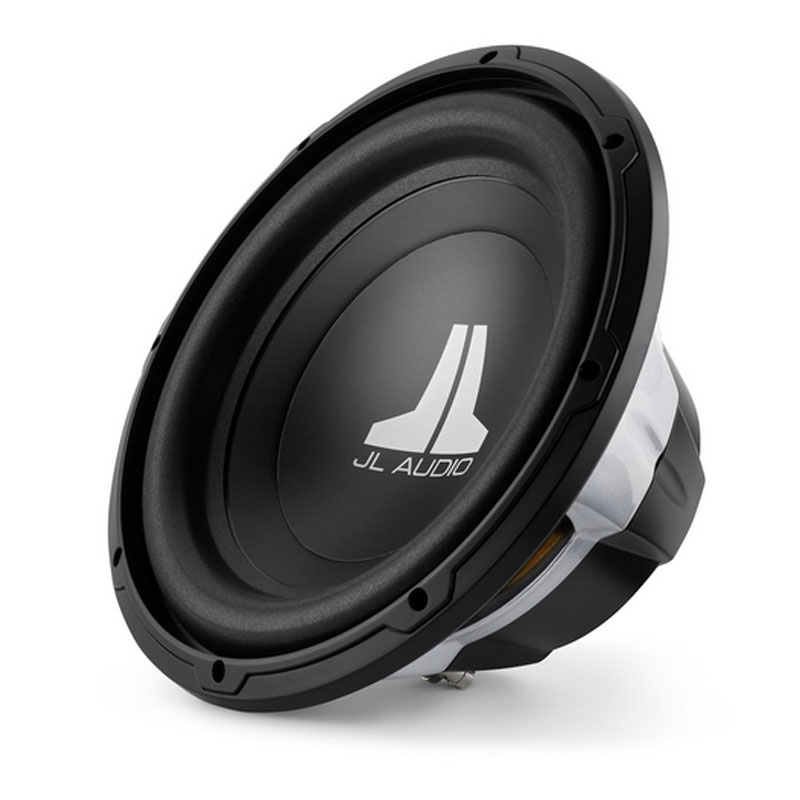

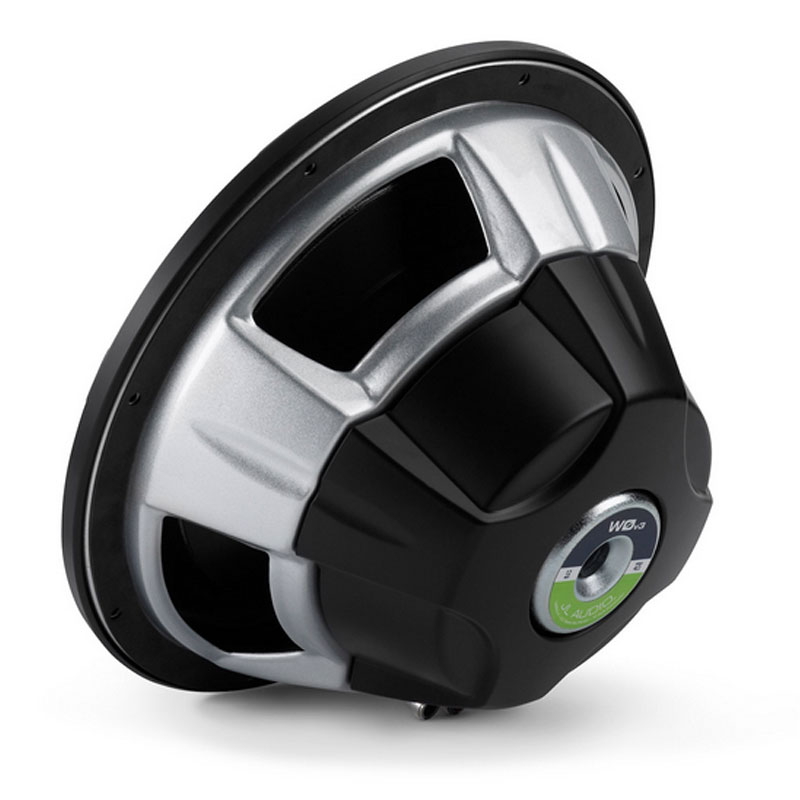

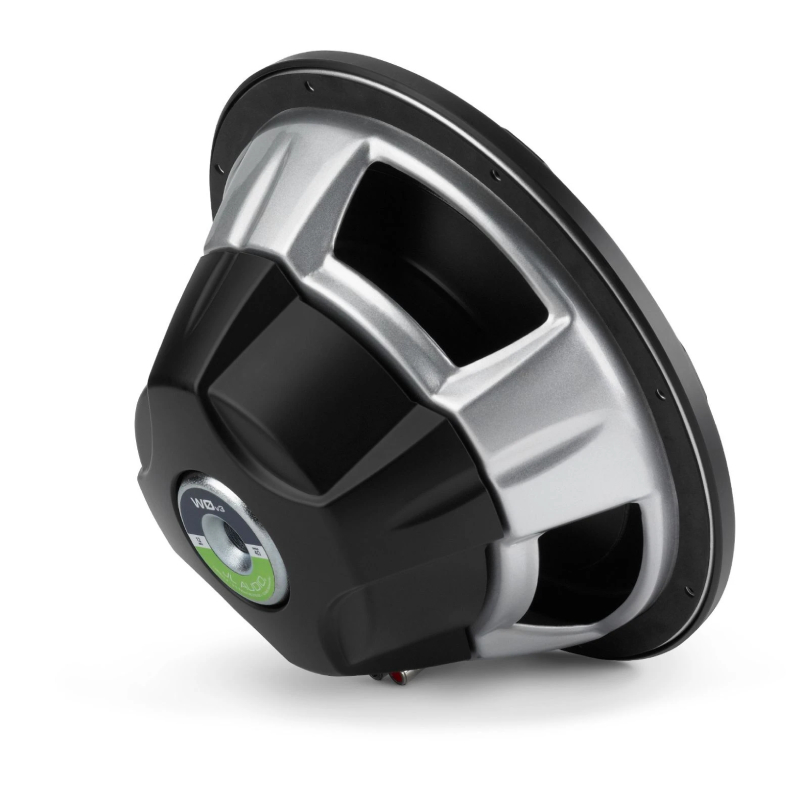

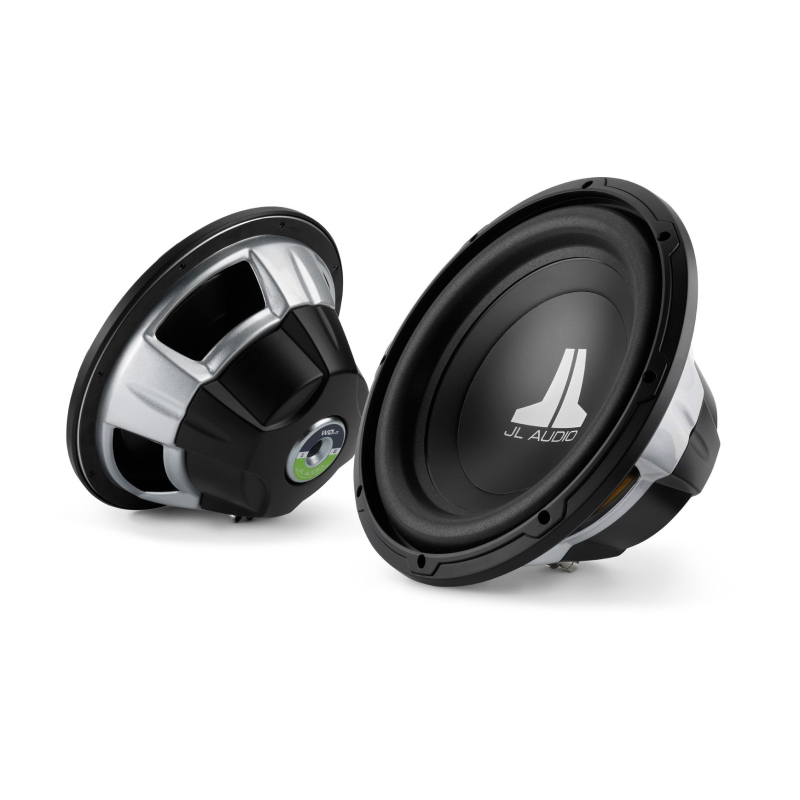

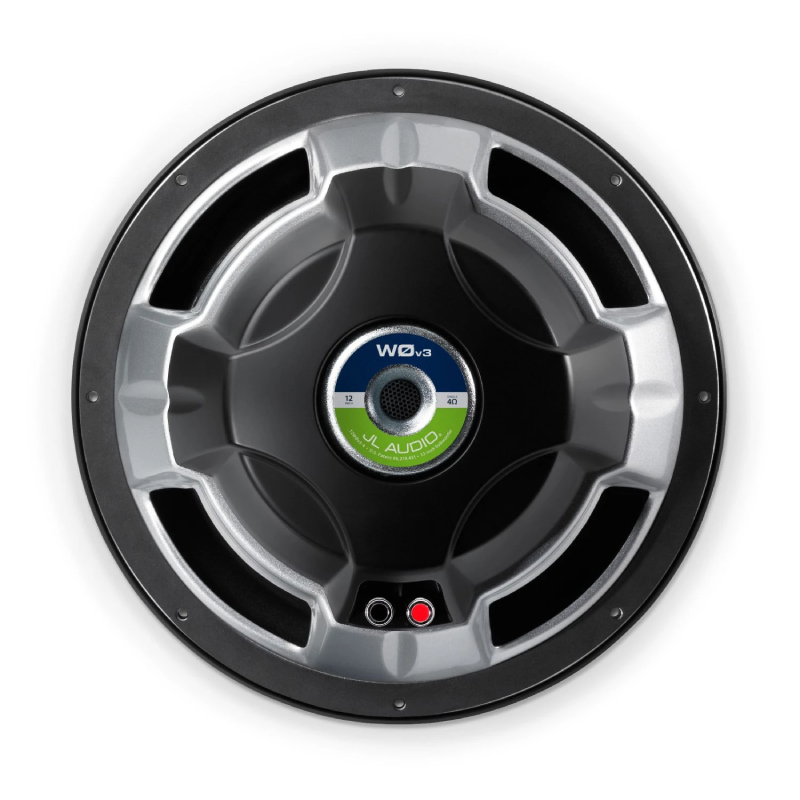

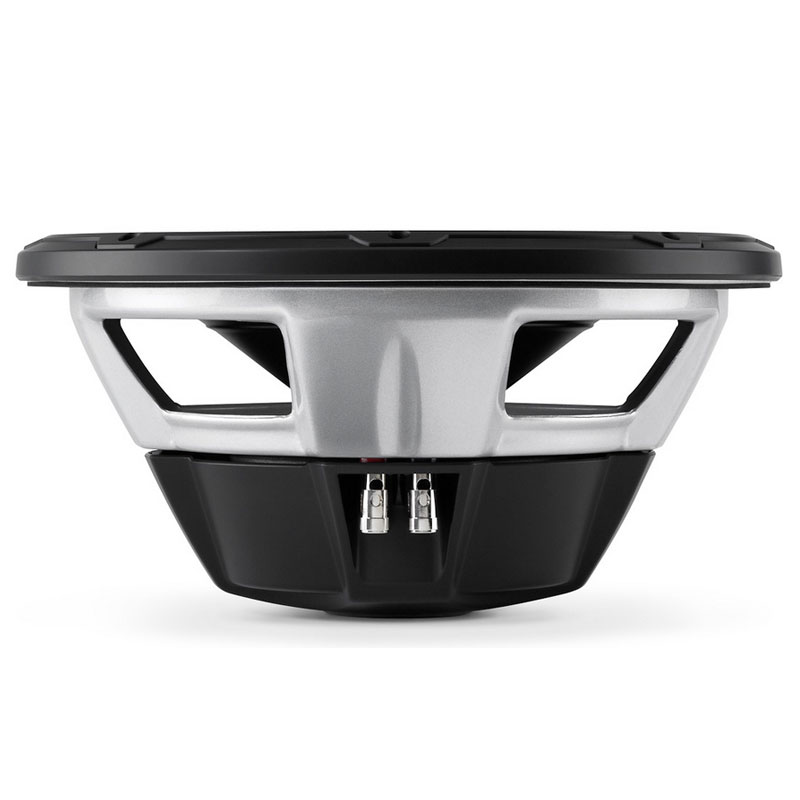

JL Audio 12W0v3-4 W0v3 Series 10" 300W RMS (600W Peak Power Handling) 4 Ohm Mono Voice Coil Subwoofer

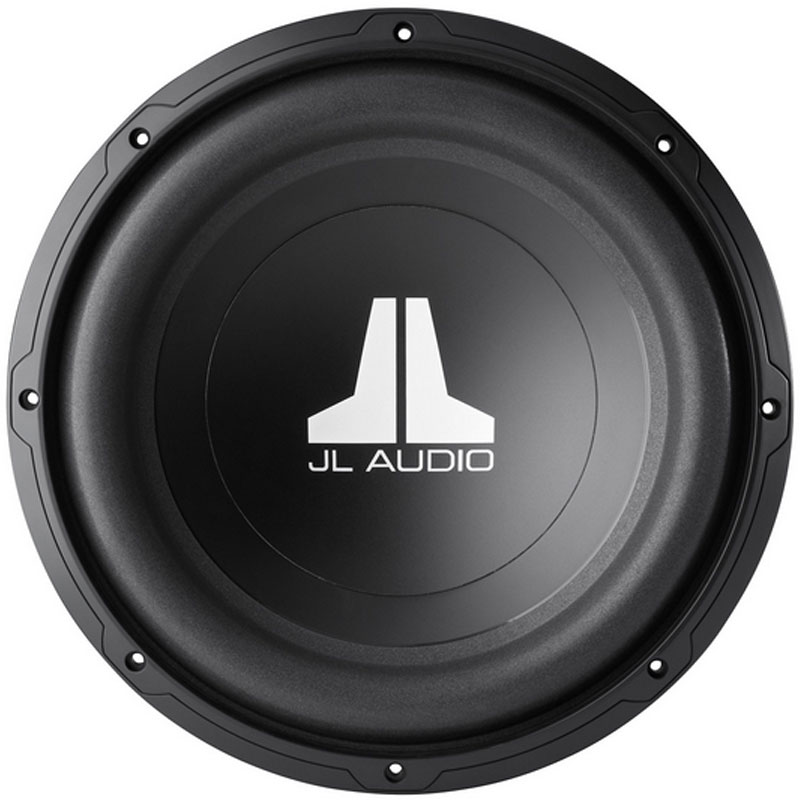

Mica-filled Polypropylene Cone

It has a mica-filled polypropylene cone and a foam surround, which gives the subwoofer the rigidity and durability to withstand the stress that comes from extended hours of usage at cranked-up volume levels while producing an accurate bass response with only minimal distortion.


SPECIFICATIONS



FEATURES


JD250/1 175 Watts @ 4 ohm / 250 Watts @ 2 ohm - 14.4V Monoblock Class D Subwoofer Amplifier

Features:

Rated Continuous (RMS) Power @ 14.4 V

  • @ 4 ohms: 250 W RMS x 1
  • @ 3 ohms: 200 W RMS x 1
  • @ 2 ohms: 150 W RMS x 1
  • @ 1.5 ohms: N/A



Rated Continuous (RMS) Power @ 12.5 V

  • @ 4 ohms: 115 W RMS x 1
  • @ 3 ohms: 150 W RMS x 1
  • @ 2 ohms: 200 W RMS x 1
  • @ 1.5 ohms: N/A



General Specifications

  • Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
  • S/N Ratio, referred to highest rated power >80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W >60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Damping Factor @ 4 ohms: >1000 / 50 Hz
  • Damping Factor @ 2 ohms: >500 / 50 Hz
  • THD+N @ Rated Power: <1% @ 2 Ω per Ch.
  • Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
  • Min.Copper Power / Ground Wire Gauge: 8 AWG wire
  • Fuse Rating: 30 A (AFS, AGU or MaxiFuse™)



Signal Processing

  • Filter Mode(s): Low-Pass only
  • Filter Slope(s): 12 dB/octave
  • Filter Frequency Range: 50 Hz - 500 Hz
  • Detented, Calibrated Filter Freq. Potentiometer: No
  • Filter Defeat Function: No
  • Infrasonic Filter: No
  • Bass Boost EQ: Yes
  • Output Polarity Switch: No
  • Remote Subwoofer Level Control: Optional (RBC-1)
  • Remote Bass EQ Boost Control: No
  • Pass-Through Preamp Output: Buffered



Physical Specifications

  • Height (H): 2.10 in / 53 mm
  • Width (W): 9.50 in / 242 mm
  • Depth (D): 7.50 in / 190 mm



12W0v3-4 W0v3 Series 12" 300W RMS (600W Peak Power Handling) Single 4 Ohm Voice Coil subwoofer

General Specifications:

  • Continuous Power Handling (RMS): 300 W
  • Recommended Amplifier Power (RMS):75 - 300 W
  • Nominal Impedance (Znom): 4 Ω



Physical Specifications:

  • Nominal Diameter: 12.0 in / 300 mm
  • Overall Diameter (A): 12.52 in / 318 mm
  • Mounting Hole Diameter (B): 11.0625 in / 281 mm
  • Bolt Hole Circle Diameter (C): 11.7 in / 297 mm
  • Motor Outer Diameter (D): 5.05 in / 128 mm
  • Mounting Depth (E): 5.40 in / 137 mm
  • Driver Displacement: 0.048 cu ft / 1.36 L
  • Net Weight: 8.11 lb / 3.68 kg



Parameters:

  • Free Air Resonance (Fs): 28.43 Hz
  • Electrical “Q” (Qes): 0.715
  • Mechanical “Q” (Qms): 10.709
  • Total Speaker “Q” (Qts): 0.67
  • Equivalent Compliance (Vas): 2.530 cu ft / 71.64 L
  • One-Way Linear Excursion (Xmax)*: 0.45 in / 11.4 mm
  • Reference Efficiency (no): 0.22%
  • Efficiency (1 W / 1 m)**: 85.64 dB SPL
  • Effective Piston Area (Sd): 74.509 sq in / 0.0481 sq m
  • DC Resistance (Re): 4.280 Ω



Sealed Enclosure Specifications:

  • Wall Thickness: 0.75 in / 19 mm
  • Front Baffle Thickness: 0.75 in / 19 mm
  • Volume (net int.): 1.375 cu ft / 38.94 L
  • External Width (W): 16 in / 406 mm
  • External Height (H): 19 in / 483 mm
  • External Depth (D): 11.75 in / 298 mm
  • F3: 36.0 Hz
  • Fc: 47.91 Hz
  • Qtc: 1.179



Ported Enclosure Specifications:

  • Wall Thickness: 0.75 in / 19 mm
  • Front Baffle Thickness: 0.75 in / 19 mm
  • Volume (net int.): 1.75 cu ft / 49.6 L
  • External Width (W): 17.5 in / 445 mm
  • External Height (H): 14.75 in / 375 mm
  • External Depth (D): 16.25 in / 413 mm
  • Internal Port Diameter (ID): 3 in / 76 mm
  • Port Length (L): 14 in / 356 mm
  • Tuning Frequency (Fb): 26 Hz
  • F3: 30.8 Hz
  • UPC: 798418839250
  • Weight: 23
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
