Wet Sounds  WS-MC-1

4 Zone Marine Media Center includes MC-BB Black Box and the MC-MD Marine Display in a kit

Item #83727

Product Highlights

  • 4 Zone Marine Media Center Kit
  • Includes MC-BB Black Box
  • Includes MC-MD Marine Display

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Wet Sounds Banner

Wet Sounds WS-MC-1 4 Zone Marine Media Center includes MC-BB Black Box and the MC-MD Marine Display in a kit


We are a Wet Sounds authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 4 Zone Marine Media Center includes MC-MD Marine Display in a kit
  • • Display controller (MC-MD)

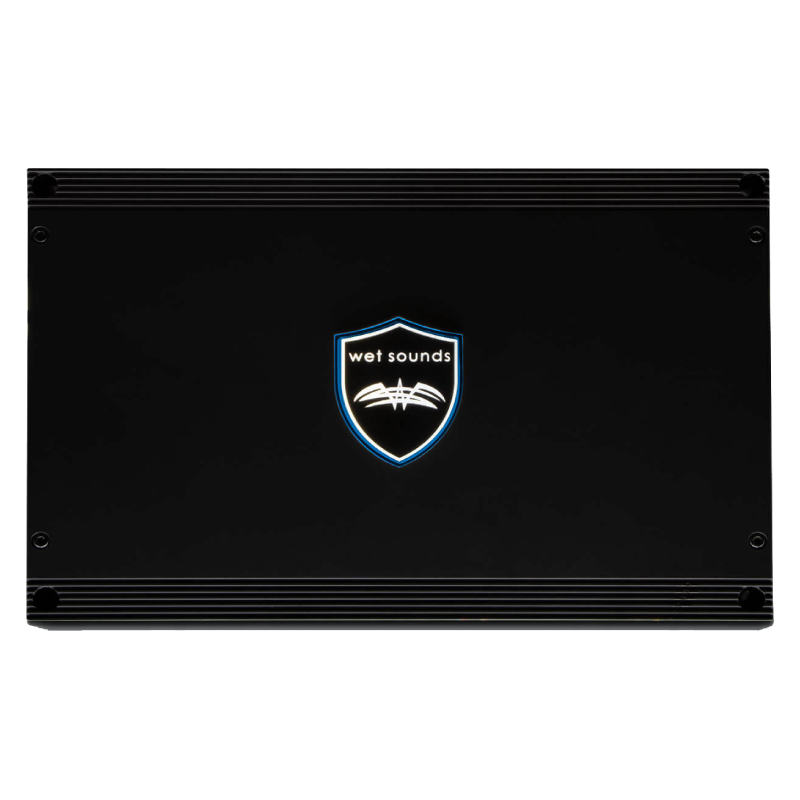

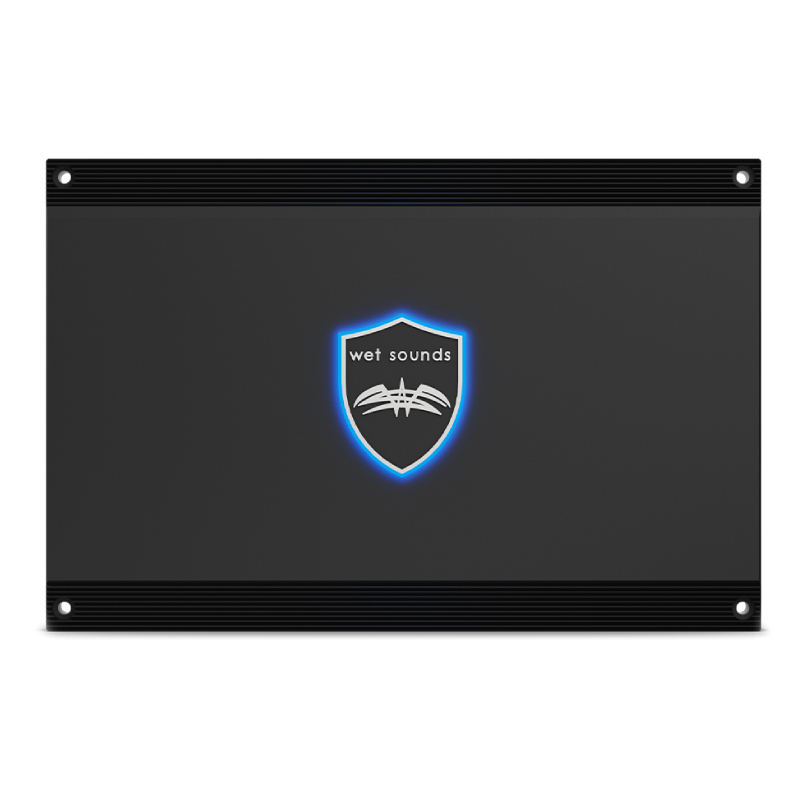

  • • Hide-away black box (MC-BB)
  • • 8' System cable
  • • Wiring harness
  • • 15A fuse (installed)
  • • Rubber cover
  • • Bracket
  • • (4) Screws
  • • (2) Mounting clips
  • • (2) Threaded posts
  • • (4) Nuts
  • • Warranty sheet
  • Owner's Manual




Why Choose Wet Sounds WS-MC-1 Marine Receiver?

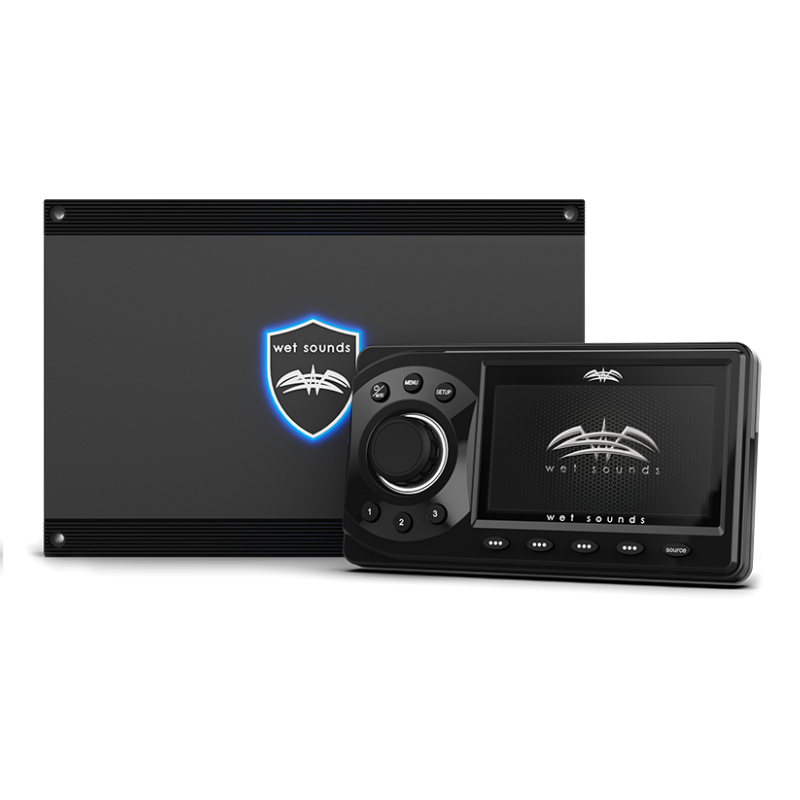

Wet Sounds WS-MC-1 Marine Receiver Package
This Package Includes Two Units

Wet Sounds Marine Media Center, the packaged two-piece marine grade multi-channel, multi-zone source unit. This package includes two units, the MC-MD (Main Display) and MC-BB (Black Box). The MC1 is personally customizable to store your favorite sources & favorite audio presets for all 4 zones.Users can set multiple volume levels for a variety of lifestyle environments, then custom label those presets for fingertip access while on the water.

Easy and the Vibrant Display

Installation is easy and the vibrant display has dual day/night modes that automatically switch with the vessel’s lighting. The MC1 allows access to a wide variety of audio sources: AM/FM/Weather Band Radio, USB Input with iPhone/iPod connectivity and charging capability, Pandora, Auxiliary Input, and SiriusXM-Ready® (SiriusXM Connect Tuner and Subscription required and sold separately. Compatible with SiriusXM SXV300 Connect Vehicle Tuner, Model # SXV300V1).

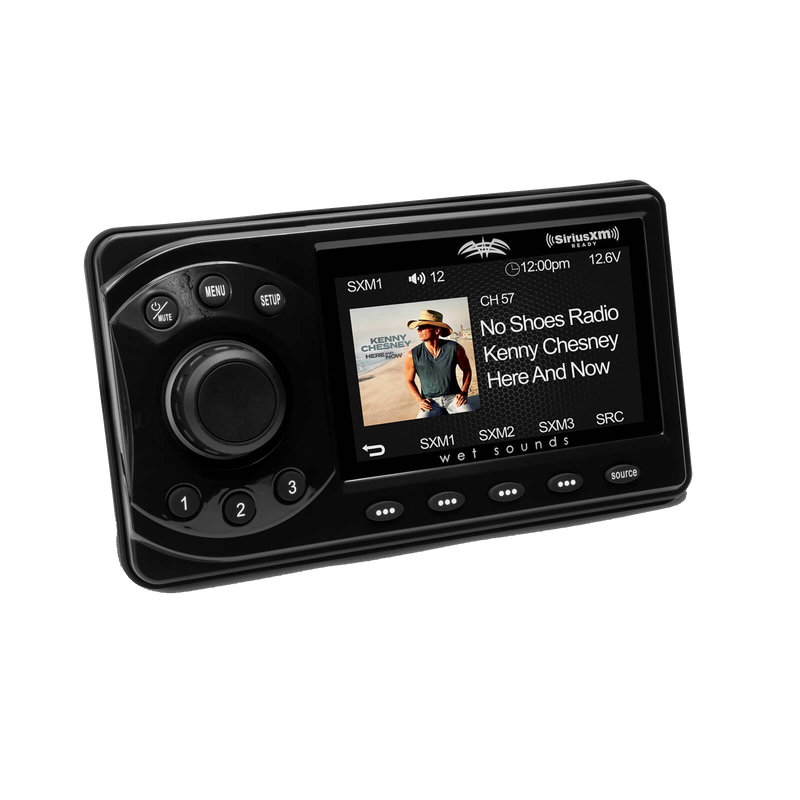

Wet Sounds WS-MC-1 Marine Receiver

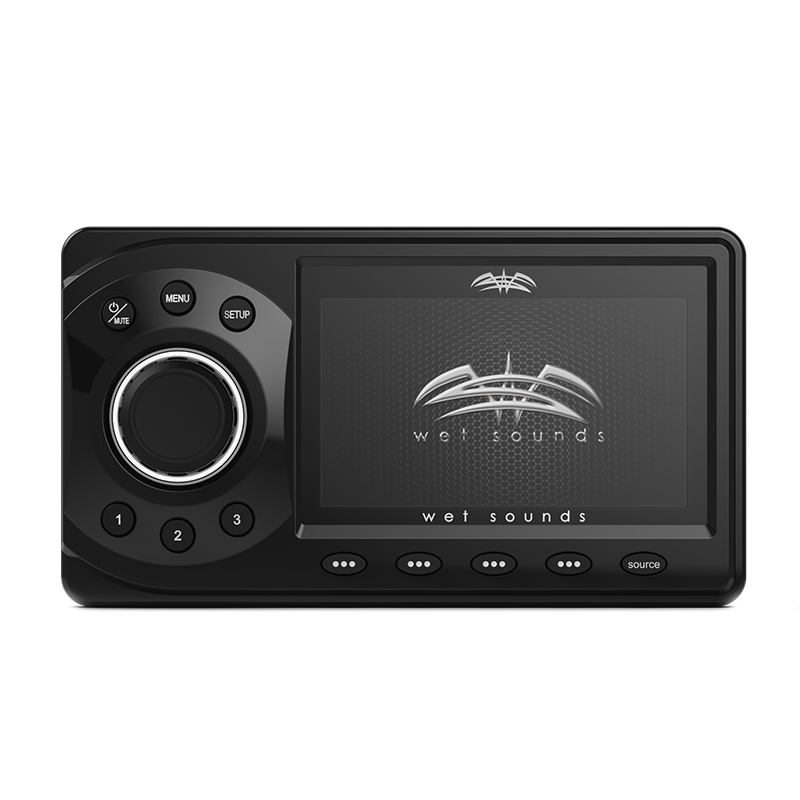

Wet Sounds WS-MC-1 Marine Receiver Front View
Designed to Be Simple and Easy to Use

For audio features, the MC-1 offers 4 separate zones of 4 Volt audio output. Each zone can have user-customized labels for easy control at any time. The MC-1 also includes 25W x 4 of built-in audio power. Once the user has set the zone levels, one simple control can raise or lower the vessel’s complete audio system level. The MC-1 is designed to be simple and easy to use – at the dock, the party cove, or cruising on the water!

Built for the Marine Environment

Built for the marine environment with an IPX6 rating, the 5” display unit even has a voltage monitor and alarm to warn users when the vessel battery voltage is reaching critically low levels. The MC-1’s operating system has the capability to upgrade and update the firmware without removing the unit via the USB port. With a SiriusXM Connect tuner added, you can view Album Art and can even pause, rewind, and replay SiriusXM content. Through USB connection, the MC1 allows complete browsing of playlists, folders, and full-color displays of album artwork. For full control from anywhere other than the helm, connect up to 2 MC-TR transom remotes and 2 MC-MD 2 units for multiple locations.

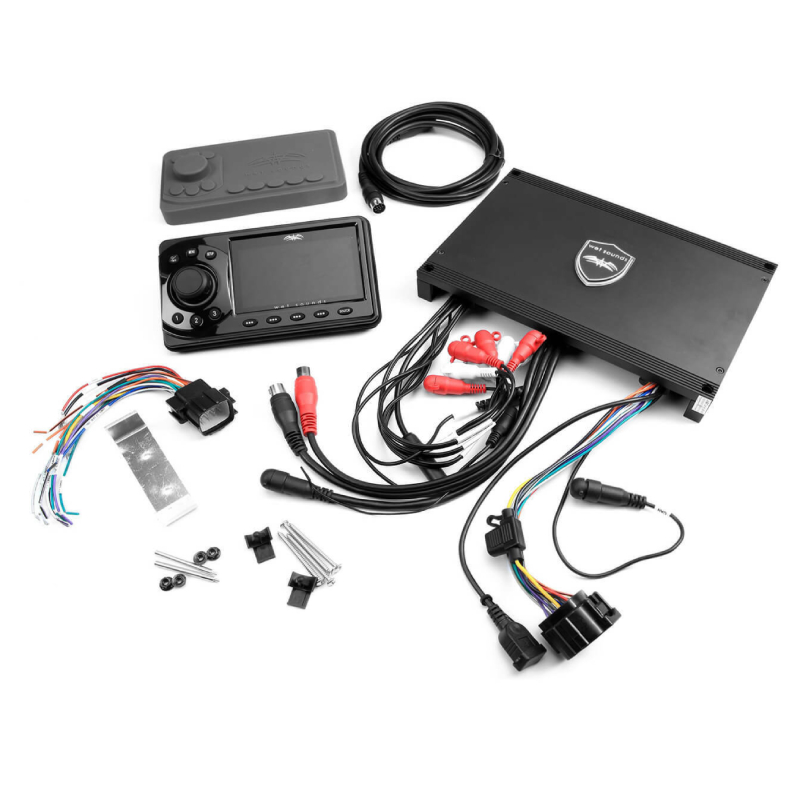

Wet Sounds WS-MC-1 Marine Receiver Inclusions




Frequently Asked Questions (FAQ)


  • • Why is there no sound even though the display is powered on?
    Check speaker wiring, mute status, volume, fader, and balance settings. Also verify the selected zone has an active output and the connected speakers have the correct impedance.
  • • Why won't my phone connect through Bluetooth?
    Make sure Bluetooth is enabled on the phone, select Bluetooth audio as the source, and remove old pairings if the device does not appear or reconnect properly.
  • • Why does Bluetooth connect but I cannot hear music?
    Confirm Bluetooth Audio is selected as the active source and check the phone's media volume and audio output. Make sure another device is not controlling playback.
  • • Why isn't my USB device being recognized?
    Check the USB connection and try another drive or cable. For music playback from a thumb drive, use supported MP3 files and make sure the device is readable.
  • • Why won't the USB source option appear?
    The USB source may not be available when nothing is connected to the USB port on the black box. Check the connection and reconnect the device.
  • • Why is the radio reception weak or full of static?
    Inspect the AM/FM antenna connection for loose or damaged wiring. Antenna placement and local signal conditions can also affect reception quality.
  • • Why does one audio zone have little or no sound?
    Check that the affected zone is powered and its volume level is raised. Inspect the zone's speaker or amplifier connections for loose or disconnected wiring.
  • • Why does the audio cut out or become distorted at higher volume?
    Excessive gain, inadequate power, incorrect speaker impedance, or poor connections can cause distortion or shutdowns. Check system settings and wiring before increasing volume further.
  • • Why isn't Pandora working from my phone?
    Start the Pandora app on the device first, then select Pandora as the source. Android devices use Bluetooth for this feature, while iOS devices can use USB or Bluetooth.
  • • Why does the system lose its settings or radio presets?
    Interrupted constant power or an incorrect memory-power connection can cause stored settings to disappear. Check the battery and wiring connections supplying continuous power.

SPECIFICATIONS


  • Maximum Power : 50 Watts
  • RMS Power Output : 50x4 Watts
  • Preamp Voltage : 4 volts
  • Bluetooth : Yes
  • Aux Input : Yes
  • Rear USB Input : 1
  • Preamp Outputs : 4
  • Color : Black

FEATURES


Features:

  • Two-piece package: Includes MC-MD (Main Display) and MC-BB (Black Box)
  • Customizable: Store favorite audio sources and presets for all 4 zones
  • Multi-zone audio: Control and set different volume levels for 4 zones with customizable labels
  • Easy installation: Vibrant display with automatic day/night mode switching based on vessel lighting
  • Audio source options: AM/FM/Weather Band Radio, USB input with iPhone/iPod connectivity and charging, Pandora, Auxiliary input, and SiriusXM-Ready®
  • RGB LED lighting control: Supports up to 4 zones of RGB LED lighting with Wet Sounds/Shadowcaster controller
  • Audio output: 4 separate zones with 4 Volt audio output and 25W x 4 built-in audio power
  • Single control: Raise or lower the entire audio system with one simple control
  • Marine-grade durability: IPX6 rating for water resistance
  • 5” display features: Voltage monitor and alarm for low battery warnings
  • Firmware updates: Upgrade firmware via USB without removing the unit
  • SiriusXM features: View album art, pause, rewind, and replay SiriusXM content (with tuner)
  • Full media control via USB: Browse playlists, folders, and display album artwork in full color
  • Multi-location control: Support for up to 2 MC-TR transom remotes and 2 MC-MD2 units
  • IPX6-rated transom remote: Available separately, ideal for additional control points



Specifications:

  • AUX Input Mini: (rear)
  • Audio/video Input: ---
  • USB Input: Rear
  • USB Port Power: 1A
  • Backup Camera Input: No
  • Second Camera Input: No
  • CarPlay: No
  • Android Auto: No
  • Siri Control: No
  • Alexa Voice Control: N
  • Android Control: Yes
  • Memory Card Slot: USB
  • Bluetooth Compatible: Built-in
  • Satellite Radio Ready: SiriusXM
  • HD Radio: No
  • Navigation: ---
  • Full size: No
  • Nano: 7Gen
  • Touch: 5Gen and newer
  • iPhone: 5 and newer
  • RMS Power (CTA-2006): N/A
  • RMS Power (Manufacturer): 25 watts
  • Peak Output: 50 watts
  • RMS Power Bandwidth: 1kHz
  • Preamp Outputs: 8-channel
  • Sub Preamp Outputs: No
  • Switchable Rear Preamp Outputs: No
  • Video Screen: No
  • Navigation App Compatible: (iOS)
  • Navigation App Compatible: (Android)
  • Preamp Voltage: 4 volts
  • Screen Size: 0
  • Screen Type: N/A
  • Display Color: Full-color
  • Key Button Color: White
  • EQ Bands: 3
  • Wireless Remote: No
  • Steering Wheel Control Compatible: No
  • Parts Warranty: 2 Years
  • Labor Warranty: 2 Years
  • FM Sensitivity: ---
  • European Tuning: Yes
  • Seek/Scan: Seek
  • Radio Data System: Yes
  • Music File Playback: MP3
  • High-res Playback: N
  • UPC: 814820025026
  • Weight: 6
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
