Wet Sounds WW-8CH-LD 8 Channel Line Driver and Controller with 6” Pigtail
We are a Wet Sounds authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

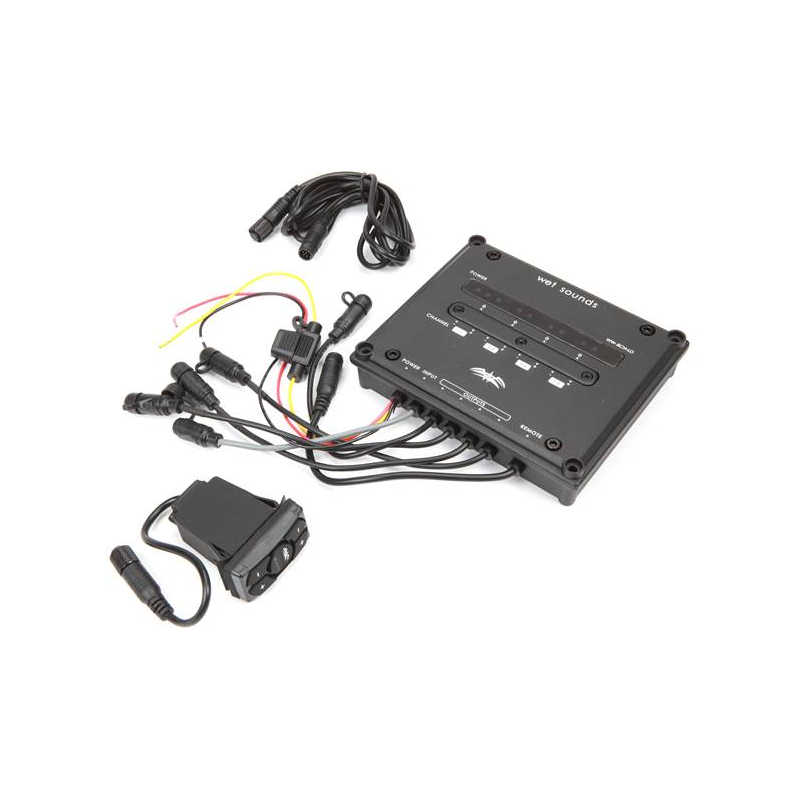

What's Inside?
- •8-Channel line driver w/attached 7" wiring (inline 1A mini-ATO fuse)
- •Wired remote control w/attached 7" cable
- •6' Remote cable
- •Spare 1A fuse
- •(5) 1-3/4" screws
- •(4) Plastic washers
- •Owner's manual
Amps to Power Speakers in Wakeboard Towers
Even if your marine receiver only has Left and Right outputs, you can send stereo signals to four different areas with this 8-channel line driver from Wet Sounds. For example, you can send input signals for your amps to power speakers in wakeboard towers, helm area, and the front cabin area without using a bunch of Y-cords. Pig-tail wires feature weather-resistant connectors.
Control the Volume of Two Zones at a Time

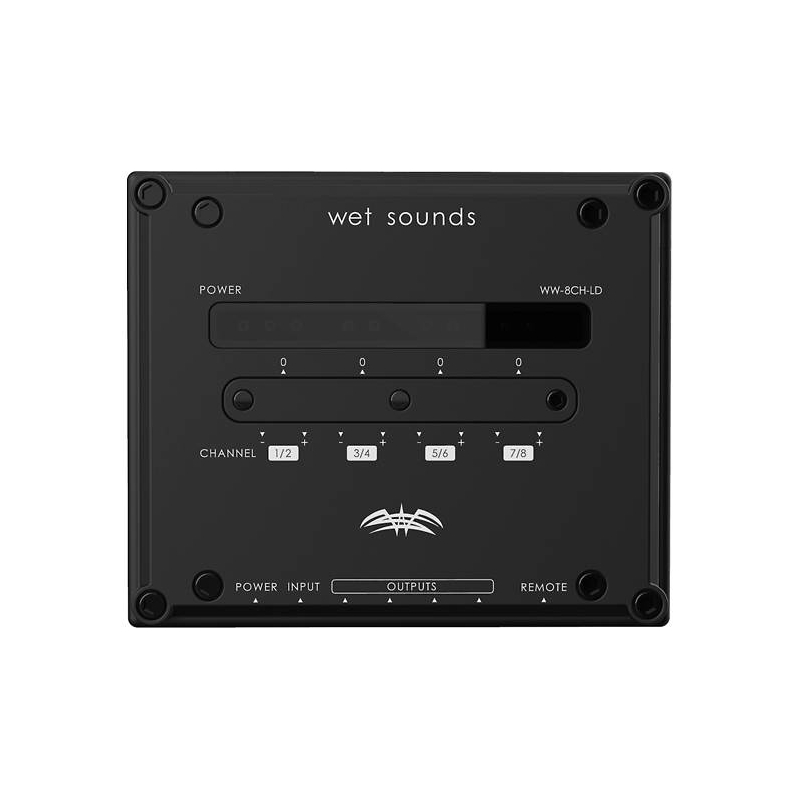

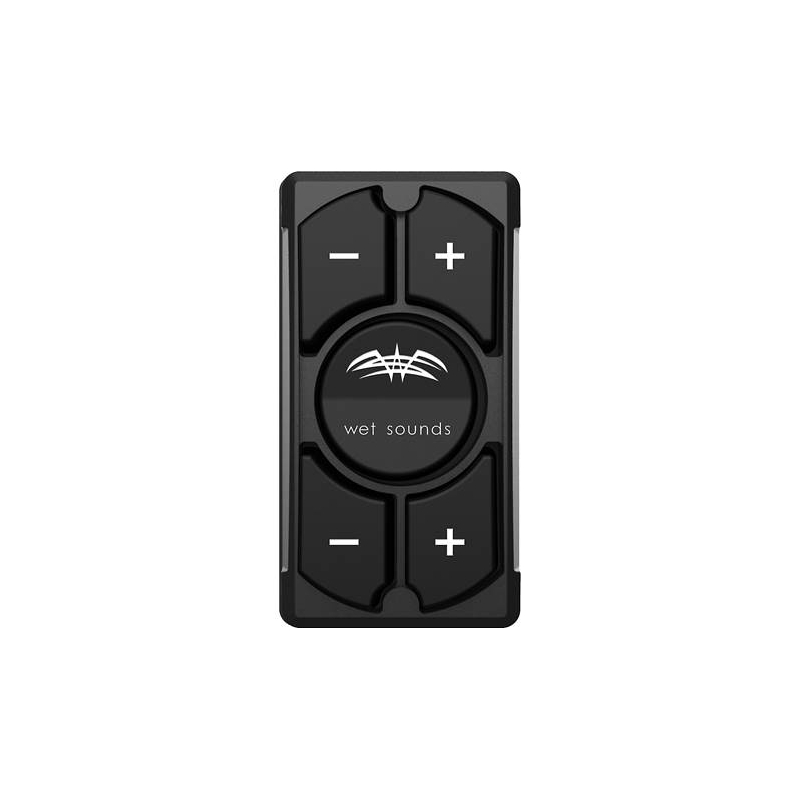

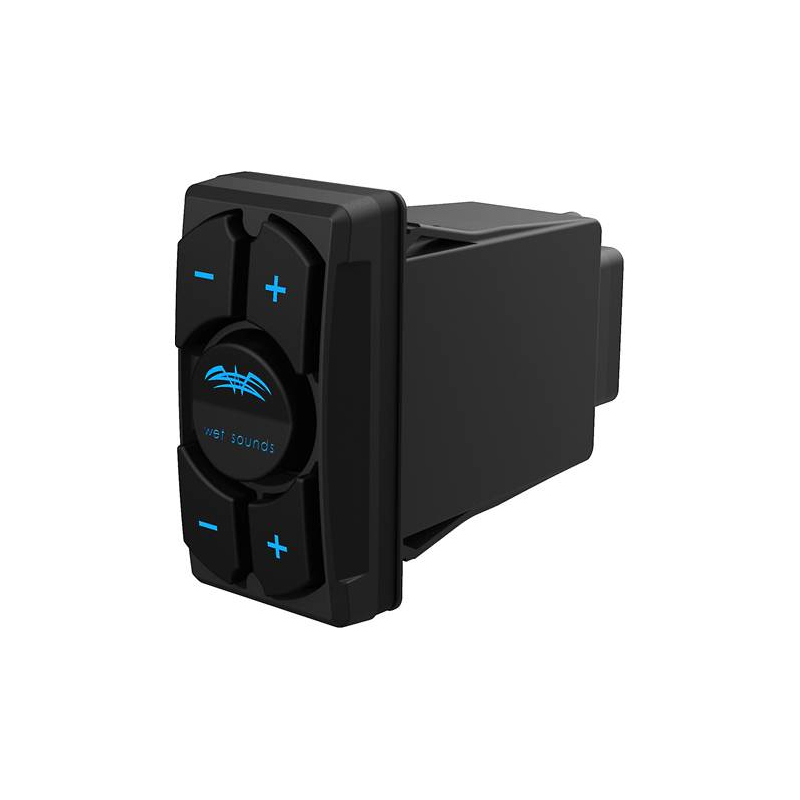

The included rocker switch wired remote lets you control the volume of two zones at a time. Under the weather-proof control panel, you'll find gain controls for each channel pair plus optimization LEDs that'll let you know when the gains are set for maximum performance.
Features:
- line driver — 2-channel inputs, 8-channel outputs
- includes wired remote control
- inputs: 2-channel (stereo pair) 3.5mm TRS
- outputs: 8-channel (4 stereo pairs) 3.5mm TRS
- up to 10 Vrms
- gain/volume controls for each channel pair
- LED signal optimization indicators
- 12-gauge power and ground wires recommended
- weather-resistant connectors
- dimensions: 5-7/8"W, 1-1/4"H, 5-5/8"D
Specifications:
- 2-channel inputs, 8-channel outputs
- includes wired remote control
- inputs: 2-channel (stereo pair) 3.5mm TRS
- outputs: 8-channel (4 stereo pairs) 3.5mm TRS up to 10 Vrms
- gain/volume controls for each channel pair
- LED signal optimization indicators
- 12-gauge power and ground wires recommended
- weather-resistant connectors
- dimensions: 5-7/8"W, 1-1/4"H, 5-5/8"D
- Yellow (Inline 1A fuse): +12V constant power source.
- Red Wire : +12V switched power source.
- Black Wire: Chassis ground.
- UPC: 810042170810
- Weight: 5
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
