- Maximum Power : 2000 Watts
- Number of Channels : 1
- Frequency Response : 10-350 Hz
- RMS Power Output : 1000 Watts
- Amplifier Class : D
- Fuse Rating : 30x3 A
Features:
- Latest High-Efficiency Full-Range Digital Topology
- Surface Mount Component Technology with 4-Layer PCB
- Common Compact Size with Single-Sided Connections and Top Mount Controls
- Handles HI and LO level input up to 12V
- Switched Speaker Level Turn On Option (VOX/DC Offset/REM)
- Input configuration switch on 4 and 5 channel amplifiers
- Fully Variable 35Hz - 350Hz 12dB per Octave Crossovers
- Lighted LED logo

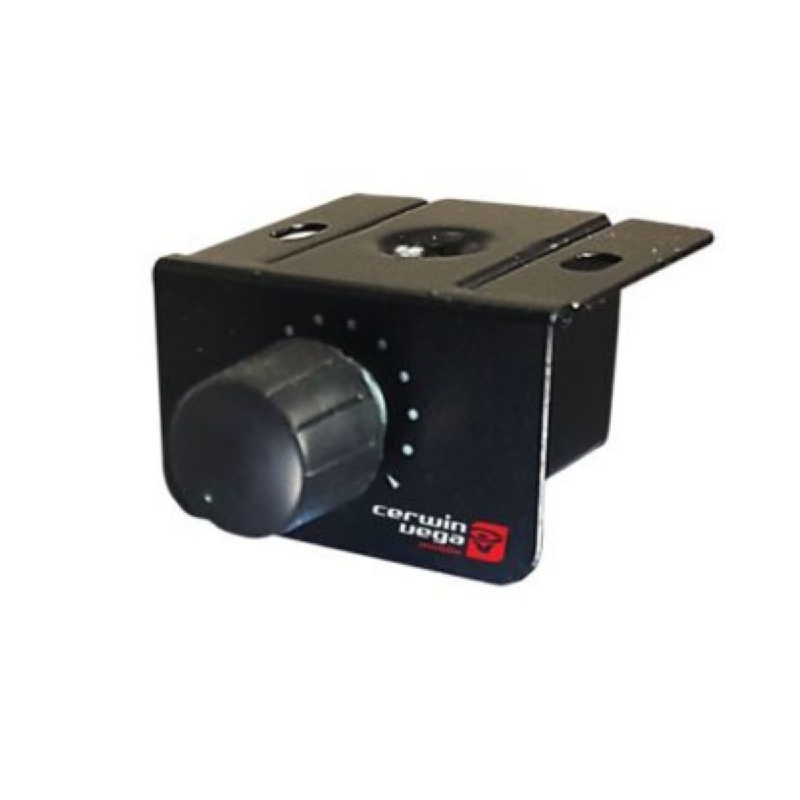

- Bass remote can be disassembled and installed in-dash
- Variable Phase adjustment on ALL S9 series mono blocks to get the correct phase. Moves bass from the trunk to the front.
Specifications:
- RMS Power(2Ω): 1000 W x 1 RMS
- RMS Power (4Ω): 800 W x 1 RMS
- Types: Monoblock, Class D
- Power Supply: Full PWM
- Power Supply (Threshold): 10.0DVC – 17.0DVC
- Idle Current: (0.7A)
- Distortion - THD ([email protected]Ω): 0.07%
- Distortion - S/N Ratio (A weight @ 1W): -77.4dBA
- Distortion - S/N Ratio (A weight @ FP): -97.4dBA
- Input Sensitivity - Hi/Low Input Level: YES – UP to 25 W RMS / 0.2mV – 10.0V
- Input Impedance - Low Input Level: 22 KΩ
- Input Impedance - High Input Level: 22 KΩ
- Output Impedance: 0.047 Ω
- Damping Factor ([email protected]Ω): >250
- Bandwidth (-3dB): 10Hz-350Hz
- Crossover (-12 dB/ Oct) Variable High-Pass: N/A
- Crossover (-12 dB/ Oct) Variable Low-Pass: 35Hz-350Hz
- Crossover (-12 dB/ Oct) Variable Sub-Sonic: N/A
- FUSE Ratings - ATC: 3 x 30A
- Dimension - Length x Width x Height - Inches(mm): 11.81 x 7.25 x 2.0 ( 299.9 x 184.2 x 50.8 )
- UPC: 847169048364
- Weight: 10
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
