- Diameter : 12 Inch
- Sensitivity : 86.5 dB
- Impedance : 2 Ohm
- Peak Power Handling : 800 Watts
- Shallow Mount : Yes
- Number of Voice Coils : Dual
- Mounting Depth : 3.62 Inches
- RMS Power Handling : 400 Watts
What's Inside?

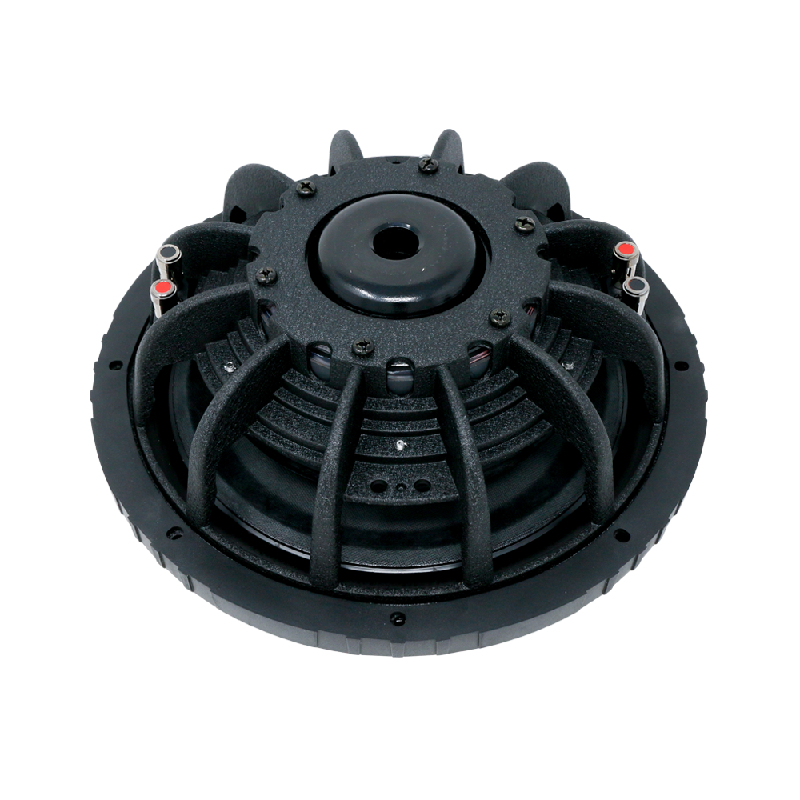

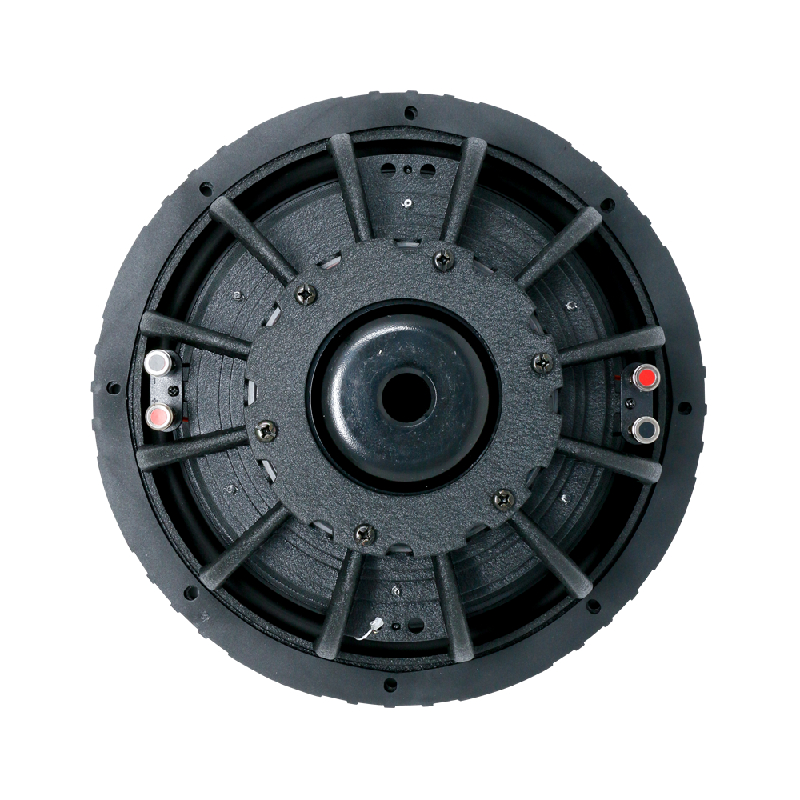

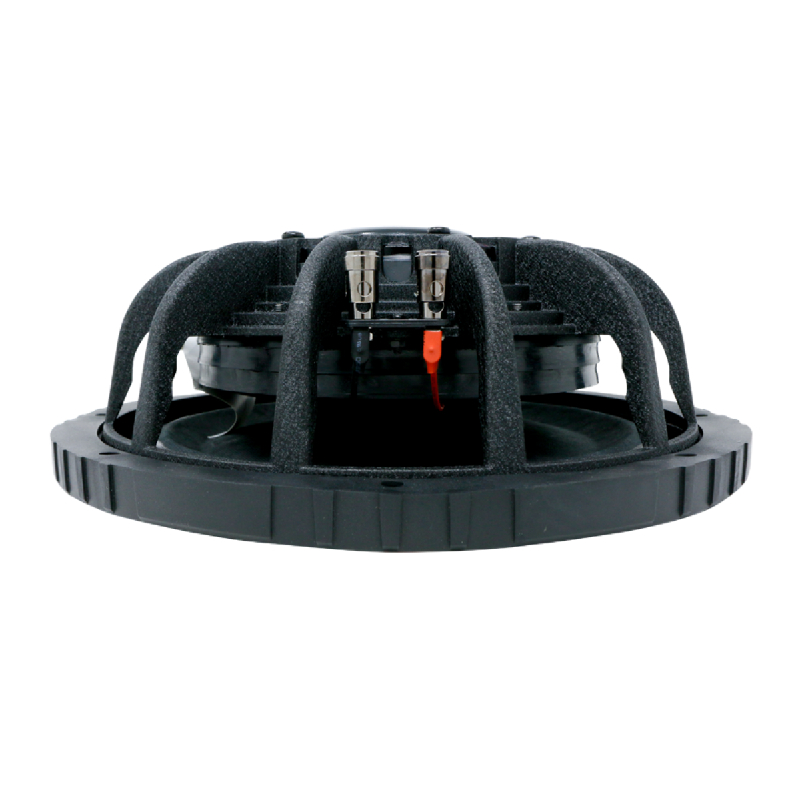

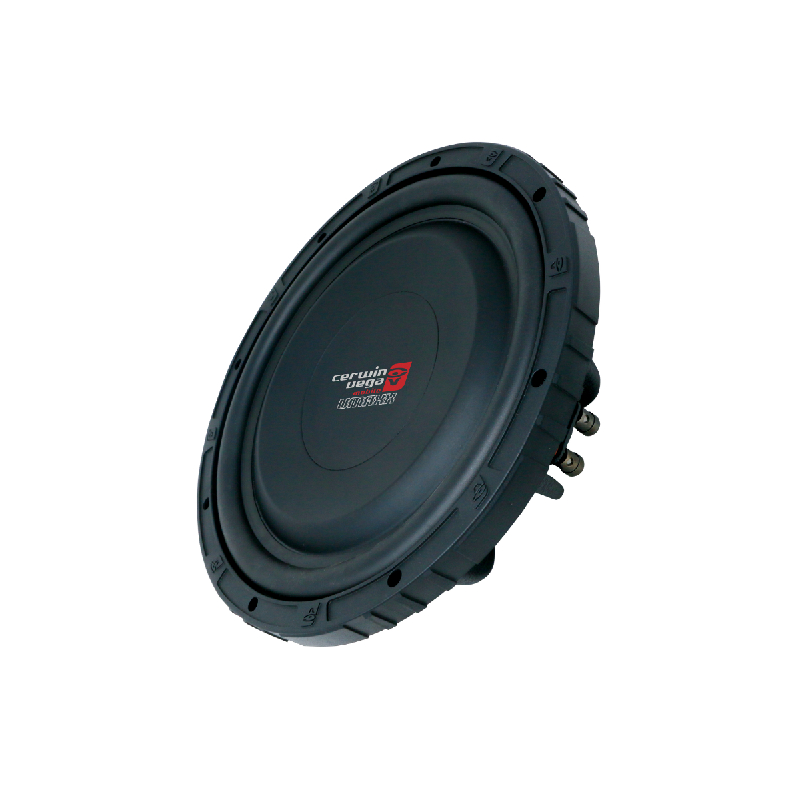

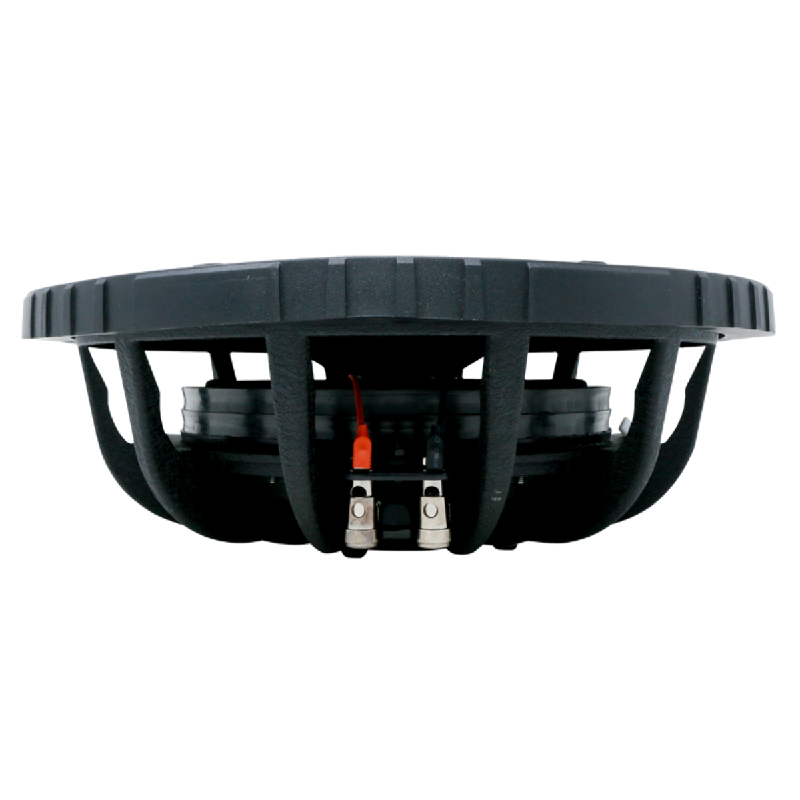

- 1 12" VMAXS Series Shallow Mount Car Subwoofer
Features:
- Heavy Industrial Strength Aluminum Cast Frame
- Black Design Patterned Treated Semi-Pressed Pulped Cone
- Elevated Motor Structure Cooling Design
- Oversized Spider
- Black Coated Voice Coil for Higher Thermal Capability
- Oversized Polished Black Chrome Finished Terminals
- Klippel DA Optimized Motor and Suspension Symmetry
- Additional Voice Coil Cooling vents for higher thermal capacity
- Copper Shorting Ring for Optimized Performance
Specifications:
- 12” Dual 2-ohm High-Performance Subwoofer
- 400W RMS / 800W MAX
- Nominal Impedance (ohms): N/A
- Xmax - Inch(mm): 9
- Fs-Free Air Resonance (Hz): 33.1
- Vas (Liter): 61.8
- Qts: 0.68
- Qes: 0.76
- Qms: 6.75
- Re (Ω)[series]: 1Ω/4Ω
- Sd (cm²): 0.05515
- Cms (mm/N): 0.15
- Mms (g): 159.6
- BL (T*M): 12.5
- SPL (db): 86.5
- Mounting Depth: 3.62″ (92) in. (mm)
- Total Diameter: 12.79″ (325) in. (mm)
- Mounting Diameter (inch/mm): 11.02″ (280) in. (mm)
- Screw Hole Diameter: 0.26″ (6.5) in. (mm)
- Displacement (ft3/L): 0.072 (2.05L)
- UPC: 847169053030
- Weight: 12
