- Maximum Power : 750 Watts
- Number of Channels : 1
- Frequency Response : 10-350 Hz
- RMS Power Output : 500x1 Watts
- Amplifier Class : D
What's Inside?

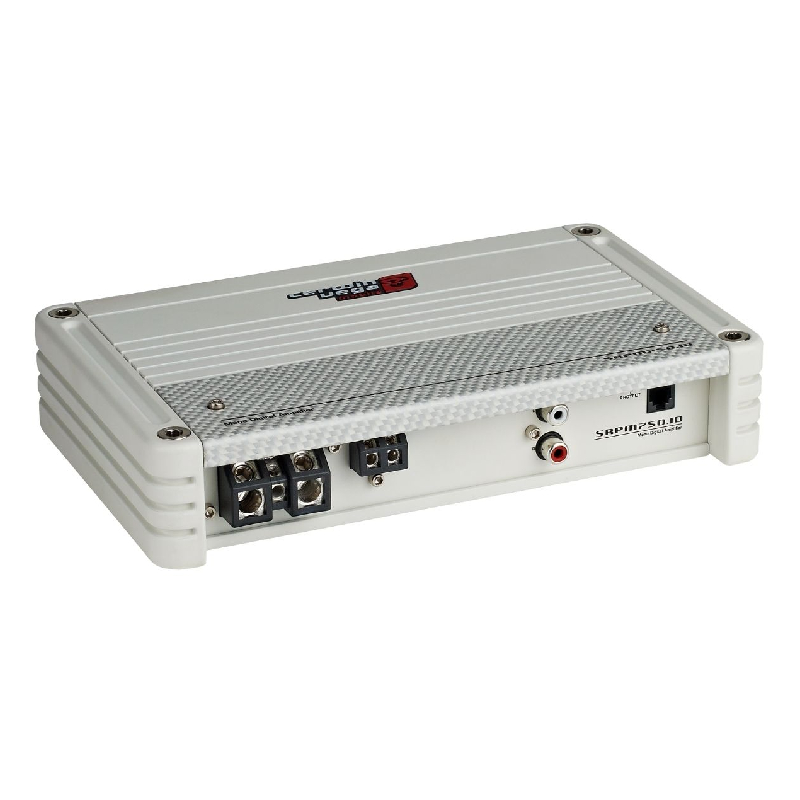

- 1 RPM Stroker Series Class D Mono Block Car Amplifier
Features:
- Recreation / Powersports / Marine Amplifier
- Superior Full Range Class D Design
- Conformal Coated PCB To Protect Against Moisture, Vibration/Mechanical Stress
- Top Mount Controls For Quick Precise Adjustments
- Remote Bass Level Adjustment Capability
Specifications:
- RMS Power(2Ω): 500 W x 1 RMS
- RMS Power (4Ω): 300 W x 1 RMS
- Types: Class D
- Power Supply: Full PWM
- Power Supply (Threshold): 10.0DVC – 17.0DVC
- Idle Current: (0.7A)
- Distortion - THD ([email protected]Ω): 0.05%
- Distortion - S/N Ratio (A weight @ 1W): (-77.2dBA) (-98.9dBA)
- Input Sensitivity - Hi/Low Input Level: YES – UP to 25 W RMS/ 0.2mV – 10.0V
- Input Impedance - Low Input Level: 22 KΩ
- Output Impedance: 0.047Ω
- Damping Factor ([email protected]Ω): >250
- Bandwidth (-3dB): 10Hz-350Hz
- Crossover (-12 dB/ Oct) Variable High-Pass: N/A
- Crossover (-12 dB/ Oct) Variable Low-Pass: 30Hz-300Hz
- Crossover (-12 dB/ Oct) Variable Sub-Sonic: 10Hz-55Hz
- FUSE Ratings - ATC: N/A
- Dimension - Length x Width x Height - Inches(mm): 8.66 x 5.28 x 1.75 ( 220 x 134 x 44.5)
- UPC: 847169048388
- Weight: 10
