JL Audio MX500/1 (98407) Monoblock Class D Wide-Range Amplifier, 500 W x 1 @ 2 O / 300 W x 1 @ 4 O

What's Included:

4 Self-tapping screws (1" length)
Owner's Manual
Spare 35A ATO fuse
4-Channel marine amplifier with 12" power/signal pigtails (with in-line fuse holder and 35A ATO fuse installed)

Product Highlights:

IPX6 water-resistance rating
Class D amplifier design with NextD™ switching amp technology
4-channel amplifier
variable low- and high-pass filters (35-300 Hz, 12 dB/octave)
140 watts RMS x 2 bridged at 4 ohms (4-ohm stable bridged)
50 watts RMS x 4 at 4 ohms (70 watts RMS x 4 at 2 ohms)
corrosion-resistant cast aluminum chassis
preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
fuse rating: 35A x 1
8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
8-11/16"W x 1-13/16"H x 3-1/8"D

RMS Power Range : 300 Watts
Number Of Channels: 1
Maximum Power: 500 Watts
Low Frequency response: 20 Hz
High Frequency Response: 12000 Hz
Frequency response: 20-12000 Hz
Built In Crossovers: YES
Channel Separation: YES
Amplifier Class: D
Fuse Rating: 50 A

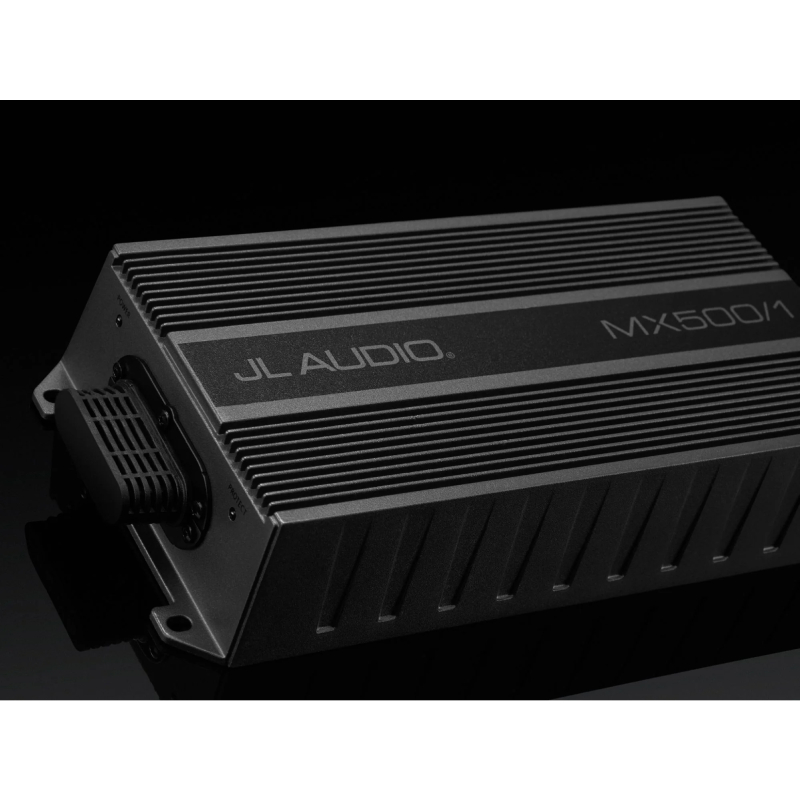

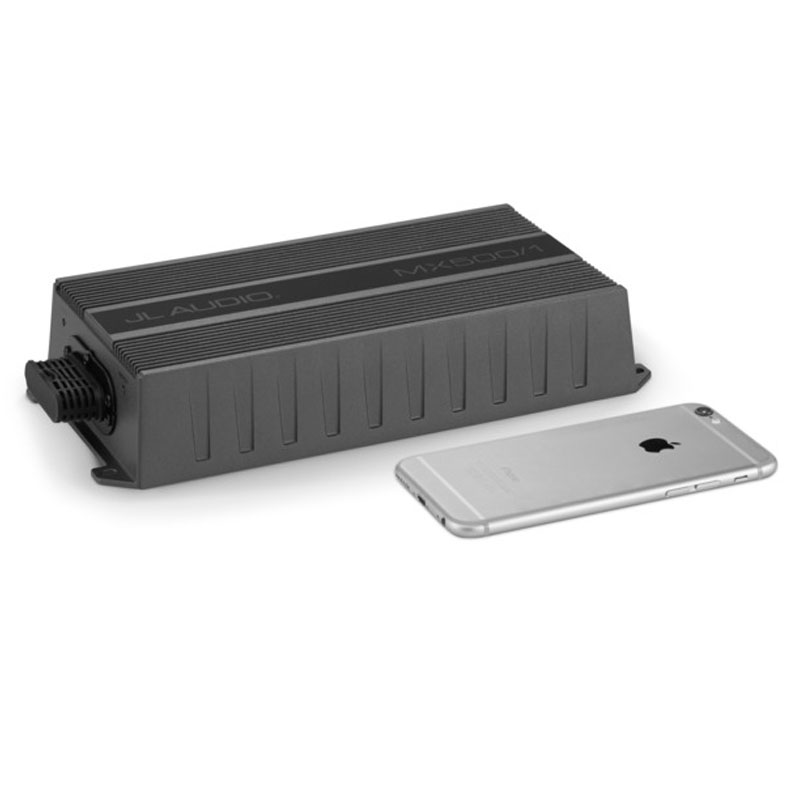

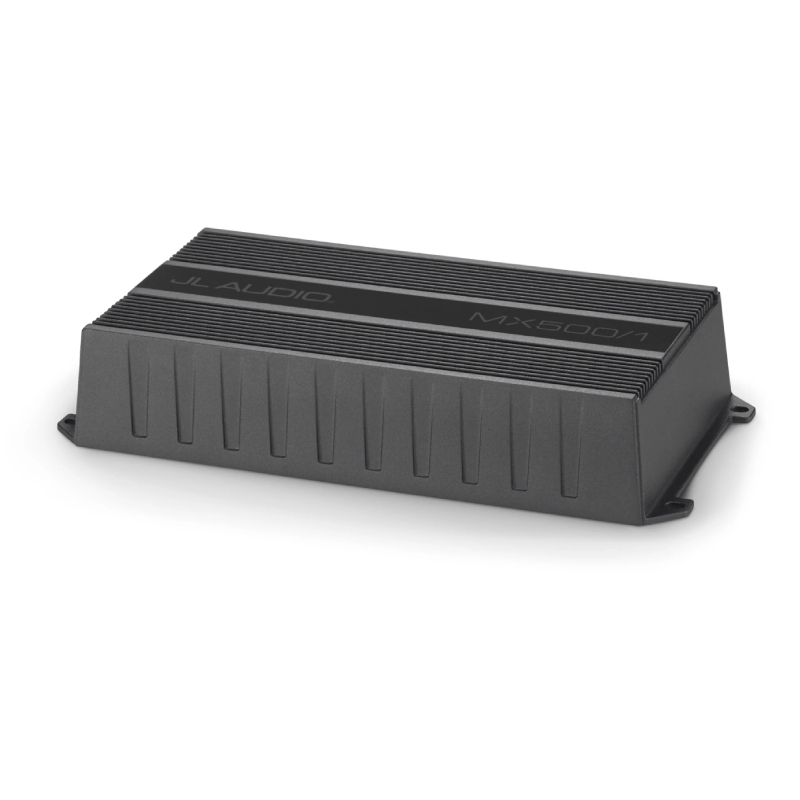

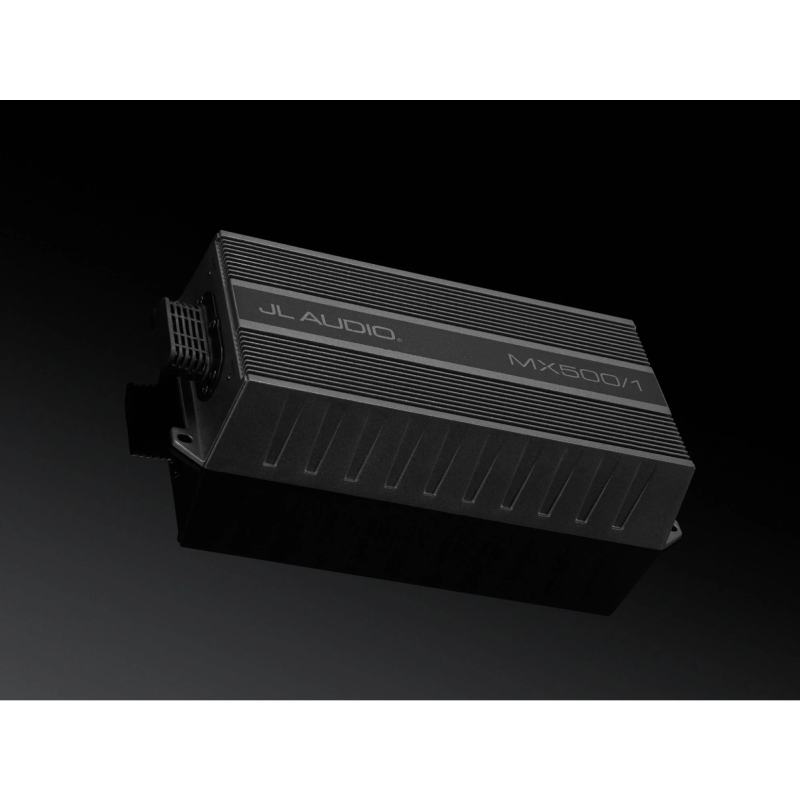

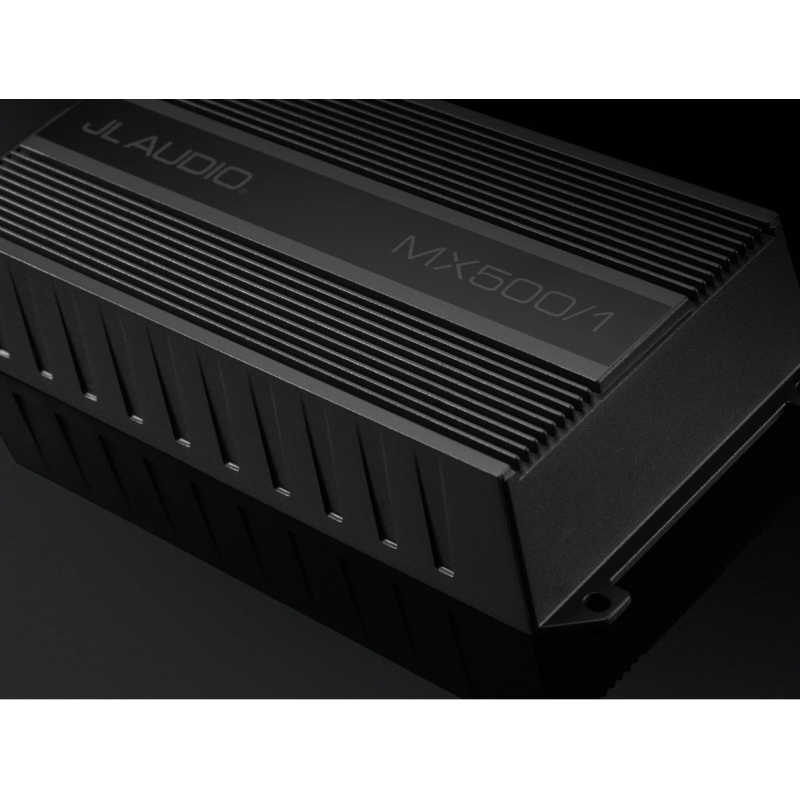

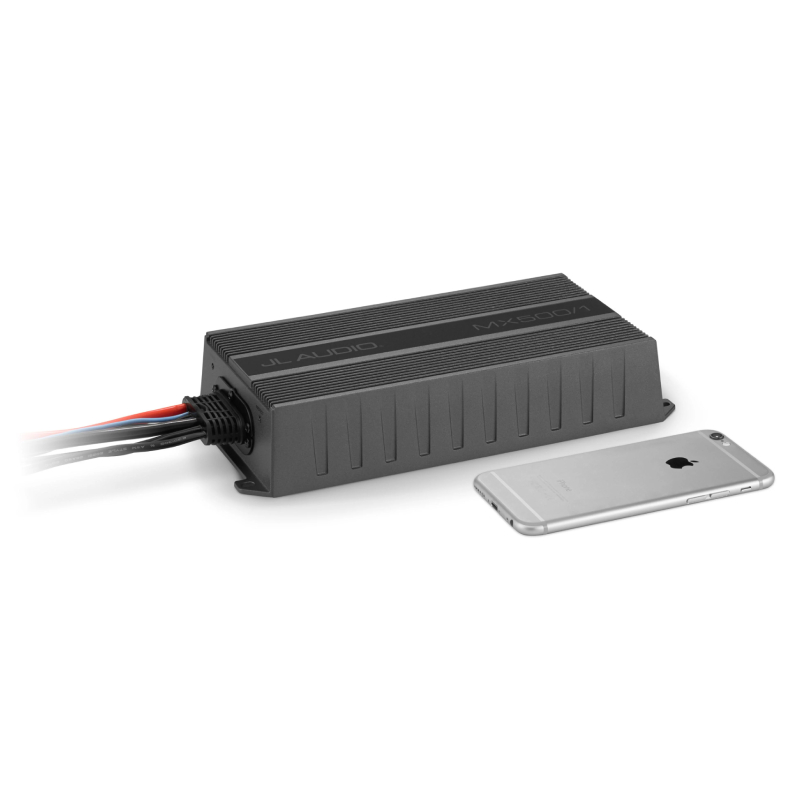

Engineered specifically for powersports applications, the MX500/1 monoblock amplifier employs our high-speed NexD™ switching design to pack a serious audio punch, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX6 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.

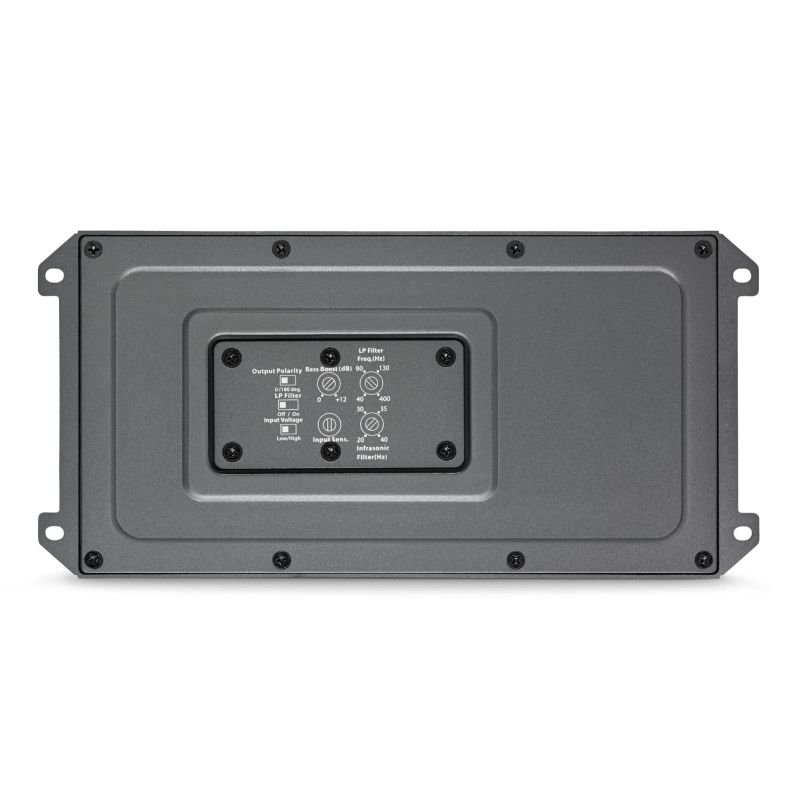

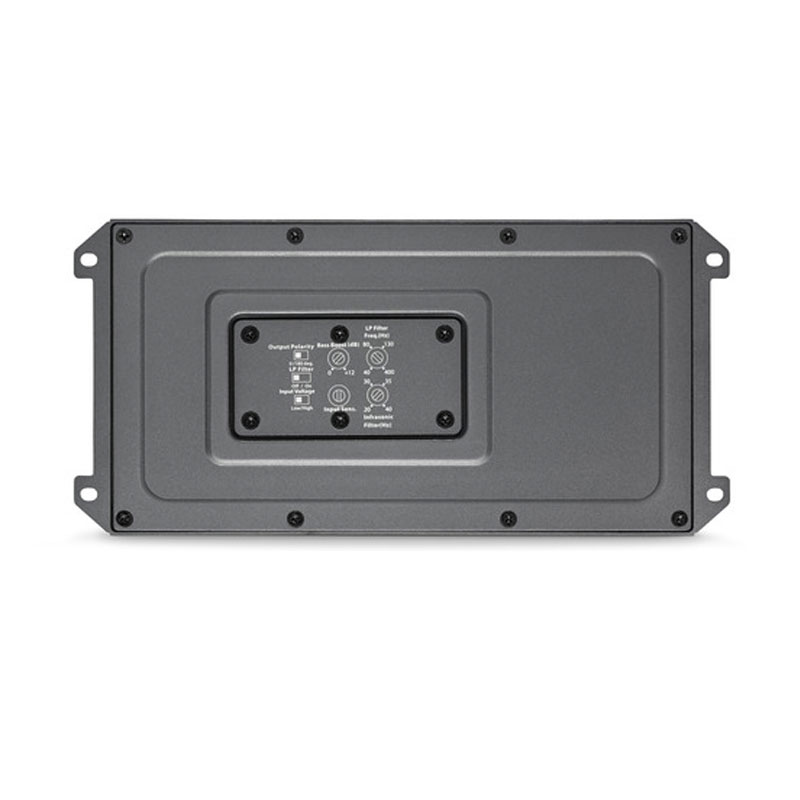

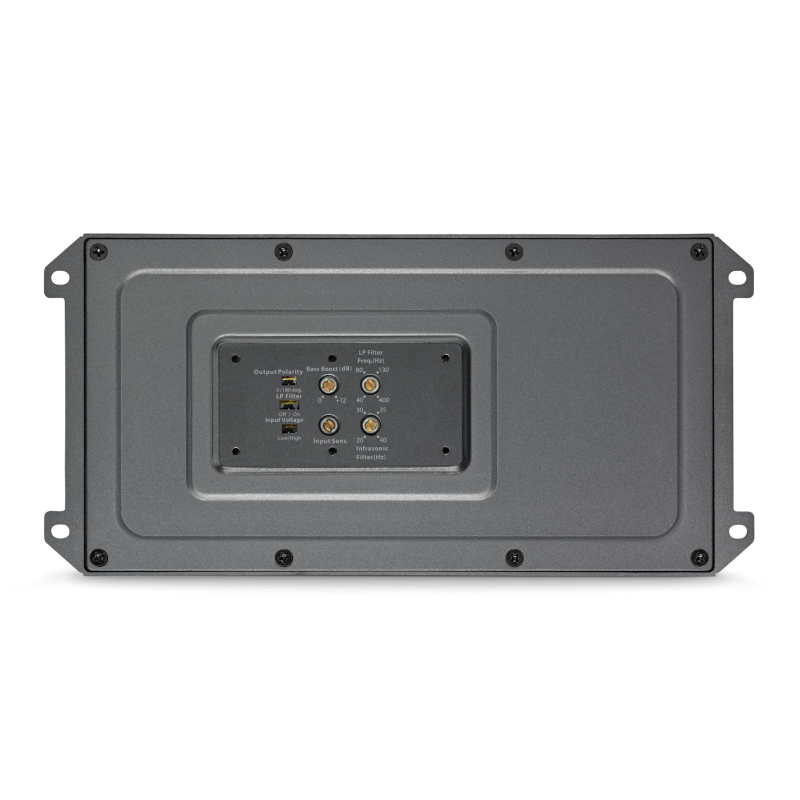

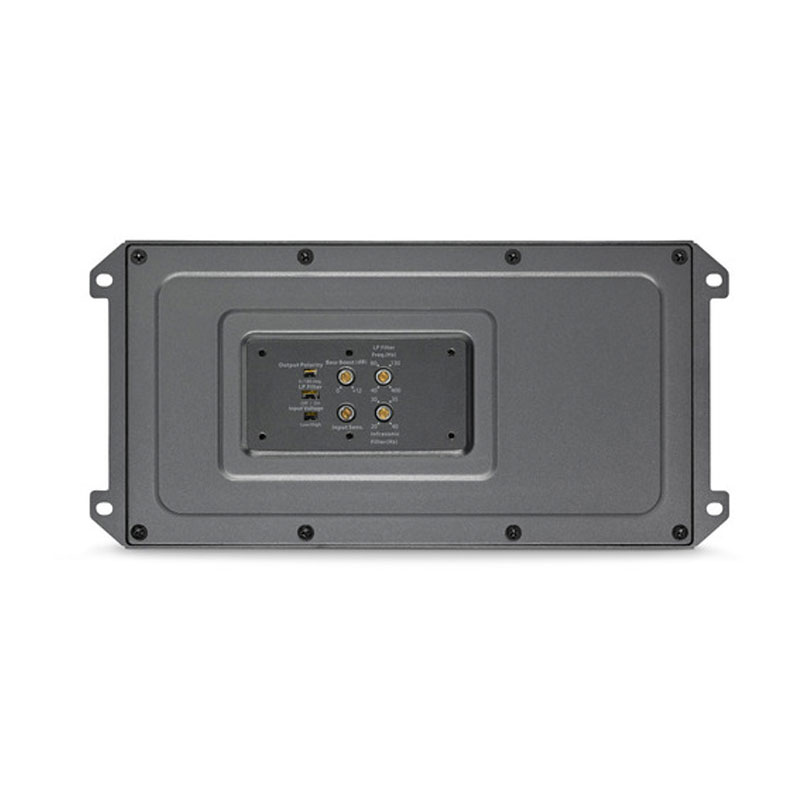

With a robust 500W of clean power into a 2-ohm load (14.4V, 1% THD), use one to drive a subwoofer, or grab a pair to deliver stunning output to a subwoofer system. The MX500/1 also features an adjustable low-pass crossover, a bass boost EQ, variable infrasonic filter and output polarity switch.

Its dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. With the addition of an M-RBC-1 remote level control (sold separately), subwoofer output can be directly controlled from the driver’s seat.

This amplifier features a black powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

Features:

JL Audio MX300/1 Weatherproof Amplifier
Class-D Monoblock Amplifier
RMS Power Rating:
4 ohms: 300 watts x 1 chan.
3 ohms: 400 watts x 1 chan.
2 ohms: 500 watts x 1 chan.
1 ohm: N/A
Total RMS power output: 500 watts
Input sensitivity:
Low level: 250mV - 4V
High level: 750mV - 15V
Frequency Response: 20 - 12,000 Hz
Total Harmonic Distortion (THD): <1%
Signal to Noise Ration: >97 dB
Variable high-pass filter: 20 - 40 Hz, 12 dB/octave
Variable low-pass filter: 20 - 40 Hz, 12 dB/octave
Fuse Rating: 50 A x 1
8 gauge power and ground wiring is recommended for installation.
Dimensions: 9.33"W x 4.50"D x 1.77"H
Remote bass knob sold separately - M-RBC-1.
CEA-2006 Compliant Amplifier
Pulse Width Modulated MOSFET power supply
Wired remote bass level control included
LED power (green) and protect (red) indicators
Soft start turn-on
IPX6 water resistant rating
Mono channel operation
Black powder coat finish
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink for extreme heat dissipation

UPC: 699440984072
Weight: 3
Sku: 98407
