- Maximum Power : 360 Watts
- Number of Channels : 4
- RMS Power Output : 90x4 Watts
- Amplifier Class : D
What's Inside?

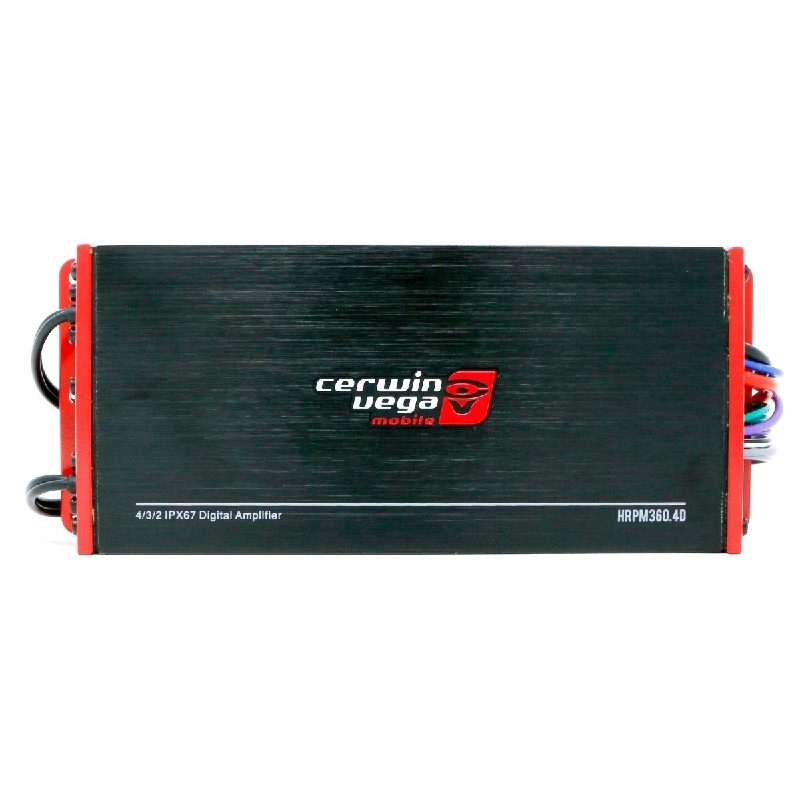

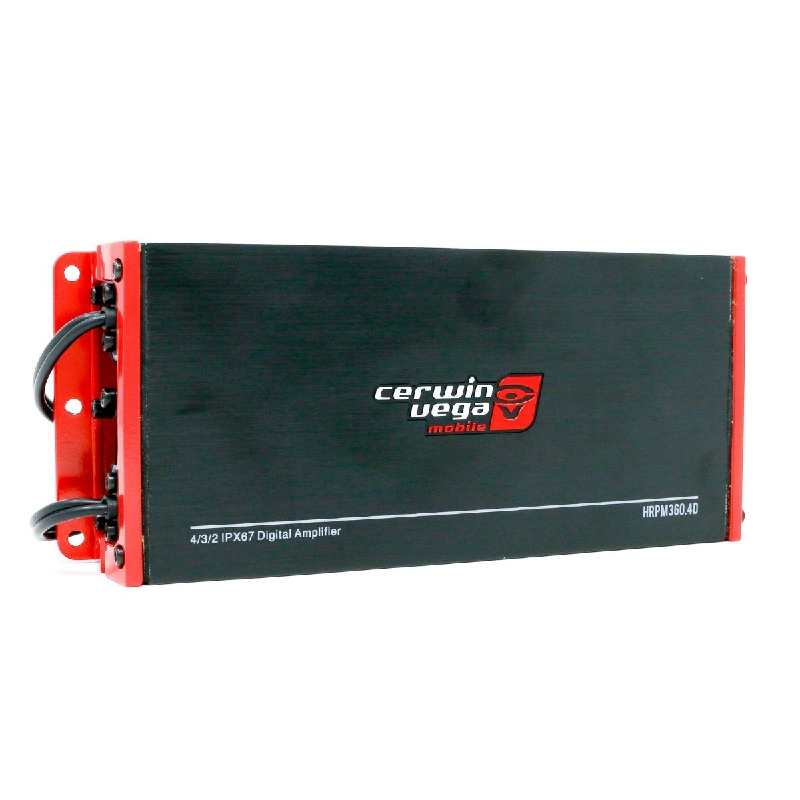

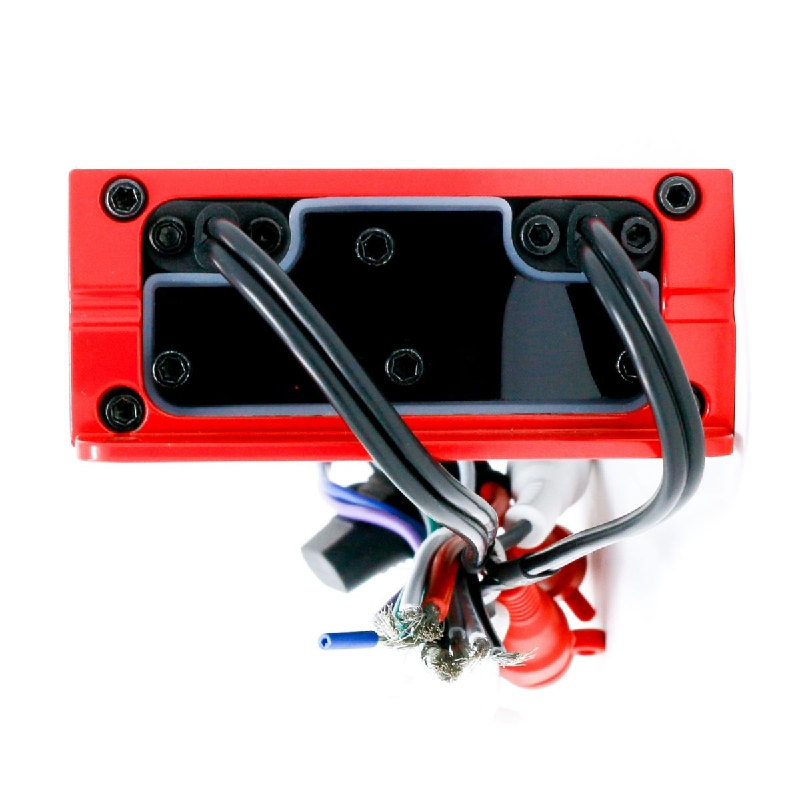

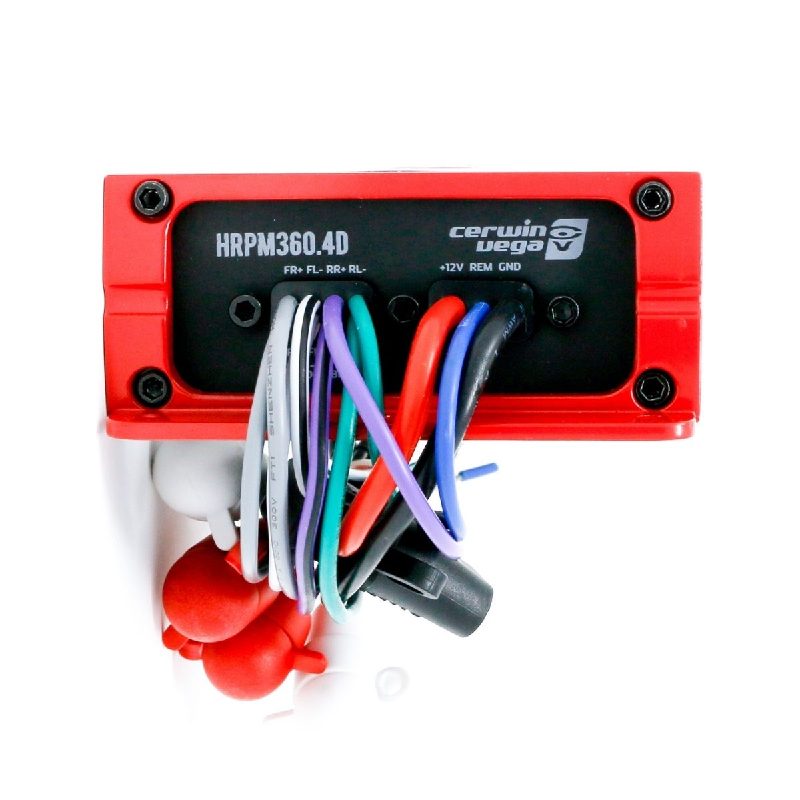

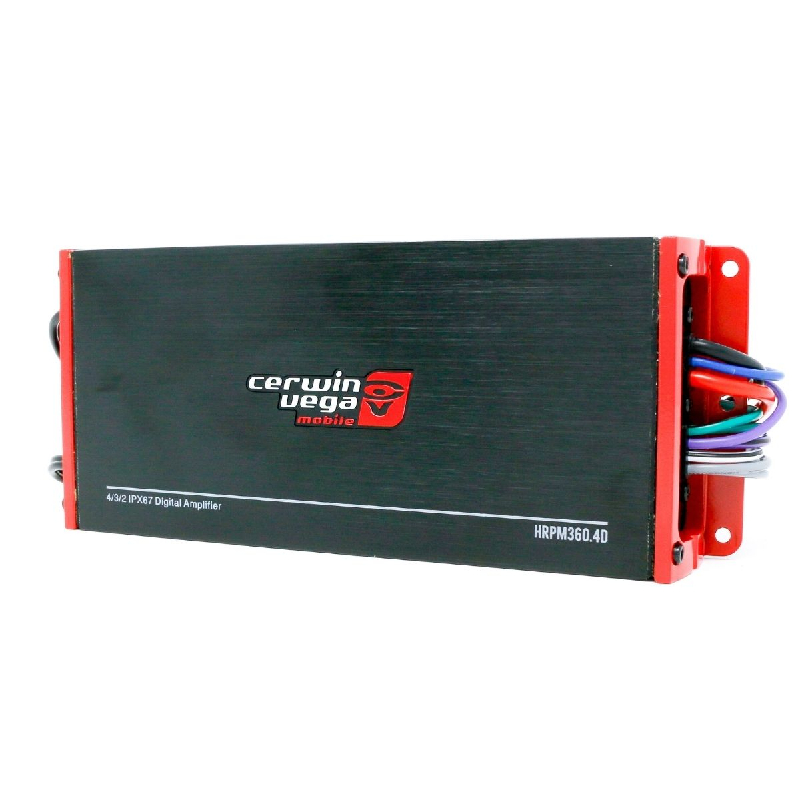

- 1 RPM HED Series Class D 4-Channel Car Amplifier
Features:
- IRS (International Rectifier) Full Range Capable Class-D Topology
- Balanced Differential Inputs For Noise-Free Operation Regardless Of the Source
- Variable Full Crossover Filter: LPF/FULL/HPF (HRPM360.4D/HRPM300.2D)
- Surface Mount Component Technology
- Audio Precision Quality Control Verification
- Stable & Reliable Four Layers PCB Trace Layout
- IPX67 Rated Waterproof Design For Powersports & Marine Applications
- Power & Protection Led Light Status Indicator
- Short circuit, thermal and voltage protection
Specifications:
- RMS Power(2Ω): 90W x 4
- RMS Power (4Ω): 60W x 4
- RMS Bridge (mono 4Ω): 180Wx2
- Distortion - THD (1KHz@4Ω): <0.3%
- Distortion - S/N Ratio (A weight @ 1W): >85dB
- Crossover (-12 dB/ Oct) Variable High-Pass: 40-500Hz
- Crossover (-12 dB/ Oct) Variable Low-Pass: 20Hz-20KHz
- Crossover (-12 dB/ Oct) Variable Sub-Sonic: N/A
- Dimension - Length x Width x Height - Inches(mm): 7.9×3.2×1.4 Inch (201.2×82.4×35.8 mm)
- UPC: 847169034640
- Weight: 10
