XS Power 595 Powersports Terminal Adaptor, Front and Side, Machined Aluminum
We are a XS Power authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Powersports Terminal Adaptor
- • Owner's Manual
High-Capacity Super Capacitor Technolog

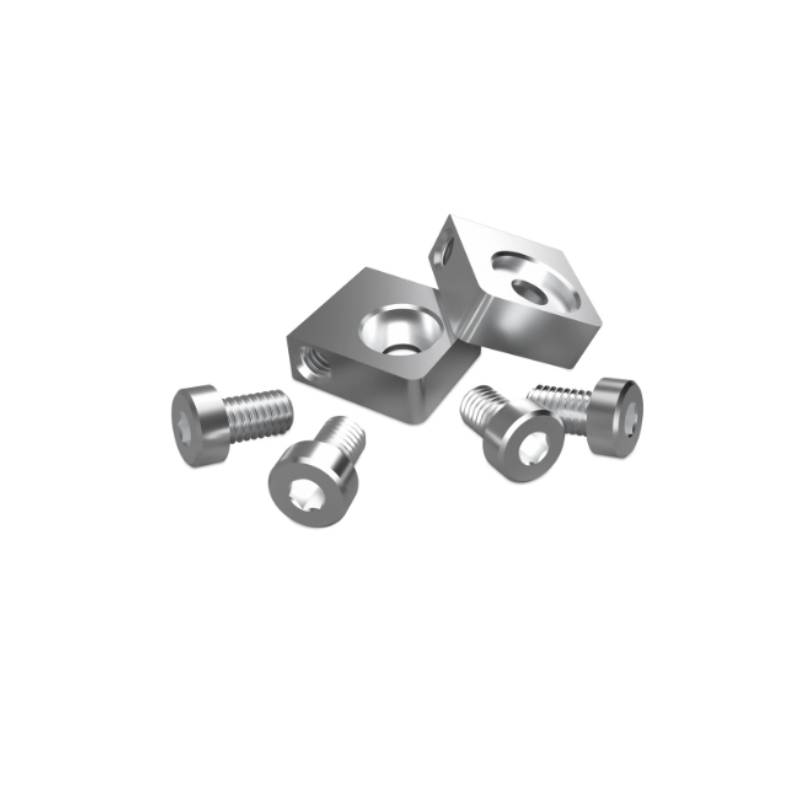

The XS Power 595 is a versatile Powersports Terminal Adaptor crafted from machined aluminum, providing both front and side mounting options for a durable and corrosion-resistant solution.
Frequently Asked Questions (FAQ)
- • Why doesn't the XS Power 595 line up with my factory battery cables?
The 595 is designed around a specific powersports terminal arrangement. If the front or side connection does not align correctly, verify the battery's terminal configuration before modifying the adapter or wiring.
- • Why does the 595 feel loose after I attach the cable?
A loose connection can result from an improperly seated terminal, incorrect hardware, or a cable pulling sideways on the adapter. Make sure the cable lug sits flat and the connection is properly secured before using the vehicle.
- • Can I use the 595 to add another power connection?
The front-and-side design provides additional connection flexibility for compatible powersports battery installations. Make sure the added cable uses the correct terminal size and does not interfere with the original connection.
- • Why is my cable difficult to position on the side terminal?
Powersports battery compartments can be tight, and thick cables may not have enough room to bend naturally. Route the cable before tightening the terminal so it does not place constant sideways pressure on the adapter.
- • Why am I getting intermittent electrical power after installing the 595?
An intermittent connection can come from a loose fastener, poor cable-lug contact, corrosion, or insufficient contact between the adapter and battery terminal. Inspect every connection point rather than assuming the adapter itself is defective.
- • Why does the 595 become warm when I run my accessories?
Some warmth can occur under substantial electrical load, but excessive heat may indicate resistance at the connection. Check the cable lug, crimp, terminal contact, and fastener tightness if the adapter becomes unusually hot.
- • Will the 595 fit every powersports battery?
No. The 595 is a powersports front-and-side terminal adapter, so compatibility depends on the battery's terminal design and physical arrangement. Confirm the battery configuration before purchasing.
- • Why is there not enough clearance around my 595 after installation?
The adapter adds hardware around the battery terminals, which can become an issue in compact powersports compartments. Check clearance from the battery box, frame, body panels, and other conductive components before finalizing the installation.
- • Why does my electrical system still show voltage loss with the 595 installed?
The adapter only provides the connection; it does not increase battery output. If voltage loss continues, inspect the battery, cable gauge, crimps, grounding points, fuse connections, and all terminal contact surfaces.
- • Can I use the 595 for a high-current powersports audio setup?
It can be part of a high-current installation when the battery, cables, terminals, and protection devices are appropriately sized. Keep the connections clean and secure, and make sure the cable routing does not place mechanical stress on the adapter.
Features:
- Powersports Terminal Adaptor: The XS Power 595 is a specialized terminal adaptor designed for use in powersports applications.
- Front and Side Mounting: This adaptor offers the flexibility of both front and side mounting options, catering to a variety of installation preferences.
- Machined Aluminum Construction: Constructed from high-quality machined aluminum, the 595 terminal adaptor is not only durable but also corrosion-resistant, ensuring longevity in challenging environments.
- UPC: 692209054924
- Weight: 4
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
