16' Bass Boost Remote cable (RJ-14 plug on both ends)
Four 3/4" Screws
Two 3/8" Screws
3mm Allen wrench
Owner's manual (English/ French)
Owner's manual (Spanish)

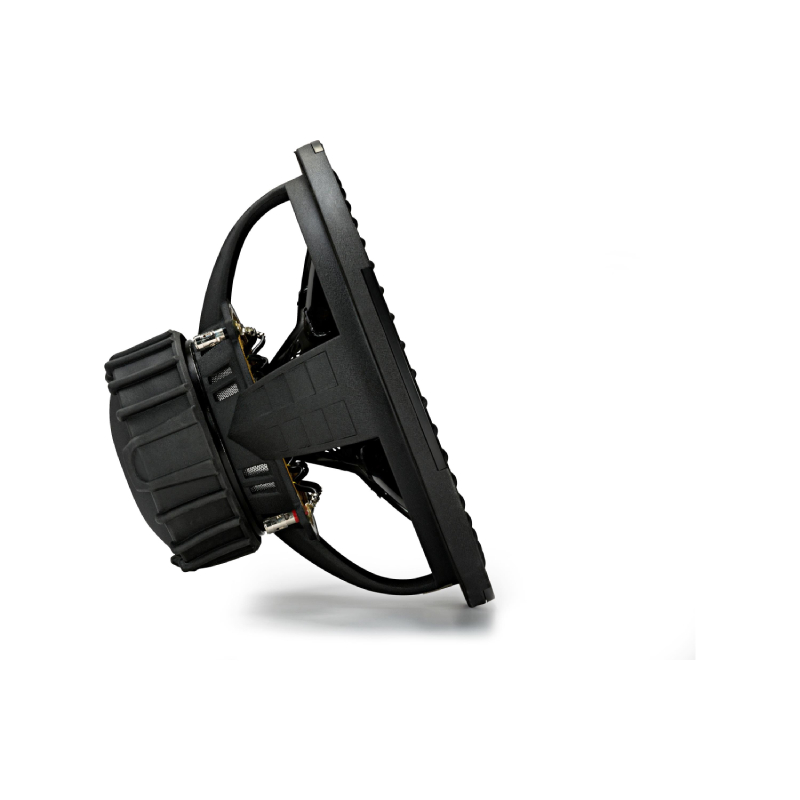

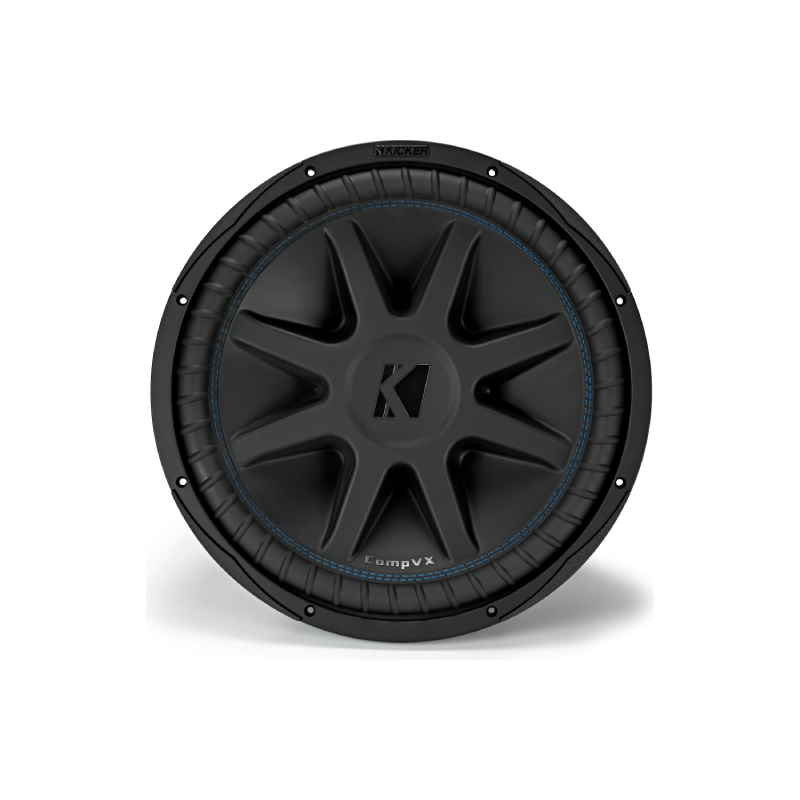

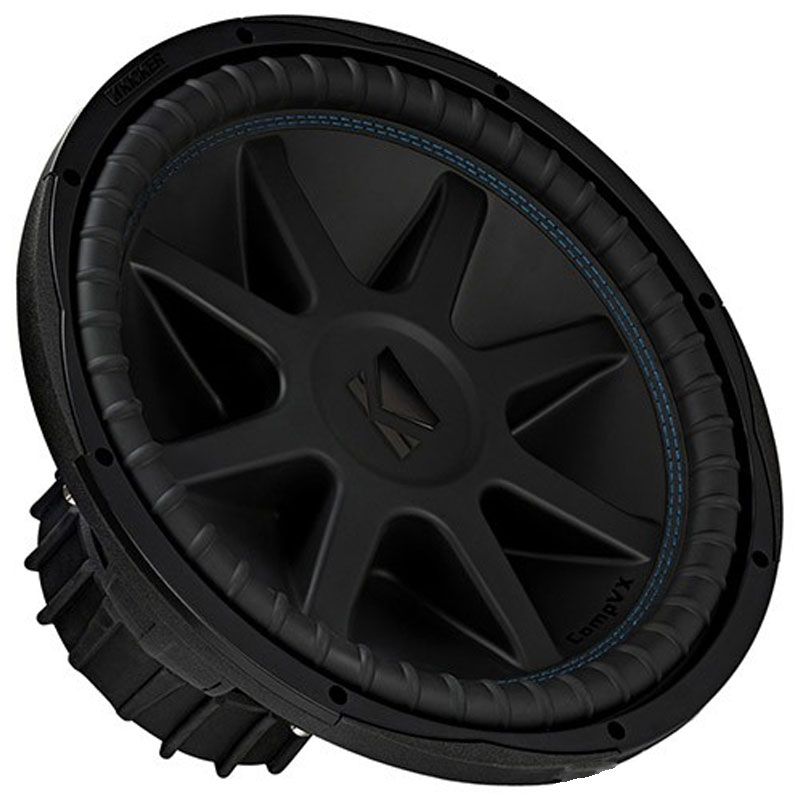

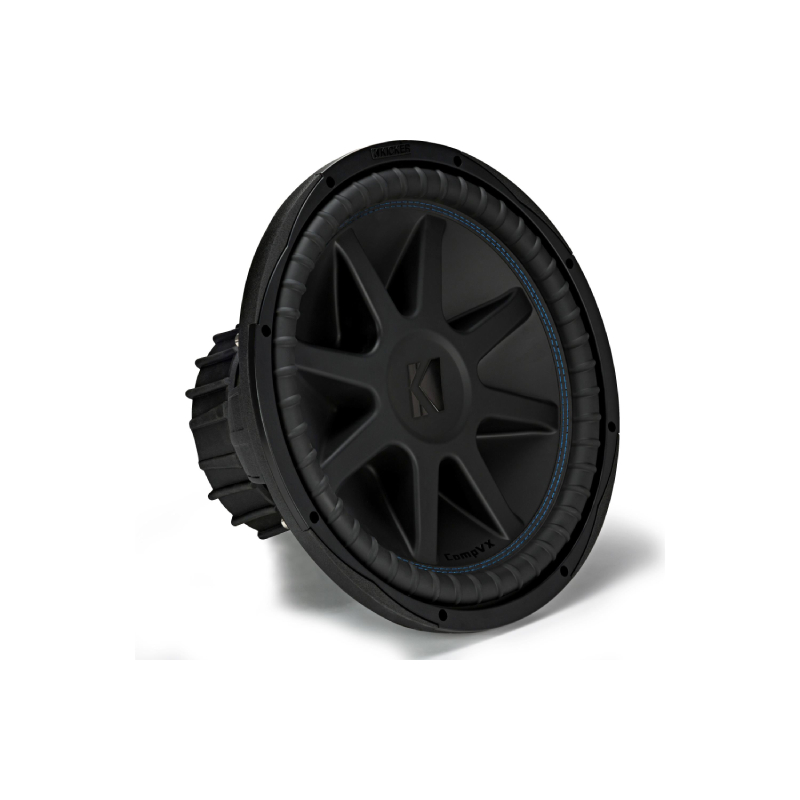

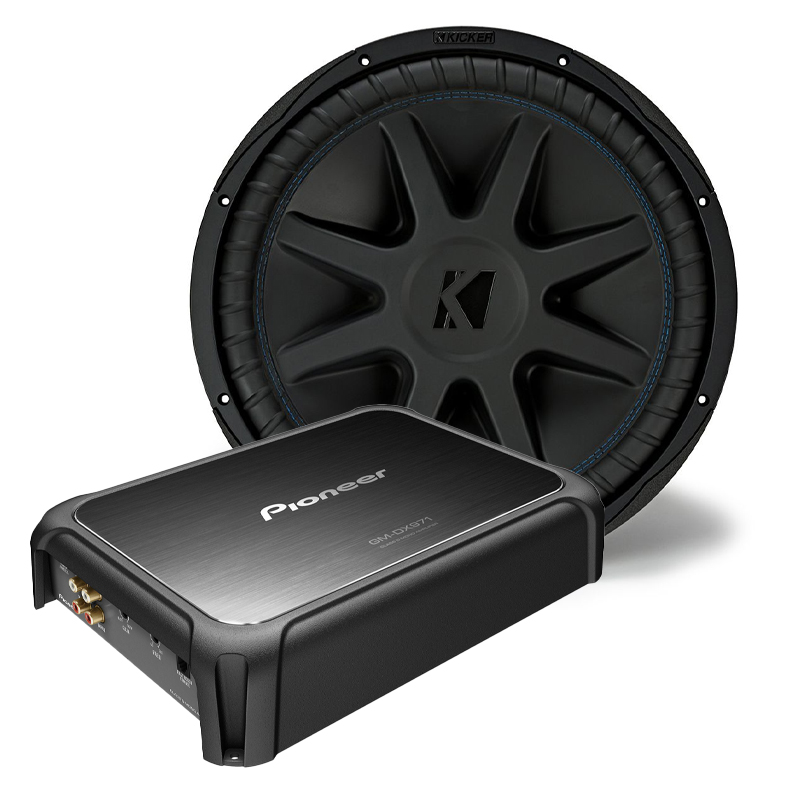

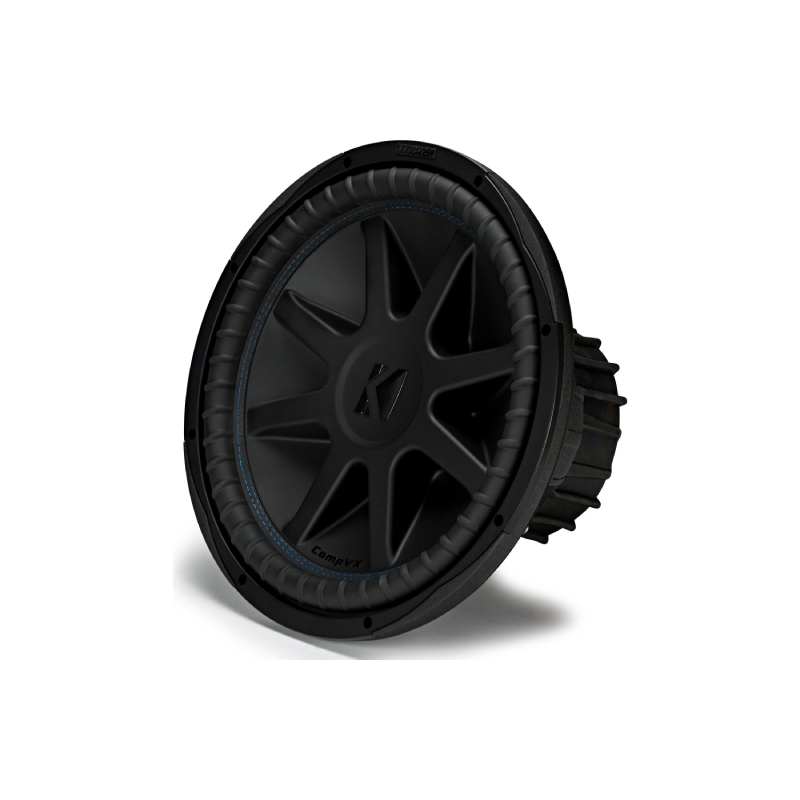

CompVX Series 15" 1000W RMS (2000W Peak Power Handling) Dual 2-Ohm Voice Coil Car Subwoofer
Dual Two-Ohm Voice Coils
Thick Polypropylene Cone
Signature Double Blue Surround Stitching
Ribbed Santoprene® Surround
SoloKon™ Cone Reinforcement
Oversized Suspension System
High-Strength Insulated Tinsel Leads
High Temp Voice Coil
Perimeter Venting for Thermal Management
Massive Ceramic Magnet
UniPlate™ Extended Pole Piece & Backplate For Superior Heat Dissipation
Cast Aluminum Basket
Satin Nickel Spring-Loaded Speaker Terminals
Size (IN.,CM): 15, 38
Impedance (OHMS): 2 DVC
Max Rec Amplifier Power (WATTS PEAK/RMS)*: 2000/1000
Sensitivity (dB 1w/1m): 91.6
Frequency Response (Hz): 18-500
Mounting Depth (in, cm): 8-1/2, 21.5
Mounting Cutout (in, cm): 13-13/16, 35
Min Sealed Box Vol (cu. ft, L): 1.8, 51.0
Max Sealed Box Vol (cu. ft, L): 5.2, 147.0
Min Vented Box Vol (cu. ft, L): 3.0, 85.0
Max Vented Box Vol (cu. ft, L): 5.0, 142.0

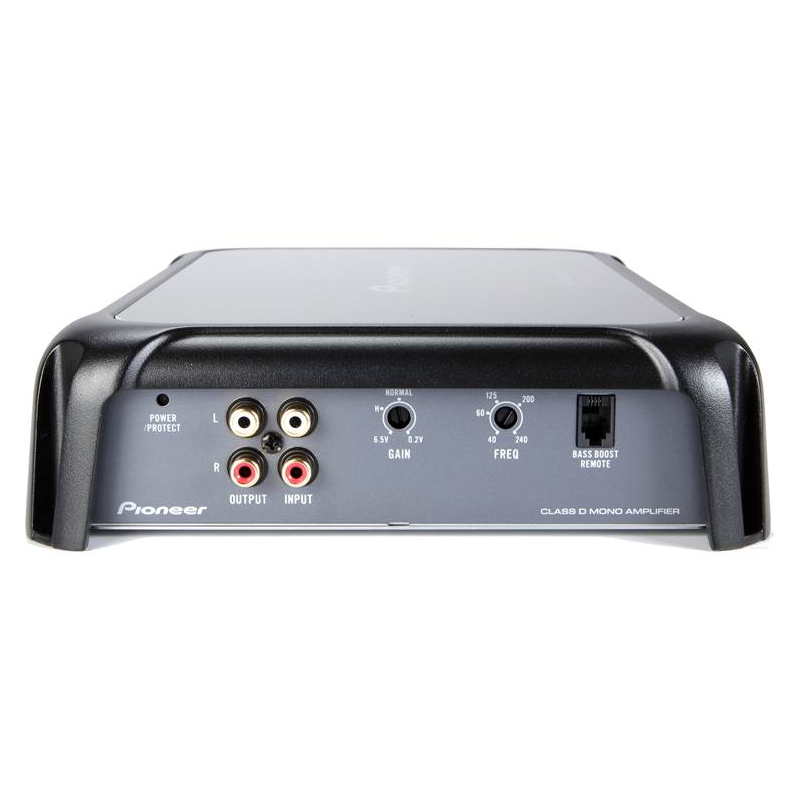

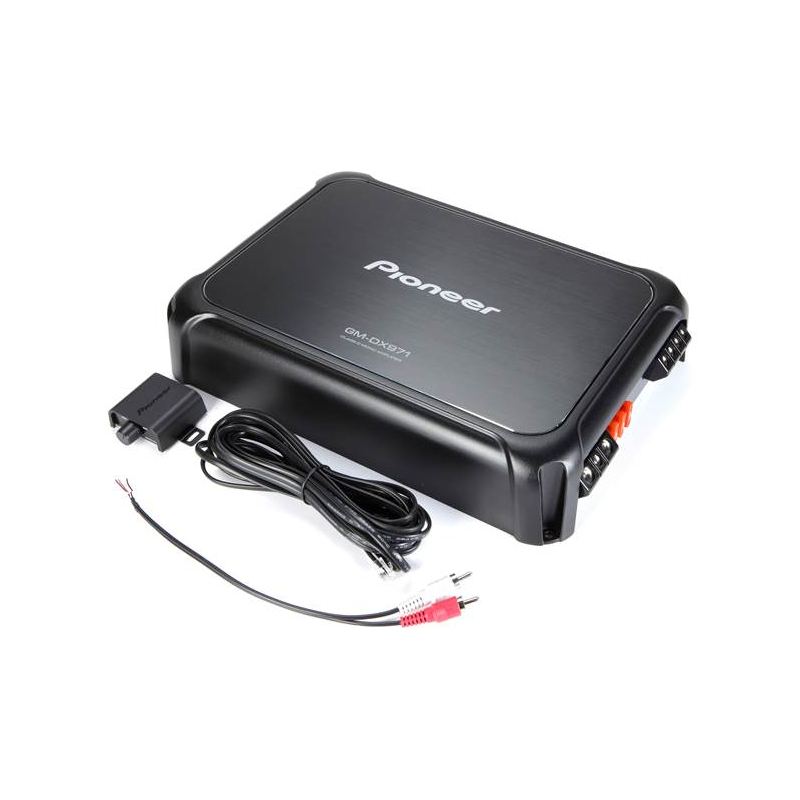

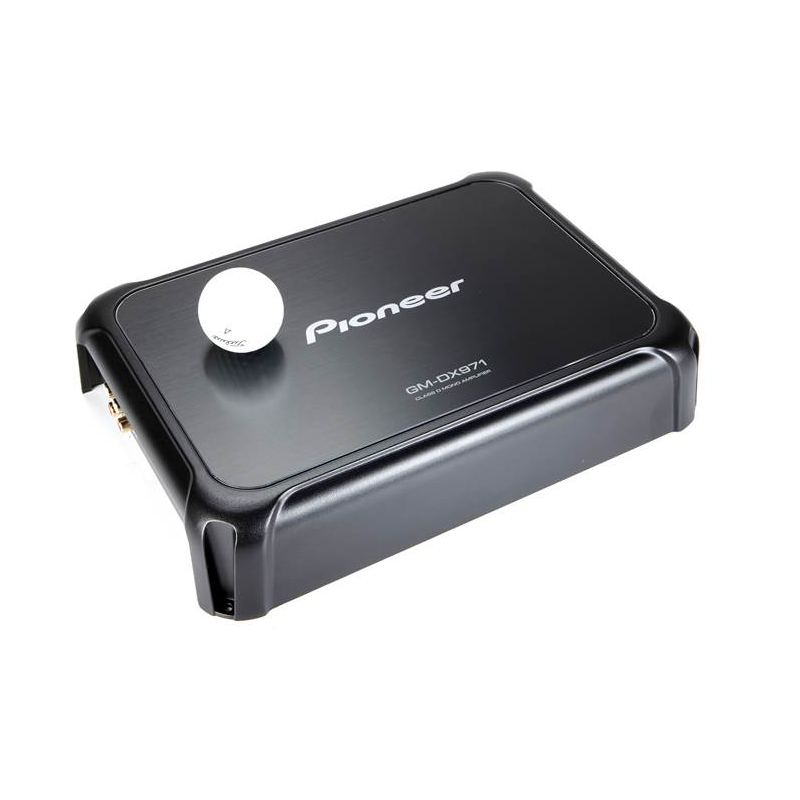

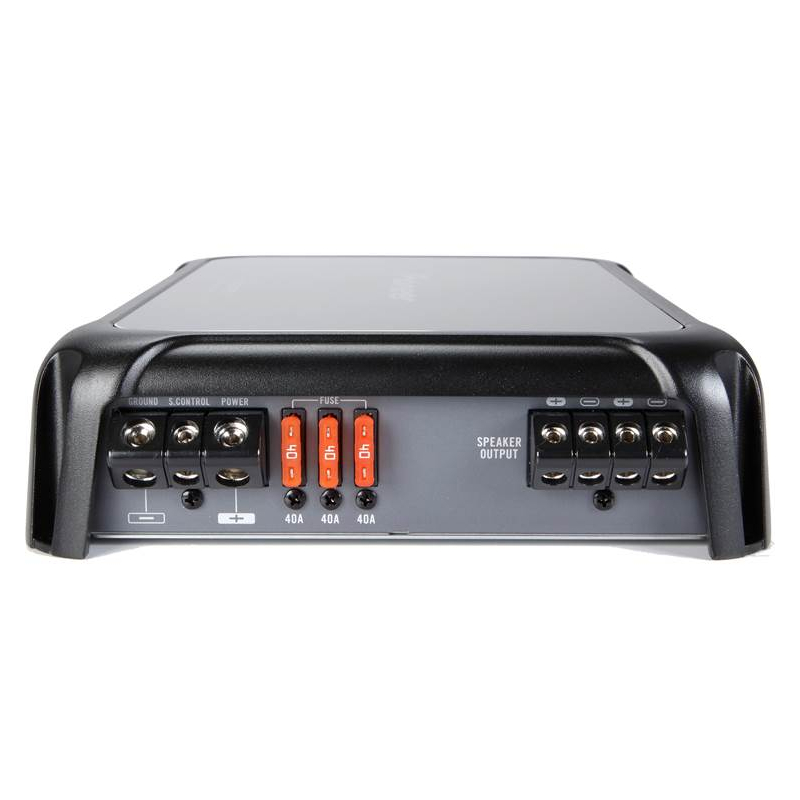

GM Digital Series 2400 Watts Max Class-D Mono Amplifier with Gold RCA Terminals, HQ Sound Parts and Wired Bass Boost Remote
RCA Inputs: MONO (Gold Plated)
Amplifer Class: CLASS-D
High Quality Sound Parts: Yes
Speaker Level Inputs: Yes
Crossover Type: Variable LPF
Warranty: 1 Year
Continuous Power (RMS) Output at 1 Ohm: 1200W RMS x 1
Continuous Power (RMS) Output at 2 Ohms: 800W RMS x 1
Continuous Power (RMS) Output at 4 Ohms: 500W RMS x 1
Frequency Response: 10 Hz to 240 Hz
Total Harmonic Distortion (THD): < 0.5% (100 Hz)
Signal-to-Noise (SN) Ratio: > 100 dB
Low-Pass Crossover Frequency: 40 Hz
Low Pass Slope (dB/octave): -12dB
Bass Boost Frequency: 50 Hz
Bass Boost Level: 0 dB to 18 dB

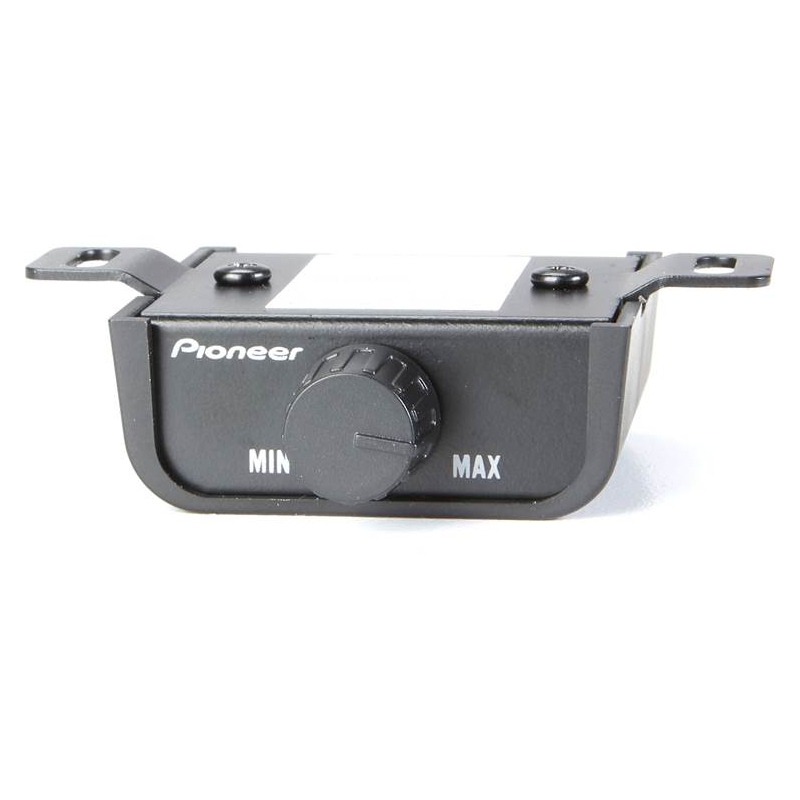

Bass Boost Remote: Yes
Hi-Volt Input Level Control: 200 mV to 6.5 V
Terminal Type: Block
Load Impedance Allowance (Ohms): 1 to 8
Protection Control System: Yes
Dimensions: 12-3/8" x 2-3/8" x 7-7/8"
