Alpine  S-SB10V-BNDL

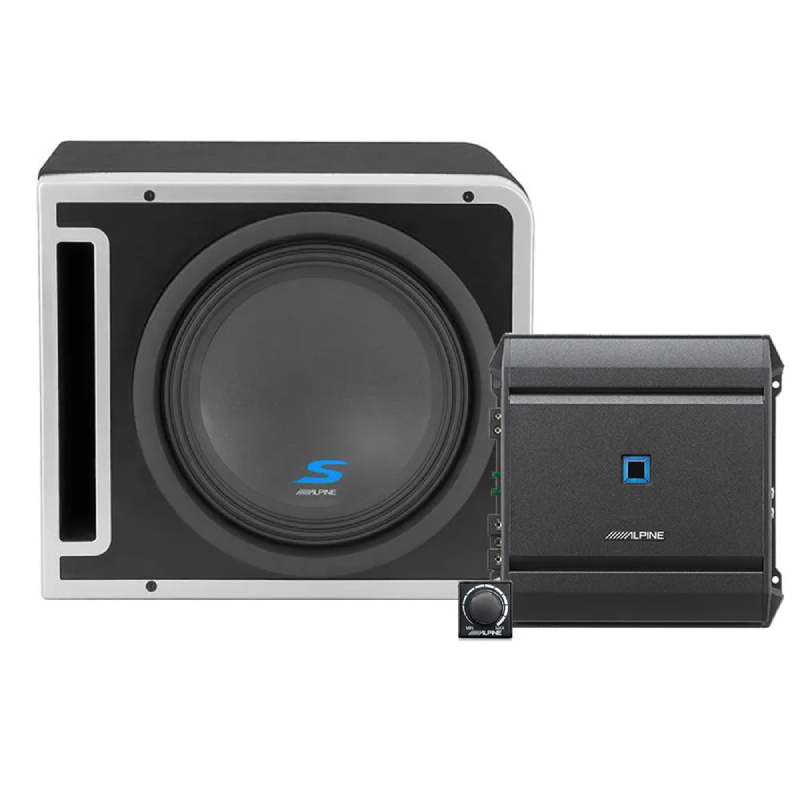

Alpine S-SB10V Loaded ported enclosure + Alpine S-A60M Mono subwoofer amplifier + Alpine RUX-KNOB.2 Remote Bass Level Control Alpine BASS BOOST BUNDLE

Item #84886

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS



FEATURES


What's Inside?

Alpine S-SB10V:

  • Ported enclosure loaded with one S-W10D4 subwoofer driver
  • Warranty information
  • Product registration information
  • Safety notice

Alpine S-A60M:

  • Mono subwoofer amplifier
  • Two 30-amp ATO fuses (installed)
  • Four 3/4" Screws
  • 2mm Allen wrench
  • Owner's manual (English/ French/ Spanish)
  • Alpine Verification Certificate
  • Warranty information
  • Power supply note
  • On-line product registration information

Alpine RUX-KNOB.2:

  • Remote Bass Level Control module
  • 16.4' (5 meter) connecting cable (RJ-14 plugs on both ends)
  • Four 1/2" Screws

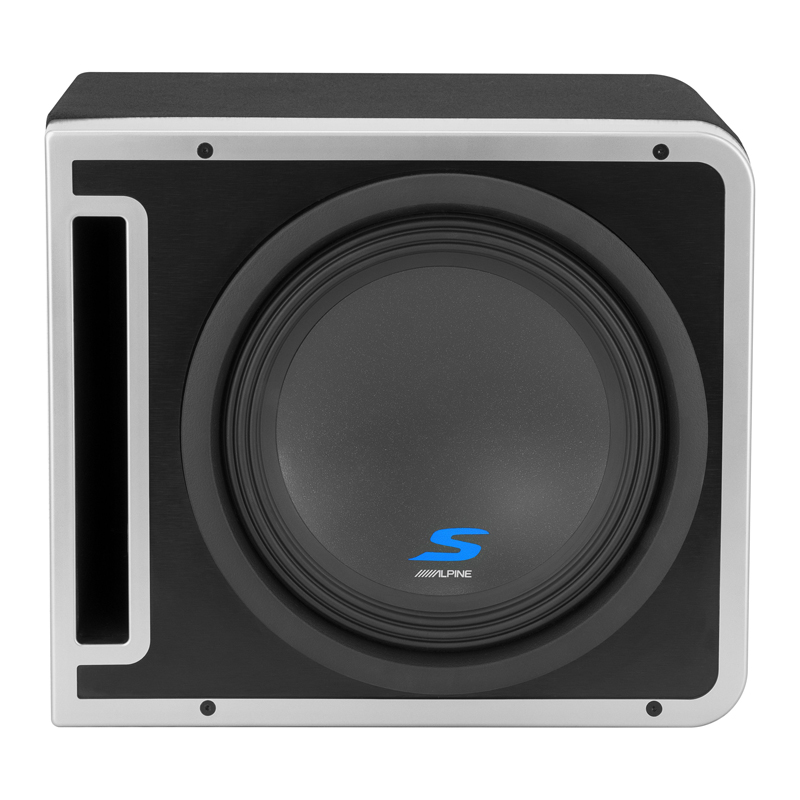

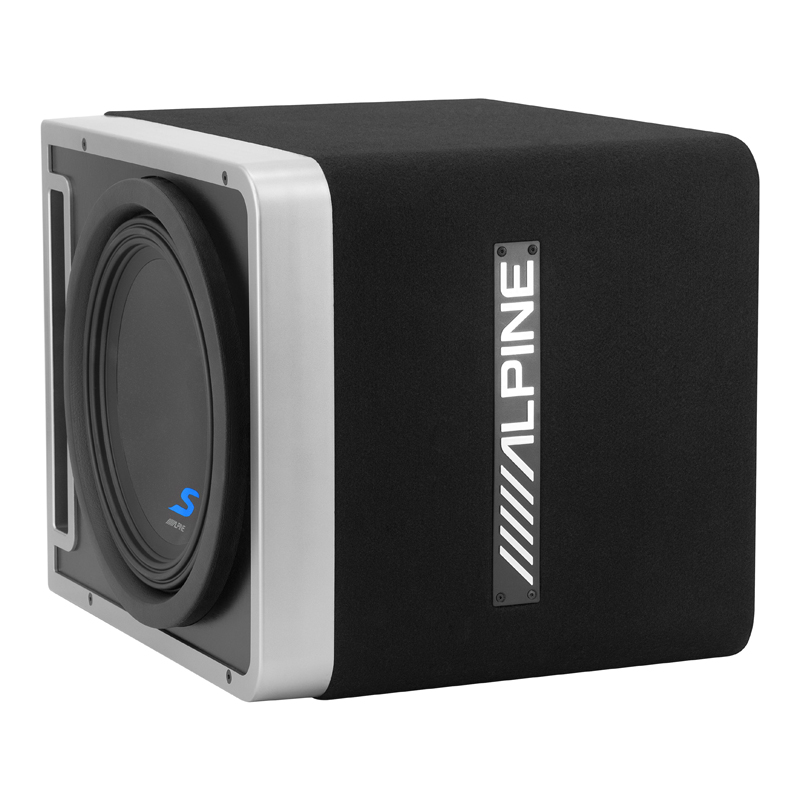

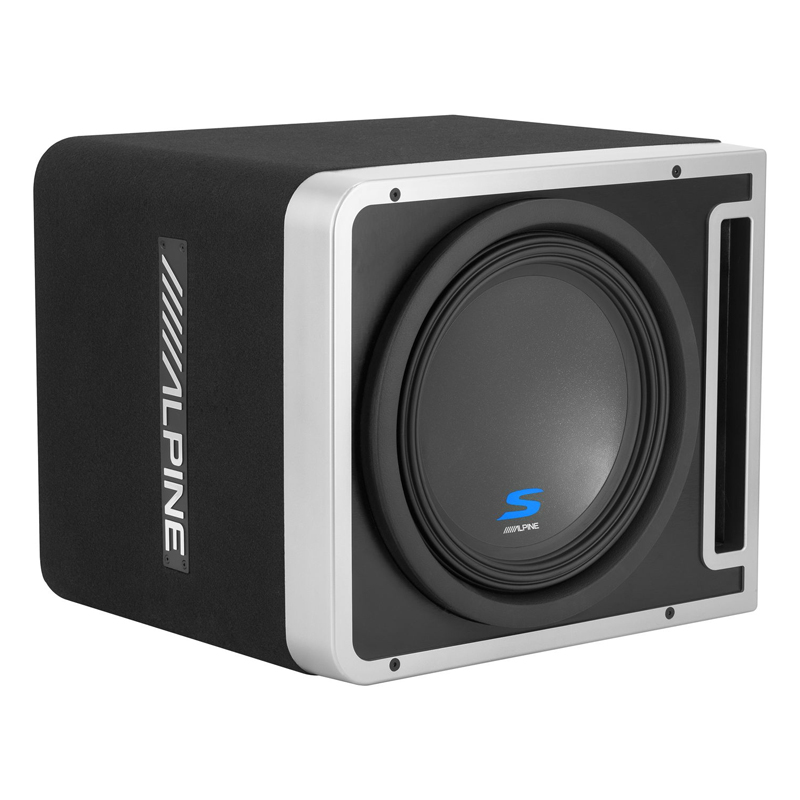

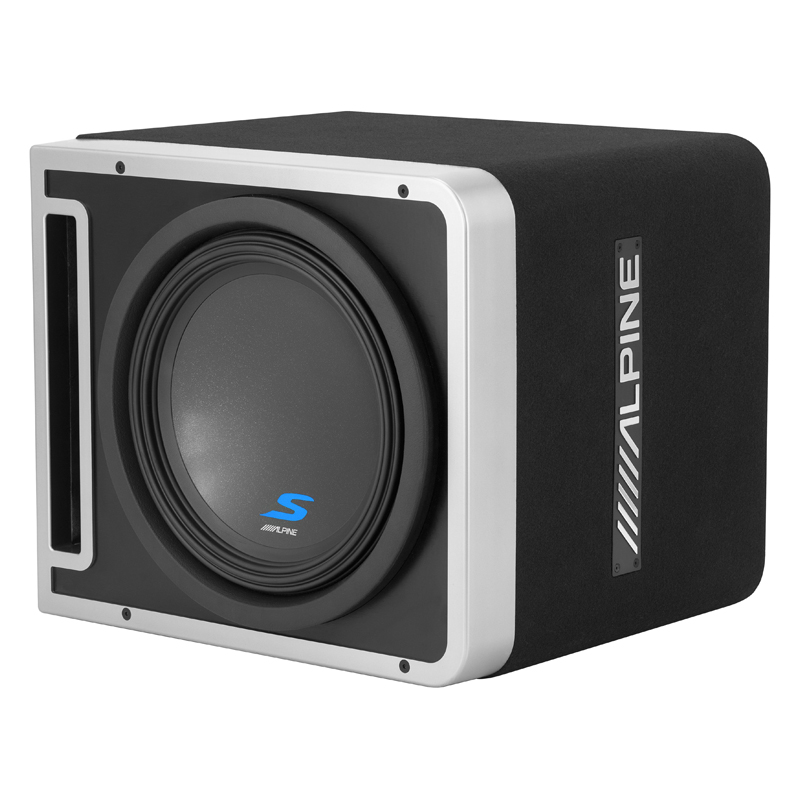

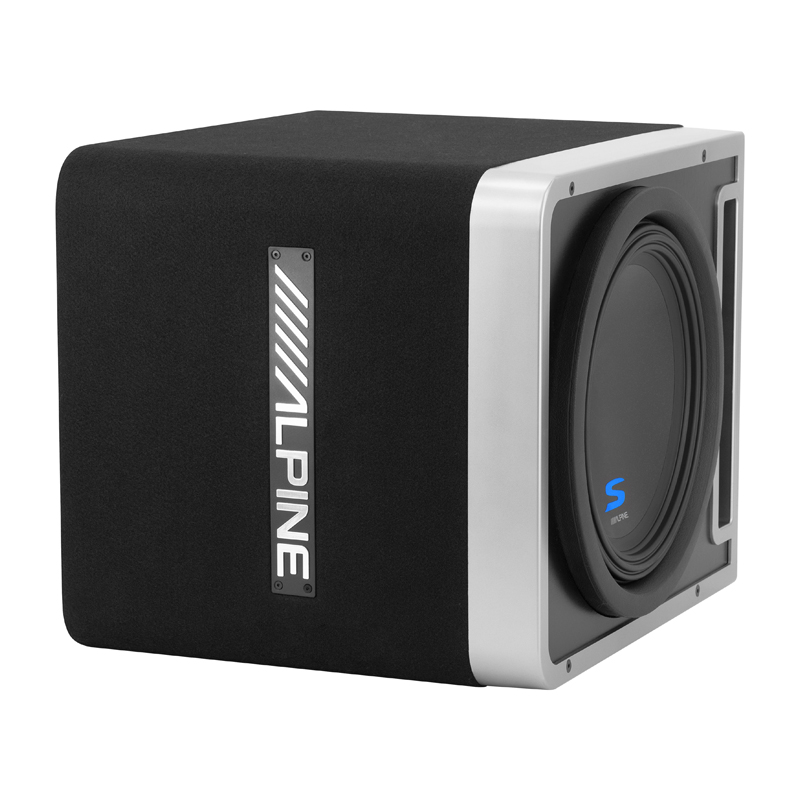

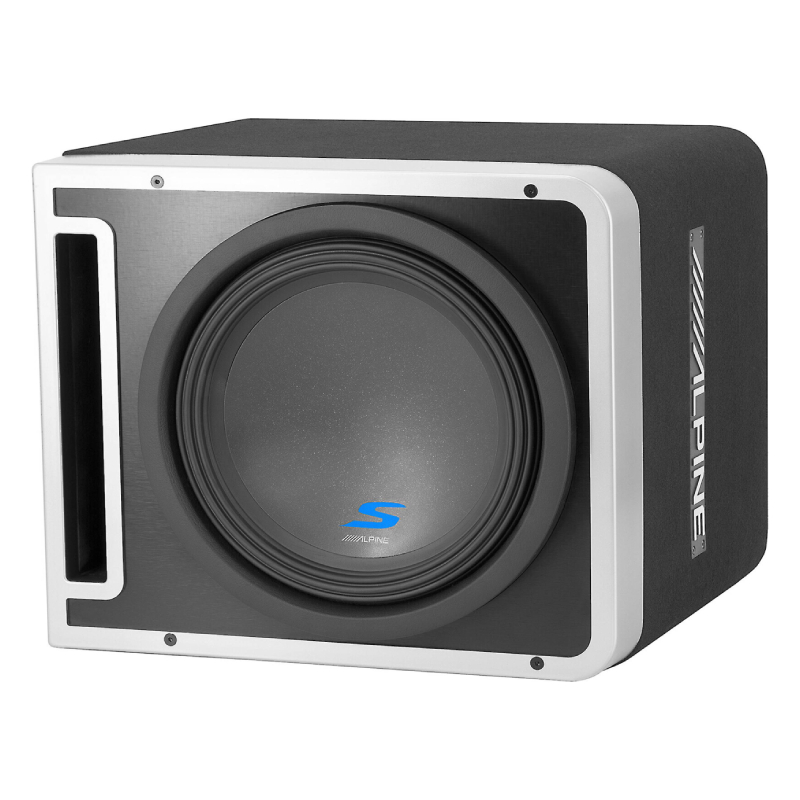

S-SB10V Halo S-Series 10" 600W RMS Dual 4 Ohm Voice Coils Pre-Loaded Subwoofer Enclosure

Features:

  • Groundbreaking Alpine Halo Design
  • ProLink™ ported enclosure design
  • Optimal Sound Performance
  • 600W RMS Power Handling
  • Includes preloaded S-W10D4 10” S-Series subwoofer
  • CARB compliant 3/4-inch MDF construction
  • Premium black carpet
  • Silver Alpine embossed side logo badge
  • Brushed aluminum finished metallic front baffle



Specifications:

  • Dimensions: 16” W x 12.6825” H x 14.5” D
  • Dual 4Ohm Voice Coils Wired in Parallel for a 2Ohm Load (Compatible with S-A60M)
  • 12 Gauge OFC Speaker Box Wire
  • Binding Post Terminal Cup
  • Threaded Subwoofer Mounting Inserts (for reversible subwoofer orientation)
  • 2Ohm Impedance
  • Frequency Response: 28-200Hz
  • Vented Enclosure Tuning Frequency: 36Hz
  • Sensitivity 84dB

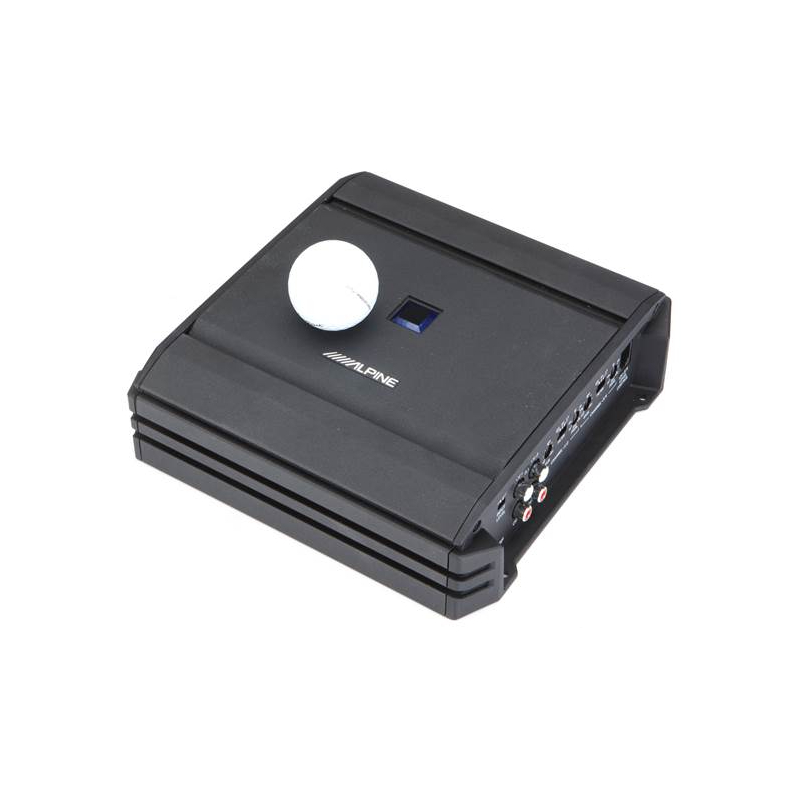

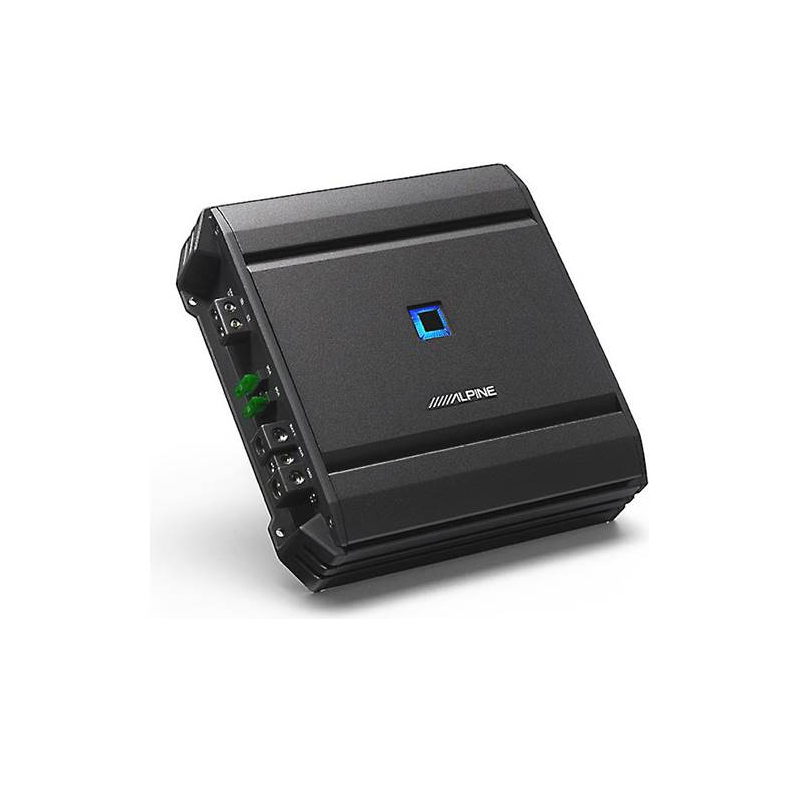

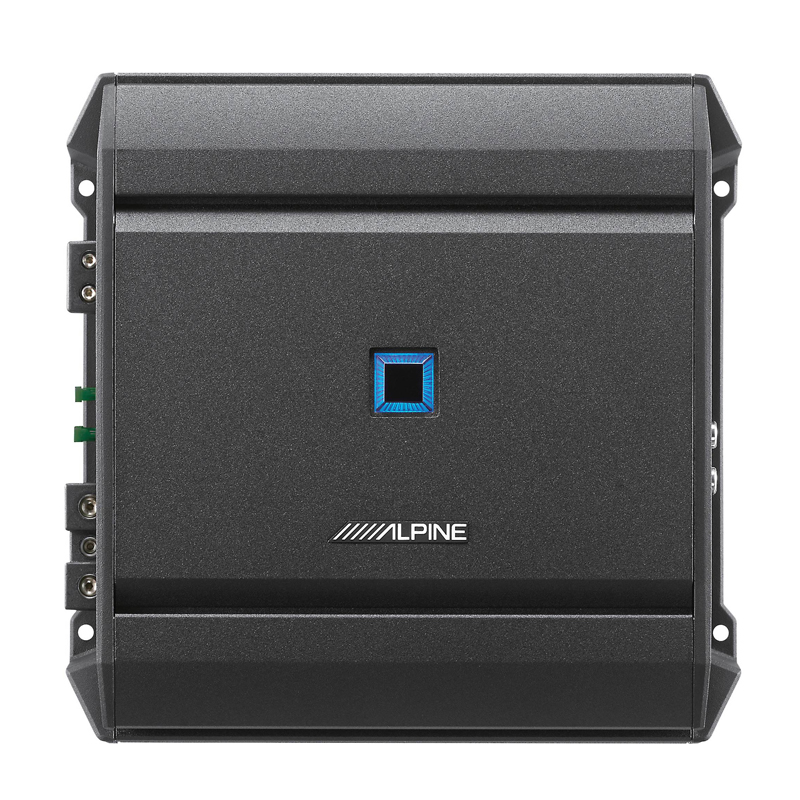

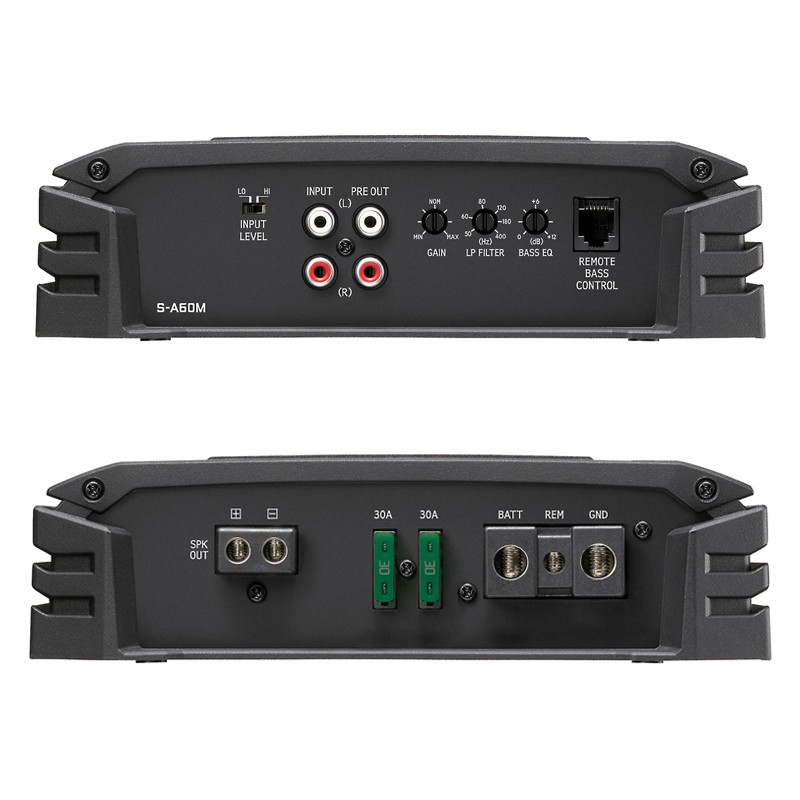

S-A60M S-Series 600W x 1 RMS Class D Mono Subwoofer Amplifier

Features:

  • High Efficiency Digital Circuit Design
  • Adaptive Feedback Global Modulation Topoglogy
  • Selectable Input Level
  • Variable Low Pass Crossover
  • Variable Bass EQ
  • Auto Turn-On with Remote Sensing
  • Remote Bass Control Ready



Specifications:

  • Amplifier Class: D
  • RMS Power Output (Watts x Channels) 400 x 1
  • Peak Power Output (Watts x Channels): N/A
  • Power at 2 Ohms (Watts x Channels) 600 x 1
  • Low-Pass Crossover Frequency: 50-400 Hz
  • Low-Pass Slope (dB/octave): 24 dB/octave
  • Bass Boost: 0-12 dB
  • Bass Boost Frequency: 50 Hz
  • Fuse Rating: 60
  • S/N: 85dBA :1W into 4ohms
  • Speaker Level Inputs: RCA
  • Preamp Outputs: 1 pair
  • Width: 8"
  • Height: 2-1/4"
  • Depth: 8"

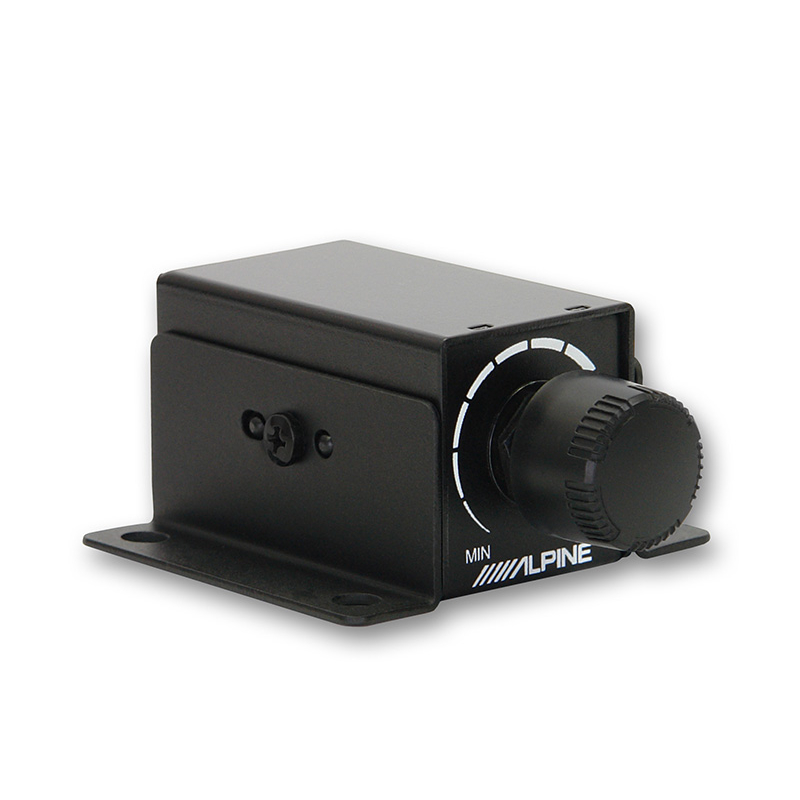

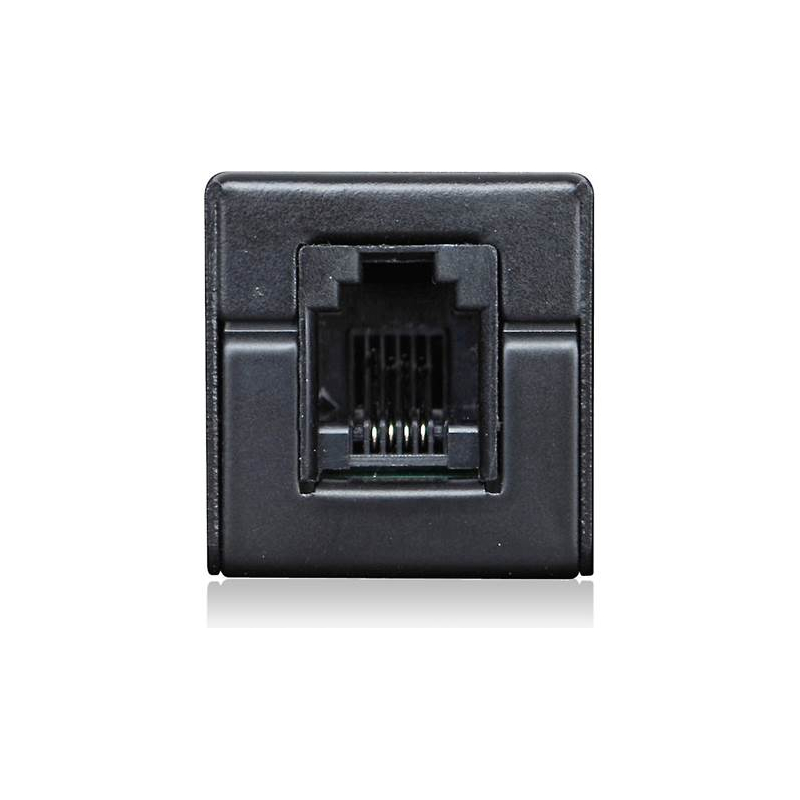

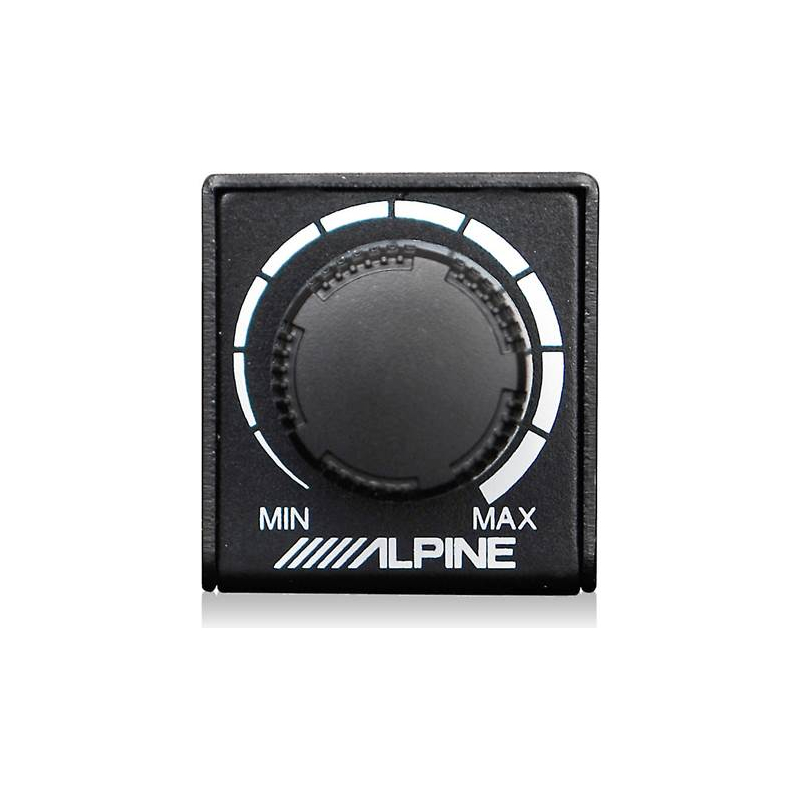

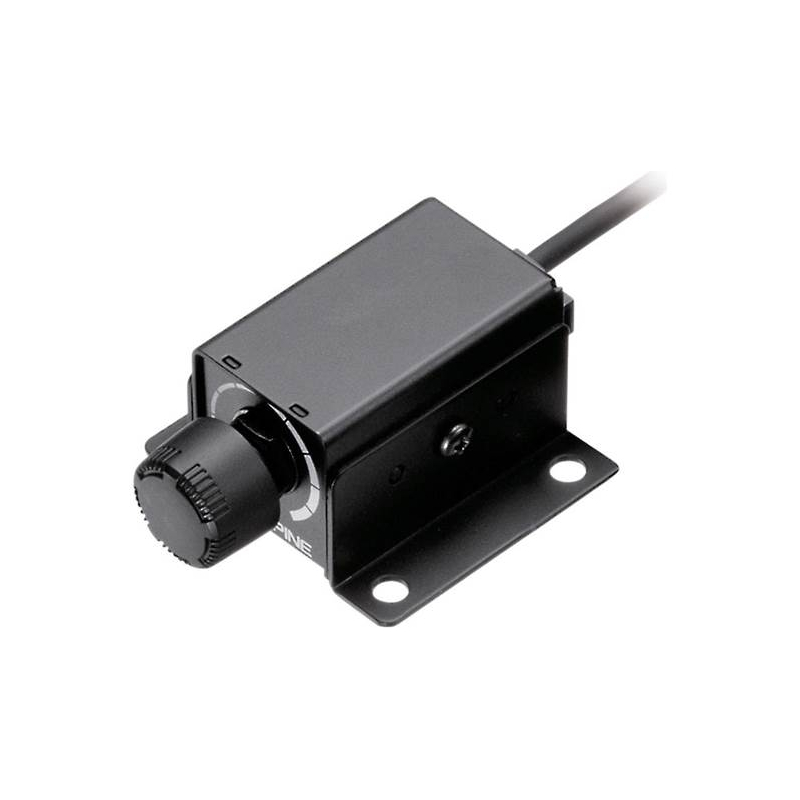

RUX-KNOB.2 Remote Bass Control for Select Alpine Amplifiers V2



Specifications:

  • Remote Bass Level Control Knob
  • 16-1/2" (5 meters) Connection cable
  • Plugs directly in for quick direct subwoofer control
  • Specifically designed as the controller for use with any of the following PDX Amplifiers: PDX-M12, and PDX-M6
  • Easily adjust the bass gain of your amp while seated inside
  • Control multiple amps from just one RUX-KNOB controller
  • UPC: 798418840072
  • Weight: 42
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
