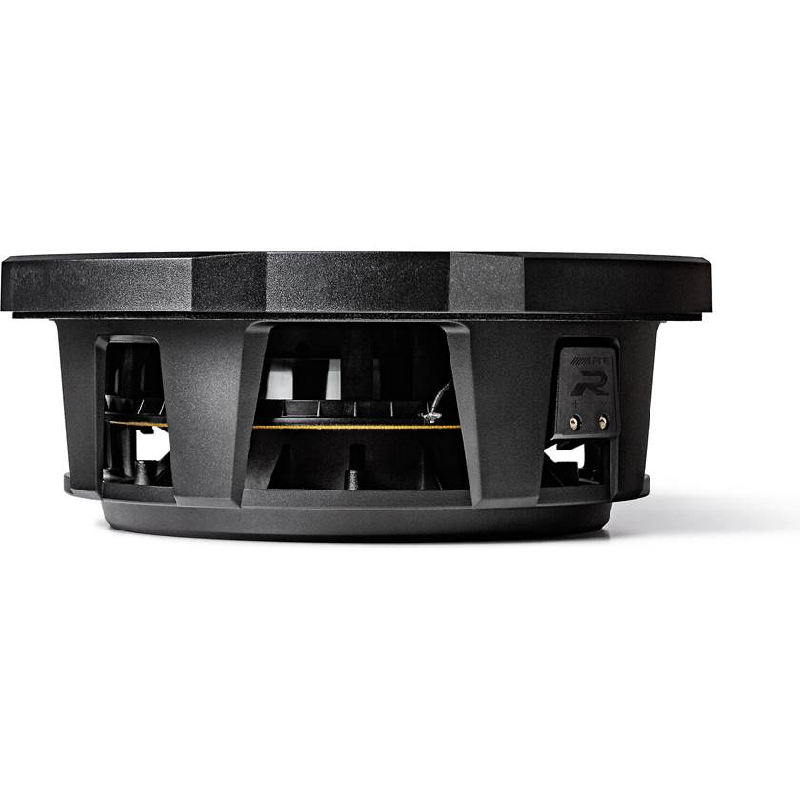

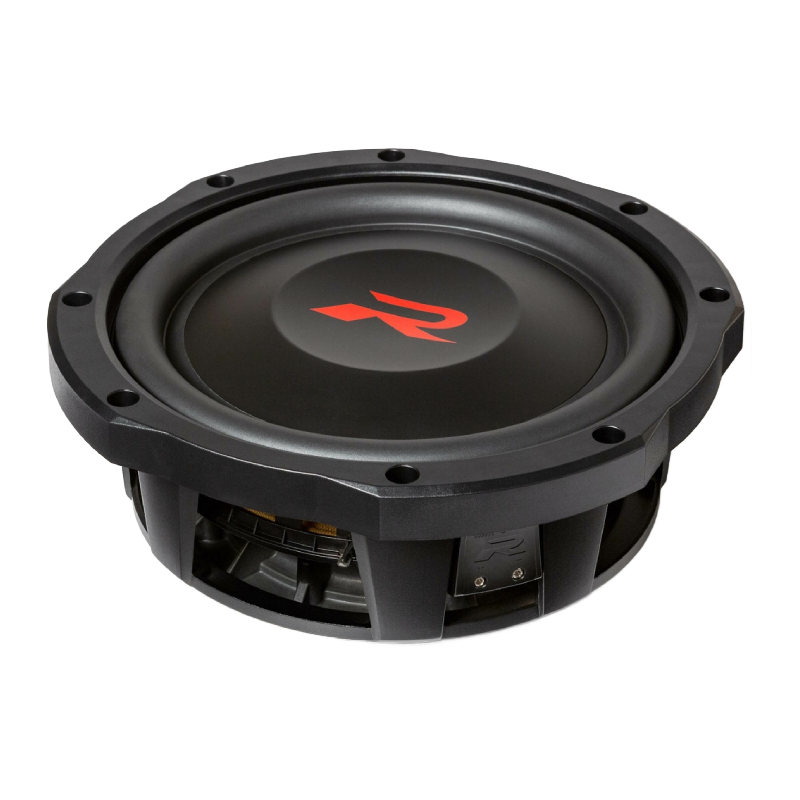

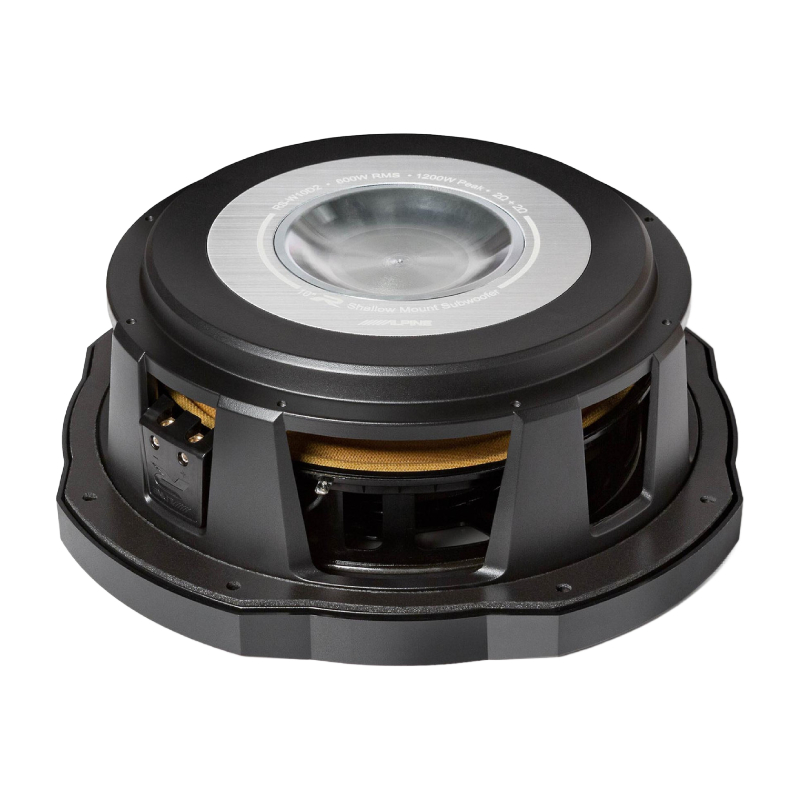

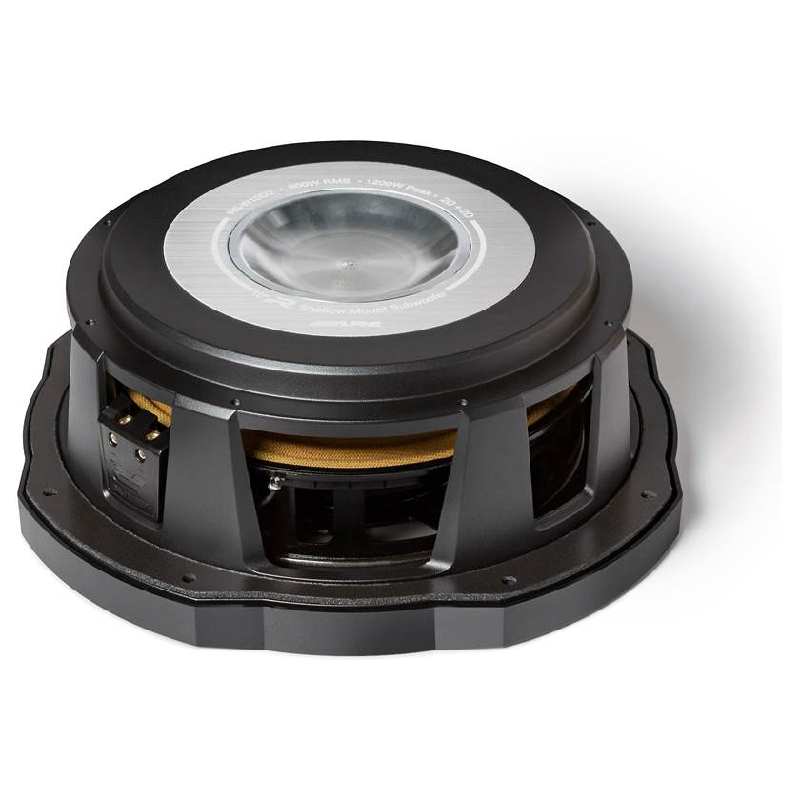

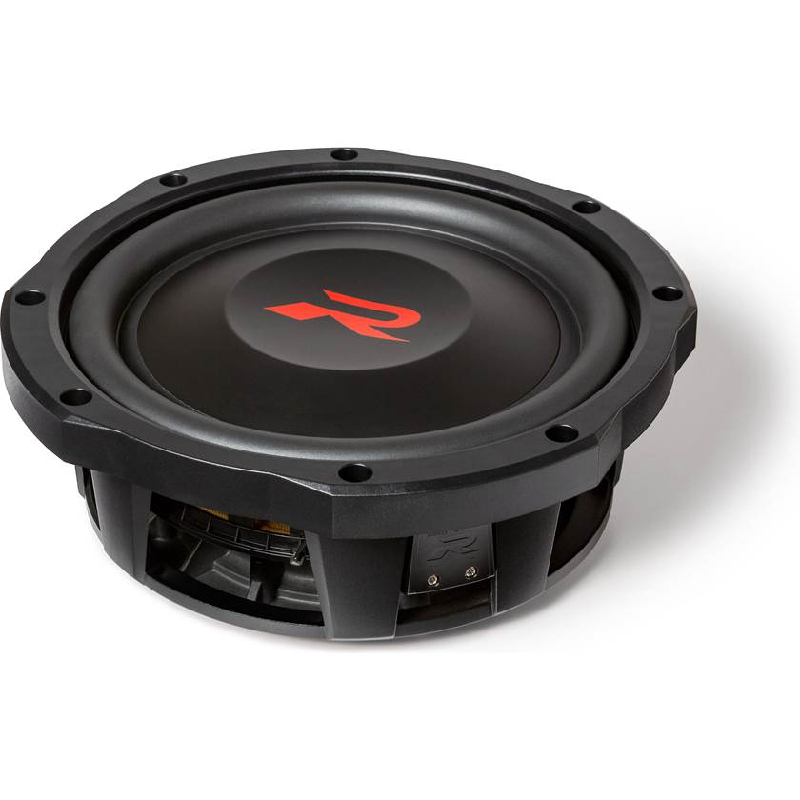

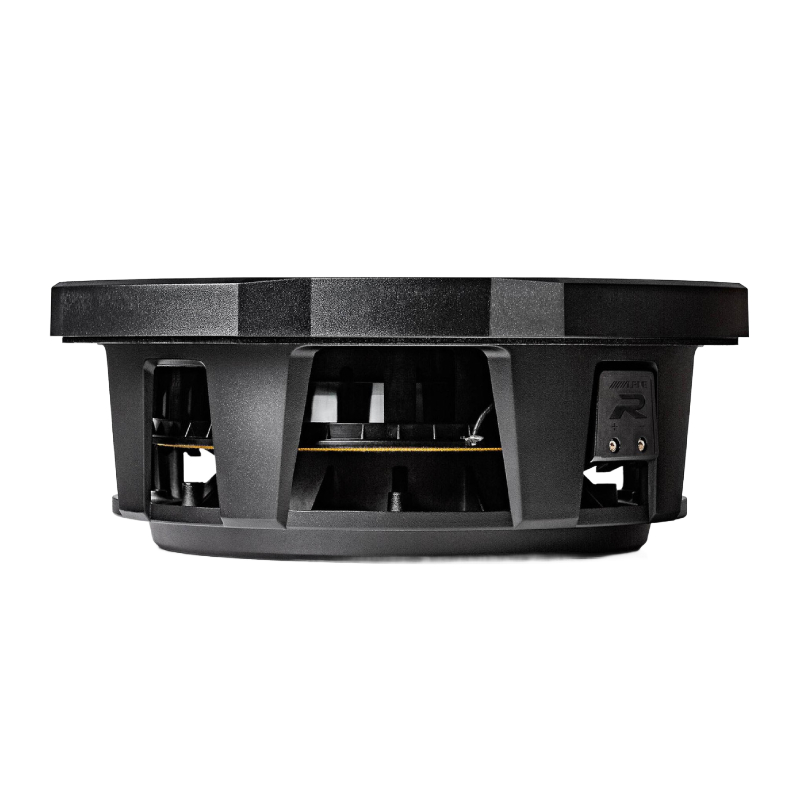

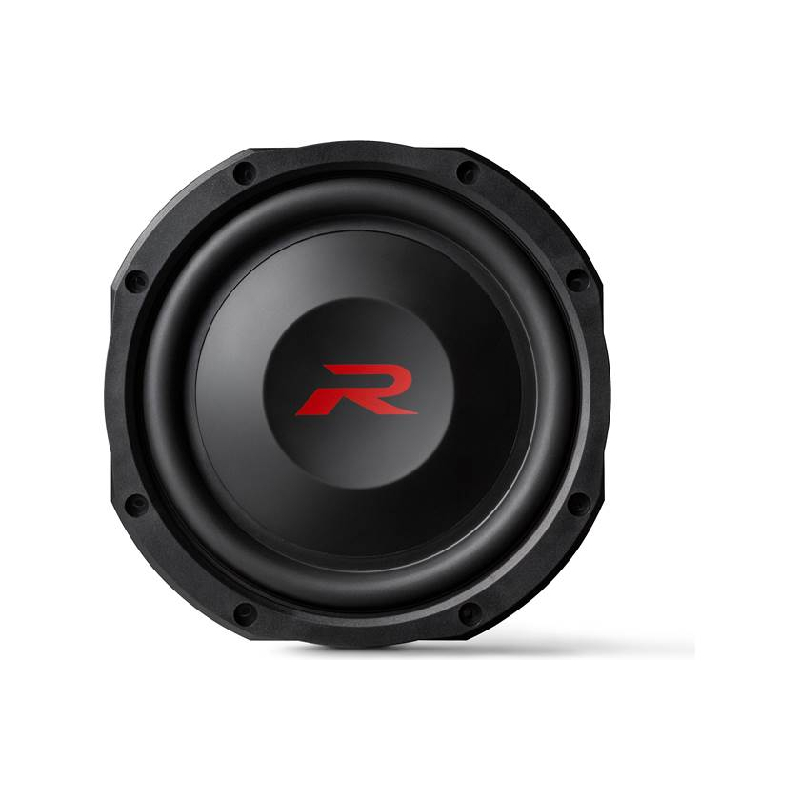

Alpine RS-W10D2 R-Series 10" 600W RMS (1800W Peak Power Handling) 2 Ohms, Dual Voice Coil Shallow Mount Component Car Subwoofer
We are a Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" Dual Voice Coil Shallow Mount Component Car Subwoofer
- • Plastic Trim Ring
- • (2) 18" Jumper Wires (12-gauge)
- • 2.5mm Hex Key
- • Application guide (English/ French)
- • On-Line Product Registration Information
- • Warranty Information (English/French)
- • Important Notice (English/French)
- • Owner's Manual
Why Choose Alpine RS-W10D2 Component Car Subwoofer?
High-Performance Bass in Tight Spaces
This 10” shallow bass driver is engineered for tight, accurate bass in compact spaces without compromising output. Equipped with Alpine’s Gen2 DD-Linear Magnetic Circuit, it ensures consistent motor force for precise cone control and ultra-low distortion.
Strong, Lightweight, and Built to Last
The cast aluminum frame provides a rigid yet lightweight structure, ensuring long-lasting durability while improving thermal management for peak performance.
Engineered for Strength and Efficiency
An aluminum dust cap reinforces durability and improves heat dissipation for reliable high-power performance, while the neodymium magnet packs powerful magnetic force into a compact design, ensuring maximum output in shallow-mount installations.
Alpine 10-Inch Subwoofer Comparison Chart | S2-W10 vs R2-W10 vs RS-W10 vs HDZ-W10 vs W10S4 vs SWT-10
| Ultimate Alpine 10" Subwoofer Performance Comparison |
S2-W10D4 / S2-W10D2
Next-Gen S-Series 10" Subwoofer – Powerful Everyday Bass with Flexible Dual Voice Coil Options
BEST VALUE
- • 10" S-Series Subwoofer
- • 600W RMS / 1,800W Peak Power
- • Dual 2Ω or Dual 4Ω voice coil options
- • 15mm X-Max for strong bass excursion
- • 25Hz–215Hz frequency response
- • Carbon fiber/polypropylene cone
- • H.A.M.R. surround design
|
R2-W10D4 / R2-W10D2
Next-Gen R-Series 10" Subwoofer – High-Output Bass with a Heavy-Duty Motor Structure
HIGH PERFORMANCE
- • 10" R-Series Subwoofer
- • 750W RMS / 2,250W Peak Power
- • Dual 2Ω or Dual 4Ω voice coil options
- • 20mm X-Max for massive excursion
- • 26Hz–200Hz frequency response
- • Double-stacked magnet structure
- • Kevlar-reinforced pulp cone
- • 6" mounting depth
|
RS-W10D4 / RS-W10D2
R-Series Shallow 10" Subwoofer – Serious Bass Performance for Space-Constrained Builds
BEST SHALLOW
- • 10" R-Series Shallow Subwoofer
- • 600W RMS / 1,800W Peak Power
- • Dual 2Ω or Dual 4Ω voice coil options
- • 20mm X-Max
- • 29Hz–200Hz frequency response
- • 4" voice coil
- • Neodymium magnet
- • 3.25" mounting depth
|
HDZ-W10
Alpine Status 10" Subwoofer – Premium High-Output Bass and Audiophile-Level Construction
PREMIUM
- • 10" Alpine Status Subwoofer
- • 800W RMS / 2,400W Peak Power
- • Dual voice coil
- • 20mm linear excursion
- • 24Hz–200Hz frequency response
- • Triple-stacked strontium ferrite magnets
- • Carbon-fiber dust cap
- • Cast-aluminum frame
- • 7.44" mounting depth
|
W10S4
Alpine 10" Bass Series Subwoofer – Affordable Bass for Everyday System Upgrades
BUDGET PICK
- • 10" Bass Series Subwoofer
- • 250W RMS / 750W Peak Power
- • Single 4Ω voice coil
- • 24Hz–200Hz frequency response
- • Designed for everyday bass upgrades
- • Easy amplifier matching
- • Budget-friendly performance
|
SWT-10S4 / SWT-10S2
Truck Series 10" Subwoofer – Compact Bass Performance for Trucks and Space-Limited Installations
TRUCK / COMPACT
- • 10" Truck Series Subwoofer
- • 350W RMS / 1,000W Peak Power
- • Single 2Ω or Single 4Ω options
- • 30Hz–200Hz frequency response
- • 4.19" mounting depth
- • Designed for truck installations
- • Space-conscious enclosure design
|
Alpine RS-W10D2 Highlights
POWERFUL BASS
600W RMS Power Handling
Deliver serious low-end performance with 600 watts RMS power handling and up to 1,800 watts of peak power.
SHALLOW DESIGN
3.25" Mounting Depth
The ultra-shallow 3.25-inch design makes the RS-W10D2 ideal for powerful bass installations where space is limited.
DUAL VOICE COIL
Dual 2-Ohm Voice Coils
The dual 2-ohm voice coil configuration provides flexible wiring options for matching the subwoofer to your amplifier.
HIGH EXCURSION
20mm X-Max
With 20mm of excursion, the RS-W10D2 moves plenty of air for deep, hard-hitting bass despite its shallow design.
ADVANCED MOTOR
Gen2 DD Linear Magnetic Circuit
Alpine's Gen2 DD Linear Magnetic Circuit improves motor control for precise bass performance with reduced distortion.
DURABLE CONSTRUCTION
Cast Aluminum Frame
The rigid cast aluminum frame provides a strong foundation for reliable performance during high-output bass playback.
OVERSIZED VOICE COIL
4" Voice Coil
The oversized 4-inch voice coil works with the neodymium magnet to handle up to 600W RMS while maintaining strong bass control.
Alpine RS-W10D2 Recommended Amplifiers | Best R-Series Shallow Subwoofer Amp Pairings for Powerful Bass
Power Up Your Alpine RS-W10D2 Bass
Real-world amplifier recommendations for the Alpine RS-W10D2 10-inch R-Series Shallow Subwoofer
Amplifier Matching Overview
RS-W10D2 Power Rating: 600W RMS / 1800W Peak
Ideal Amp Range: Approximately 500W – 600W RMS for a single subwoofer
RS-W10D2: Dual 2Ω voice coil configuration
Single-Sub Wiring: Wire both 2Ω voice coils in parallel for a 1Ω final load
Best Setup: Alpine S2-A60M 600W mono amplifier for a direct 1Ω power match
Best Overall Match – 600W S-Series Mono Amplifier
The S2-A60M is the best overall match for a single RS-W10D2. Wire the dual 2Ω voice coils in parallel for a 1Ω final load, allowing the amplifier to deliver 600W RMS and closely match the subwoofer's 600W RMS power handling.
Premium Alternative – 750W Next-Gen R-Series Mono Amplifier
The R2-A75M is a premium alternative for the RS-W10D2 when additional amplifier capability is desired. Wire the dual 2Ω voice coils in series for a 4Ω final load and configure the amplifier gain appropriately for the subwoofer's 600W RMS rating.
Why the S2-A60M Is the Recommended Choice
Ideal Power Match: The S2-A60M delivers 600W RMS at 1Ω, matching the RS-W10D2's 600W RMS rating
Perfect DVC Match: The RS-W10D2's dual 2Ω voice coils can be wired in parallel for a 1Ω final load
Full Bass Performance: Properly configured, the amplifier can provide the RS-W10D2 with its rated power
Class-D Efficiency: Efficient mono amplifier design provides strong bass output in a compact chassis
Alpine System Matching: The S2-A60M provides a simple and well-matched Alpine amplifier solution
RS-W10D2 Dual Voice Coil Amplifier Matching
Voice Coil Configuration: The RS-W10D2 features dual 2Ω voice coils
Parallel Wiring: Wire both 2Ω voice coils in parallel to create a 1Ω final impedance
Series Wiring: Wire the voice coils in series for a 4Ω final impedance when required by the amplifier
Best Match: A 1Ω-stable mono amplifier producing approximately 600W RMS is the preferred setup
Important: Always confirm the amplifier's RMS output at the final impedance before connecting the subwoofer
Recommended RS-W10D2 Amplifier Settings
Gain Setting: Set the gain for clean output and avoid using gain as a volume boost
Low-Pass Filter: Start around 80Hz and fine-tune based on the vehicle, enclosure and front-stage response
Bass EQ: Keep bass boost moderate to maintain clean output and protect the subwoofer
Subsonic Filter: Use a subsonic filter with a ported enclosure and set it below the enclosure's tuning frequency
Phase: Adjust phase for the strongest and smoothest bass integration with the vehicle's front speakers
Recommended RS-W10D2 System Configurations
Single RS-W10D2: Pair one subwoofer with the Alpine S2-A60M for 600W RMS at a 1Ω final load
Premium Build: Use the Alpine R2-A75M with the RS-W10D2 wired for a compatible final impedance and properly configured gain
Best Overall Build: Pair one RS-W10D2 with the S2-A60M for a closely matched Alpine system
Clean Power: Target approximately 600W RMS of clean amplifier power for the 600W RMS RS-W10D2
Pro Tip: For a single Alpine RS-W10D2, the S2-A60M is the standout amplifier match. Wire the dual 2Ω voice coils in parallel for a 1Ω final load and pair it with 600W RMS of clean amplifier power for strong R-Series shallow bass performance.
Frequently Asked Questions (FAQ)
- • Is this subwoofer better in a sealed or ported box?
It performs well in both enclosure types, but each delivers a different listening experience. A sealed box offers tighter bass, while a ported enclosure produces greater output at lower frequencies.
- • Can I use this for both music and home theater-style bass?
Yes, it delivers deep, accurate bass that works well with many music genres and movie soundtracks. Proper enclosure design and amplifier tuning will have a significant impact on overall performance.
- • Why does my subwoofer bottom out during heavy bass?
This usually happens when the amplifier is overpowering the subwoofer or the enclosure is not built to the recommended specifications. Reducing the gain and verifying the enclosure design can help prevent excessive cone movement.
- • How should I wire the dual 2-ohm voice coils?
The voice coils can be wired in different configurations depending on your amplifier's supported impedance. Following the correct wiring diagram ensures safe operation and maximum performance.
- • Why doesn't the bass hit as hard as I expected?
Weak bass is often caused by incorrect enclosure volume, improper crossover settings, or amplifier gains that are too low. Matching the subwoofer with the recommended enclosure and tuning the system correctly will improve performance.
- • Can I run two of these subwoofers on one amplifier?
Yes, many users install a pair of subwoofers if the amplifier supports the final impedance after wiring. Carefully plan the wiring configuration to maximize output without overloading the amplifier.
- • Why does the bass sound louder outside the car than inside?
This is often related to enclosure placement, cabin acoustics, or phase alignment. Adjusting the enclosure position and amplifier settings can improve bass response inside the vehicle.
- • Does this subwoofer need a break-in period?
Yes, many owners recommend playing music at moderate volume for several hours before using full power. This allows the suspension to loosen naturally and reach its intended performance.
- • Why do I smell something hot after playing bass-heavy music?
A mild odor can occur during the initial break-in period, but a strong burning smell may indicate excessive power or amplifier clipping. Lower the volume and inspect your amplifier settings if the smell continues.
- • Can I install a protective grille on the cone
Yes, this subwoofer features an EZ-Change twist-lock system that allows you to install an optional grille without using any mounting screws. This grille provides excellent protection for the cone against accidental damage in your trunk or cargo area.
Alpine RS-W10D2 Related Videos
← Swipe left or right to browse videos →
Learn How To Wire Subwoofers
- Diameter : 10 Inch
- Sensitivity : 83 dB
- Impedance : 2 Ohm
- Frequency Response : 29-200 Hz
- Peak Power Handling : 1800 Watts
- Shallow Mount : Yes Inch
- Number of Voice Coils : Dual
- RMS Power Handling : 600 Watts
Features:
- 10” High-Performance Shallow Bass Driver: Designed for tight, accurate bass in compact spaces without sacrificing output.
- Alpine Gen2 DD Linear Magnetic Circuit: Provides consistent motor force for precise cone control and reduced distortion.
- Cast Aluminum Frame: Offers a rigid, lightweight structure for durability and improved thermal management.
- Aluminum Dust Cap: Adds strength while aiding in heat dissipation for enhanced reliability during high power handling.
- Neodymium Magnet: Delivers powerful magnetic strength in a compact design for maximum performance in shallow-mount applications.
Specifications:
- Mounting Depth: 3.25” (82.55mm)
- X-Max: 20mm
- Voice Coil: 4”(102mm)
- Frequency response: 29Hz – 200Hz
- Sensitivity (1W/1M): 83bB
- Nominal Impedance: 2 Ohm
- 600W RMS / 1800W Peak Power Handling
- Compatible with KTE-RS10G Subwoofer Grille Kit (sold separately)
- 10” High-Performance Shallow Bass Driver
- Alpine Gen2 DD Linear Magnetic Circuit
- Cast Aluminum Frame
- Aluminum Dust Cap
- Neodymium Magnet
- UPC: 793276084545
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
