12-Channel Full Range Class D Amplifier with 16-Channel Digital Sound Processor – 120Wx12 @ 2 Ohms-13.8V - 240Wx6 @ 4 Ohms Bridged-13.8V
We are a Musway authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 1 - M12 12-Channel Class-D Full Range Amplifier with 16 Digital Sound Processing
- • 1 - Owner’s Manual
- • 1 - Power Harness
- • 1 - High Level Input Harness
- • 1 - High Level Output Harness
- • 1 - USB Tuning Cable
- • 2 - Extra 40-Amp ATC Fuse
- • 1 - Mounting Plate with Hardware

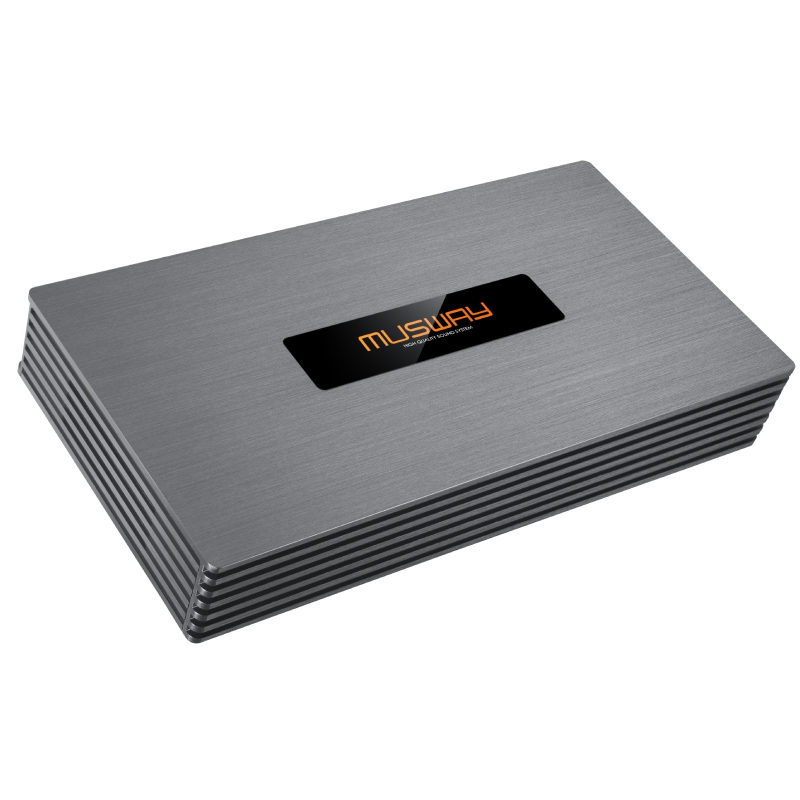

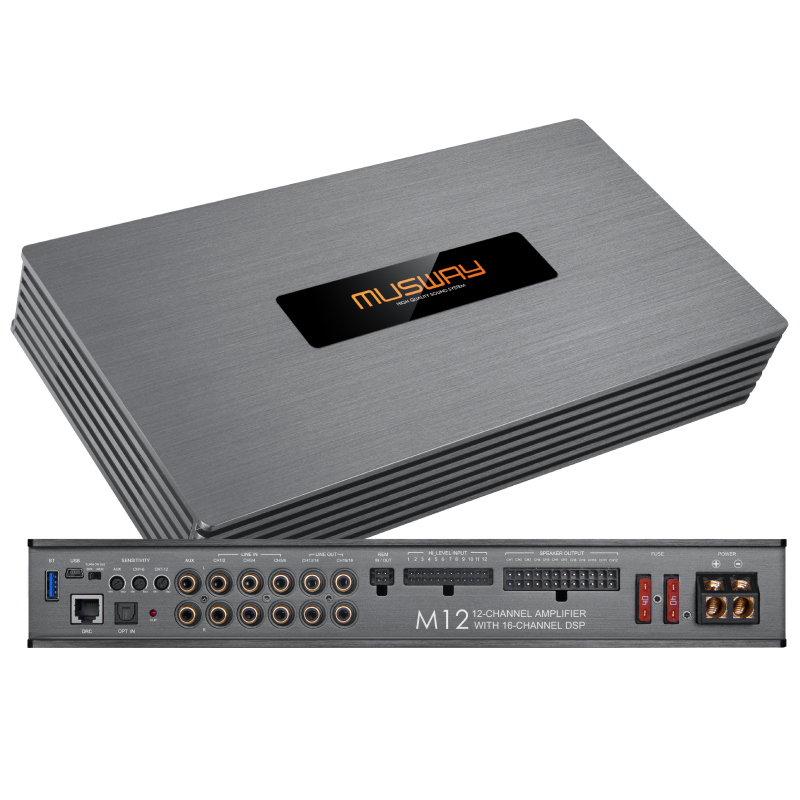

The elegant and well thought out MUSWAY M12
The elegant and well thought out MUSWAY M12 is groundbreaking. There truly is nothing else that can compare. The M12 has 12 channels of amplification featuring 12 x 85/120 Watts at 4/2 Ohms and is bridgeable at 240 Watts at 4 Ohms. It also offers 16 channels of Digital Sound Processing. The heart of the M12 is the ADAU1452 processors from Analog Devices, which are highly coveted by audiophile connoisseurs. The M12 appeals to enthusiasts who want to be able to tune their complex loudspeaker system in the vehicle for the best possible playback and at the same time be able to control it easily without complex cabling or the installation of several devices.
Product Highlights:
• Start-Stop ready
• EPS (Intelligent High-Level Input-Error Protection System)
• Brushed aluminum heat sink and end panels
• Auto Turn On via DC Offset or Signal Sensing
• Utilizes 4-fold laminated circuit boards that allows for small size and effectively suppresses EMI (RF) interference which is a must with full range Class D amplifiers. Passes the difficult European EMI standards
• Clipping LED’s
• 12 x 85/125 Watts at 4/2 Ohms, 240 Watts at 4 Ohm Bridged

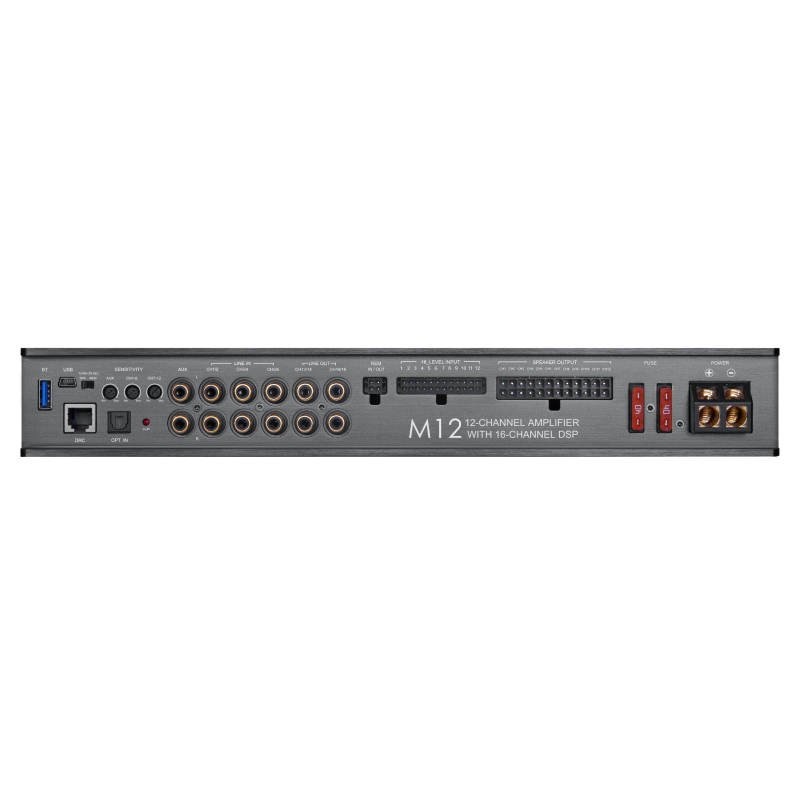

• Inputs: High Level x 12, Low Level (RCA) x 6, AUX/RCA x 2, Optical x 1
• Outputs: High Level x 12, Low Level Pre-Amp Outputs (RCA) x 4 (Configurable via DSP software) up to 6.5 Volts
• Analog Devices Dual 32-Bit processor and Burr-Brown converters-330 MIPS digital input/output up to 192 KHZ sample rate.
• With the easy-to-use MUSWAY PC software, the M12 can be configured perfectly and in real time via PC or the new Musway app for your smartphone or tablet
• With the 3 Optional USB Bluetooth Dongles you can Stream audio (BTS), Stream aptX HD Hi Res Audio (BTS HD), and can Stream Audio and have App Control for DSP Tuning from your Smartphone or Tablet (BTA2)
• Also available is the optional DRC1 digital remote control with OLED display that puts the control of your audio system at your fingertips.
Optional Accessories
BTA2
Bluetooth USB - Dongle
External Bluetooth USB Dongle for Audio Streaming and APP Tuning
For Use on the M4+, M6, D8, M12, DSP68 and TUNE12
Dimensions (H x L x W) 0.4” x 2.4” x 1.4”
BTS-HD
aptX HD USB Bluetooth Dongle for Hi-Res Audio Streaming
For use with TUNE12, DSP68, M6v3, M4+v3, M12.
BTS
Bluetooth USB - Dongle
External Bluetooth USB Dongle for Audio Streaming
For Use on the M4, M4+, M6, D8, and DSP68
Dimensions (H x L x W) 0.4” x 2.4” x 1.4”
DRC1
Digital Remote Control
Adjustable Master Volume and Subwoofer Level
Signal Source Selector: High Level, Bluetooth, Auxiliary or Optical
Selectable Mute . Set Channel Pair for Subwoofer Level
For Use on the M4+, M6, D8 and DSP68
Dimensions (H x L x W) 0.5” x 2.3” x 1.3”

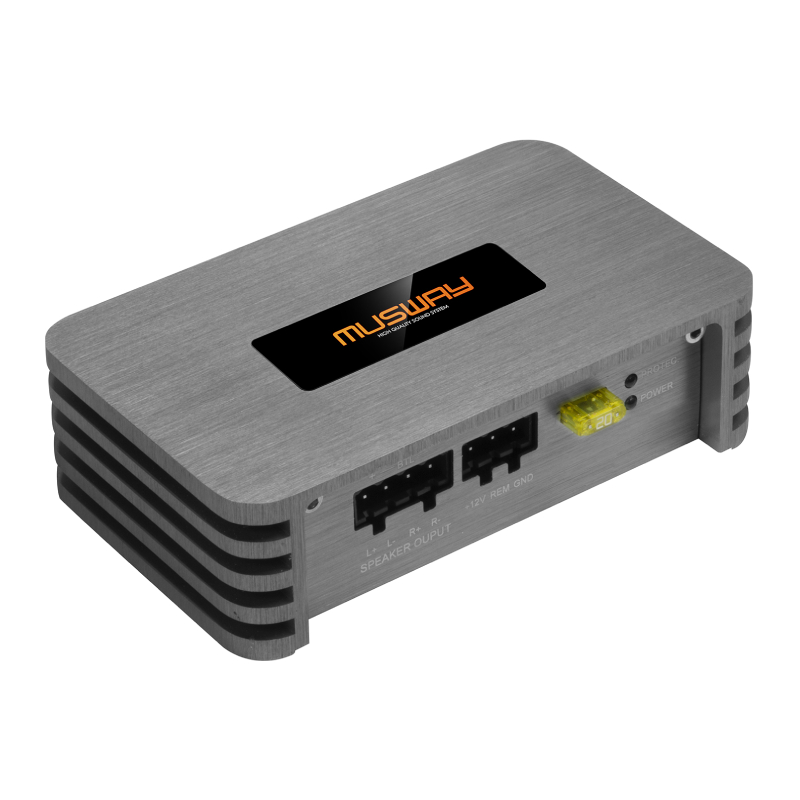

P2
2-Channel Micro Class D Amplifier
Mini Amplifier to Drive Subwoofer
2x100W RMS @ 2 Ohms
2x80W RMS @ 4 Ohms
Dimensions (H x L x W) 1.4” x 4.9” x 3.0”
Product Highlights:
- Start-Stop ready
- EPS (Intelligent High-Level Input-Error Protection System)
- Brushed aluminum heat sink and end panels
- Auto Turn On via DC Offset or Signal Sensing
- Utilizes 4-fold laminated circuit boards that allows for small size and effectively suppresses EMI (RF) interference which is a must with full range Class D amplifiers. Passes the difficult European EMI standards
- Clipping LED’s
- 12 x 85/120 Watts at 4/2 Ohms, 240 Watts at 4 Ohm Bridged
- Inputs: High Level x 12, Low Level (RCA) x 6, AUX/RCA x 2, Optical x 1
- Outputs: High Level x 12, Low Level Pre-Amp Outputs (RCA) x 4 (Configurable via DSP software) up to 6.5 Volts
- Analog Devices Dual 32-Bit processor and Burr-Brown converters-330 MIPS digital input/output up to 192 KHZ sample rate.
- With the easy-to-use MUSWAY PC software, the M12 can be configured perfectly and in real time via PC or the new Musway app for your smartphone or tablet
- With the 3 Optional USB Bluetooth Dongles you can Stream audio (BTS), Stream aptX HD Hi Res Audio (BTS HD), and can Stream Audio and have App Control for DSP Tuning from your Smartphone or Tablet (BTA2)
- Also available is the optional DRC1 digital remote control with OLED display that puts the control of your audio system at your fingertips.
Specification
- OUTPUT POWER (RMS) @ 14.4 VDC, 1% THD:
- @ 4 Ohms : 12 x 85W
- @2 Ohms : 12 x 120W
- Bridged @ 4 Ohms : 240W
- Distortion - THD (1 kHz @ 4 Ohms, 90% Power): 0.05%
- Bandwidth (-3 dB, 2 V RMS, 4 Ohms): 15HZ-22KHZ
- S/N ratio @ A weighted, 1 V, Max. Power: 95 dB A
- Input sensitivity:
- 8V-24V RMS (High-level);
- 2-6 V RMS (Low-level); 1 - 8 V RMS (AUX)
- Input impedance: 1392 (High-level); 47 kOhms (Low-level)
- LOAD IMPEDANCE (MIN):
- @12CH:2 Ohms
- @Bridged: 4 Ohms
- Voltage: 8 - 15 VDC
- Fuse Rating : 40A x2
- (H x L x W) 1.9” x 13.4” x 6.7”
- UPC: 6972502090022
- Weight: 1
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
Do you own this product?
Write a review!
-

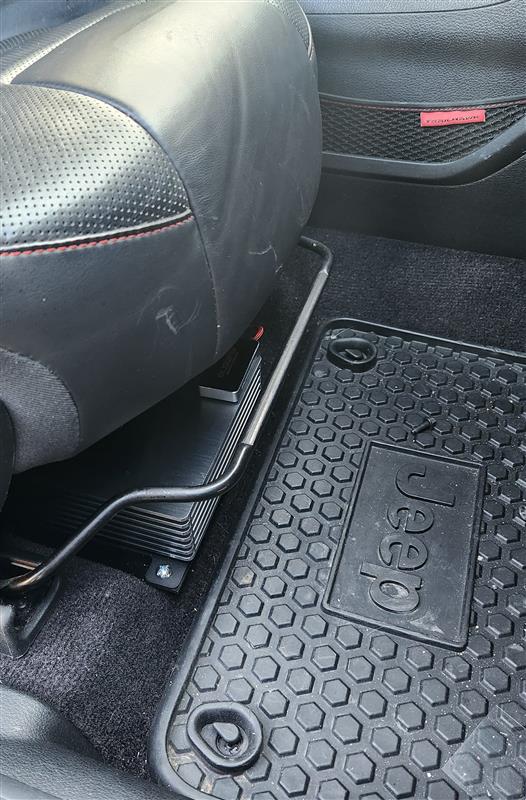

The amp is Awesome! The software just needs updating. Doesn't work with an iPad with the BTA2. Not all features work on an Android tablet with the BTA2. Only work on a windows laptop, and it's not fully compatible with windows 11.
-
Very easy to operate, thanks to its app. I’m totally impressed with its 12-channels, and it does not having any issues powering all the speakers and sub in my audio setup.
