MX Series 4-Channel Full Range Class D Amplifier 200Wx4 @ 2 Ohms-13.8V - 400Wx2 @ 4 Ohms Bridged-13.8V
We are a Musway authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (1) FOUR.100 4-Channel Full Range Class D Amplifier
- •(1) Owner’s Manual
- •(1) External ANL Mini Fuse holder
- •(1) 70-Amp Mini ANL Fuse
- •(1) RLC Knob
- •(1) RLC Cable 16.5’
- •(1) RLC Breakaway Cable 1’
- •(1) Mounting hardware
Versatile Workhorse 4-Channel Amplifier
The Musway FOUR.100 is a compact, powerful car audio amplifier with exceptional sound performance. It is a Class D amplifier with advanced digital technology to provide high efficiency, low power consumption, and minimal heat generation. The Musway FOUR.100 can produce up to 4 x 200 watts RMS at 2 ohms, more than enough power to drive most car audio systems.
Product Highlights:
The amplifier's sleek and stylish design makes it easy to install in various vehicles. It comes with a range of features, including a high-pass filter, a low-pass filter, a bass boost, and an input sensitivity knob. The high-pass and low-pass filters allow users to adjust the amplifier's frequency response, while the bass boost enhances the low-frequency response of the audio system.
Equipped With Various Protection Features
The Musway FOUR.100 is also equipped with various protection features that ensure the amplifier is safe and reliable. It has overheat protection, short-circuit protection, and DC offset protection, which helps to prevent damage to the amplifier and connected audio equipment.
Easy to Install
The Musway FOUR.100 is a versatile amplifier that can power various car audio systems, from entry-level to high-end systems. It is easy to install, packed with features, and offers excellent protection for the amplifier and connected audio equipment. Overall, the Musway FOUR.100 is perfect for anyone looking for a high-quality car audio amplifier with exceptional sound performance.
- Number of Channels : 4
- Frequency Response : 4-39000 Hz
- Built In Crossovers : Yes
- Amplifier Class : D
Features:
- Start-Stop Ready
- EPS (Intelligent High-Level Input - Error Protection System)
- Utilizes 4-fold Laminated Circuit Boards that allows for Small Size and
- Effectively Suppresses EMI (RF) Interference which is a must for Full Range Class D Amplifiers

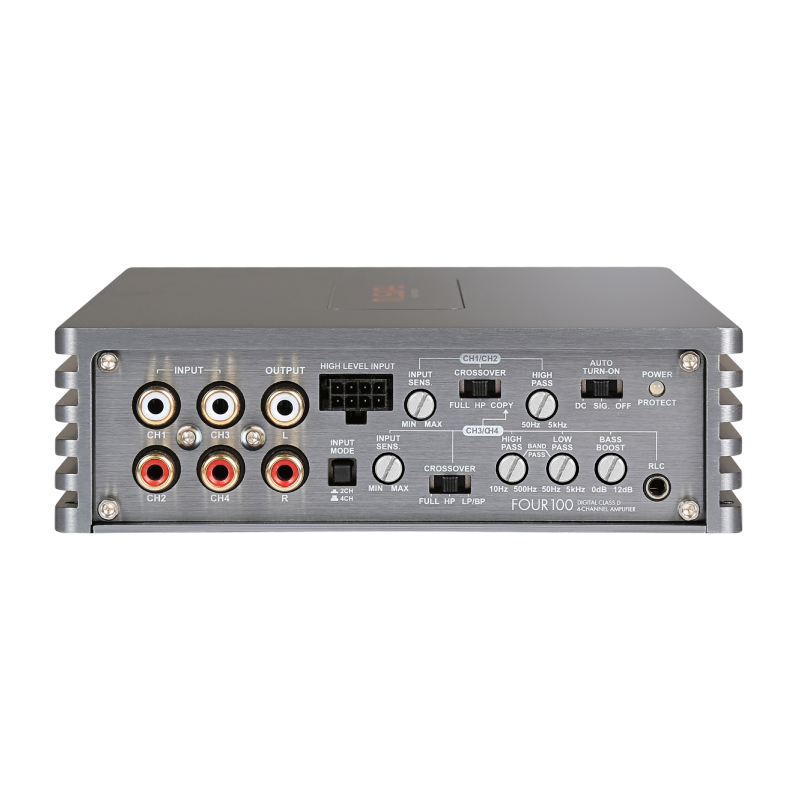

- Selectable Input Mode Switch: 2 channel/4 channel Input
- Channel 3/4 – Channel 1/2 Copy Function
- High and Low-Level Inputs
- RCA (Low Level) Output
- Brushed Aluminum Heat Sink and End Panels
- Auto Turn On via DC Offset or Signal Sensing
- Remote Level Controller is Included in the Box
Specifications:
- Frequency Range -3dB: 4-39000 Hz
- Damping Factor: 300
- S/N ratio: > 107 dB
- THD+N: < 0.02%
- Start-stop capability: 8.5V
- High Level Input with EPS : Yes
- Auto Turn On: Via DC or Signal

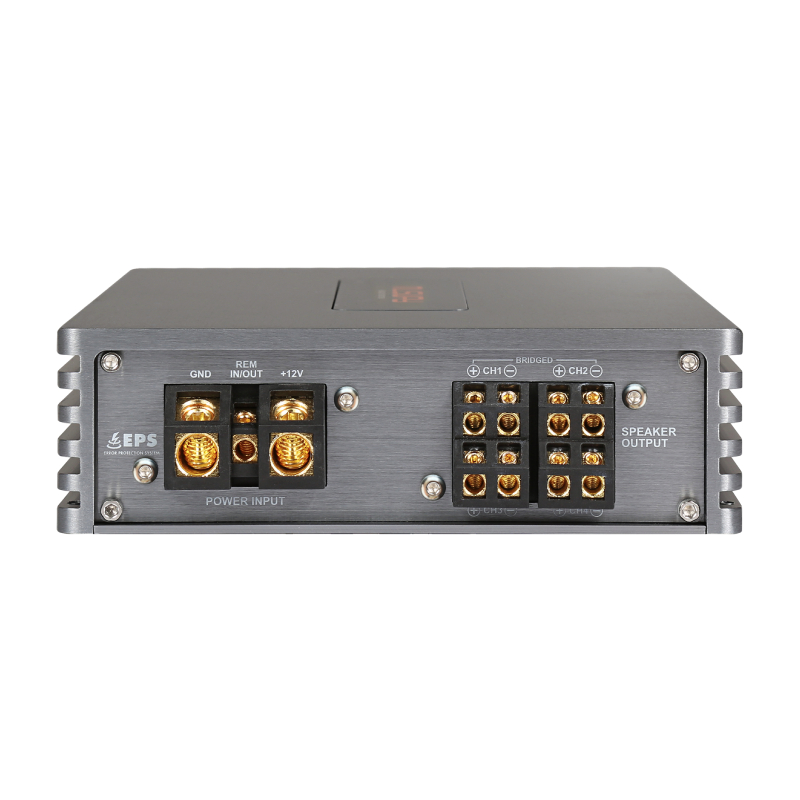

- Fuse Rating: 1 x 70A (external)
- OUTPUT POWER RMS @ 13.8V:
- 4 x 120 W @ 4 Ohms
- 4 x 200 W @ 2 Ohms
- 2 x 400 W @ 4 Ohms bridged
- OUTPUT POWER RMS @ 14.4V:
- 4 x 131 W @ 4 Ohms
- 4 x 218 W @ 2 Ohms
- 2 x 435 W @ 4 Ohms bridged
- Input Sensitivity
- 5-0.2V
- Channel 1/2
- Crossover Modes: Full - HP-Copy
- High Pass Filter: 50 - 5000 Hz
- Channel 3/4
- Crossover Modes: Full - HP - LP/BP
- High Pass Filter: 10 - 500 Hz
- Low Pass Filter: 50 - 5000 Hz
- Bass Boost: 0 - 12 dB @ 45 Hz
- Dimensions: (H x L x W) 1.8” x 8.7” x 5.9”
- UPC: 6972502090022
- Weight: 6
