Stinger 10" Floating Display Multimedia System
We are a Stinger authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" Touchscreen monitor
- • Source unit (15A fuse)
- • 19" Video display harness
- • 19" Power display harness
- • Wiring harness
- • Mic harness
- • Multi-camera harness
- • SWC harness
- • SiriusXM harness
- • GPS antenna (attached 16.5' cable terminated by fakra connector)
- • Microphone (attached 9.75' cable terminated by a male mono-minijack connector)
- • Self-adhesive bracket
- • Visor-clamp
- • Self-adhesive magnetic pad
- • Display bracket
- • Angle bracket
- • Metal L-bracket
- • Rubber-boot
- • (2) Backstraps
- • (4) M4x6mm screws
- • (4) M4x10mm screws
- • (4) Four M4x12mm screws
- • (2) M4x14mm screws
- • (2) M4x12mm screws
- • (6) M6x10mm screws
- • (6) #10x3/8" screws
- • Cleaning cloth
- • Owner's Manual
Heigh10

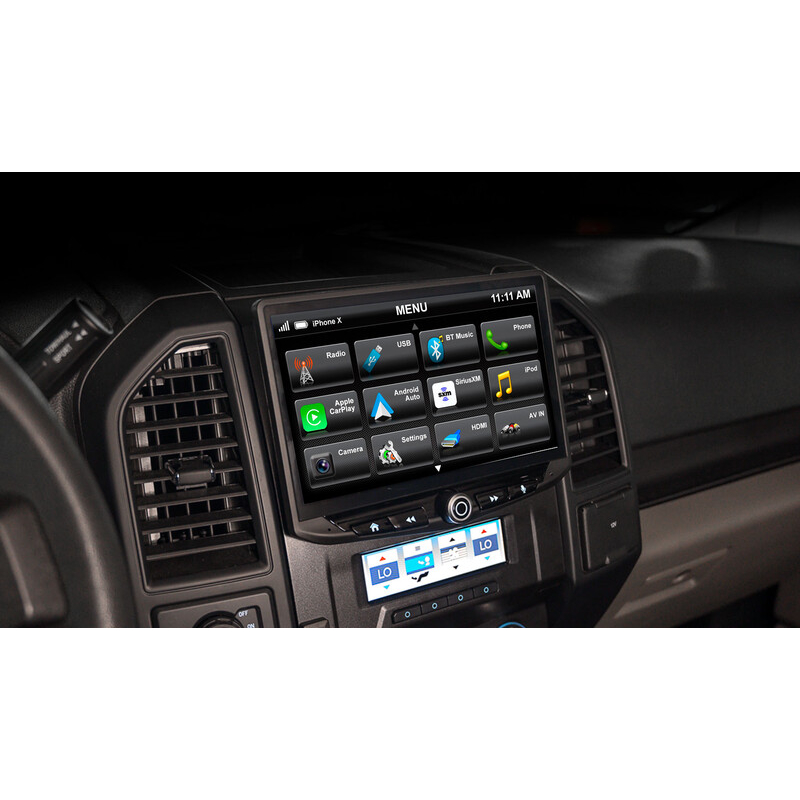

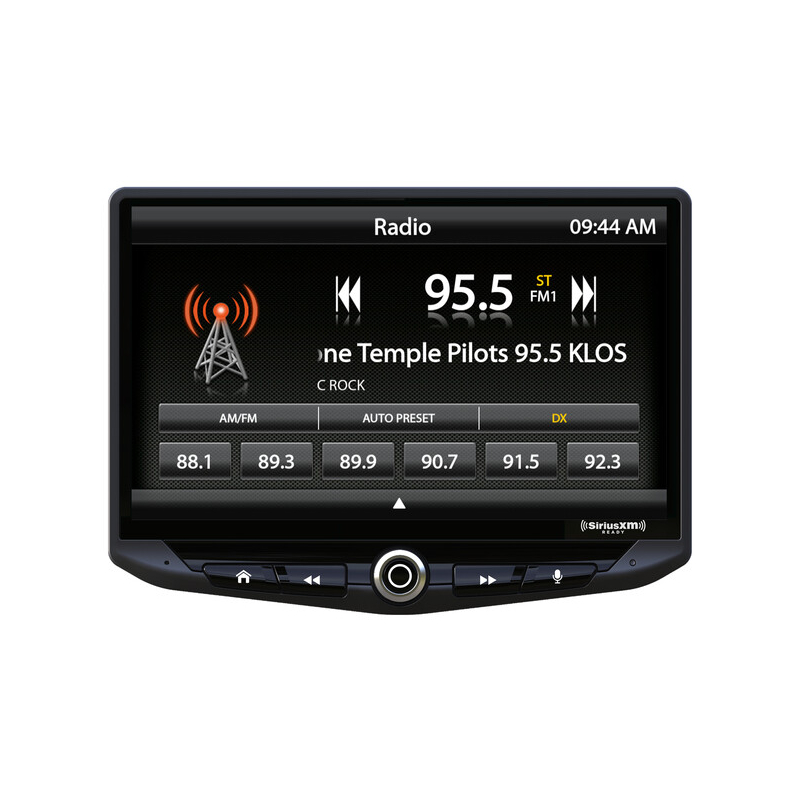

Featuring a high-resolution, 10-inch capacitive touchscreen with 16.7 million colors for a full visual experience, HEIGH10® is designed to enhance screen size and infotainment features for drivers of any vehicle. The display and main tuner box offer a modular design, bolstering installation flexibility in space-limited applications––and in some cases, even where no installation dash kit is available.
Universal Fitment
Stinger's radio platform is designed for modular installation, meaning the display and receiver are two separate pieces. This makes it universal for any vehicle, even where space is limited or nonexistent behind the OEM radio being replaced. You can mount the display and receiver in two different locations, giving you the flexibility to install HEIGH10 in any vehicle with a standard single or double DIN dash kit.
A Safer Ride

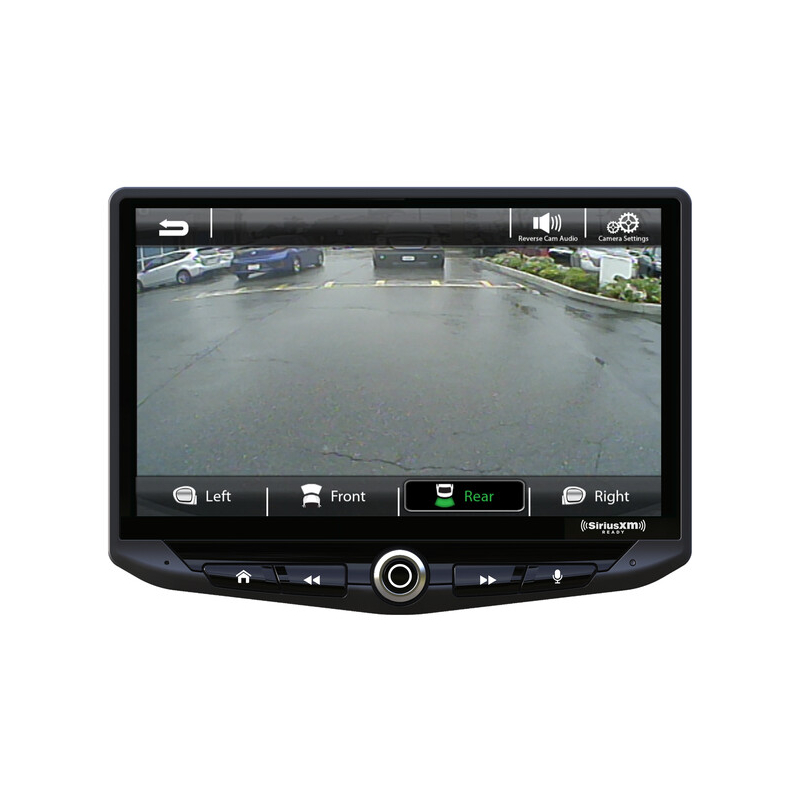

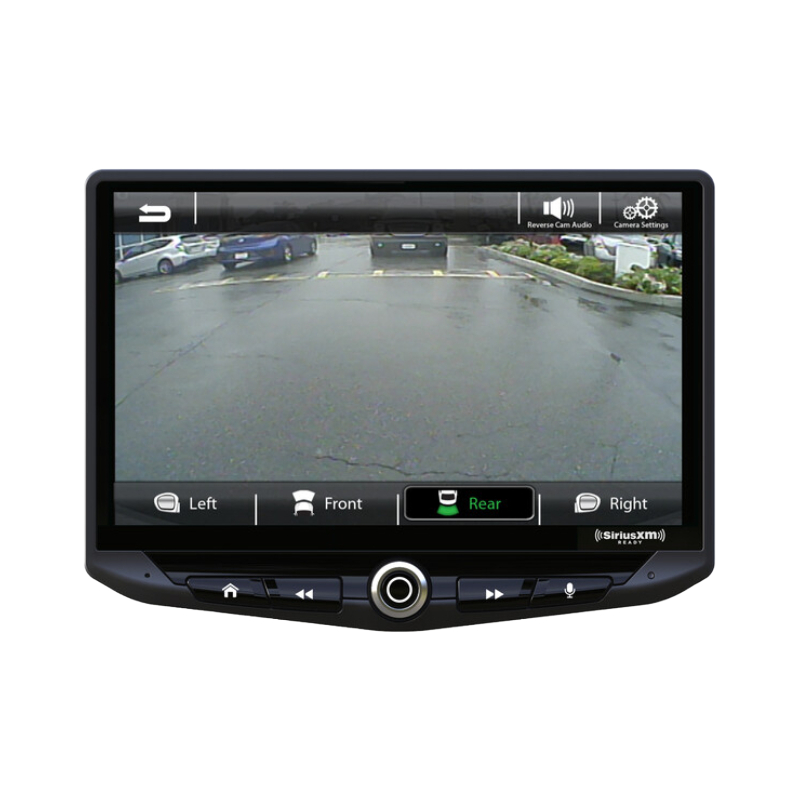

In a world where road accidents are commonplace, HEIGH10 can help reduce risk, increase safety and protect your precious cargo. 4 camera inputs, selectable via camera mode display, turn signal for blind spot viewing or simply by adding a rocker switch for trailer or tow viewing. Rear camera audio input enables the driver to hear sound from an optional RV camera microphone. With iGo onboard navigation, you don’t have to rely on your phone for navigation. Out of cell range? No phone data? No problem, the on-board map database doesn’t require a data connection, so whether you are high in the mountains or out in the open desert you can be confident your route guidance is safe and accurate.
Optional Integrated Navigation

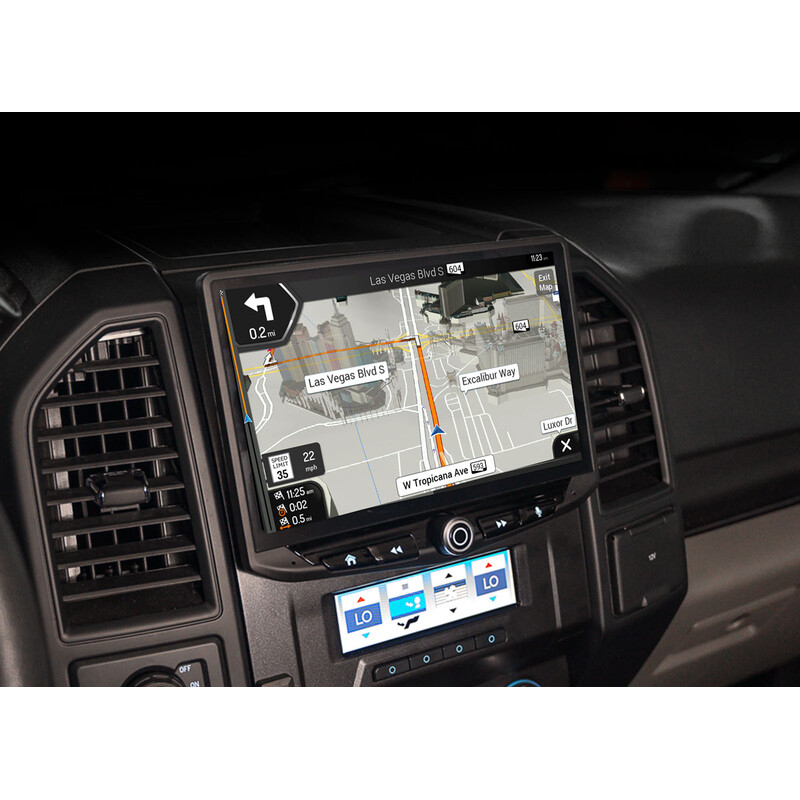

Optional on-board iGo navigation enhances your ELEV8 or HEIGH10’s driving experience by placing 1000’s of built-in waypoints as well as landscape data at your fingertips. Detailed landmarks, lane guidance & complex road junctions are made easy to navigate from the intuitive easy to use touch panel control.
Modular Design
Both ELEV8 & HEIGH10 are engineered with a modular design. This makes it a truly universal, and versatile infotainment option. The display and receiver can be mounted separate from each other. Giving you the ability to go big with your screen, even when space behind the OEM radio you are replacing is limited.
- DIN : 1
- Bluetooth : Yes
- Rear USB Input : 2
- Apple CarPlay : Yes
- Android Auto : Yes
Features:

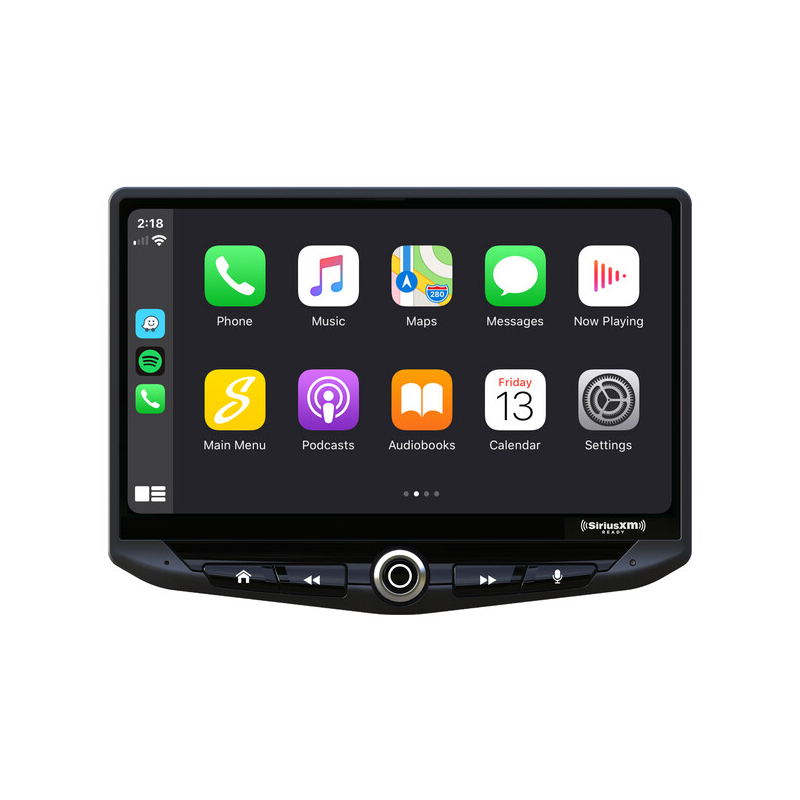

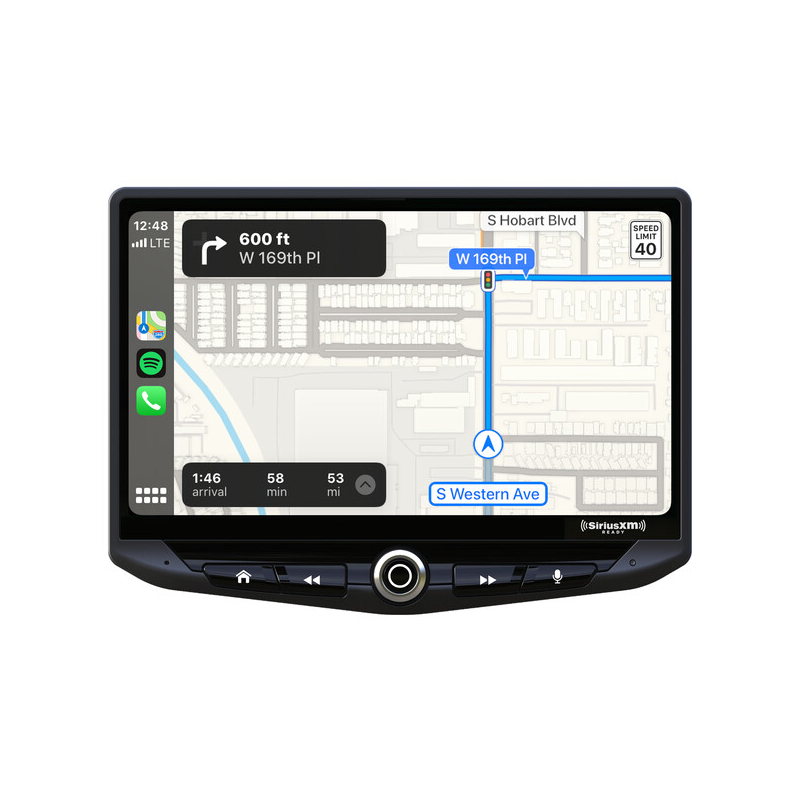

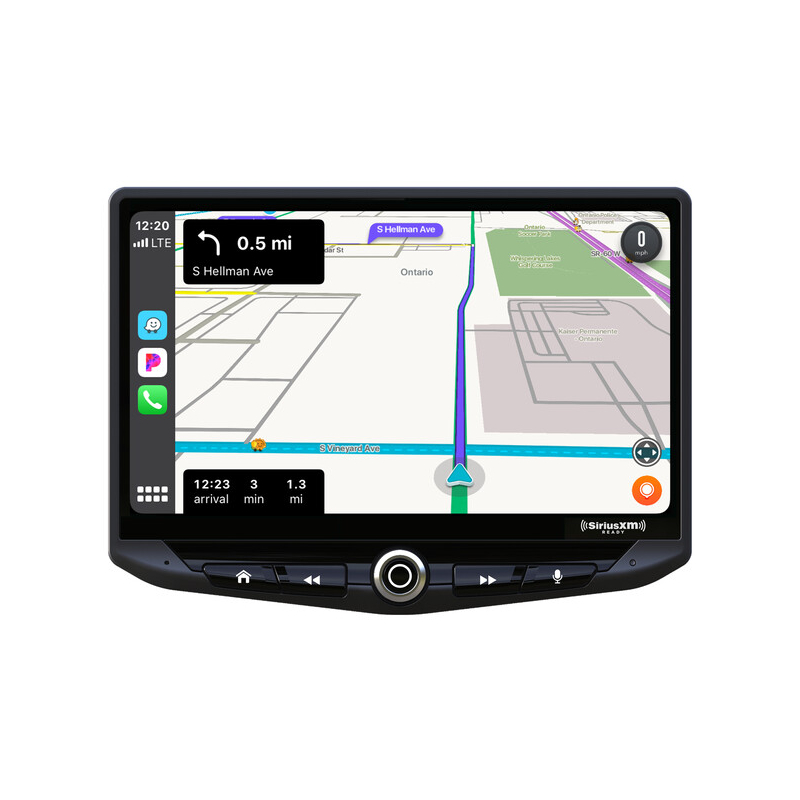

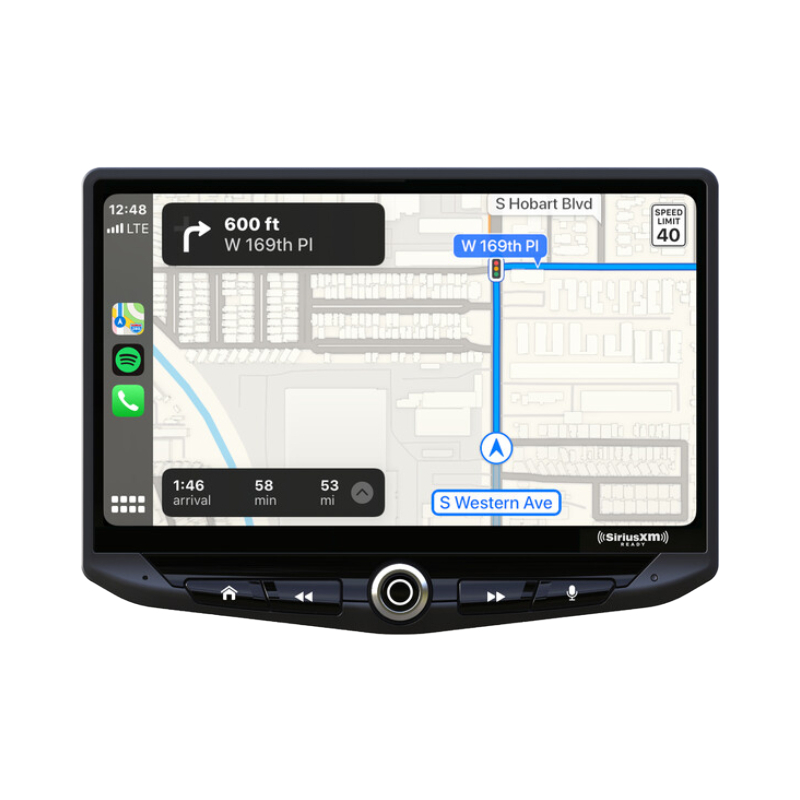

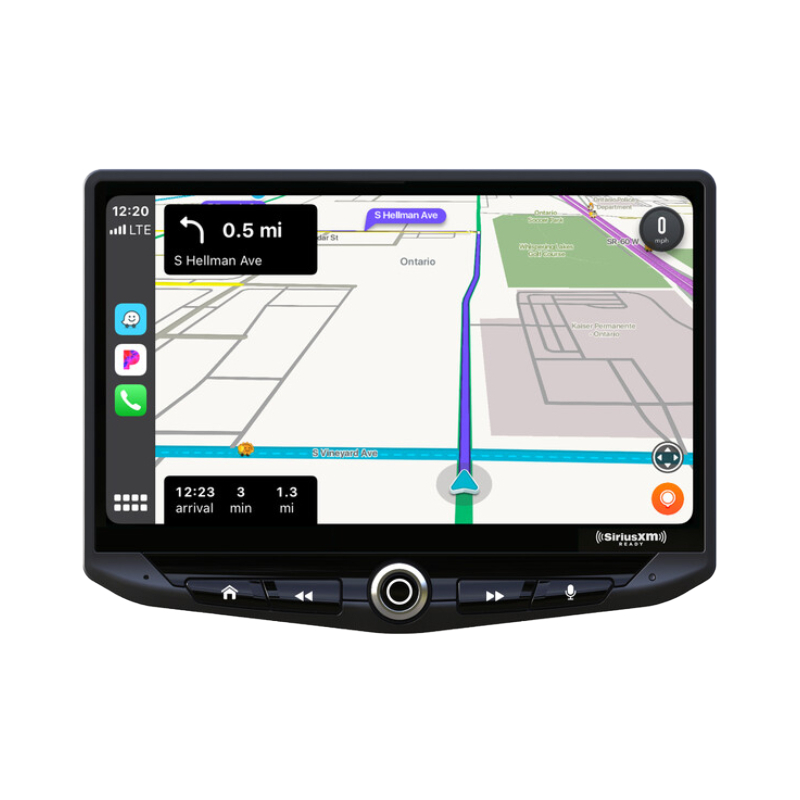

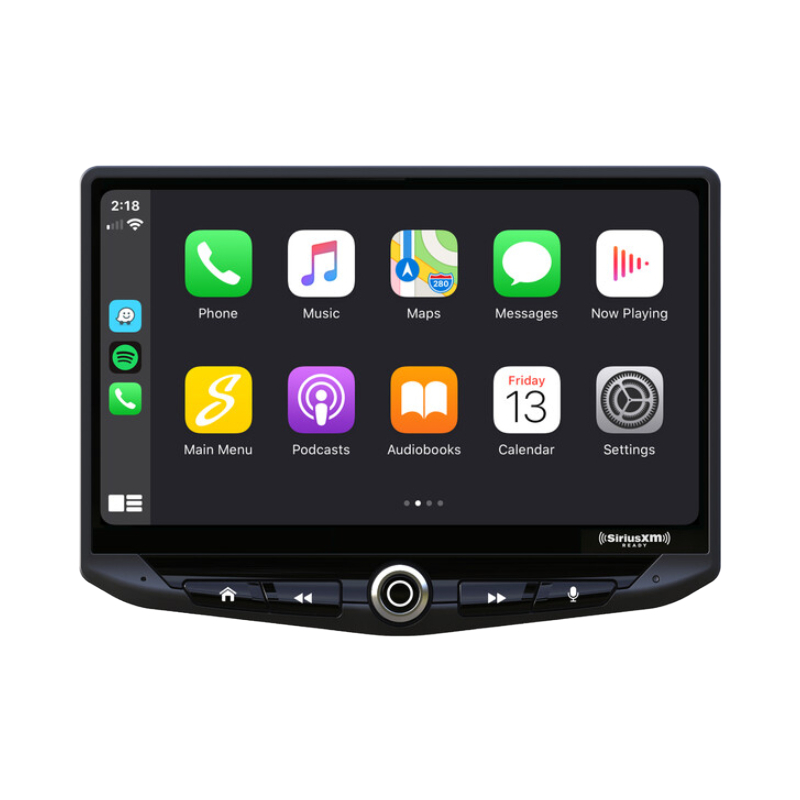

- Apple CarPlay®

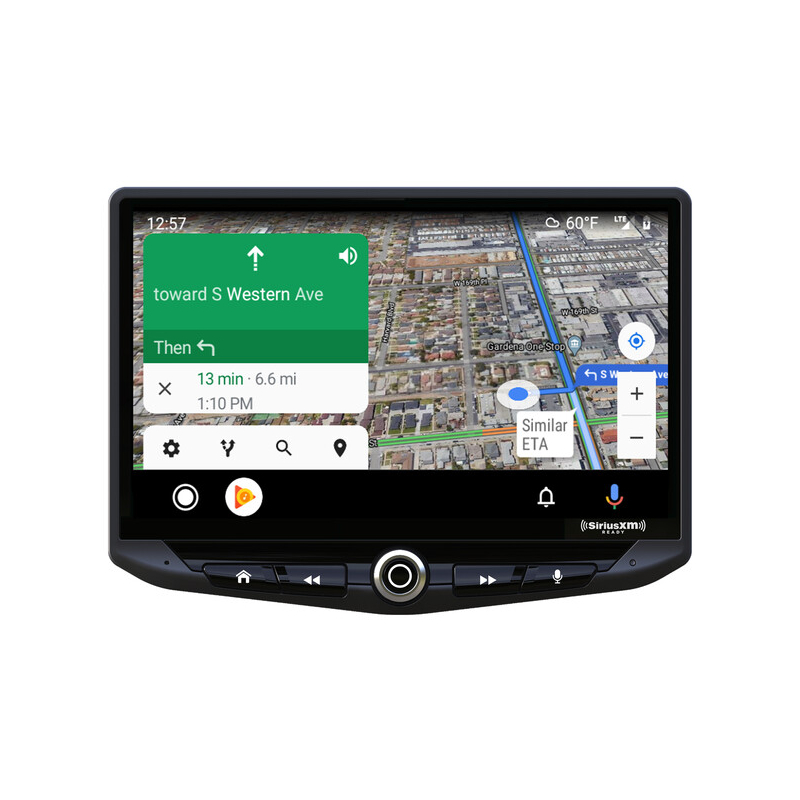

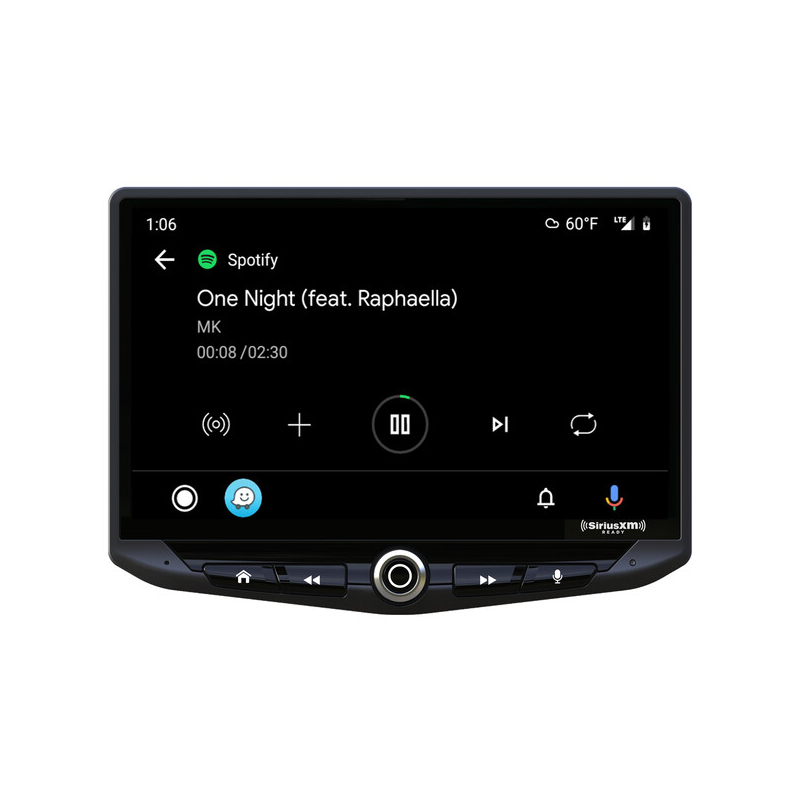

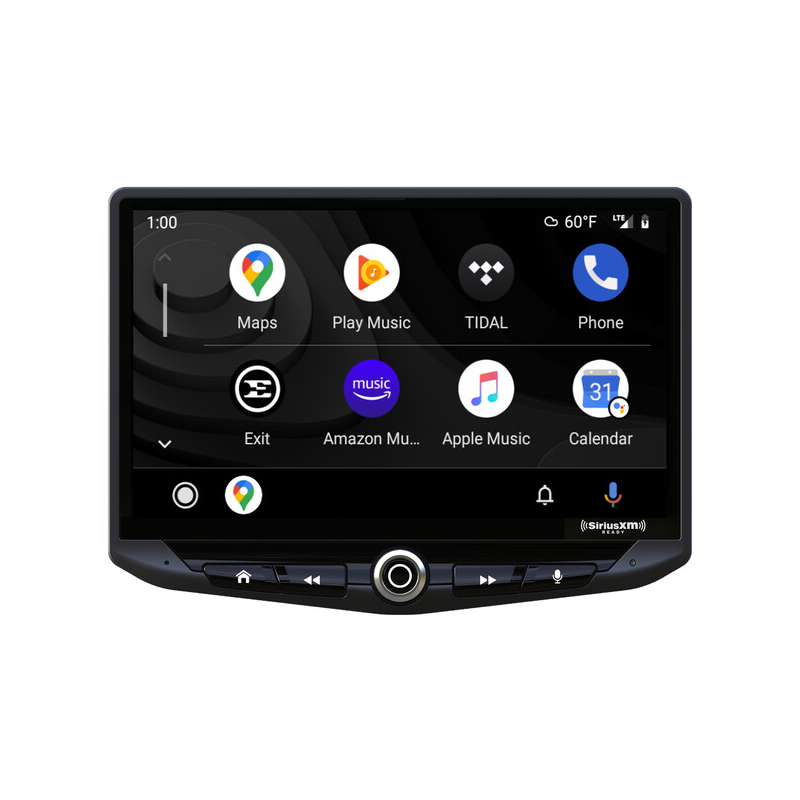

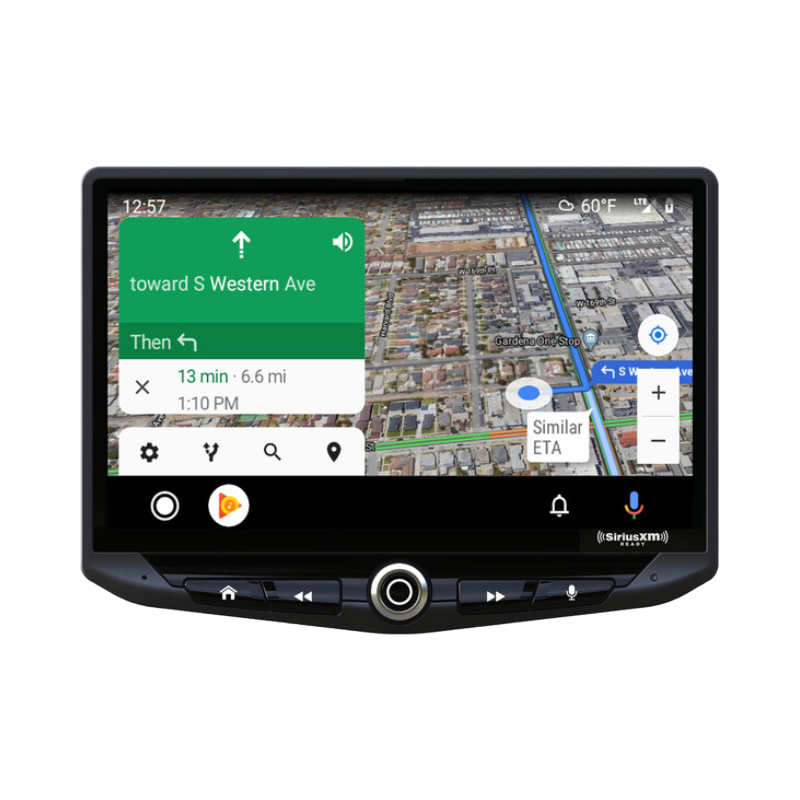

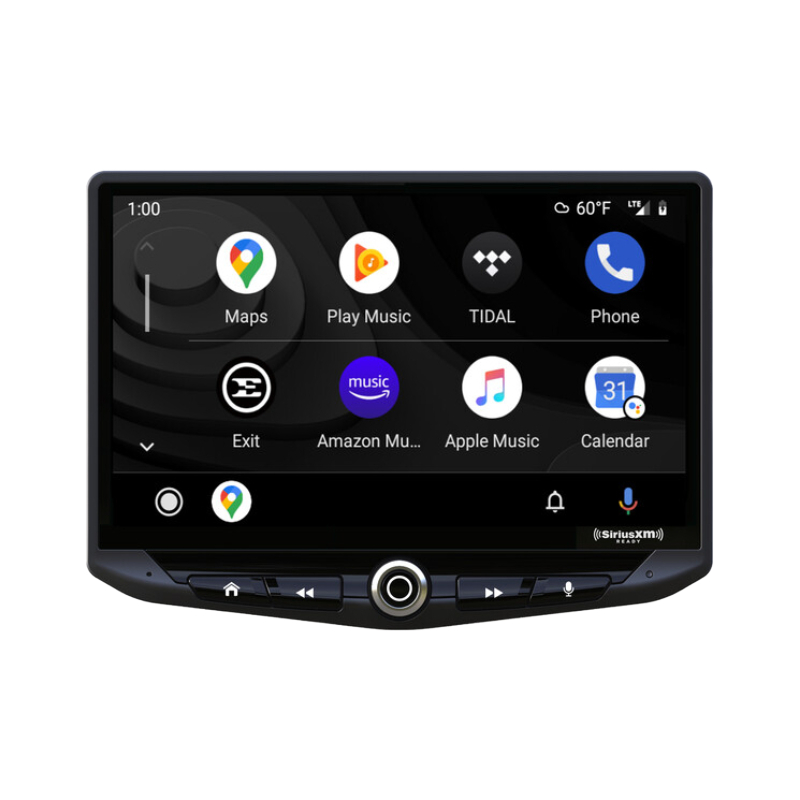

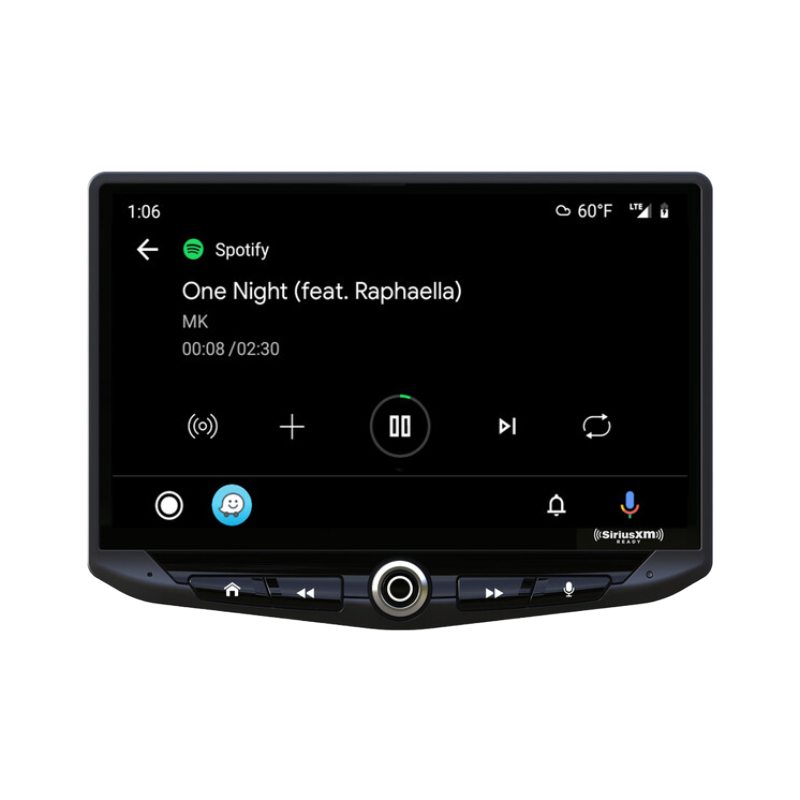

- Google Android Auto™
- SiriusXM-Ready™ with Replay
- Built-in MicroSD card slot for (optional) iGO Navigation

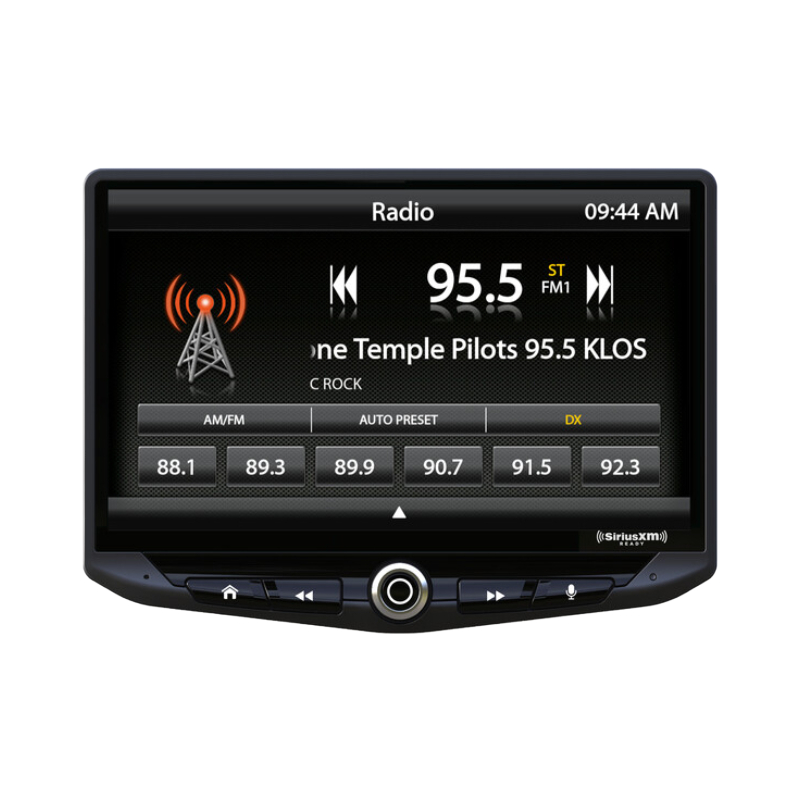

- AM/FM radio with PTY
- 2 USB rear inputs, 1.5-Amp output

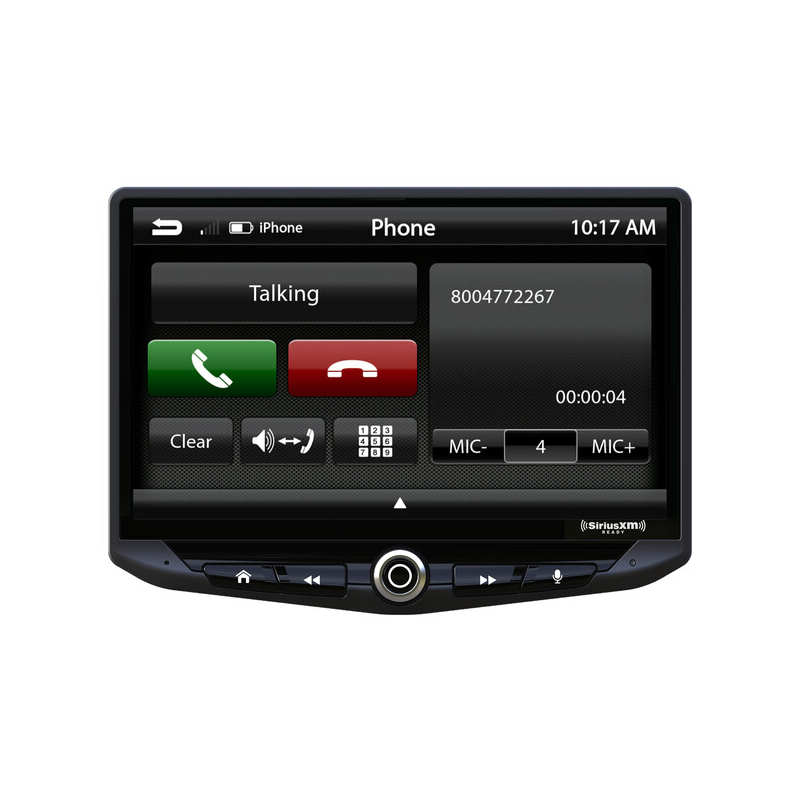

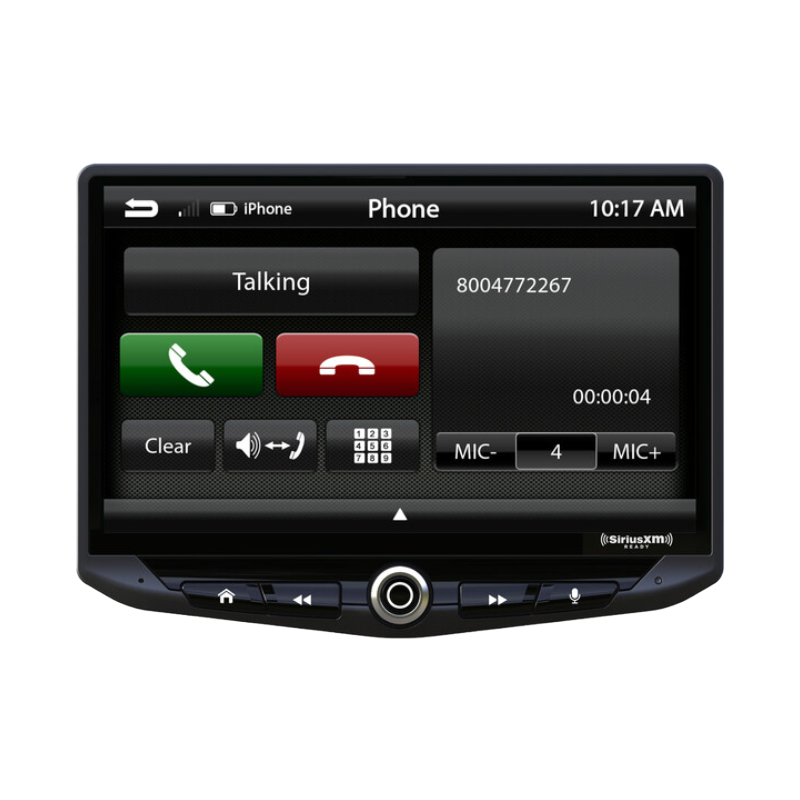

- Hands-free Bluetooth® 4.2
- A2DP with aptX™ (for hands-free calling and music streaming)
Specifications:
- Built-in amplifier (16W RMS x 4)
- 4V, 6ch RCA audio outputs with subwoofer control
- Toslink (optical) audio output
- 15-band adjustable graphic EQ with 6 user presets
- Adjustable Hi-Pass Front/Rear and Lo-Pass subwoofer crossover with 6 user presets

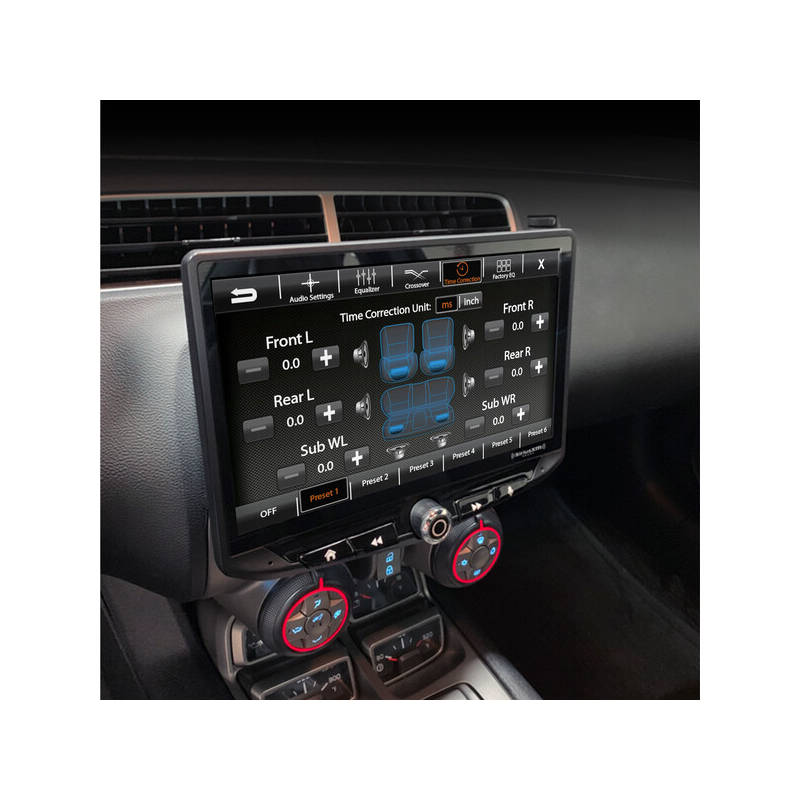

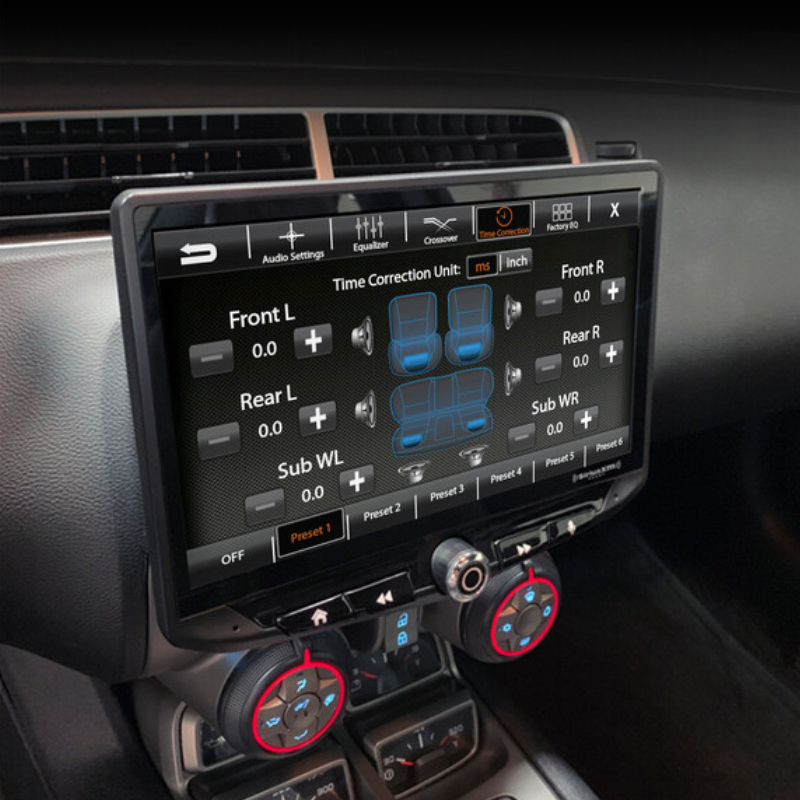

- Time alignment with 6 user presets
- UPC: 609098831406
- Weight: 7
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
