Kenwood Excelon DMX809S 6.8" Digital Multimedia Receiver with Apple CarPlay, Android Auto, iDatalink Maestro Ready, HD Radio, SiriusXM Ready, Rear USB Input, and Bluetooth
We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Digital multimedia receiver w/ fixed 6.75" touchscreen monitor (10A fuse)
- •Sleeve (attached)
- •Trim ring
- •Wiring harness
- •6.5' Parking brake wire (light green)
- •Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- •GPS antenna (attached 11.5' cable terminated by a proprietary connector)
- •Self-adhesive pad
- •2 Radio removal tools
- •(6) Pan-head ISO-mount screws (M5x8mm)
- •(6) Flat-head ISO-mount screws (M5x8mm)
- •Quick Start Guide
- •Warranty card
- •Owner's Manual
Equipped With Advanced Features
It is essential nowadays to have a car equipped with advanced features for a better driving experience, but they can also be costly. One thing you can do is upgrade, and the perfect step is to get one of the multimedia receivers from Kenwood's flagship brand Excelon, the DMX809S.
iDatalink Maestro Module
One of the issues when replacing a receiver is that there is a possibility that you will lose some factory features that come with your car but never worry about that. It is compatible with the iDatalink Maestro module, so it retains the factory features and can also see your car's engine performance on its 6.75-inch display.

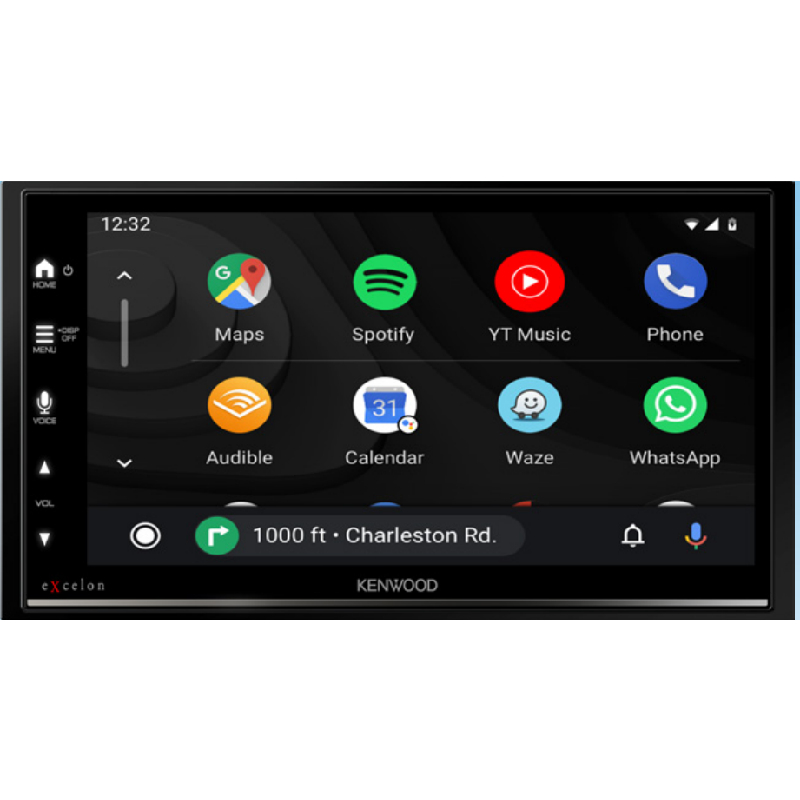

Apple CarPlay and Android Auto
As it is compatible with Apple CarPlay and Android Auto, you can now use voice commands or touch the receiver's display to make and take calls, send and receive text messages, listen to voicemails, ask for directions, or play music. It also has a Bluetooth option for hands-free calling or wireless music streaming.

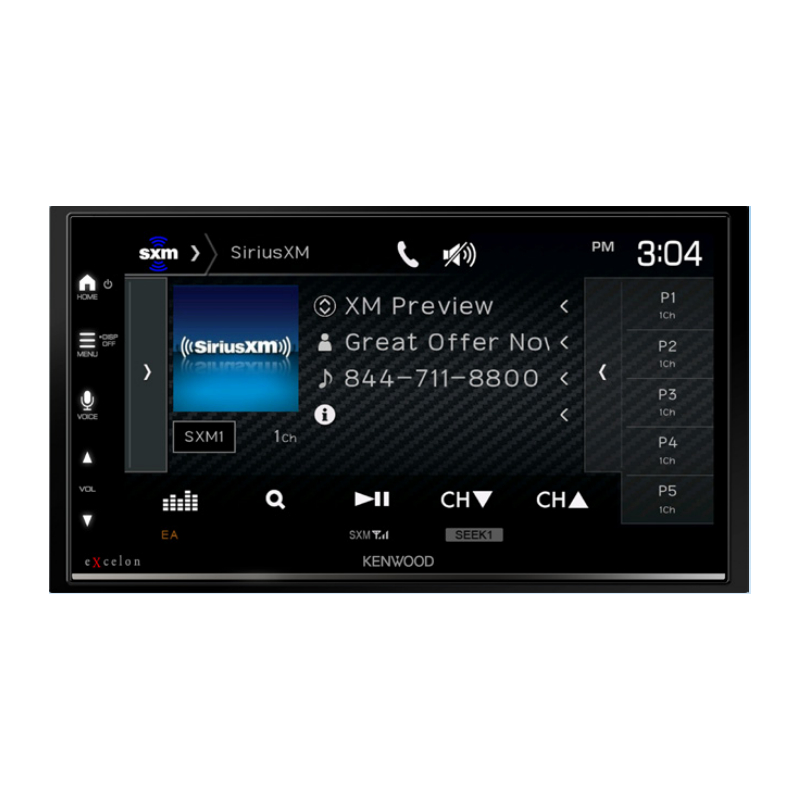

SiriusXM-ready
It is SiriusXM-ready, so you can still follow your favorite stations and shows, even on the road. You can also mirror your Android phone to the receiver's display using its USB port or the Mirroring OA for Kenwood application.
Has a Three-way Crossover
It has a built-in amplifier with a power output of 22 Watts continuous power per channel and peak power of 50 Watts per channel. You can shape the amplifier's frequency response using its 13-band graphic EQ feature. It also has a three-way crossover to filter unnecessary frequencies to protect your speakers from blowing off.
- Satellite Radio Ready : Yes
- Built In Crossovers : Yes
- Built-in EQ : Yes
- DIN : 2
- Preamp Voltage : 5 volts
- Display Size : 6.8 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- Aux Input : No
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : Yes
- Rear USB Input : 1
- Audio/Video Outputs : 1
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
Features:
- digital multimedia player with AM/FM tuner
- plays media loaded with MP3, WMA, and AAC music files (plus high-res WAV and FLAC)

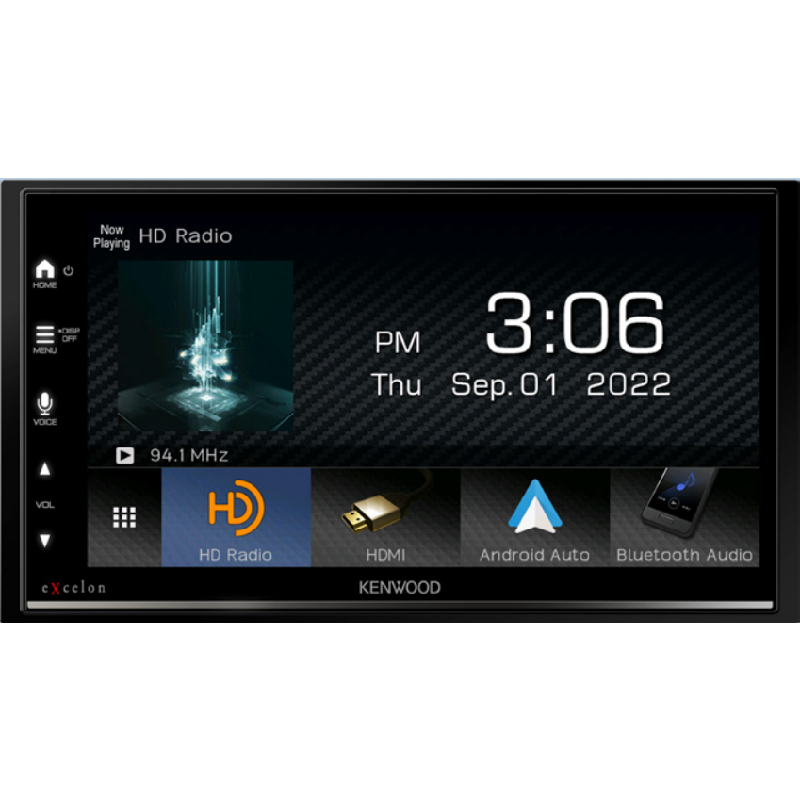

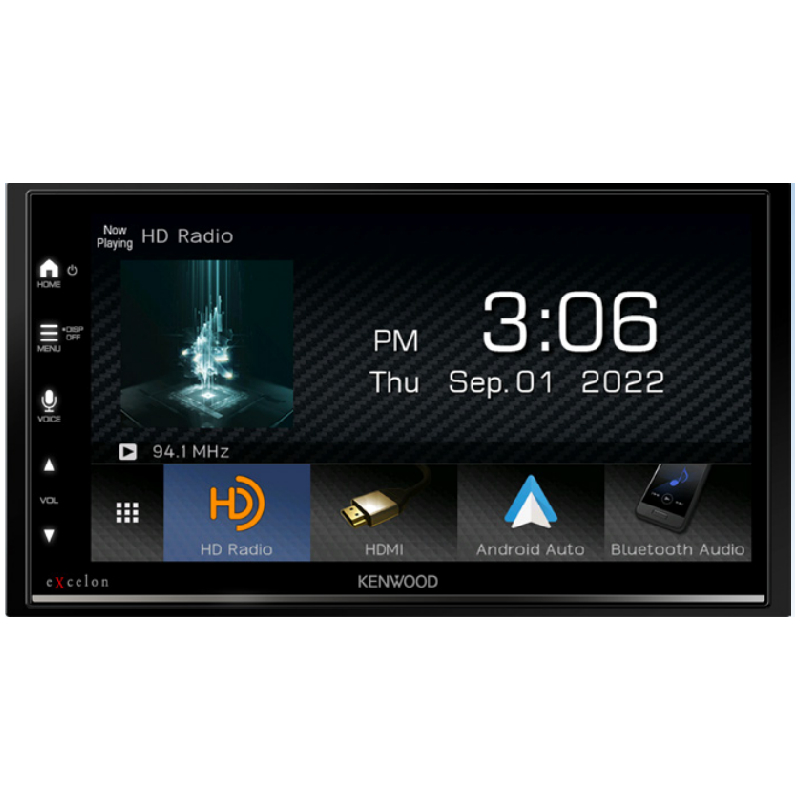

- 6.75" capacitive touchscreen HD display
- HD Radio tuner built-in
- Waze-ready with Apple CarPlay or Android Auto

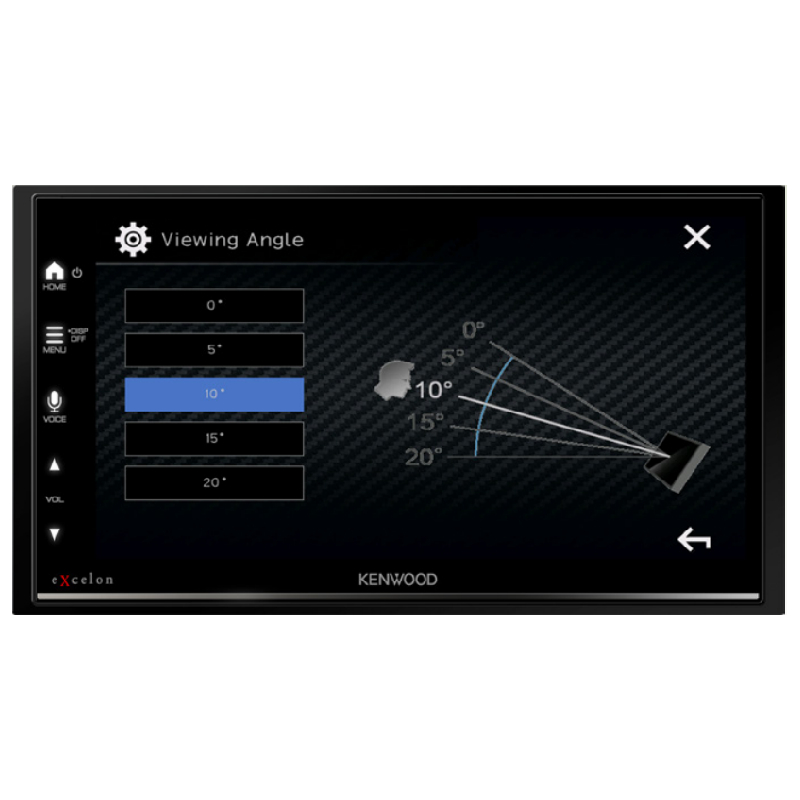

- electronic viewing angle display adjustment (display does not physically move)
- fits double-DIN (4" tall) dash openings
- wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- built-in amplifier (22 watts RMS/50 peak x 4 channels)
- works with iDatalink Maestro RR or RR2 modules
- retains factory features in a wide selection of vehicles

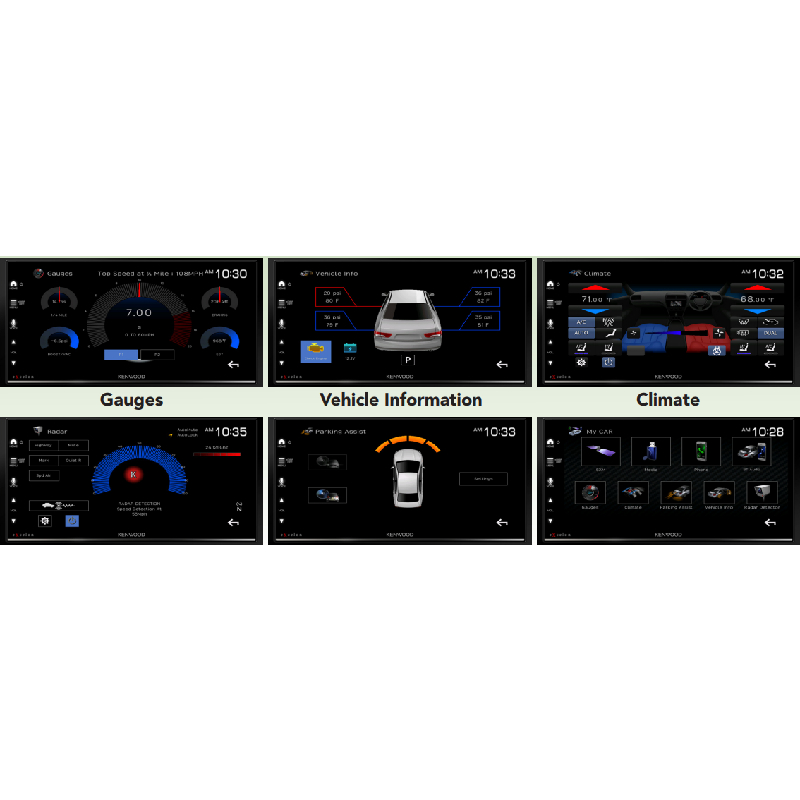

- displays engine performance data on touchscreen
- warranty: 2 years
Smartphone features:
- wired and wireless Android Auto compatible
- compatible with Google Assistant voice control when using Android Auto
- wired and wireless Apple CarPlay compatible
- Siri voice control for select iPhones

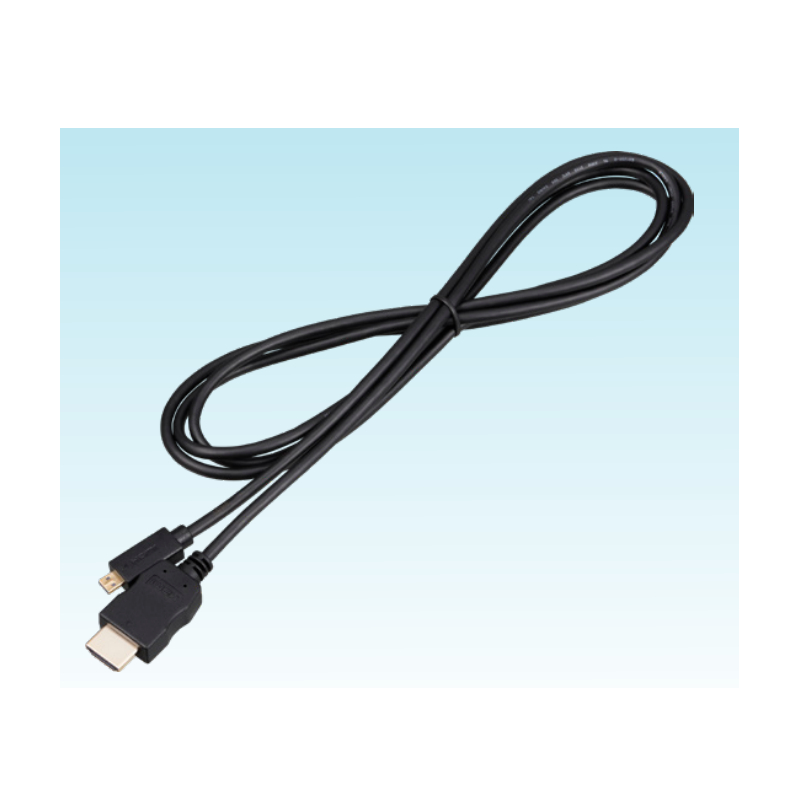

- wired mirroring for iPhone and select Android devices via HDMI (adapters sold separately)

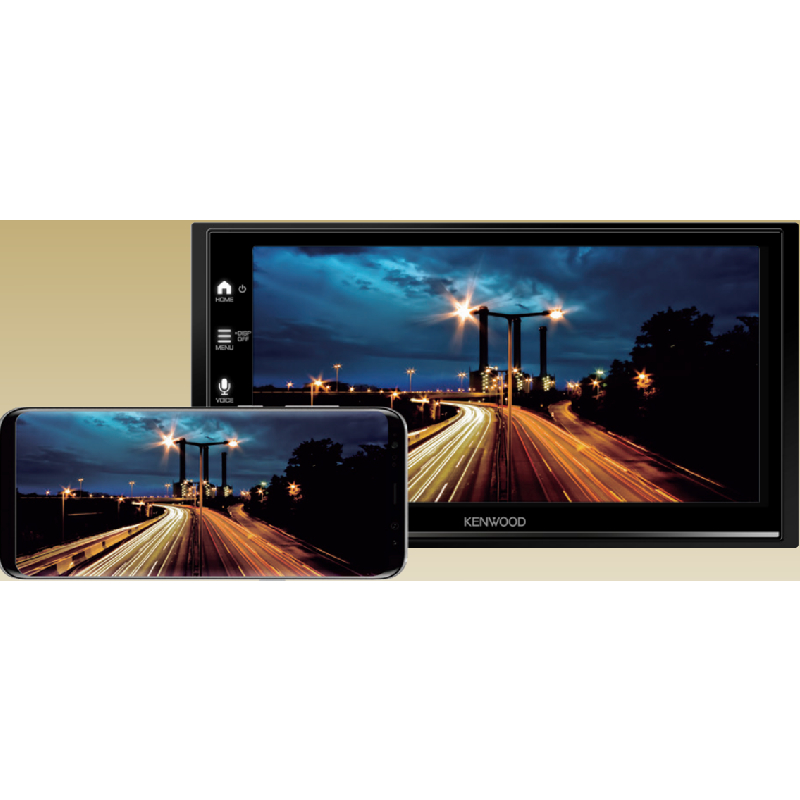

- wired mirroring for select Android devices using USB port and free MIrroring OA for Kenwood app
- built-in Bluetooth with dual phone connection for hands-free calling and music streaming
- rapid Android charging via USB port
Audio/visual features:
- 13-band graphic EQ
- time alignment
- Drive EQ and digital signal processing
- 3-way crossover
- Expandability:
- compatible with SiriusXM satellite radio tuner

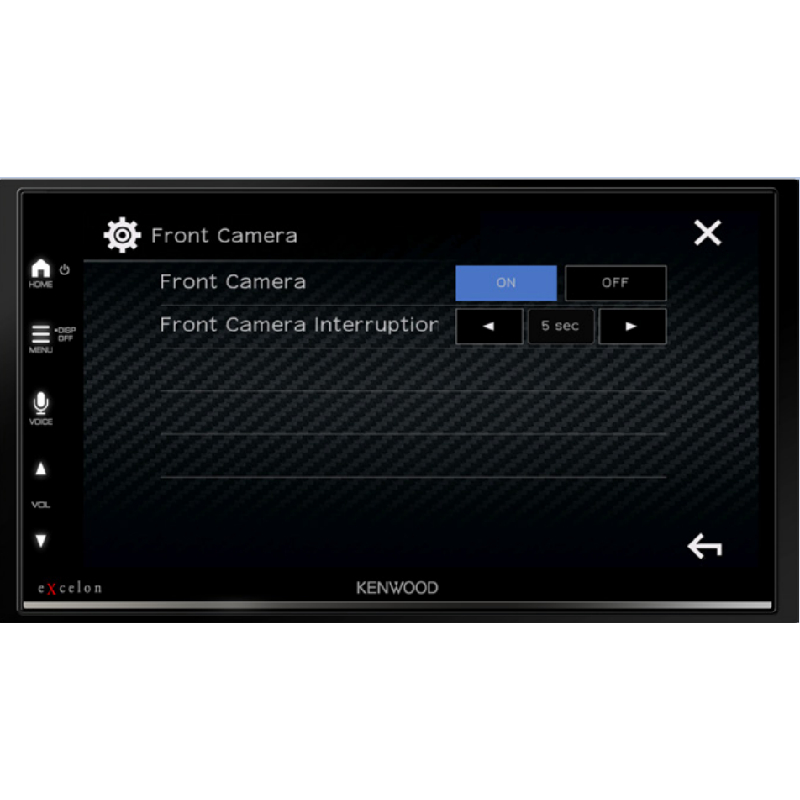

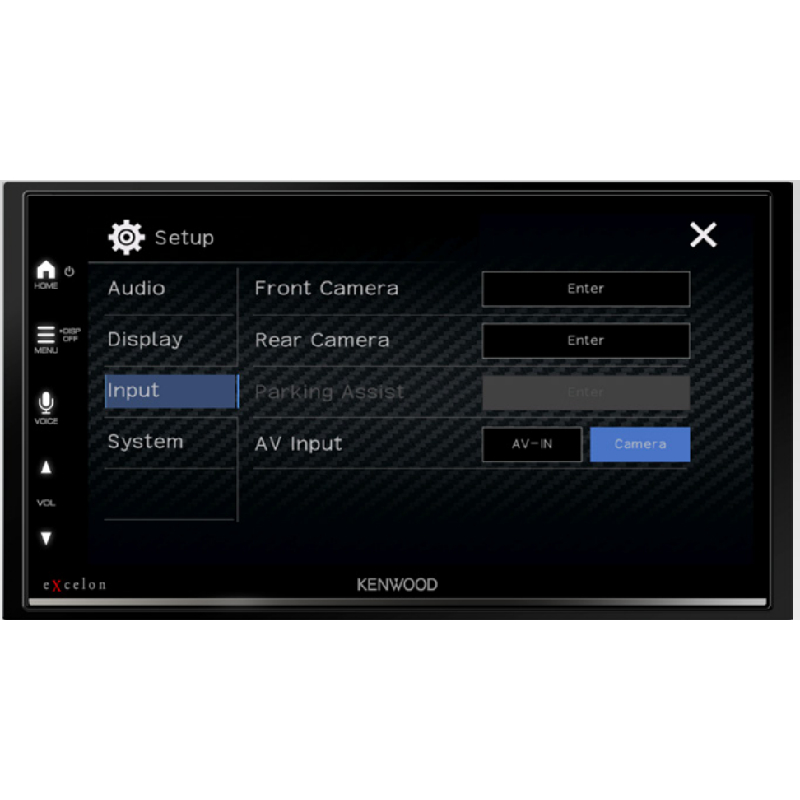

- inputs: rear USB-A input, two camera inputs, rear analog A/V input (can be converted to third cam input)

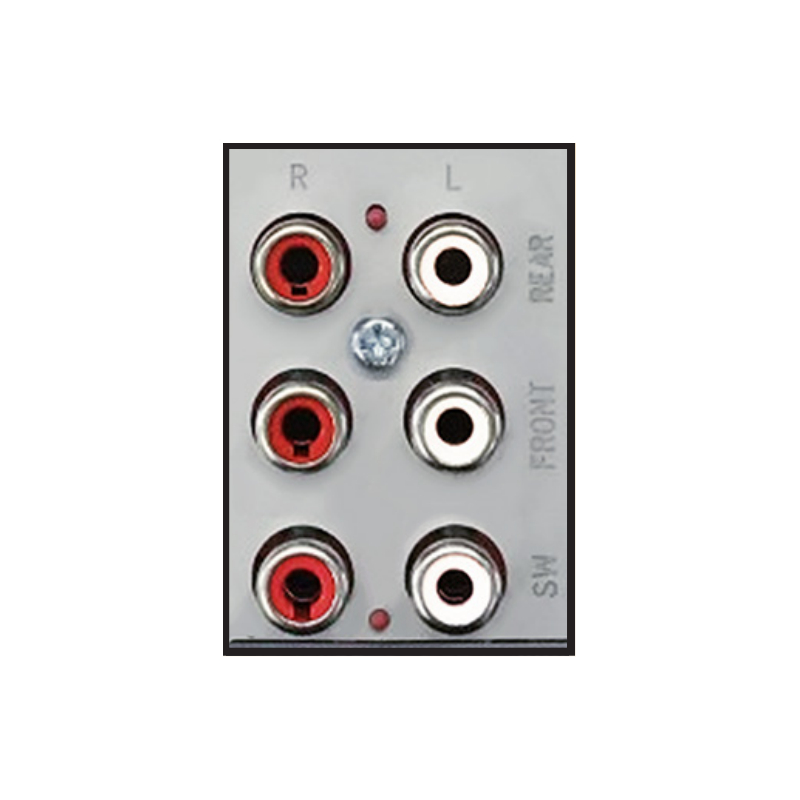

- outputs: rear video output (RCA), 6-channel preamp outputs (5-volt front, rear, sub)
Specifications:
- AUX Input: Mini (rear)
- Audio/video Input: HDMI (rear), Mini (rear)
- USB Input: Rear
- USB Port Power: 1.5A
- Backup Camera Input: Yes
- Second Camera Input: Yes
- CarPlay: Wireless
- Android Auto: Wireless
- Siri Control: CarPlay only
- Alexa Voice Control: N
- Android Control: Yes
- Memory Card Slot: USB Memory
- Bluetooth Compatible: Built-in
- Satellite Radio Ready: SiriusXM 2.0
- HD Radio: Y
- Navigation: Optional
- iPod Compatibility
- Full size: No
- Nano: No
- Touch: No
- iPhone: 6S and newer
- RMS Power (CTA-2006): N/A
- RMS Power (Manufacturer): 22 watts
- Peak Output: 50 watts
- RMS Power Bandwidth: 20-20kHz
- Preamp Outputs: 6-channel
- Sub Preamp Outputs: Yes
- Switchable Rear Preamp Outputs: No
- Video Screen: Yes
- Navigation App Compatible (iOS): Apple, Google, Waze
- Navigation App Compatible (Android): Google, Waze
- Preamp Voltage: 5 volts
- Screen Size: 6.75
- Screen Type: Swipeable (Capacitive)
- Display Color
- Key Button Color: Variable
- EQ Bands: 13

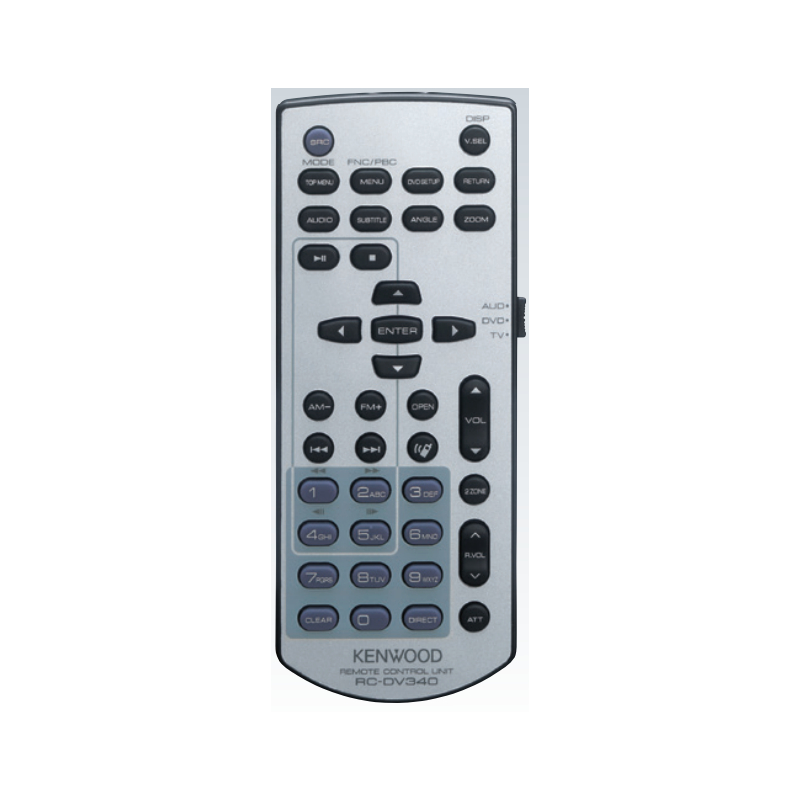

- Wireless Remote: Optional
- Steering Wheel Control Compatible: Adapter required
- Parts Warranty: 2 Years
- Labor Warranty: 2 Years
- FM Sensitivity: 7.2 dBf
- European Tuning: No
- Seek/Scan: Seek
- Radio Data System: Yes
- Music File Playback: MP3,WMA,AAC,FLAC,WAV
- High-res Playback: WAV/FLAC (24-bit/192kHz)
- UPC: 0019048234902
- Weight: 4
