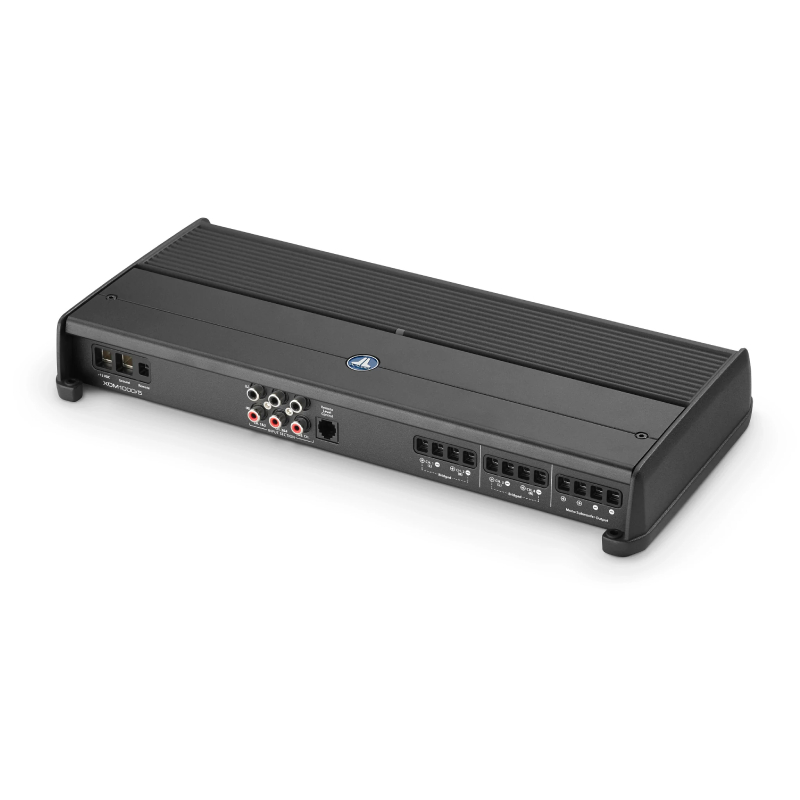

JL Audio  XDM1000/5

• Low Frequency Response : 50–500 Hz
• High Frequency Response : 50–500 Hz
• Number of Channels : 5
• Frequency Response : 12-22000 Hz
• Built In Crossovers : Yes
• Amplifier Class : D
• Fuse Rating : 80 A

Features:

• Marine-Grade Built Tough: Five-channel amplifier built with marine-grade materials, finished in a sleek black powder-coat, and equipped with a gasketed removable top cover to protect the control panel in marine or automotive environments
• High-Output Performance Specs: Rated at 14.4V with ≤1% THD+N, delivering 104 dB signal-to-noise at rated power and 84 dB at 1 watt (A-weighted)
• Strong Main Channel Power: Delivers 75W RMS x 4 @ 4Ω, 100W RMS x 4 @ 2Ω, or 200W RMS x 2 bridged @ 4Ω
• Dedicated Subwoofer Power: Produces 400W RMS x 1 @ 4Ω, 500W RMS x 1 @ 3Ω, or 600W RMS x 1 @ 2Ω for powerful bass performance
• NexD™ Class D Efficiency: Advanced switching amplifier design that delivers exceptional sound quality, high efficiency, and compact size with reduced complexity
• Advanced Rollback Protection: Intelligent thermal and low-impedance protection limits peak voltage instead of shutting down to maintain uninterrupted playback
• Noise-Free Differential Inputs: Differential-balanced input design minimizes noise and alternator whine while ensuring compatibility with OEM and aftermarket source units
• OEM Integration Ready: Supports direct speaker-level input with optional speaker wire to RCA adapters (sold separately), eliminating the need for line output converters

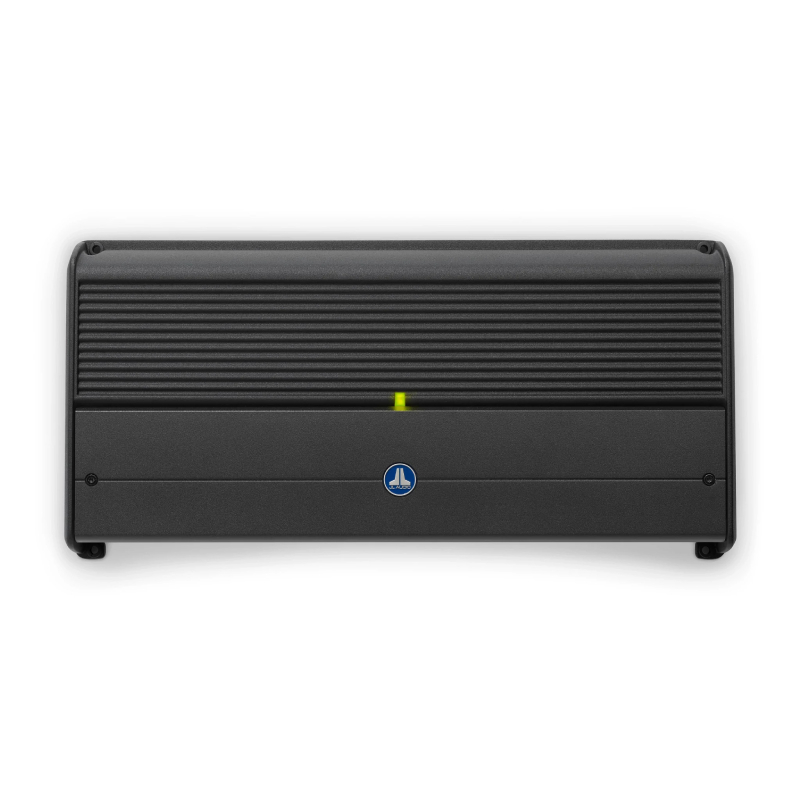

• Smart Status LED Indicator: Single multi-color LED provides clear visual feedback of power, protection, and fault conditions
• Low-Voltage Safety Design: Complete shutdown only occurs if battery or remote turn-on voltage drops below 10 volts

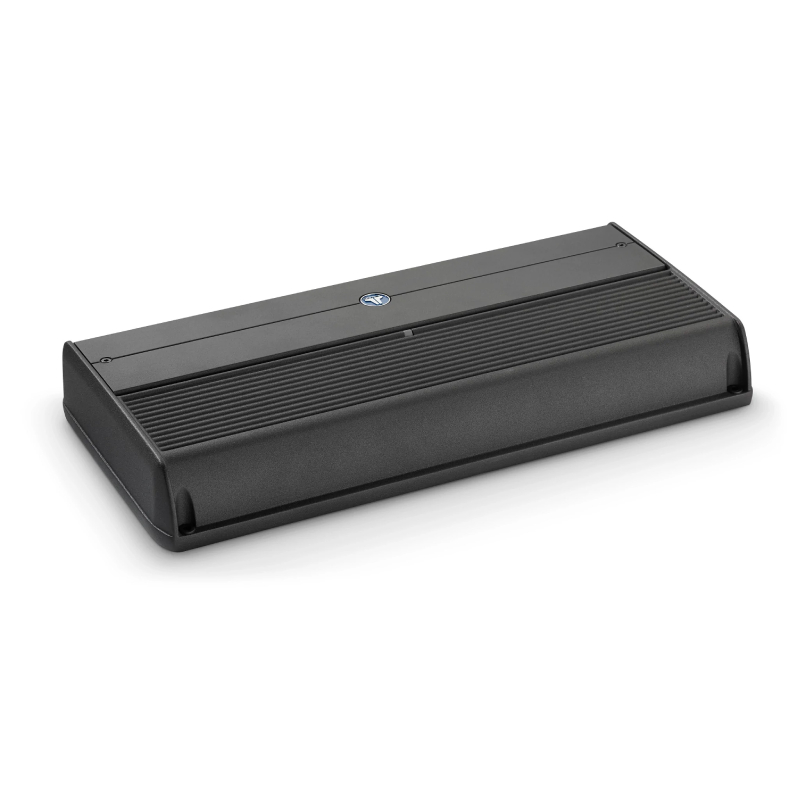

• Efficient Passive Cooling: Outer shell engineered to dissipate heat effectively when exposed to adequate airflow

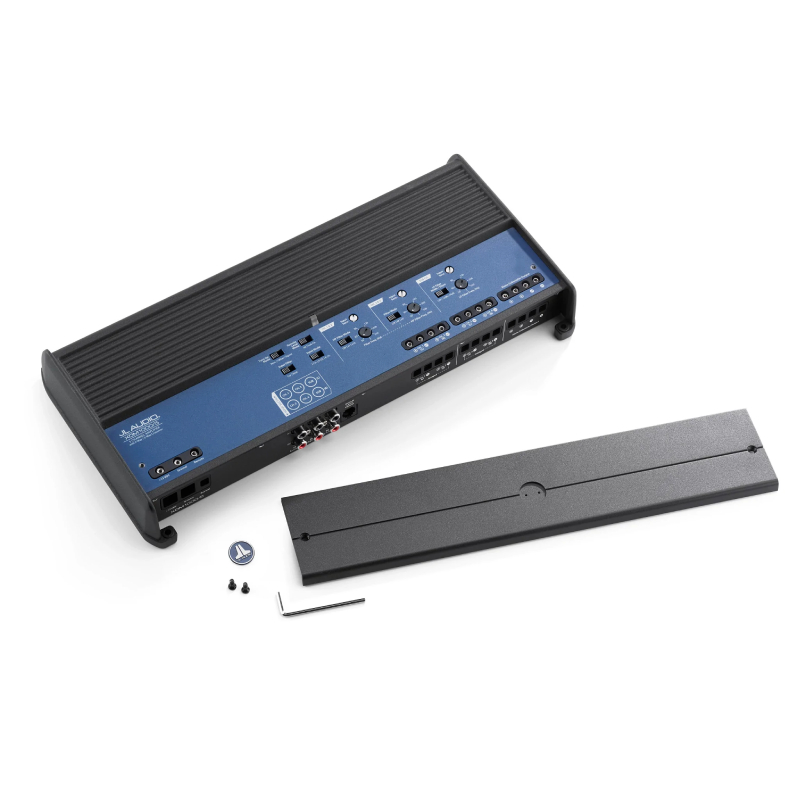

• Secure Control Panel Cover: Factory-installed protective cover prevents accidental adjustment while maintaining a clean installation appearance

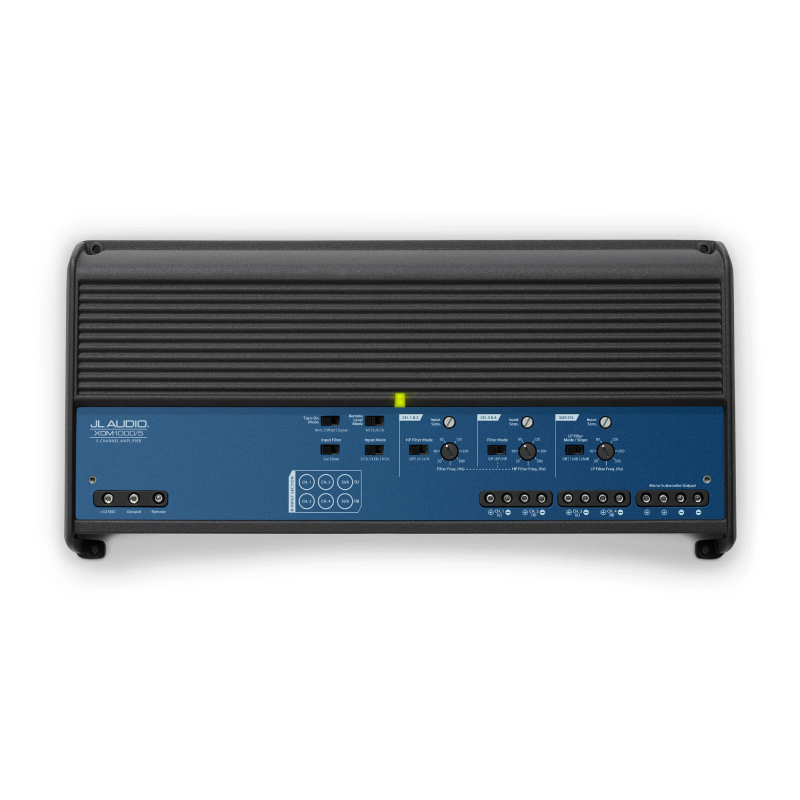

• Flexible Gain Adjustment: Three independent gain controls for channels 1&2, 3&4, and the subwoofer channel, adjustable by meter or by ear
• Interference-Reducing Input Filter: Selectable Car or Boat input filter modes help eliminate electrical interference
• Versatile Turn-On Options: Supports remote turn-on, DC offset sensing, or signal-sensing turn-on modes
• Selectable Remote Level Control Mode: Optional remote can control all channels or subwoofer-only output levels
• Multi-Input Configuration Support: Input mode selection supports 2-channel, 4-channel, or full 6-channel RCA input setups
• Precision Main Channel Crossovers: Adjustable crossover frequency from 50Hz–500Hz with selectable Off, Band-Pass, or High-Pass modes
• Adjustable HP Filter Scaling: High-pass filter supports Off, x1, or x10 frequency scaling for added tuning flexibility
• Subwoofer Crossover Control: Variable low-pass filter from 50Hz–500Hz with selectable Off, 12dB/oct, or 24dB/oct slopes

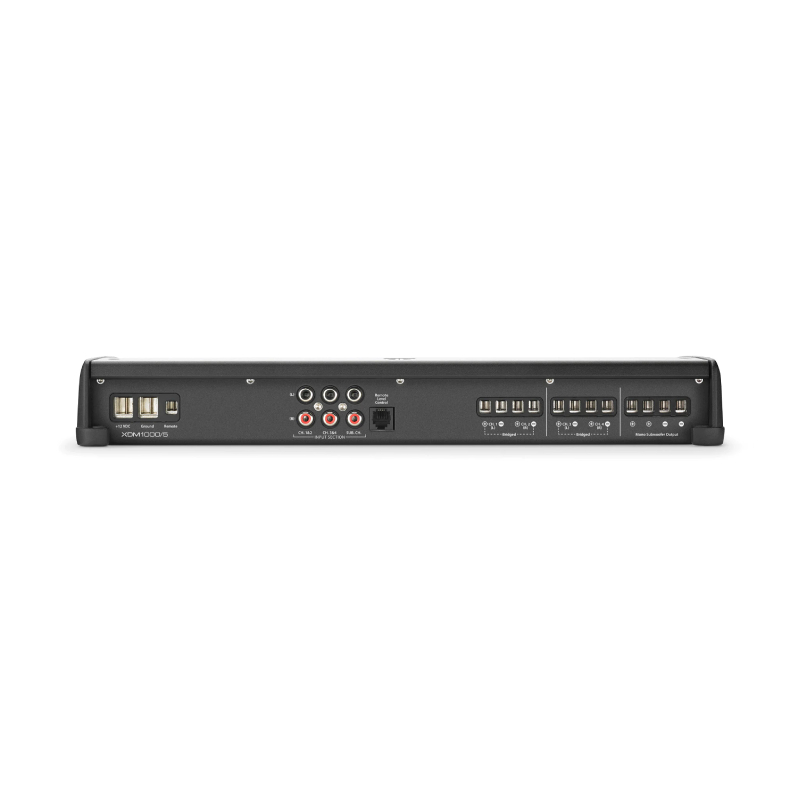

• Heavy-Duty Power Connections: Set-screw terminals accept 4 AWG power and ground wire with external 80-amp fuse required
• Flexible Speaker Outputs: Supports four full-range channels and dual parallel subwoofer outputs, accepting 16–8 AWG speaker wire
• Balanced RCA Preamp Inputs: Three pairs of differential-balanced RCA inputs support both preamp and speaker-level signals
• Buffered Preamp Outputs: Pass-through RCA outputs allow easy expansion to additional amplifiers without added noise
• Remote Level Control Ready: RJ-14 connector supports optional wired remote for convenient in-dash output adjustment

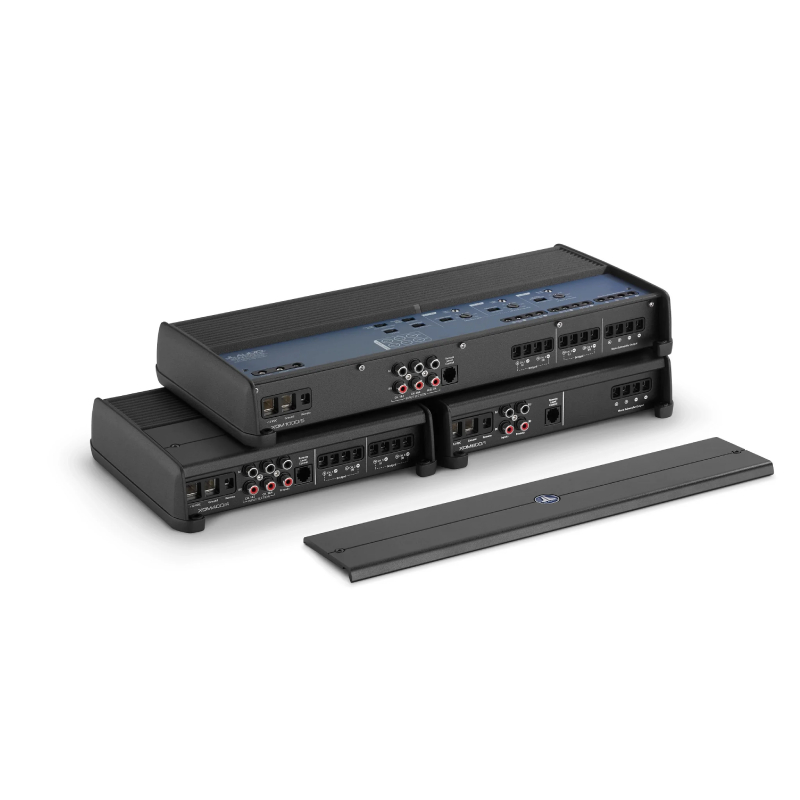

• System Expansion Friendly: Multiple XDM amplifiers can be controlled from a single remote using splitters and phone cables

Specifications:

• RMS Power Output: 75 W x 4 channels, 400 W x 1 channel
• Peak Power Output: N/A
• Power at 2 Ohms: 100 W x 4 channels
• Power at 1 Ohm: N/A
• Bridged Power: 200 W x 2 channels
• Minimum Impedance Bridged: 4 Ω
• Minimum Impedance Unbridged: 2 Ω
• Best Frequency Response: 12 Hz – 22 kHz
• THD at Rated RMS Power: 1%
• Signal to Noise Ratio: 104 dB
• Input Voltage: 14.4 V
• Amplifier Class: D
• Built-in DSP: No
• Remote Control: Optional
• Low-Pass Crossover Frequency: 50–500 Hz
• Low-Pass Slope: 12 or 24 dB/octave
• High-Pass Crossover Frequency: 50–500 Hz
• High-Pass Slope: 12 dB/octave
• Bass Boost: No
• Bass Boost Frequency: N/A
• Fan Cooled: No
• Fuse Rating: 80 A
• Speaker Level Inputs: Yes
• Preamp Outputs: No
• Width: 14-1/2"
• Height: 2"
• Depth: 7-1/8"

• UPC: 699440986786
• Weight: 8
