Alpine HDZ-653 Status Series 6.5" 100W RMS (300W Peak Power Handling) 3-way Component Speaker System
We are a Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

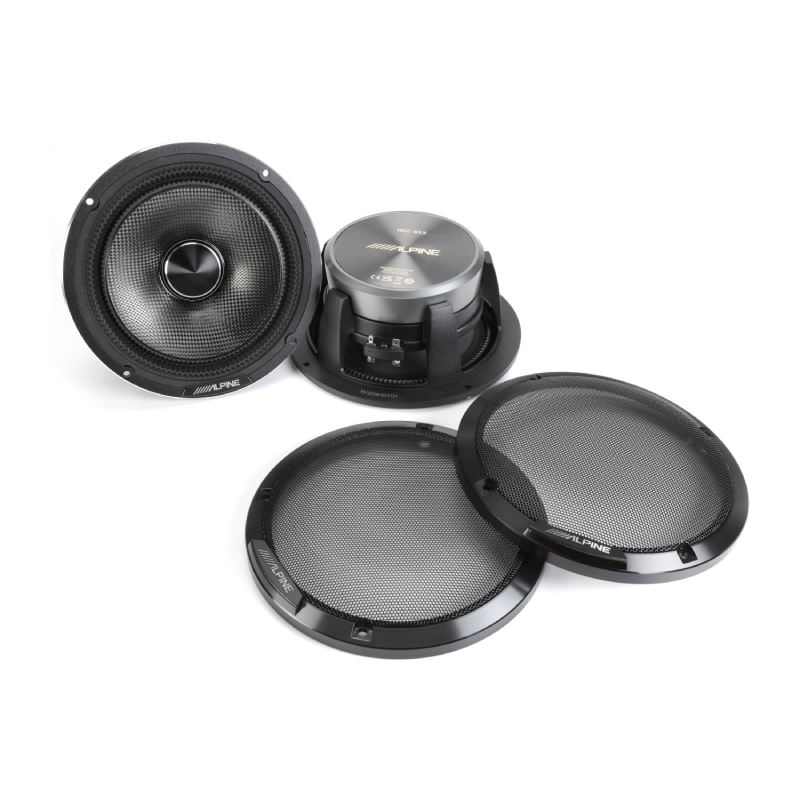

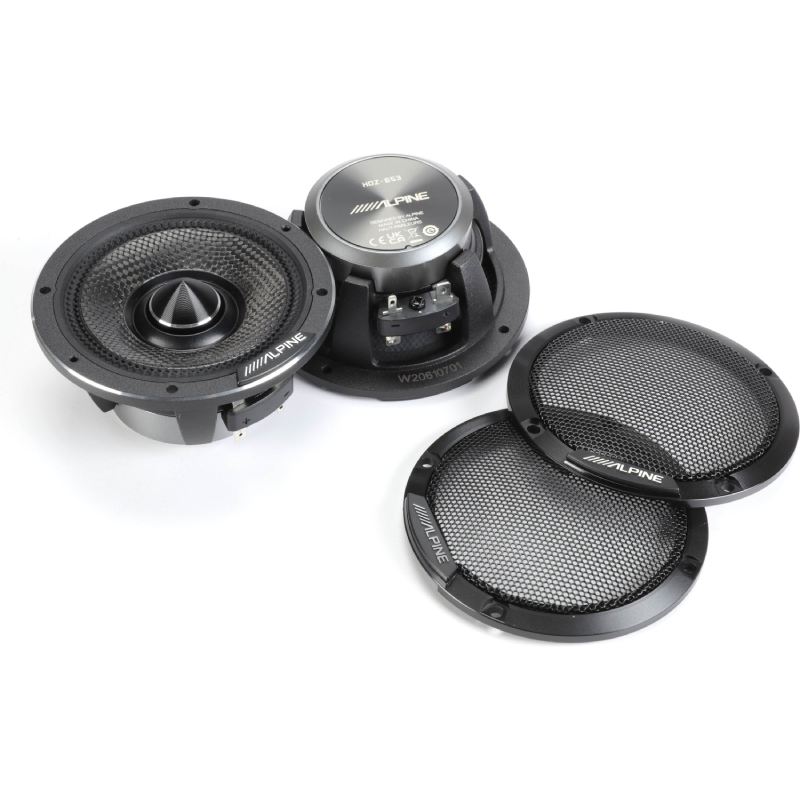

•(2) woofer grilles
•(2) midrange grilles

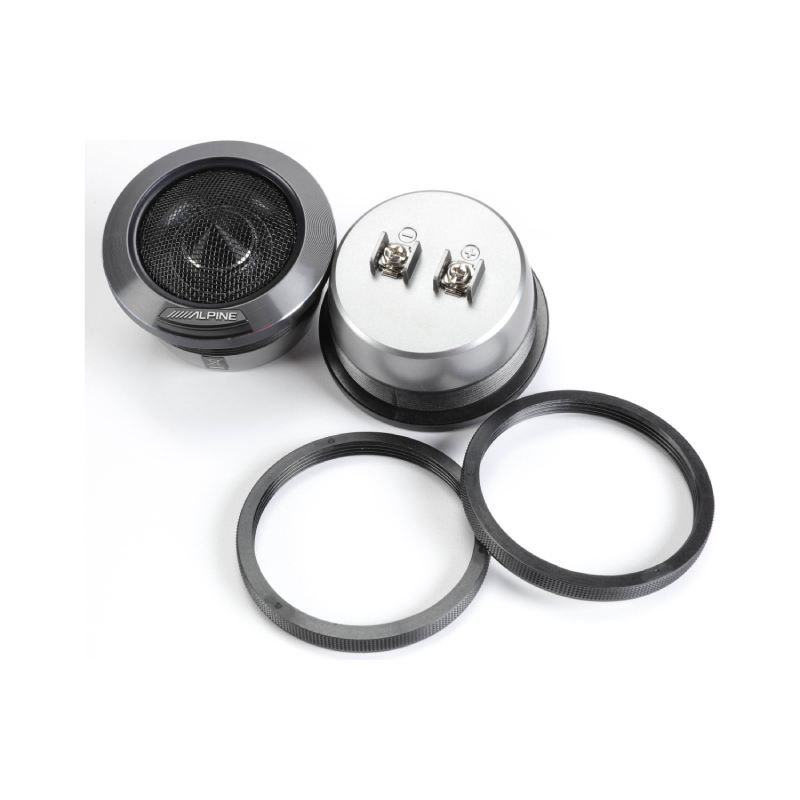

•(2) threaded tweeter mounting rings
•(8) M4 Screws (1-1/8")
•(16) M3 Screws (1-1/8")
•(8) flat washers
High-resolution Audio Playback
The Alpine HDZ-653 3-way component system is a true engineering marvel, designed to deliver exceptional audio performance in your car. Whether you're a discerning audiophile or a music lover, these speakers will take your listening experience to a new level.
High-resolution Audio Files
Featuring a powerful combination of a 6.5-inch woofer, a 3.5-inch midrange driver, and a 1.25-inch dome tweeter, the HDZ-653 creates a three-dimensional soundstage that envelops you in a captivating audio experience. Each driver is meticulously crafted to reproduce a specific range of frequencies with remarkable precision, resulting in rich, detailed sound reproduction across the entire spectrum.
Reducing Distortion and Maximizing Sound Accuracy
Alpine's patented double-gathered edge surround technology ensures optimal cone movement, reducing distortion and maximizing sound accuracy. The speakers are constructed with high-quality materials that enhance sound quality and durability, ensuring they can handle even the most demanding audio tracks.
Installation is Easy
Installation is easy with the included speaker grilles, mounting hardware, and versatile crossover network. The crossovers allow for precise sound tuning, enabling you to customize the audio output to suit your preferences and your vehicle's acoustics.
Diameter : 6.5 Inch
Sensitivity : 88 dB
Frequency Response : 55-40000 Hz
Peak Power Handling : 300 Watts
Woofer Composition : Carbon Composite
Tweeter Composition : Carbon Composite
RMS Power Handling : 100 Watts

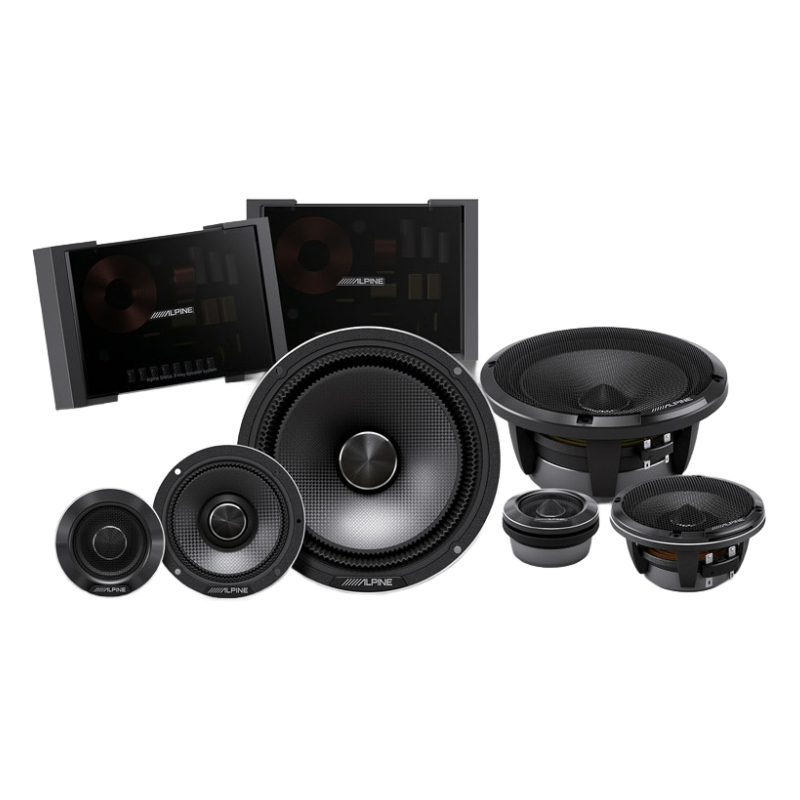

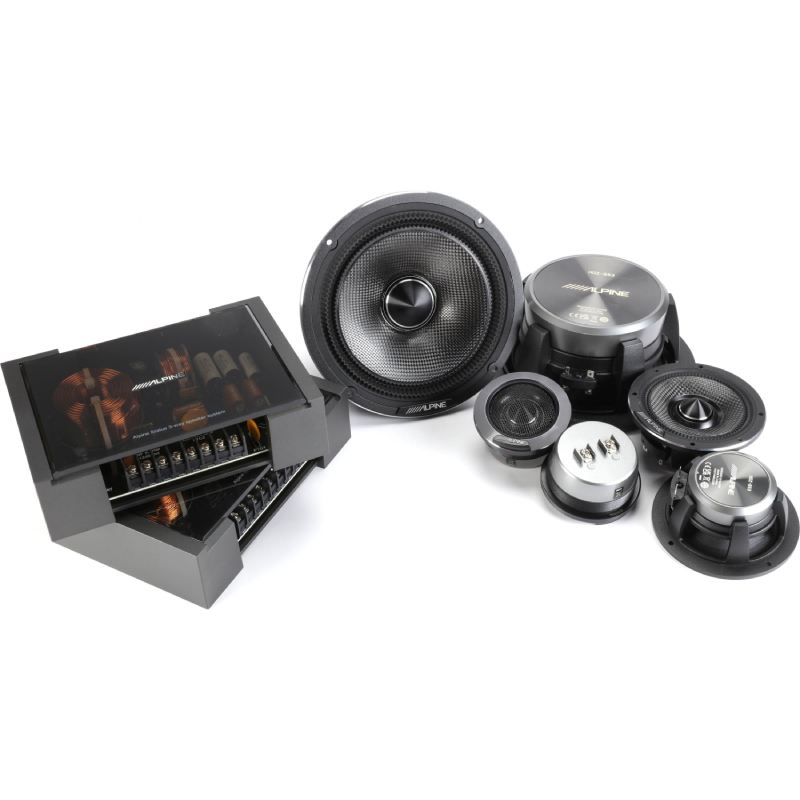

3-way component speaker system

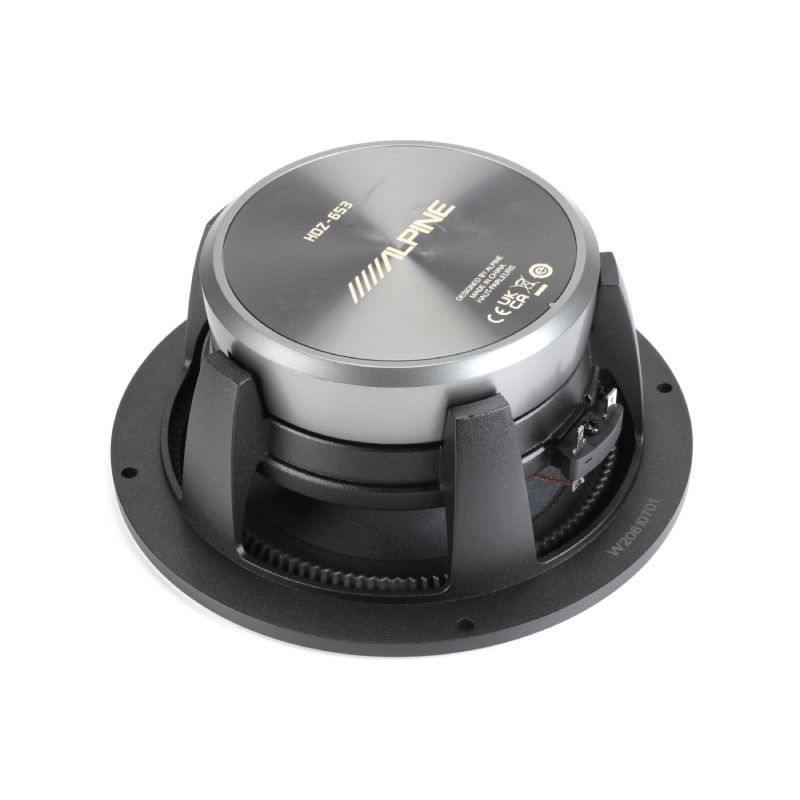

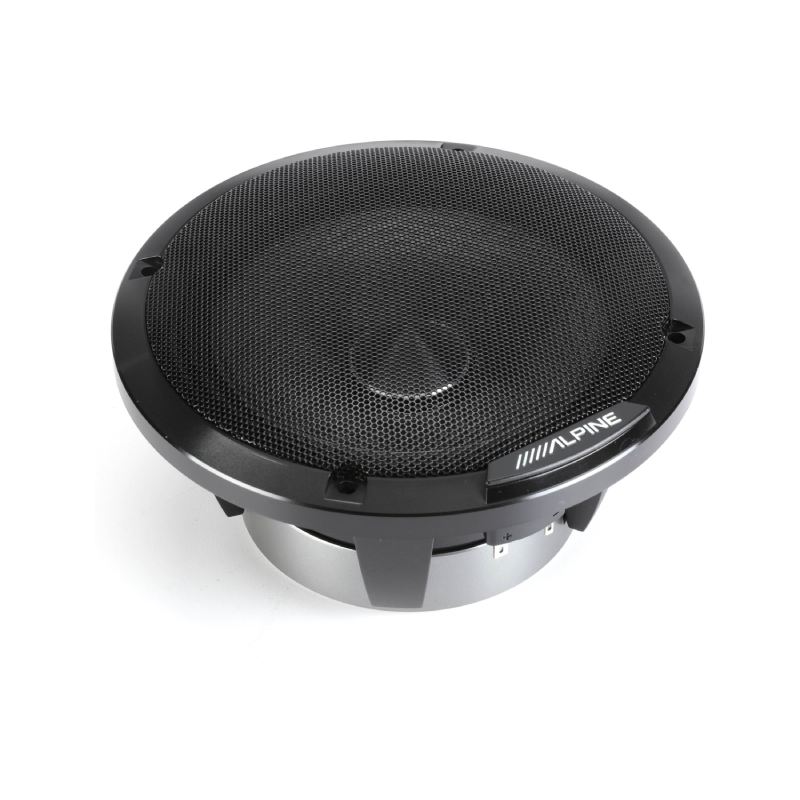

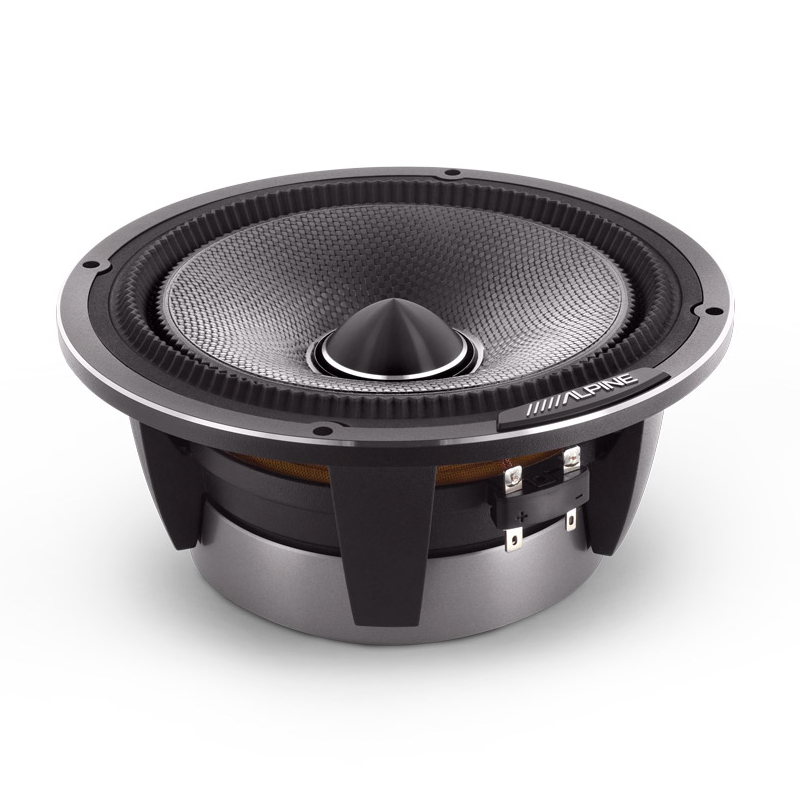

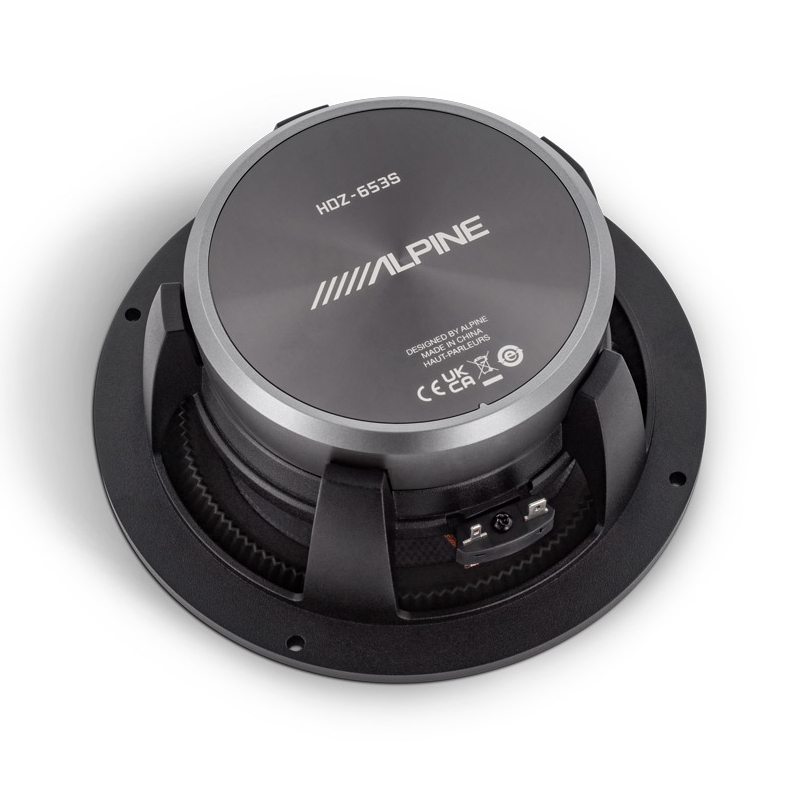

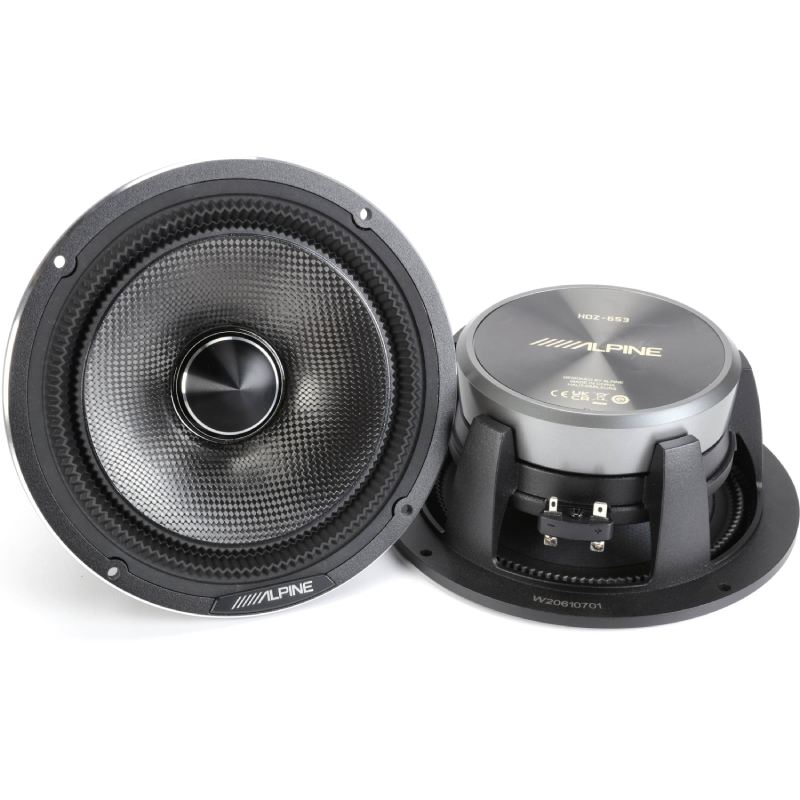

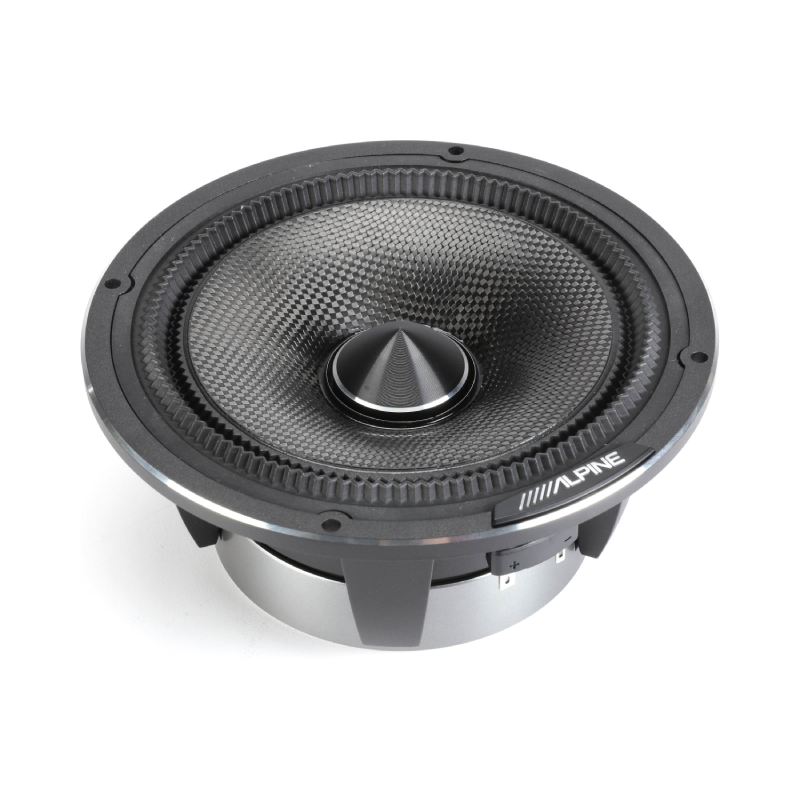

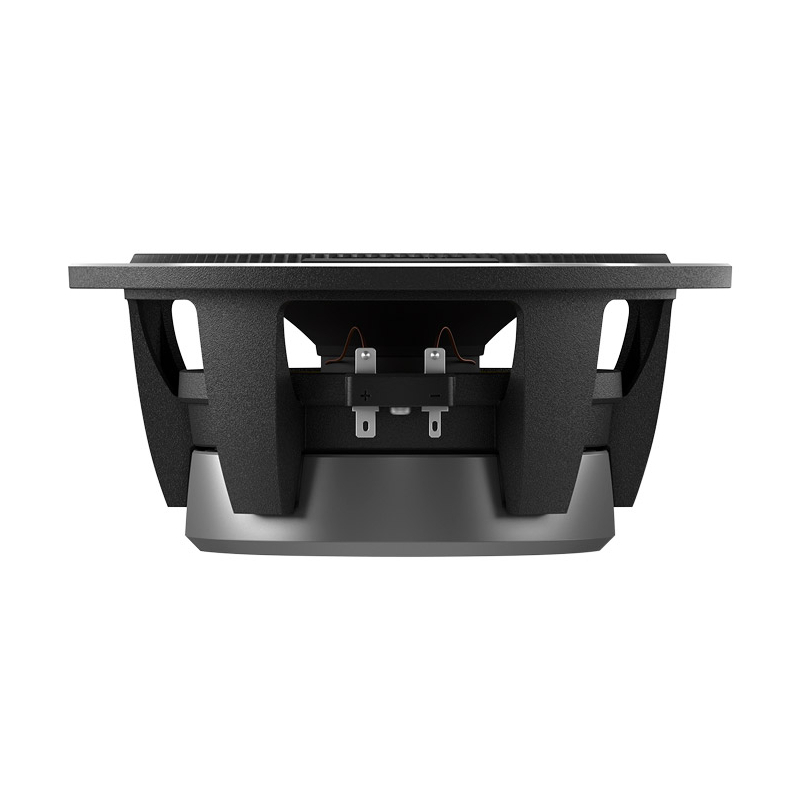

6-1/2" carbon composite woofer with double-gathered edge surround

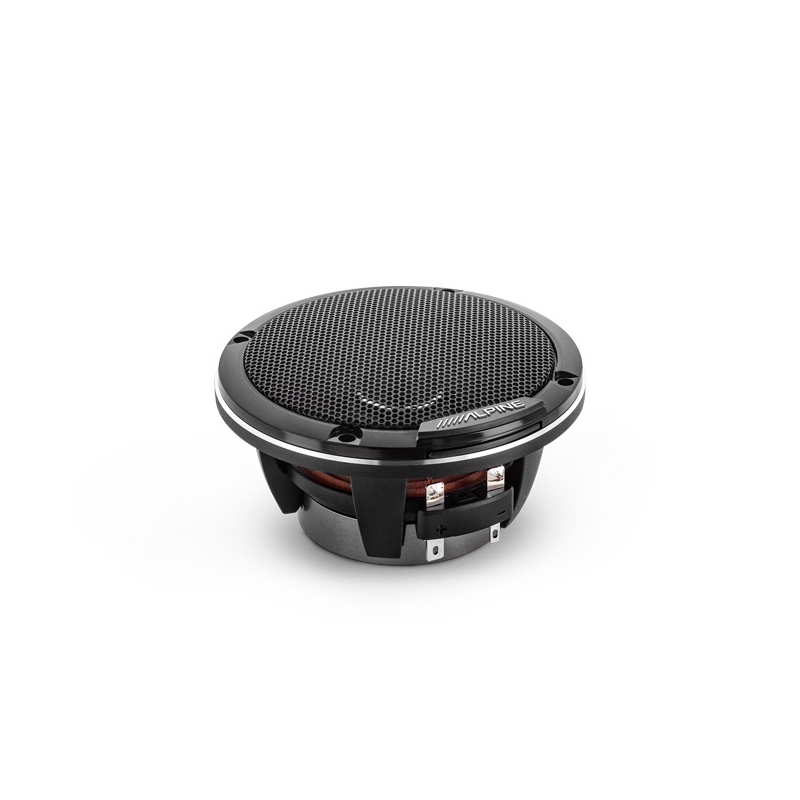

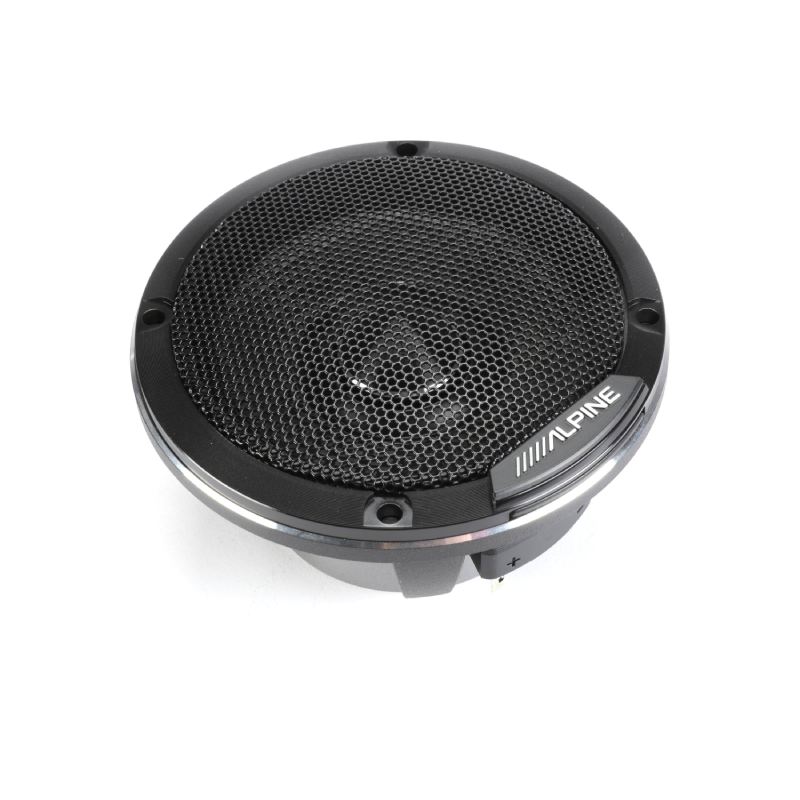

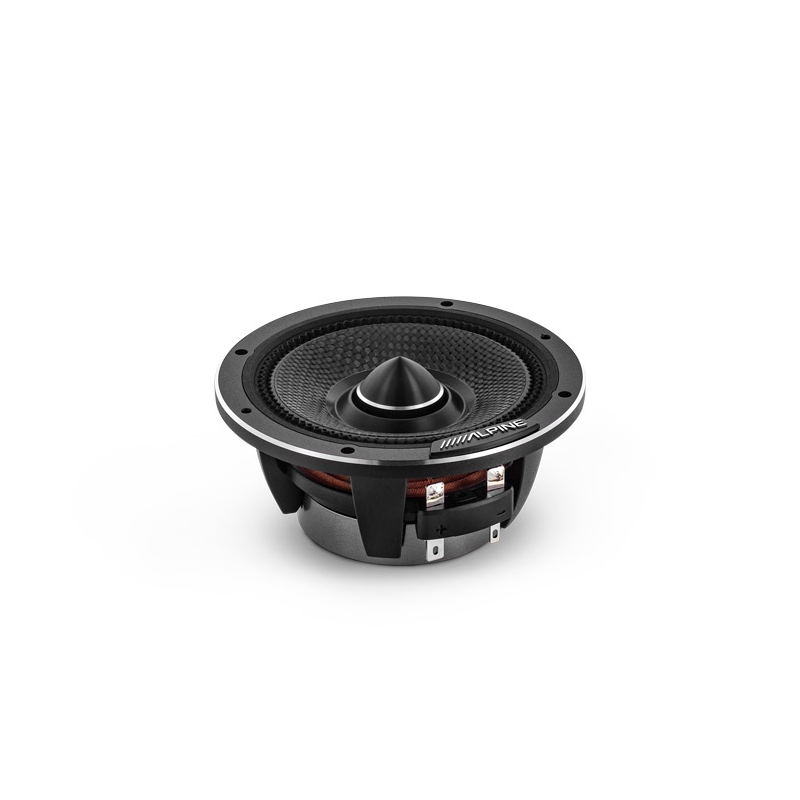

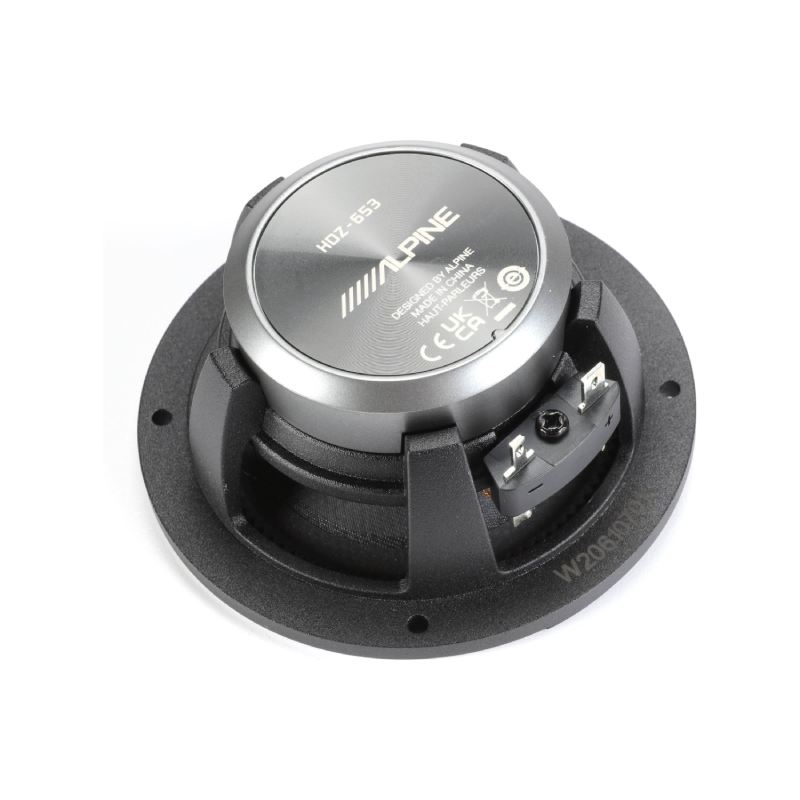

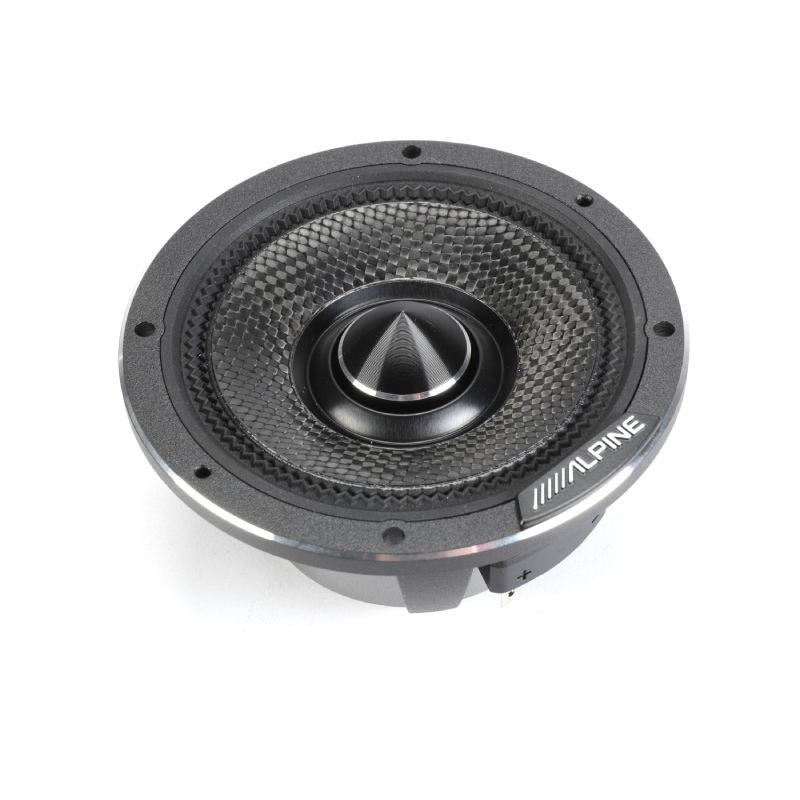

3-1/2" carbon composite midrange

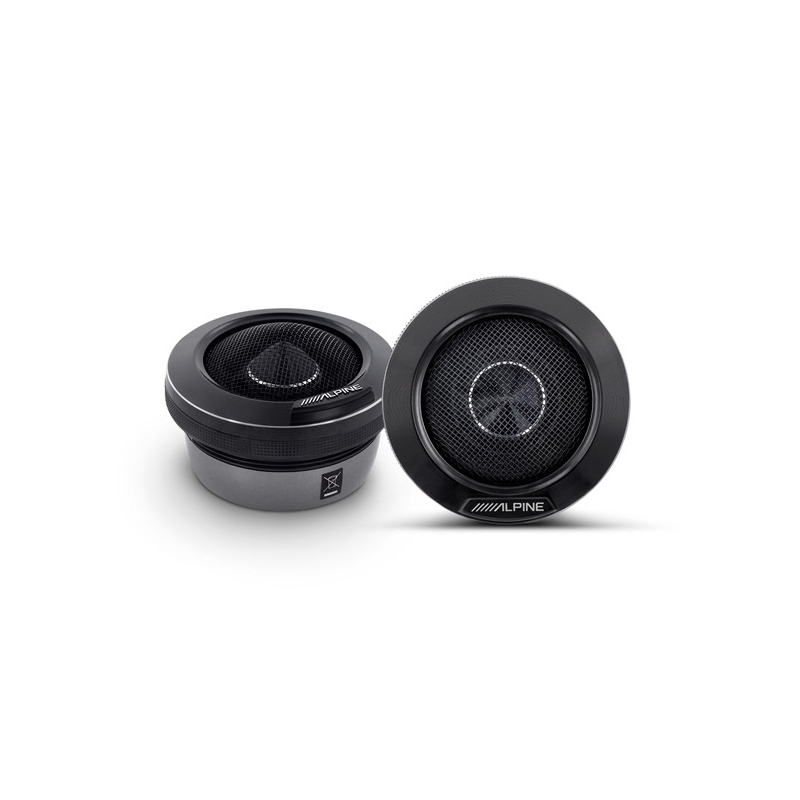

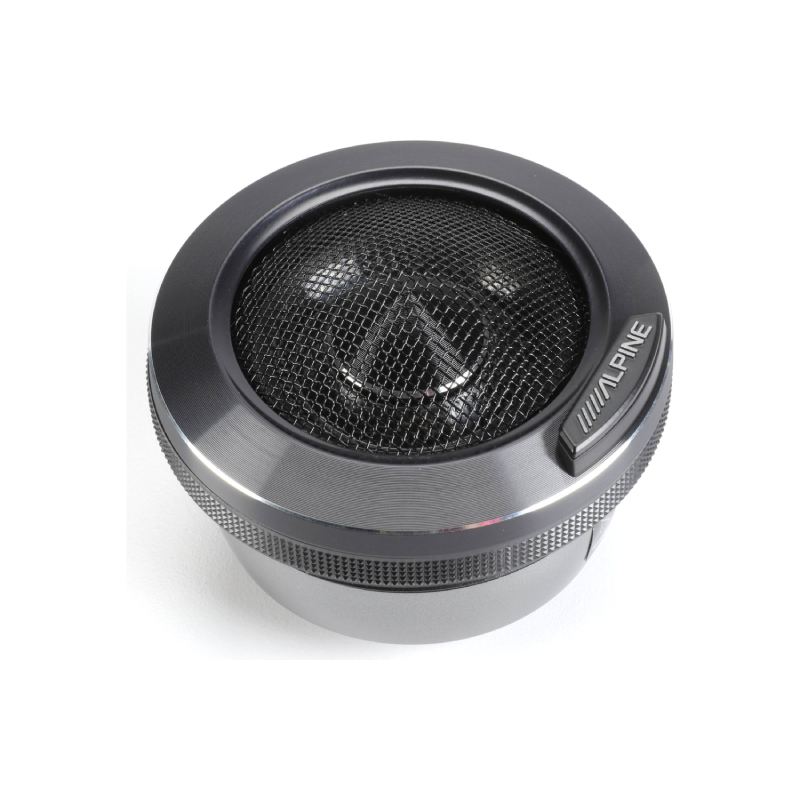

1-1/4" dome tweeter
handles up to 100 watts RMS (300 watts peak power)
frequency range: 55-40,000 Hz
sensitivity: 88 dB
Speaker Size: 6 1/2
Tweeter Design: Cone
Impedance (Ohms): 4
Tweeter Composition: Carbon Composite
Woofer Composition: Carbon Composite
Woofer Surround: Rubber
Parts Warranty: 1 Year
Labor Warranty: 1 Year
Sensitivity (1W at 1 meter): N/A
Sensitivity at 2.83 volts: 88
Frequency Response: 55 - 40k Hz
Minimum RMS Wattage: ---
Maximum RMS Wattage: 100
Peak Power Handling (Watts): 300
Top-mount Depth (Inches): 2 11/16
Bottom-mount Depth (Inches): N/A
Cutout Diameter or Length (inches): 5 9/16
Mounting Height (Inches): 0.35
Mounting height: 0.358"
Flange height: 0.192"
Cutout diameter: 3.087"
Frame diameter: 3.778"
Grille diameter: 3.7"
Grille height: 0.5"

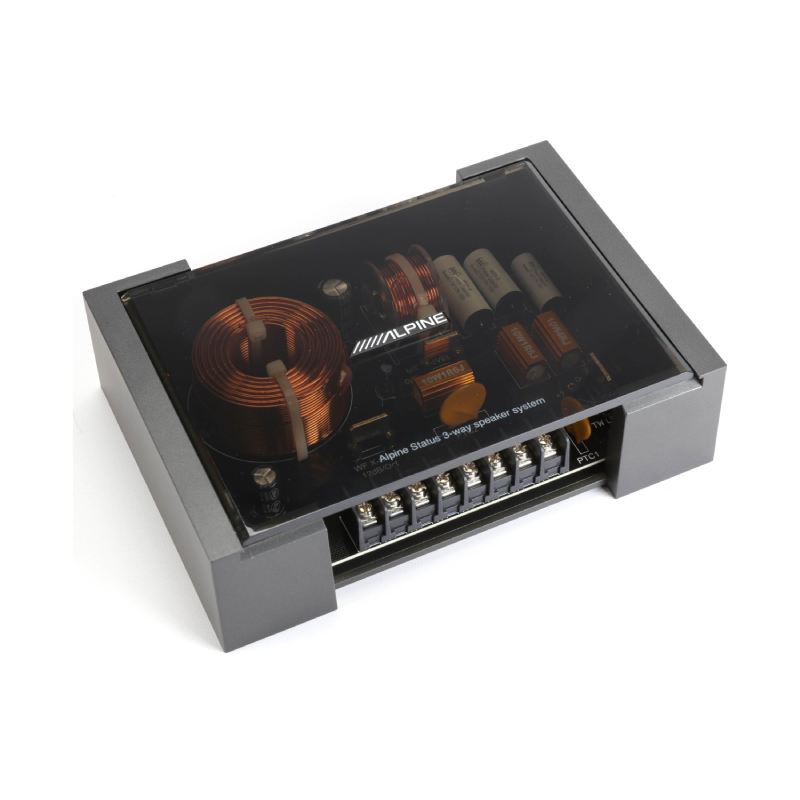

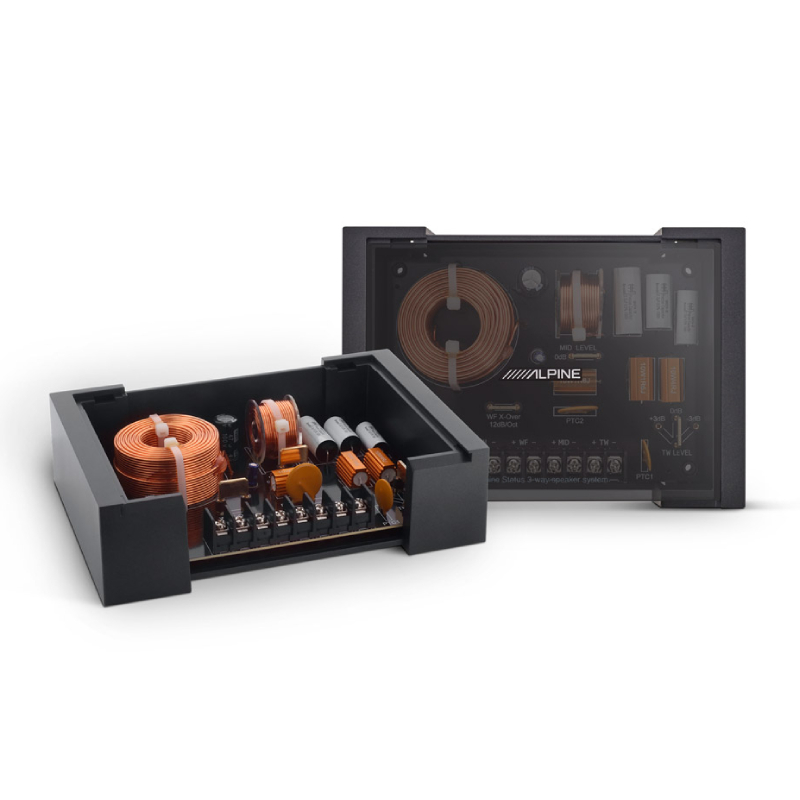

Tweeter Output Level: three jumper positions; choose -3 dB, 0 dB (flat), or +3 dB
Midrange Output Level: two jumper positions; choose 0 dB (flat) or -3 dB
Crossover Slope: two jumper positions; choose 12 dB/octave or 6 dB/octave

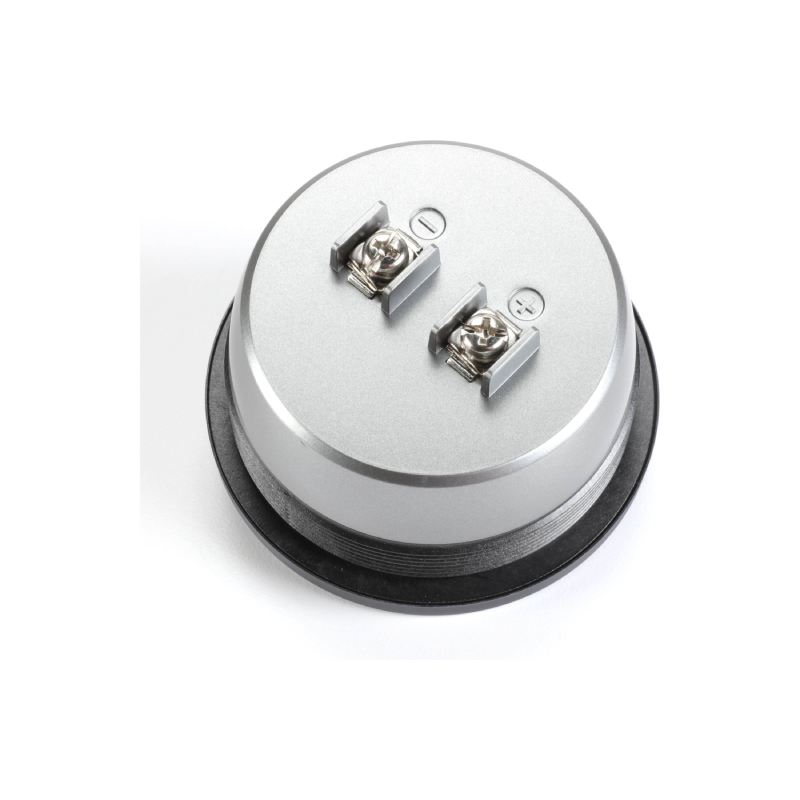

Wire Connections: inputs and outputs are screw terminals; accept bare wire or spade connectors up to 0.315" wide (no wire is included with the speakers)
Depth: 5.04" (plus wire)
