Pioneer  GM-D8701

1600W Max Power Class-D 1-channel Monoblock Amplifier

Item #89671

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:

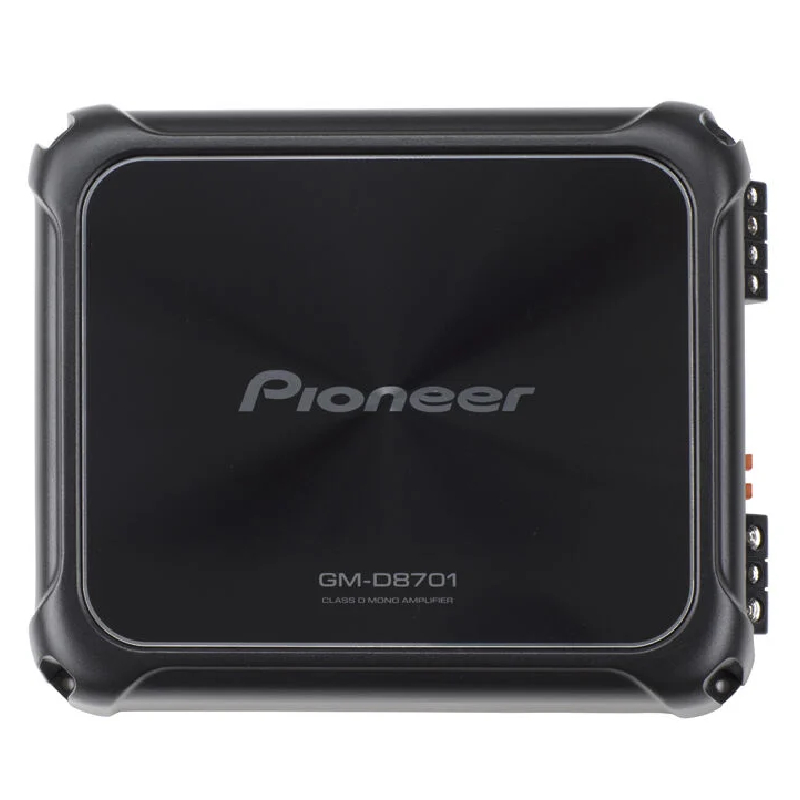

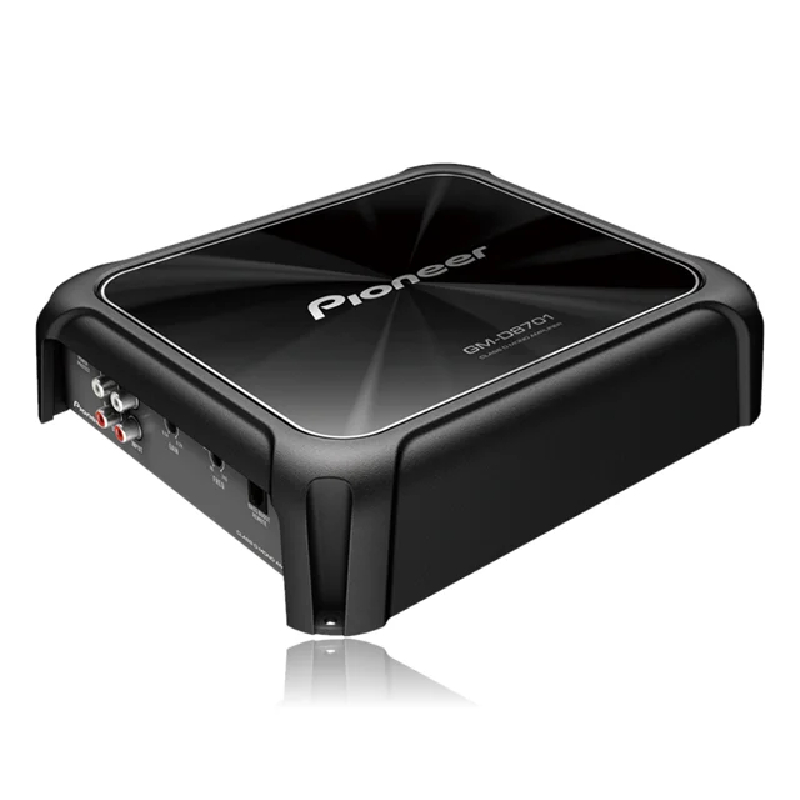

Pioneer GM-D8701 Digital Series Class-D 1-channel Monoblock Amplifier


We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Monoblock Amplifier
  • • (2) 40 A ATO fuses (installed)

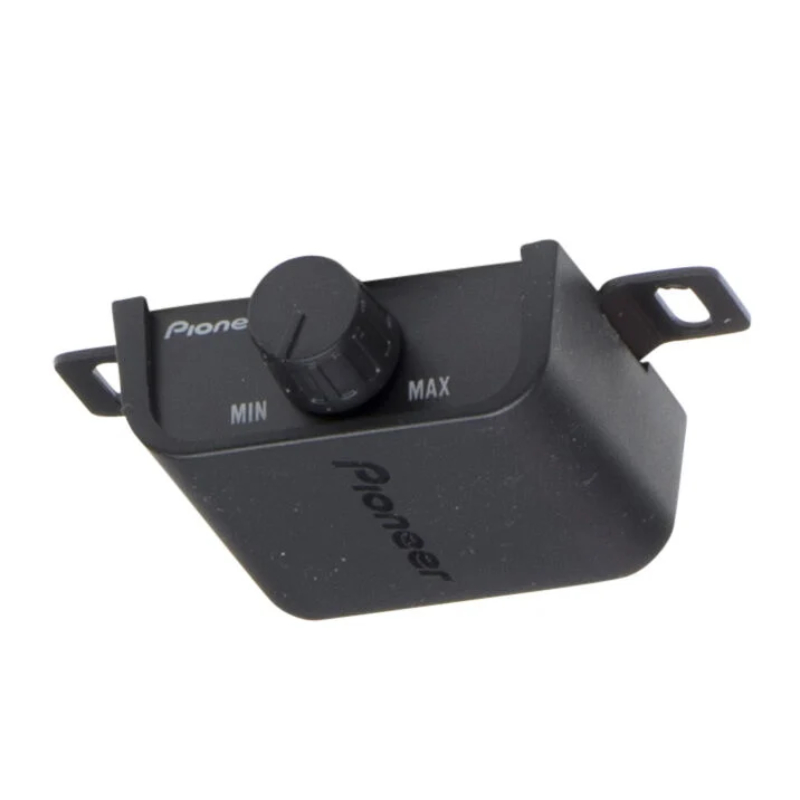

  • • Bass Boost Remote Control
  • • Bass Boost Remote Control Cable
  • • Speaker Level to RCA Input Adapter
  • • (4) Installation Screws
  • • Wire Terminal Tool
  • • 1 Year Warranty Sheet
  • • Owner's Manual
Big Power, Small Size

Pioneer’s extra-efficient Class-D amplifiers mark a dramatic improvement in power output capability, yet are 50% smaller than the current GM-Series Class-AB amplifiers. That makes them more versatile in terms of installation as well as performance.

Protection Control System (PCS)

Pioneer’s PCS continuously monitors the input voltage, current consumption, and operating temperature to automatically adjust the amplifier’s output to ensure operational stability during long listening sessions or when installed in high-temperature environments.




SPECIFICATIONS


  • Maximum Power : 1600 Watts
  • Number of Channels : 1
  • Frequency Response : 10-240 Hz
  • Amplifier Class : D
  • Fuse Rating : 40x2 A

FEATURES


Features:

  • Speaker Level Input: Yes
  • Fuse Rating: 40A x 2
  • Bass Boost Remote: Yes
  • Automatic Signal Sensing and Turn-On: Yes
  • Hi-Volt Input Level Control: 200 mV to 6.5 V
  • Terminal Type: Block
  • Load Impedance Allowance (Ohms): 1 to 8
  • Protection Control System: Yes
  • Dimensions: 252mm (W) x 60mm (H) x 215mm (D)
  • Continuous Power (RMS) Output: @ 1? 800W RMS x 1
  • Continuous Power (RMS) Output: @ 2? 500W RMS x 1
  • Continuous Power (RMS) Output: @ 4? 300W RMS x 1
  • Low-Pass Crossover Frequency: 40 Hz
  • Low-Pass Slope (dB/octave): -12dB
  • Bass Boost Frequency: 50 Hz
  • Bass Boost Level: 0 dB to 18 dB
  • Frequency Response: 10 Hz to 240 Hz
  • Total Harmonic Distortion (THD): < 0.5% (100 Hz)
  • Signal-to-Noise (SN) Ratio: > 100 dB
  • UPC: 884938421874
  • Weight: 6
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
