JL Audio  M7-12IB-C-GwGw-i-4

M7 Series 12" 600W Peak Power Handling 4 Ohms, Marine Subwoofer

Item #89686

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


JL Audio Banner for Onlinecarstereo

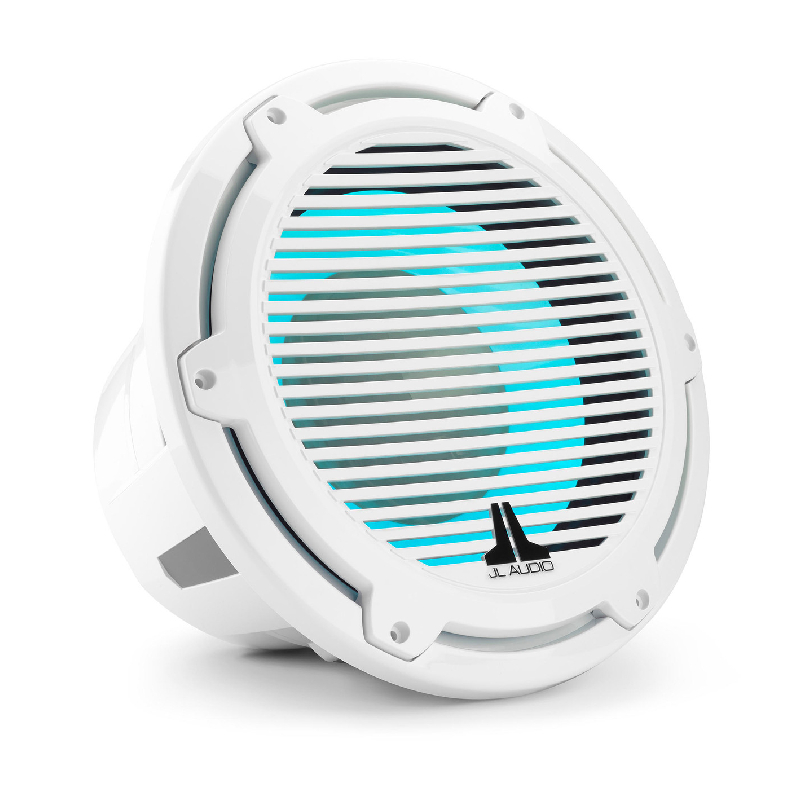

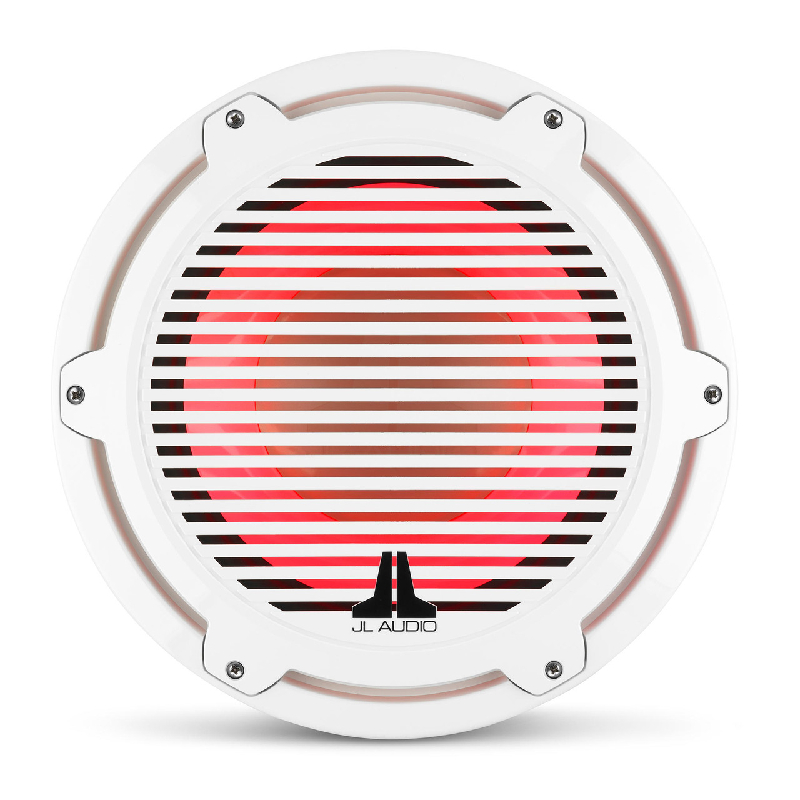

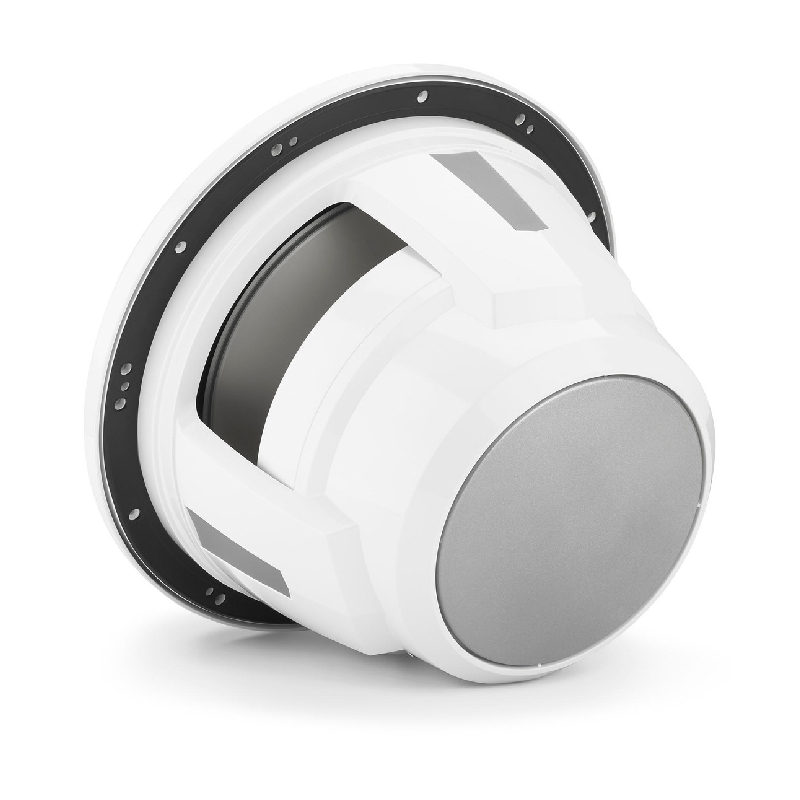

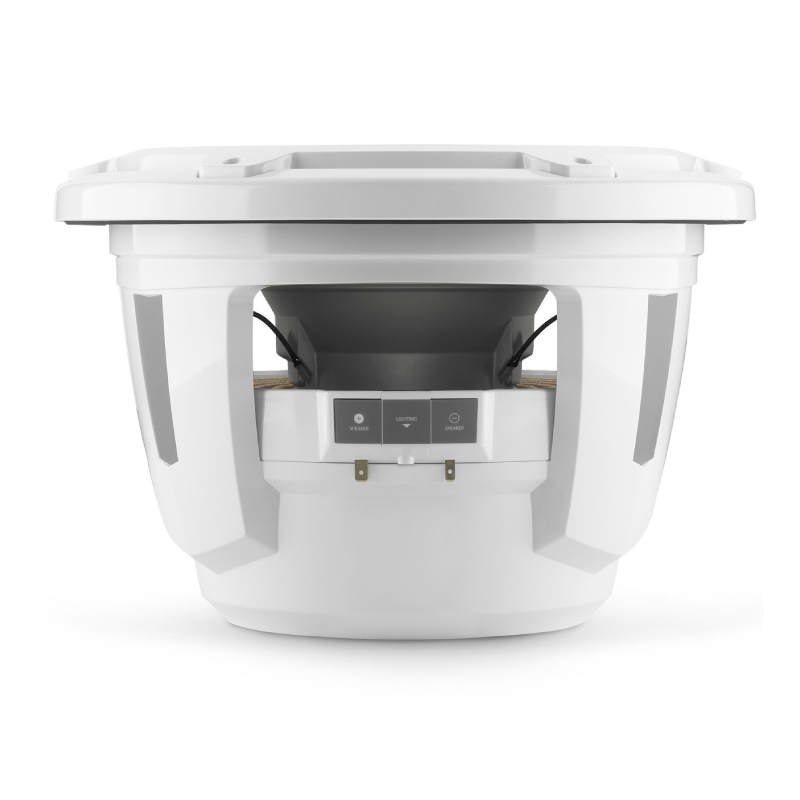

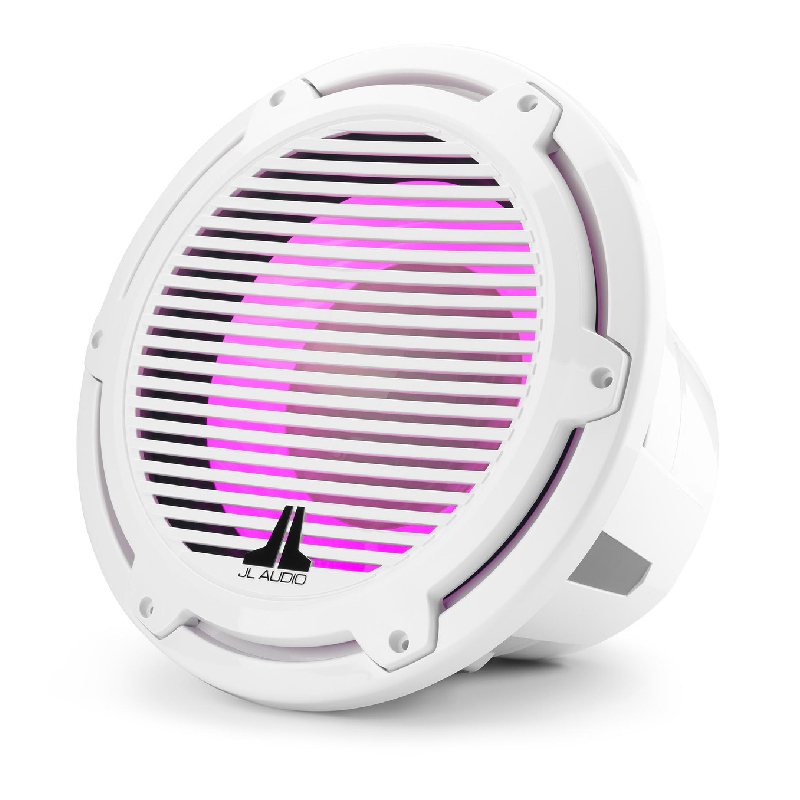

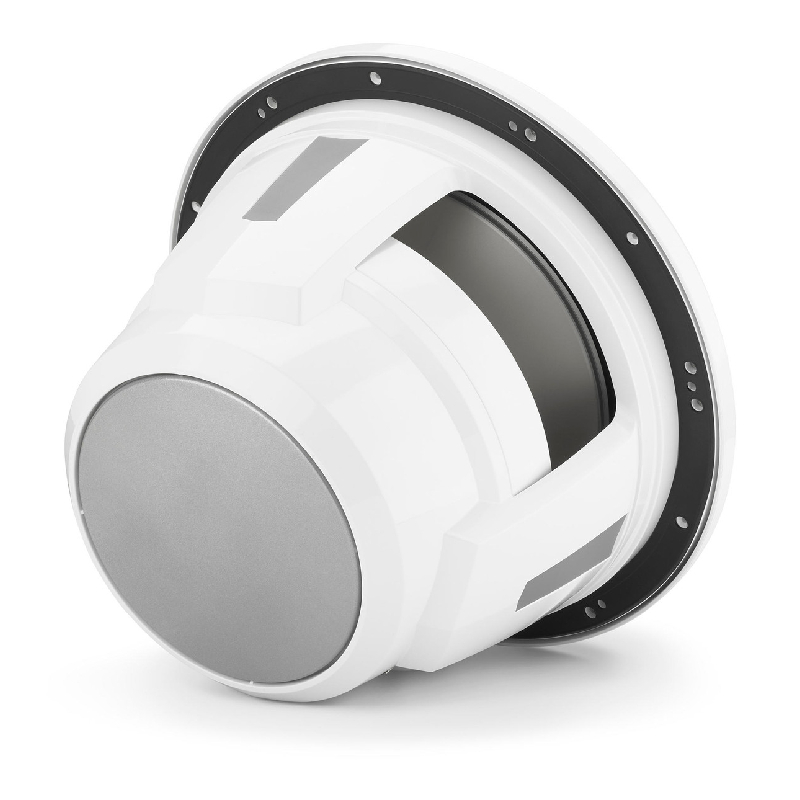

JL Audio M7-12IB-C-GwGw-i-4 12" 4 Ohm Marine Subwoofer


We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •12" 300W RMS Marine Subwoofer
  • •Owner's manual





Built to Withstand a Real Saltwater Marine Environment

Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment. The patent-pending Transflective™ RGB LED technology emits a smooth lighting effect through the woofer cone, with a choice of several lighting colors. Add an optional RGB controller to create thousands of color variations. Professional installation is strongly recommended.


SPECIFICATIONS


  • Diameter : 12 Inch
  • Impedance : 4 Ohm
  • RMS Power Range : 300 Watts
  • Peak Power Handling : 600 Watts
  • Color : White
  • Mounting Depth : 7.94 Inches
  • Free Air : 35.34 Hz

FEATURES


Features:

  • JL Audio M7-12IB-C-GwGw-i-4 12-inch (300 mm) Marine Subwoofer Driver with Transflective™ LED Lighting, Gloss White Trim Ring, Gloss White Classic Grille, 4 Ω
  • Engineered as the reference standard for marine subwoofer performance, the M7-12IB is capable of producing staggering amounts of jaw-dropping bass in infinite-baffle applications.
  • Built to withstand real-world marine duty, this M7-12IB is designed to operate without a dedicated enclosure. It boasts a monstrous 4-inch voice coil and rugged suspension system to deliver outstanding linear excursion for high output and power handling.
  • M7-12IB is best used with amplifier power in the 200W – 600W range and is optimized to operate with a large volume of air behind it (at least 3 cu. ft. / 84.95 l).
  • Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.
  • The patent-pending Transflective™ RGB LED technology emits a smooth lighting effect through the woofer cone, with a choice of several lighting colors. Add an optional RGB controller to create thousands of color variations. Professional installation is strongly recommended.



Specifications:

  • Continuous Power Handling (RMS): 600 W
  • Nominal Impedance (Znom): 4 Ω
  • Nominal Diameter: 12.00 in / 300 mm
  • Overall Diameter: 14.00 in / 356 mm
  • Bolt Hole Circle Diameter: 12.813 in / 325 mm
  • Frontal Grilles Protrusion*: 1.45 in / 37 mm
  • Mounting Hole Diameter: 12.0625 in / 306 mm
  • Mounting Depth: 7.94 in / 202 mm
  • Driver Displacement: 0.148 cu ft / 4.19 L
  • Free Air Resonance (Fs): 35.34 Hz
  • Electrical “Q” (Qes): 0.856
  • Mechanical “Q” (Qms): 10.389
  • Total Speaker “Q” (Qts): 0.791
  • Equivalent Compliance (Vas): 1.99 cu ft / 56.35 L
  • One-Way Linear Excursion (Xmax)*: 0.73 in / 18.5 mm
  • Reference Efficiency (no): 0.28%
  • Efficiency (1 W / 1 m)**: 86.7 dB SPL
  • Effective Piston Area (Sd): 80.54 sq in / 0.052 sq m
  • DC Resistance (Re): 3.543 Ω
  • UPC: 699440936705
  • Weight: 25.35
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
