Alpine  KTA-30FW-OB

75W RMS x 4 00W @2/4Ohms Class D 4-Channel Tough Power Pack Car Amplifier

Item #89704

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Alpine Banner for Onlinecarstereo

Alpine 4-Channel Tough Power Pack Car Amplifier

Alpine_iLX-407

We are an Alpine authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 4-Channel amplifier
  • • 14" Power/signal harness (26-pin connector on one end and bare wires + RCAs on other end)
  • • (4) Self-tapping screws (Length 3/4")
  • • Connection sheet
  • • Limited Warranty sheet
Alpine_KTA-30FW

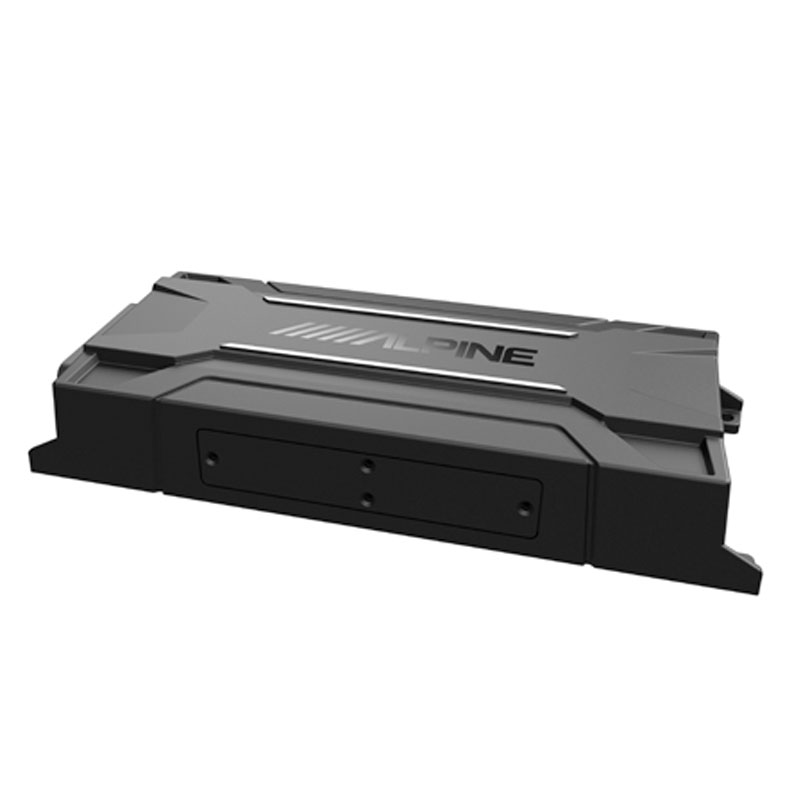

A SOUND SYSTEM BOOST WITHOUT THE BIG SPACE COMMITMENT

The KTA-F30W is perfect for when you want to boost your sound system but don’t have the space for a large amplifier. It is compatible with an aftermarket or factory head unit and adds up to 4 times the power over the head unit's original built-in power.

DYNAMIC PEAK POWER

The KTA-30FW features Alpine’s exclusive Dynamic Peak Power (DPP) technology which uses a new dynamic power supply design that delivers bursts of power during rigorous musical passages. When the amplifier senses that more power is required, the power supply quickly increases the internal gain level, effectively doubling the power for a significant increase in dynamic range at high music volumes.



Alpine_KTA-30FW
Alpine_KTA-30FW
WEATHER RESISTANT FORMAT

The KTA-30FW is ready for your adventures. It is weather resistant, rated at IP66 for protection again dust ingress and high-pressure water spray. The KTA-30FW features a rugged chassis and high-quality waterproof connector so it can be used in installations where it will be exposed to the elements, like side-by-sides, boats, open-top vehicles, and motorcycles.

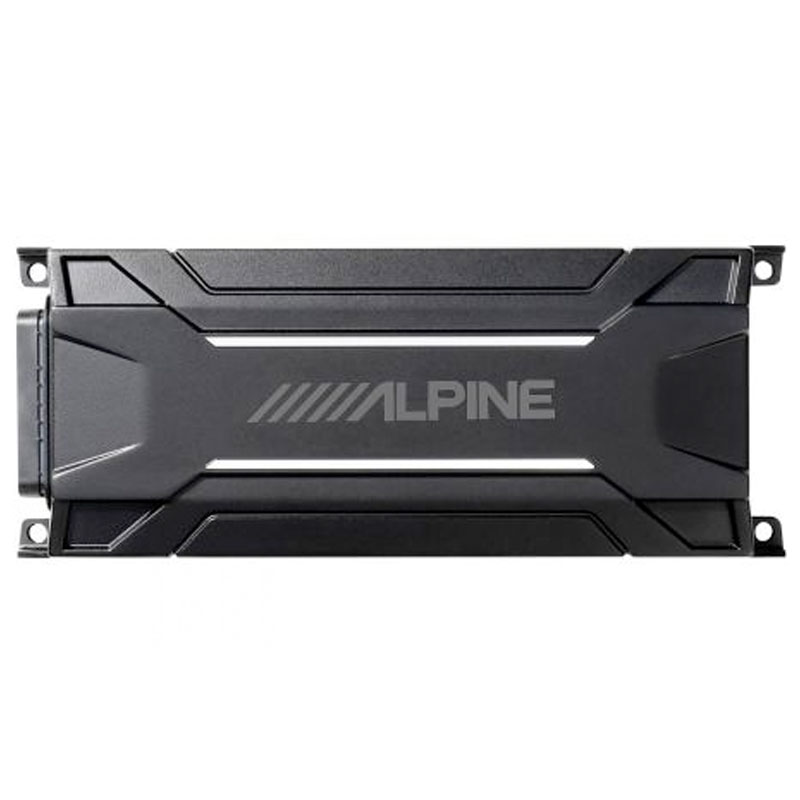

HALF THE SIZE OF OUR SMALLEST TRADITIONAL AMPLIFIERS

The KTA-30FW measures just 9-3/16" (W) x 1-5/8" (H) x 3-3/4" (D), so its small footprint lets it fit where most amplifiers won't. The KTA-30FW can be tucked away under the dash or in the glove compartment, installed under the dash of a side-byside, placed in the saddlebag of a motorcycle, or used in other places where space is an issue.



Alpine_KTA-30FW

SPECIFICATIONS


  • Maximum Power : 300 Watts
  • Number of Channels : 4
  • Frequency Response : 15-36000 Hz
  • Amplifier Class : D
  • Fuse Rating : 30 A
  • Promo : Yes

FEATURES


Features:

  • Alpine's Class D amplifier circuit with Dynamic Peak Power (D.P.P.)
  • Weather resistant (IP66 rating)
  • 150W x 4 D.P.P. (2Ω/4Ω, 14.4V, ≤ 1% THD+N)
  • CTA-2006-B Specifications: 75W RMS x 4 (2Ω/4Ω, 14.4V, ≤ 1% THD+N)
  • 82dB S/N (ref. 1W into 4Ω)
  • >0.05% THD
  • OEM-grade Tyco 26-pin connector with pigtail wire harness
  • Speaker/RCA inputs (Selectable, High range=0.5-10V, Low range=0.2-4V)
  • Crossovers: Off/HP/LP, Fc=50-400Hz @ -12dB/Oct. (variable)
  • Input gain settings (variable)
  • 2ch/4ch input (selectable)
  • UPC:
  • Weight: 5
  • Authorized Internet Dealer
Warranty: 90 Days Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
