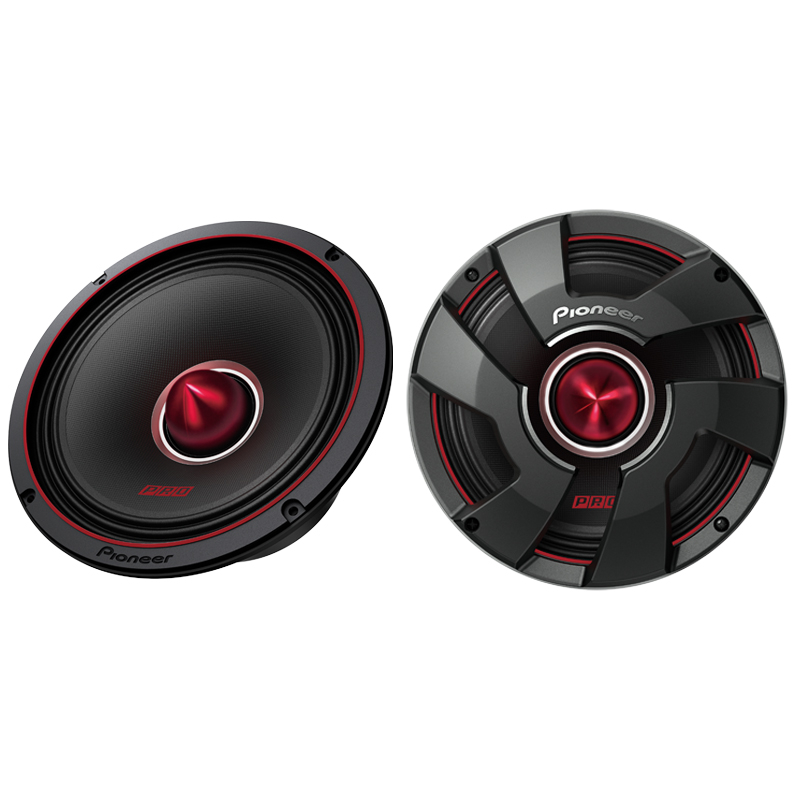

Pioneer TS-M801PRO PRO Series 8" 200W RMS, 700W Max Power @4 ohms Lightweight & Rigid Pulp Cone Mid-Bass Driver
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • PRO Series 8" Mid-Bass Driver
- • Owner's Manual
Precision Mid-Bass for Professional Audio Excellence
The Pioneer TS-M801PRO, an 8-inch mid-bass driver in Pioneer's PRO Series, is tailored for professional audio use like sound reinforcement, DJ setups, and stage monitoring. It features a lightweight yet rigid pulp cone for precise and powerful mid-bass playback, maintaining low driver weight.
Powerful Performance, Unleash the Sound
The TS-M801PRO boasts a 200W RMS power rating and can manage up to 700W max power, enabling robust and vibrant sound production. It features a 4-ohm impedance, which influences current flow and impacts performance.
- Diameter : 8 Inch
- Sensitivity : 96 dB
- Impedance : 4 Ohm
- Frequency Response : 40-15000 Hz
- Peak Power Handling : 700 Watts
- RMS Power Handling : 200 Watts
Features:
- 700 Watts Max Power (200 Watts Nominal)
- Lightweight & Rigid Pulp Cone
- Designed for High Sensitivity and High Power Handling
Specifications:
- System Type: Mid-Bass Driver
- Sound Pressure Level (Sensitivity): 96 dB
- Frequency Range: 40 Hz to 15 kHz
- Continuous Power Handling (RMS): 200 Watts
- Maximum Peak Power Handling: 700 Watts
- Nominal Impedance: 4 ohms
- Shape: Round
- Size: 8"
- Cone Material: Lightweight/ Rigid Pulp
- Surround Material: Cloth
- Surround Type: Corrugated
- Basket Material: Stamped Metal
- Magnet Material: Ferrite
- Magnet Weight: 38.0 oz
- Voice Coil Bobbin: Glass imide
- Voice Coil Wire: Copper-clad Aluminum
- Diaphragm Material: Polycotton
- Wire Terminals: Lug Type
- Unit Size (mm - in.): 208mm - 81/4"
- Mounting Depth (mm - in.): 93mm - 3-5/8"
- Cut Out Dimensions (mm - in.): 184mm - 7-1/4"
- UPC: 884938510844
- Weight: 34
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
